UNV Technology USA LLC | SKU:
IPP-465
18% off

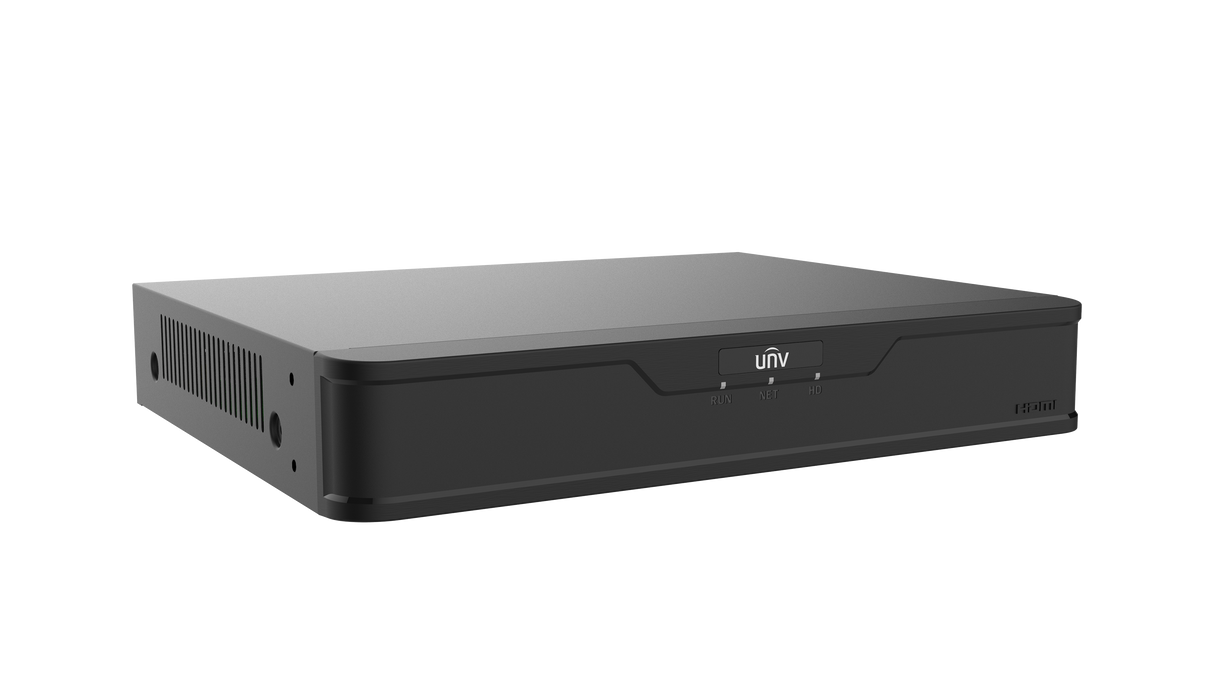

XVR301-08G3
$17900 USD
$21900
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability
XVR301-08G3
$17900 USD
$21900
Unit price
/
Unavailable
XVR301-08G3
Support H.265/H.264 video formats
Support audio over coaxial cable (only for TVI cameras)
Control the dual-light of UNV analog cameras under TVI
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
4/8/16-channel BNC input
Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
HDMI and VGA simultaneous output
Long transmission distance over coaxial cable
Support mainstream cameras of ONVIF and RTSP protocols
Spec Sheet User Manual Quick Guide
Dimensions| Β | XVR301-04G3 | XVR301-08G3 | XVR301-16G3 | |||||||||
| Video/Audio Input | ||||||||||||
| IP Video Input | 2-ch | 4-ch | 8-ch | |||||||||
| Analog Video Input | 4-ch, BNC | 8-ch, BNC | 16-ch, BNC | |||||||||
| Max IP Video Input | 6-ch | 8-ch | 16-ch | |||||||||
| Supported Analog Camera Types | Support AHD input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
Support AHD input: 5MP@12.5fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12.5fps 1080P@30fps 720P@30fps Support CVI input: 4MP@15fps 1080P@30fps 720P@30fps Support CVBS input |
Support AHD input: 5MP@12.5fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12.5fps 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input |
|||||||||
| RCA Audio Input | 1-ch | |||||||||||
| Video/Audio Output | ||||||||||||
| HDMI Output | HDMI: 1920 β 1080/60 Hz, 1920 β 1080/50 Hz, 1600 β 1200/60 Hz, 1280 β 1024/60 Hz, 1280 β 720/60 Hz, 1024 β 768/60 Hz | |||||||||||
| VGA Output | VGA: 1920 β 1080/60 Hz, 1920 β 1080/50 Hz, 1600 β 1200/60 Hz, 1280 β 1024/60 Hz, 1280 β 720/60 Hz, 1024 β 768/60 Hz | |||||||||||
| RCA Audio Output | 1-ch | |||||||||||
| Live View Display | HDMI/VGA: 1/4/6/8/9 | HDMI/VGA: 1/4/6/8/9/16 | HDMI/VGA: 1/4/6/8/9/25 | |||||||||
| Encoding/Decoding | ||||||||||||
| Recording Resolution | 5MP Lite/4MP Lite/1080P/720P/D1 | 5MP Lite/1080P Lite/720P/D1 | 5MP Lite/1080P Lite/720P/D1 | |||||||||
| Recording Frame Rate | Main stream: 5MP Lite@12fpsSub stream: D1@12fps Main stream: 4MP Lite@15fpsSub stream: D1@15fps Main stream: 1080P@15fpsSub stream: D1@15fps Main stream: 720P@25fps Sub stream: D1@25fps |
Main stream: 5MP Lite@6fpsSub stream: D1@6fps Main stream: 1080P Lite@12fpsSub stream: D1@12fps Main stream: 720P@12fps Sub stream: D1@12fps |
Main stream: 5MP Lite@6fpsSub stream: D1@6fps Main stream: 1080P Lite@12fpsSub stream: D1@12fps Main stream: 720P@12fps Sub stream: D1@12fps |
|||||||||
| Audio Sample Rate | 8 kHz, 16 bit per channel | |||||||||||
| Audio Bit Rate | 64 Kbps per channel | |||||||||||
| Decoding Capability | Analog: 2 x 5MP Lite@12, 2 x 4MP Lite@15, 2 x 1080P@15 IP: 1 x 4MP@30, 2 x 1080P@30 |
Analog: 4 x 5MP Lite@6, 4x 1080P Lite @12fps IP: 1 x 4MP@30, 2 x 1080P@30 |
Analog: 8 x 5MP Lite@6, 8 x 1080P Lite@12 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30 |
|||||||||
| Two-way Audio | ||||||||||||
| Two-way Audio | 1-ch, RCA (Using the audio input and output) | |||||||||||
| Analog Snapshot | ||||||||||||
| FTP/Schedule/Event Snapshot | FTP/Event snapshot:4-ch snapshot, up to 704*576 resolution, Schedule snapshot:not supported |
FTP/Event snapshot:8-ch snapshot, up to 704*576 resolution, Schedule snapshot:not supported |
FTP/Event snapshot:16-ch snapshot, up to 704*576 resolution, Schedule snapshot:not supported |
|||||||||
| Network | ||||||||||||
| Incoming Bandwidth | 16Mbps (Up to 24Mbps after all analog channel conversion) | 32Mbps (Up to 40Mbps after all analog channel conversion) | 40Mbps (up to 56Mbps after all analog channel conversion) | |||||||||
| Outgoing Bandwidth | 48Mbps | 64Mbps | 64Mbps | |||||||||
| Remote Users | 128 | |||||||||||
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP | |||||||||||
| Browser(Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ | |||||||||||
| Smart | ||||||||||||
| Analog Smart by XVR | Ultra Motion Detection (UMD) | |||||||||||
| Smart Functions by XVR | 4-ch (UMD) | 4-ch (UMD) | 8-ch (UMD) | |||||||||
| Alarm | ||||||||||||
| General Alarm | Motion | |||||||||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||||||||||
| GUI Language | ||||||||||||
| GUI Language | 20 languages: English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian | |||||||||||
| Hard Disk | ||||||||||||
| SATA | 1 SATA interface | |||||||||||
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) | |||||||||||
| External Interface | ||||||||||||
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface | |||||||||||
| USB | Rear panel: 2 β USB2.0 | |||||||||||
| Power Supply | DC 12 V/2 A | |||||||||||
| Working Environment | ||||||||||||
| Working Temperature | -10 βΖ to 55 βΖ (14 ββ° to 131 ββ° ) | |||||||||||
| Working Humidity | β°Β€ 90% RH (non-condensing) | |||||||||||
| Power Consumption (without HDD) | β°Β€ 8W | β°Β€ 8W | β°Β€ 10W | |||||||||
| Dimensions | ||||||||||||
| Weight (without HDD) | β°Β€1.1 Kg ( 2.42lb ) | |||||||||||
| Dimensions | 260mm β226mmβ 47mm (10.2" β 8.9"β1.8") | |||||||||||
| Certification | ||||||||||||
| Certification | CE, FCC, UL, RoHS, WEEE | |||||||||||
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |||||||||||
| FCC | Part15 Subpart B | |||||||||||
