UNV Technology USA LLC | SKU: IPP-1575

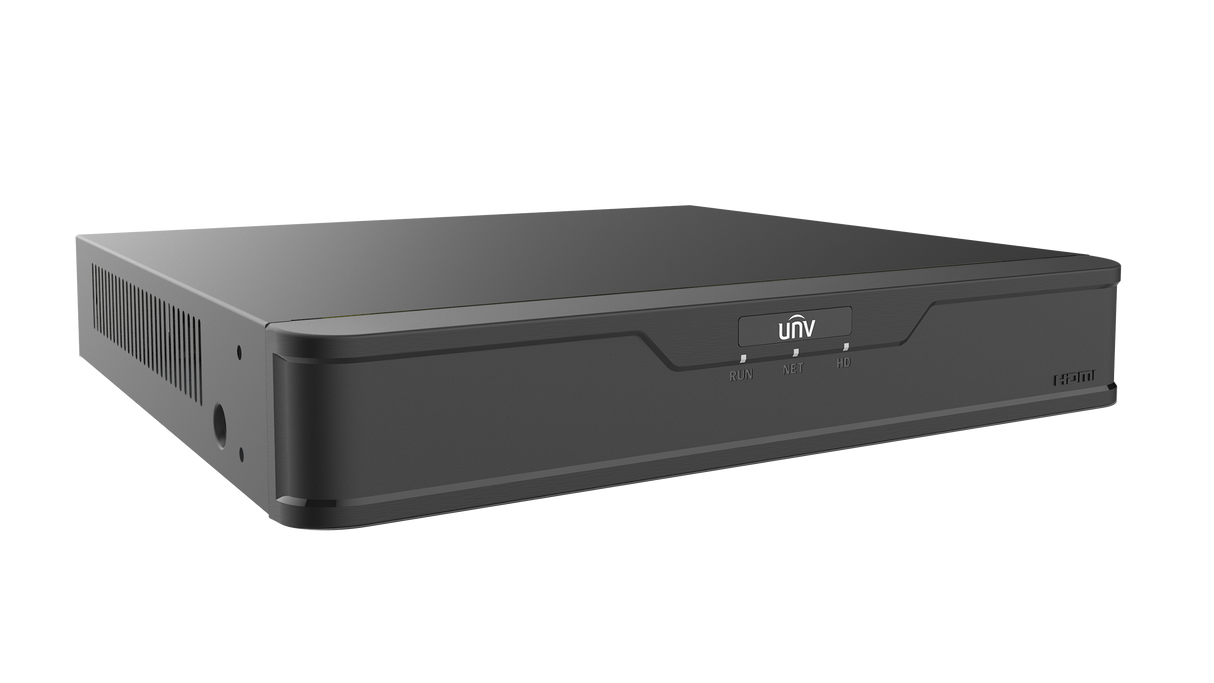

XVR301-04U3

Name: XVR301-04U3
Brand: UNV Technology USA LLC
SKU: IPP-1575
Price: 249.00 USD
Availability: InStock

$249⁰⁰ USD ~~$309⁰⁰~~

Tax included

XVR301-04U3

Support Ultra 265/H.265/H.264 video formats Support audio over coaxial cable (TVI cameras) Control the dual-light of UNV analog cameras under TVI Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access 4/8-channel BNC input Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K (3840 x 2160) HDMI and VGA simultaneous output Long transmission distance over coaxial cable Support mainstream cameras of ONVIF and RTSP protocols

Spec Sheet
Download

User Manual
Download

Quick Guide
Download

Dimensions

	XVR301-04U3	XVR301-08U3
Video/Audio Input
IP Video Input	4-ch	8-ch
Analog Video Input	4-ch, BNC	8-ch, BNC
Max IP Video Input	8-ch	16-ch
Supported Analog Camera Types	Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input
BNC Audio Input	4-ch, channel audio	8-ch, channel audio
RCA Audio Input	1-ch
Video/Audio Output
HDMI Output	HDMI: 4K (3840 — 2160)/30 Hz, 1920 — 1080/60 Hz, 1920 — 1080/50 Hz, 1600 — 1200/60 Hz, 1280 — 1024/60 Hz, 1280 — 720/60 Hz, 1024 — 768/60 Hz
VGA Output	VGA: 1920 — 1080/60 Hz, 1920 — 1080/50 Hz, 1600 — 1200/60 Hz, 1280 — 1024/60 Hz, 1280 — 720/60 Hz, 1024 — 768/60 Hz
BNC Video Output	1-ch
RCA Audio Output	1-ch
Live View Display	HDMI/VGA: 1/4/6/8/9	HDMI/VGA: 1/4/6/8/9/16
Playback Screen	1/4	1/4/9/16
Encoding/Decoding
Recording Resolution	8MP/5MP/4MP/1080P/720P/D1
Recording Frame Rate	Main stream: 8MP@8fps Sub stream: D1@8fps Main stream: 5MP@12fps Sub stream: D1@12fps Main stream: 4MP@15fps Sub stream: D1@15fps Main stream: 1080P@25fps Sub stream: D1@25fps Main stream: 720P@30fps Sub stream: D1@30fps
Audio Sample Rate	8 kHz, 16 bit per channel
Audio Bit Rate	64 Kbps per channel
Decoding Capability	Analog: 4 x 8MP @8, 4 x 5MP @12, 4 x 4MP @15, 4 x 1080P@25, 4 x 720@30 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30, 8 x 720P@30	Analog: 8 x 8MP @8, 8 x 5MP @12, 8 x 4MP @15, 8 x 1080P@25, 8 x 720@30 IP: 2 x 8MP@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30
Num of Concurrent Playback in Local	8-ch	16-ch
Coaxial Cable
Audio over Coaxial Cable(Form)	4-ch, One-way Audio(TVI)	8-ch, One-way Audio(TVI)
Two-way Audio
Two-way Audio	1-ch, RCA (Using the audio input and output)
Analog Snapshot
FTP/Schedule/Event Snapshot	Schedule/FTP/Event snapshot:4-ch snapshot, up to 704*576 resolution	Schedule/FTP/Event snapshot:8-ch snapshot, up to 704*576 resolution
Network
Incoming Bandwidth	40Mbps (Up to 48Mbps after all analog channel conversion)	80Mbps (Up to 96 Mbps after all analog channel conversion)
Outgoing Bandwidth	64Mbps	160Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
Browser(Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Smart
Analog Smart by XVR	SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Face Detection, Ultra Motion Detection (UMD)	SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD) , Face Detection
IP Smart by IPC	Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking
VCA Search	Face Search, Behavior Search
Smart Functions by XVR	4-ch (UMD), 2-ch (SIP), 1-ch (Face Detection)	8-ch (UMD), 4-ch (SIP)
Smart Functions by IP Camera	2-ch (SIP)	4-ch (SIP)
Alarm
General Alarm	Motion
Alert Alarm	IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA	1 SATA interface
Capacity	Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
External Interface
Network Interface	1 RJ45 10 M/100 M self-adaptive Ethernet Interface	1 RJ45 10 M/100 M/1000 Mself-adaptive Ethernet Interface
USB	Rear panel: 2 — USB2.0	Rear panel: 1 — USB2.0, 1 — USB3.0
RS485	1
RS232	N/A
Alarm In	4-ch
Alarm Out	1-ch
Power Supply	DC 12 V/2 A
Working Environment
Working Temperature	-10 ℃ to 55 ℃ (14 ℉ to 131 ℉ )
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 10W	≤ 12W
Dimensions
Weight (without HDD)	≤1.1 Kg ( 2.42lb )	≤1.2 Kg ( 2.65lb )
Dimensions	260mm —251mm— 46mm (10.2" — 9.9"—1.8")
Certification
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2
FCC	Part15 Subpart B
