UNV Technology USA LLC | SKU:
IPP-467
19% off

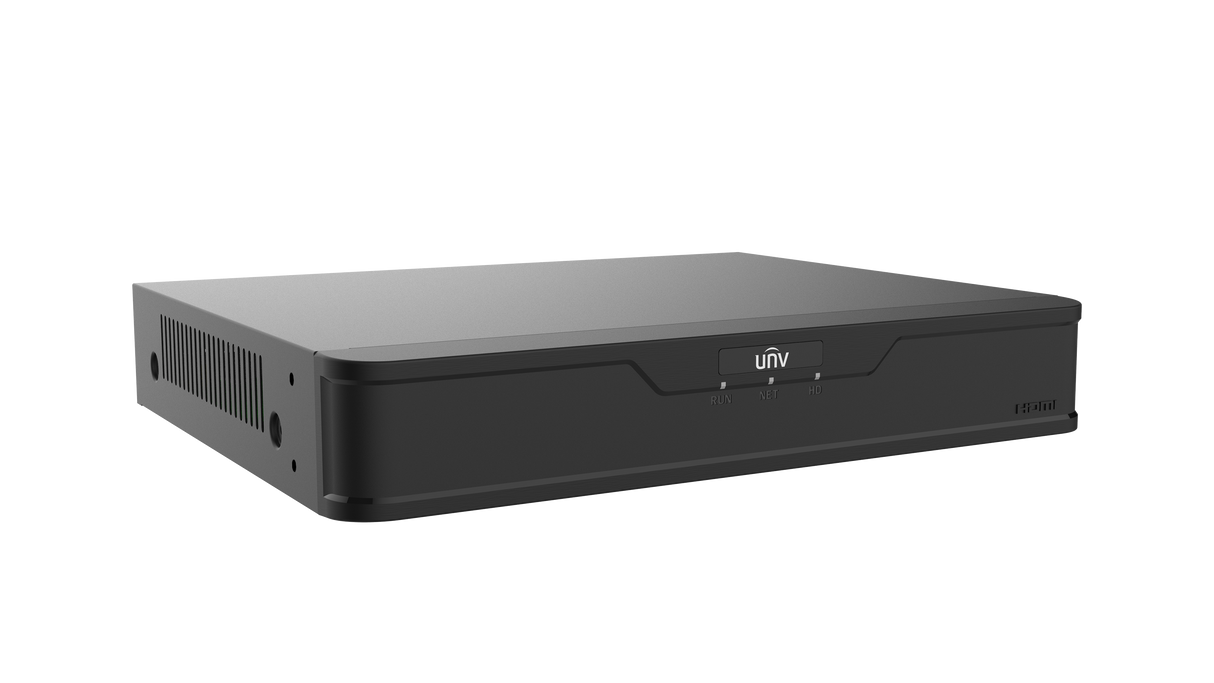

XVR301-04Q3
$16900 USD
$20900
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability
XVR301-04Q3
$16900 USD
$20900
Unit price
/
Unavailable
XVR301-04Q3
Support H.265/H.264 video formats
Support audio over coaxial cable(only for TVI cameras)
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
4/8-channel BNC input
Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
HDMI and VGA simultaneous output
Long transmission distance over coaxial cable
Support mainstream cameras of ONVIF and RTSP protocols
Spec Sheet User Manual Quick Guide
Dimensions| Β | XVR301-04Q3 | XVR301-08Q3 | ||||||
| Video/Audio Input | ||||||||
| IP Video Input | 2-ch | 4-ch | ||||||
| Analog Video Input | 4-ch, BNC | 8-ch, BNC | ||||||
| Max IP Video Input | 6-ch | 12-ch | ||||||
| Supported Analog Camera Types | Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 3K@20fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 3K@20fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
||||||
| BNC Audio Input | 4-ch, channel audio | 8-ch, channel audio | ||||||
| RCA Audio Input | 1-ch | |||||||
| Video/Audio Output | ||||||||
| HDMI Output | HDMI: 4K (3840 β 2160)/30 Hz, 1920 β 1080/60 Hz, 1920 β 1080/50 Hz, 1600 β 1200/60 Hz, 1280 β 1024/60 Hz, 1280 β 720/60 Hz, 1024 β 768/60 Hz | |||||||
| VGA Output | VGA: 1920 β 1080/60 Hz, 1920 β 1080/50 Hz, 1600 β 1200/60 Hz, 1280 β 1024/60 Hz, 1280 β 720/60 Hz, 1024 β 768/60 Hz | |||||||
| BNC Video Output | 1-ch | |||||||
| RCA Audio Output | 1-ch | |||||||
| Live View Display | HDMI/VGA: 1/4/6/8/9 | HDMI/VGA: 1/4/6/8/9/16 | ||||||
| Encoding/Decoding | ||||||||
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite/1080P/720P/D1 | |||||||
| Recording Frame Rate | Main stream: 8MP Lite@8fpsSub stream: D1@8fps Main stream: 3K Lite@12fpsSub stream: D1@12fps Main stream: 5MP Lite@12fpsSub stream: D1@12fps Main stream: 4MP Lite@15fpsSub stream: D1@15fps Main stream: 1080P@15fpsSub stream: D1@15fps Main stream: 720P@30fps Sub stream: D1@30fps |
|||||||
| Audio Sample Rate | 8 kHz, 16 bit per channel | |||||||
| Audio Bit Rate | 64 Kbps per channel | |||||||
| Decoding Capability | Analog: 4 x 8MP Lite@8, 4 x 3K Lite@12, 4x 5MP Lite@12, 4x 4MP Lite@15, 4 x 1080P@15 IP: 1 x 4MP@30, 2 x 1080P@30 |
Analog: 8 x 8MP Lite@8, 8 x 3K Lite@12, 8 x 5MP Lite@12, 8 x 4MP Lite@15, 8 x 1080P@15 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30 |
||||||
| Two-way Audio | ||||||||
| Two-way Audio | 1-ch, RCA (Using the audio input and output) | |||||||
| Analog Snapshot | ||||||||
| FTP/Schedule/Event Snapshot | Schedule/FTP/Event snapshot:4-ch snapshot, up to 704*576 resolution | Schedule/FTP/Event snapshot:8-ch snapshot, up to 704*576 resolution | ||||||
| Network | ||||||||
| Incoming Bandwidth | 40Mbps (Up to 48Mbps after all analog channel conversion) | 40Mbps (Up to 56Mbps after all analog channel conversion) | ||||||
| Outgoing Bandwidth | 48Mbps | 64Mbps | ||||||
| Remote Users | 128 | |||||||
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP | |||||||
| Browser(Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ | |||||||
| Smart | ||||||||
| Analog Smart by XVR | SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD) , Face Detection | |||||||
| IP Smart by IPC | Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking | |||||||
| VCA Search | Face Search, Behavior Search | |||||||
| Smart Functions by XVR | 4-ch (UMD), 2-ch (SIP) | 8-ch (UMD), 2-ch (SIP) | ||||||
| Smart Functions by IP Camera | 2-ch (SIP) | |||||||
| Alarm | ||||||||
| General Alarm | Motion | |||||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||||||
| GUI Language | ||||||||
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian | |||||||
| Hard Disk | ||||||||
| SATA | 1 SATA interface | |||||||
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) | |||||||
| External Interface | ||||||||
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface | |||||||
| USB | Rear panel: 2 β USB2.0 | |||||||
| RS485 | 1 | |||||||
| Alarm In | 4-ch | |||||||
| Alarm Out | 1-ch | |||||||
| Power Supply | DC 12 V/2 A | |||||||
| Working Environment | ||||||||
| Working Temperature | -10 βΖ to 55 βΖ (14 ββ° to 131 ββ° ) | |||||||
| Working Humidity | β°Β€ 90% RH (non-condensing) | |||||||
| Power Consumption (without HDD) | β°Β€ 10W | |||||||
| Dimensions | ||||||||
| Weight (without HDD) | β°Β€1.1 Kg ( 2.42lb ) | |||||||
| Dimensions | 260mm β226mmβ 47mm (10.2" β 8.9"β1.8") | |||||||
| Certification | ||||||||
| Certification | CE, FCC, UL, RoHS, WEEE | |||||||
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |||||||
| FCC | Part15 Subpart B | |||||||
