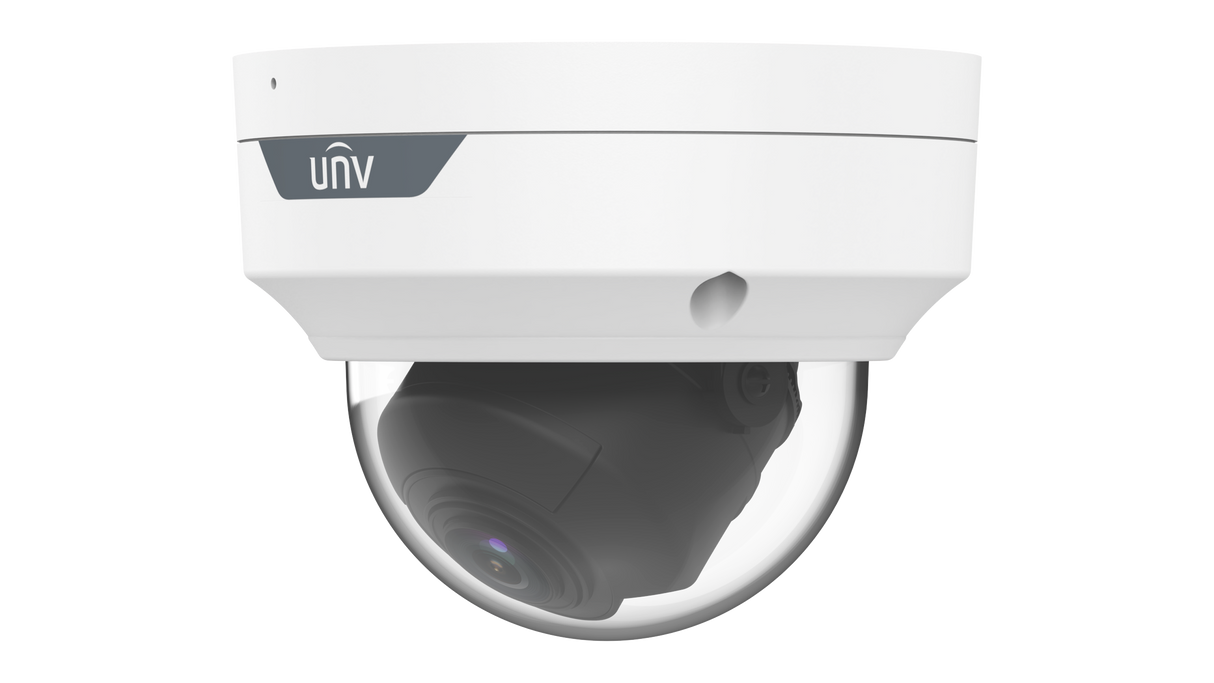

UAC-D312-ADPZMS
Couldn't load pickup availability
UAC-D312-ADPZMS
UAC-D312-ADPZMS
* Coaxial cables are recommended for video signal transmission, such as SYV-75-3, SYV-75-5, or RG59 cables.
* To use the varifocal analog camera, make sure it is used with our XVR301-04U3-P4, and the XVR must be upgraded to the latest firmware version.
High quality imaging with 2MP resolution
2.8mm-12mm motorized lens
TVI/AHD/CVI/CVBS
Supports IR-cut filter with auto-switch (ICR)
LightHunter monitoring with high-sensitivity sensor
3D noise reduction technology delivers clean and sharp images
Supports 180° horizontal/vertical flip
OSD configuration menu, easy to operate
Water and dust resistant (IP67) and vandal-resistant (IK10)
OSD configuration menu in 11 languages
Built-in microphone for high quality audio transmission via coaxial cables
Support PoC power supply
Spec Sheet User Manual Quick Guide
Dimensions| UAC-D312-ADPZMS | ||||||||
| Sensor | ||||||||
| Pixel | 2 MP | |||||||
| Sensor Size | 1/2.8'' CMOS | |||||||
| Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR on) |
|||||||
| Lens | ||||||||
| Focus | 2.8 to 12 mm | |||||||
| Lens Mount | Φ14 | |||||||
| Angle of View (H) | 98.5° ~ 33.0° | |||||||
| Angle of View (V) | 54.5° ~ 19.3° | |||||||
| Angle of View (D) | 114.0° ~ 39.2° | |||||||
| Illuminator | ||||||||
| Illuminator Number | Two IR illuminators | |||||||
| Illumination Distance | 30m | |||||||
| Lifetime | ‰¥ 60000 hours | |||||||
| Video | ||||||||
| Resolution | 1080P: 1920(H)—1080(V) 720P: 1280(H) —720(V) |
|||||||
| Frame Rate | CVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps TVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC |
|||||||
| Shutter Time | PAL: 1/25 s-1/50000 s, NTSC: 1/30 s-1/50000 s | |||||||
| Image | ||||||||
| Exposure Mode | Four modes: Global (default), BLC, HLC, WDR | |||||||
| Day/Night | Three modes: Auto (default), Day, Night | |||||||
| Digital Noise Reduction | 2D/3D | |||||||
| White Balance | Two modes: Auto (default), Manual | |||||||
| WDR | 120 dB WDR | |||||||
| Smart IR | Support | |||||||
| Flip | Supports 180°horizontal flip, 180°vertical flip | |||||||
| Digital Defog | N/A | |||||||
| Audio | ||||||||
| Built-in Mic | Support | |||||||
| Camera Audio | CVI: 1080P@25fps, 1080P@30fps * Audio function of the POC series camera is only available when the camera is used with our POC series XVRs. |
|||||||
| Interface | ||||||||
| Power Interface | 5.5 mm Power Interface | |||||||
| Video Output | BNC, supports TVI/AHD/CVI/CVBS | |||||||
| Operating Environment | ||||||||
| Temperature | -30 „ƒ to 60 „ƒ (-22 „‰ to 140 „‰) | |||||||
| Humidity | ‰¤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV for power, 4 KV for video output interfaces | |||||||
| General | ||||||||
| Power | DC 12 V±25%/PoC | |||||||
| Power Consumption | 4.1 W (DC 12 V, IR on) | |||||||
| Mount | Wall Mount, Pole Mount, Corner Mount, Pendant Mount | |||||||
| Dimensions | Φ128 x 100mm (˜5.0€� x 3.9€�) | |||||||
| Material | Metal | |||||||
| Weight | 640g(1.41lb) | |||||||
| OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) | |||||||
| Safety | CE-LVD (EN 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529), IK10 (IEC 62262) | |||||||
