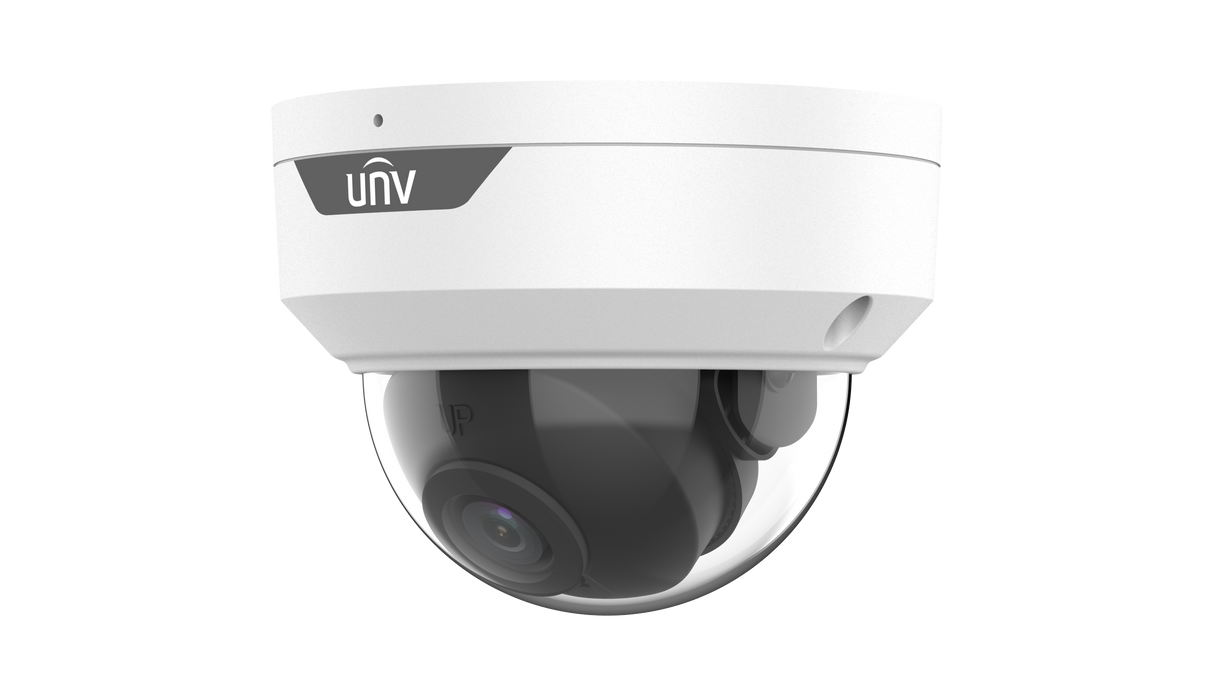

UAC-D122-APF28M
Couldn't load pickup availability
UAC-D122-APF28M
UAC-D122-APF28M
* Coaxial cables are recommended for video signal transmission, such as SYV-75-3, SYV-75-5, or RG59 cables.
* To achieve power supply on the coaxial cable, please use the camera with our PoC series XVRs.
High quality imaging with 2MP resolution
TVI/AHD/CVI/CVBS
Supports IR-cut filter with auto-switch (ICR)
LightHunter monitoring with high-sensitivity sensor
3D noise reduction technology delivers clean and sharp images
Supports 180° horizontal/vertical flip
OSD configuration menu, easy to operate
Water and dust resistant (IP67) and vandal-resistant (IK10)
OSD configuration menu in 11 languages
Built-in microphone for high quality audio transmission via coaxial cables
Supports defog
3-Axis
Support PoC power supply
Spec Sheet User Manual Quick Guide
Dimensions| UAC-D122-APF28M | ||||||||
| Sensor | ||||||||
| Pixel | 2 MP | |||||||
| Sensor Size | 1/2.9" CMOS | |||||||
| Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR on) |
|||||||
| Lens | ||||||||
| Focus | 2.8 mm | |||||||
| Lens Mount | M12 | |||||||
| Angle of View (H) | 101.5° | |||||||
| Angle of View (V) | 56.9° | |||||||
| Angle of View (D) | 117.4° | |||||||
| Illuminator | ||||||||
| Illuminator Number | One IR illuminator | |||||||
| Illumination Distance | 30m | |||||||
| Lifetime | ‰¥ 60000 hours | |||||||
| Video | ||||||||
| Resolution | 1080P: 1920(H)—1080(V) 720P: 1280(H) —720(V) |
|||||||
| Frame Rate | TVI/AHD/CVI: 1080P@25fps(default), 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC |
|||||||
| Shutter Time | PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s |
|||||||
| Image | ||||||||
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR | |||||||
| Day/Night | Three modes: Auto (default), Day, Night | |||||||
| Digital Noise Reduction | 2D/3D | |||||||
| White Balance | Two modes: Auto (default), Manual | |||||||
| WDR | DWDR | |||||||
| Smart IR | Support | |||||||
| Flip | Supports 180°horizontal flip, 180°vertical flip | |||||||
| Digital Defog | Support | |||||||
| Audio | ||||||||
| Built-in Mic | Support | |||||||
| Camera Audio | TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps * Audio function of the PoC series camera is only available when the camera is used with our PoC series XVRs. |
|||||||
| Interface | ||||||||
| Power Interface | 5.5 mm Power Interface | |||||||
| Video Output | BNC, supports TVI/AHD/CVI/CVBS | |||||||
| Operating Environment | ||||||||
| Temperature | -30°C to 60°C (-22°F to 140°F) | |||||||
| Humidity | ‰¤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV for power, 4 KV for video output interfaces | |||||||
| General | ||||||||
| Power | DC 12 V±25%/PoC | |||||||
| Power Consumption | MAX 3.3W | |||||||
| Mount | Wall Mount,Pole Mount,Corner Mount,Pendant Mount,Tilted Mount | |||||||
| Dimensions | Φ109mm*83mm (diameter*height) | |||||||
| Material | Metal | |||||||
| Weight | 390g (0.86lb) | |||||||
| OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) | |||||||
| Safety | CE-LVD (EN 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) |
|||||||
