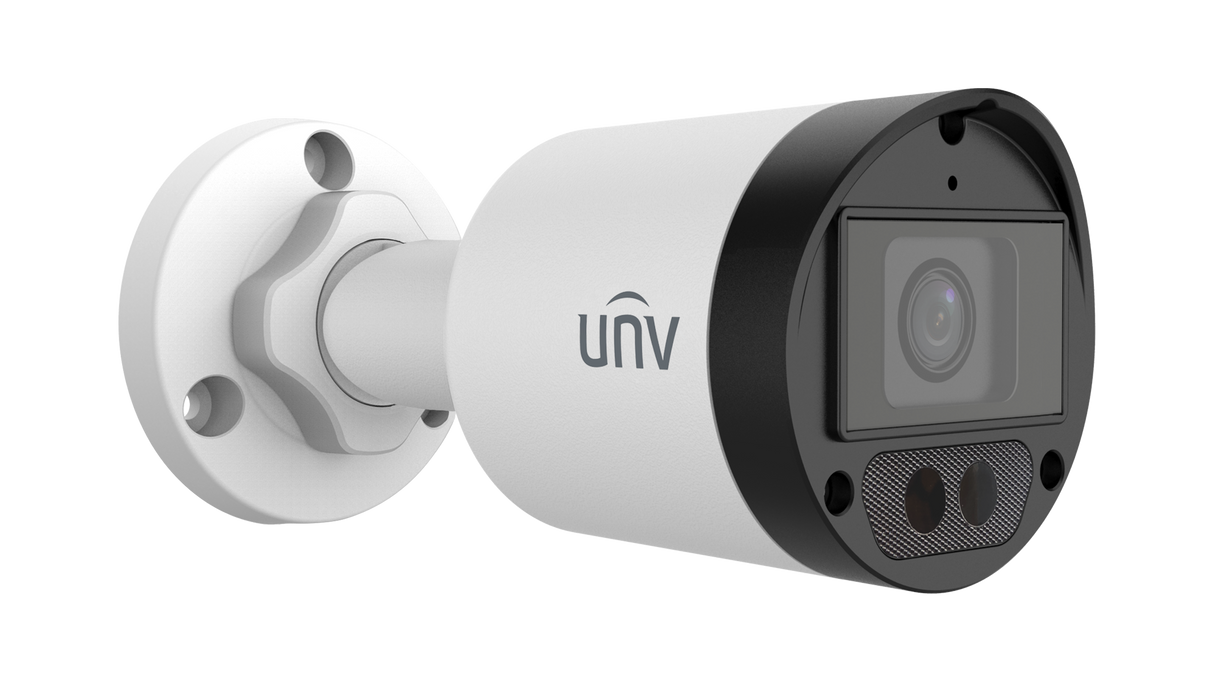

UAC-B128-ADF40MS
Couldn't load pickup availability
UAC-B128-ADF40MS
UAC-B128-ADF40MS
High quality imaging with 8MP resolutionTVI/AHD/CVI/CVBS
Supports IR-cut filter with auto-switch (ICR)
LightHunter monitoring with high-sensitivity sensor
3D noise reduction technology delivers clean and sharp images
Supports 180° horizontal flip, 180° vertical flip
OSD configuration menu, easy to operate
IP67 waterproof and dustproof design, high reliability
OSD configuration menu in 11 languages
Built-in microphone for high quality audio transmission via coaxial cables
120dB true WDR technology enables clear image in strong light scene
Spec Sheet User Manual Quick Guide
Dimensions|  | UAC-B128-ADF28MS | UAC-B128-ADF40MS | ||||||
| Sensor | ||||||||
| Pixel | 8 MP | |||||||
| Sensor Size | 1/2.7" CMOS | |||||||
| Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR ON) |
|||||||
| Lens | ||||||||
| Focus | 2.8 mm | 4.0 mm | ||||||
| Lens Mount | M12 | |||||||
| Angle of View (H) | 109.1° | 86.8° | ||||||
| Angle of View (V) | 61.0° | 49.4° | ||||||
| Angle of View (D) | 126.7° | 99.9° | ||||||
| Illuminator | ||||||||
| Illuminator Number | Two IR illuminators | |||||||
| Illumination Distance | 40m | |||||||
| Lifetime | ‰¥ 60000 hours | |||||||
| Video | ||||||||
| Resolution | 4K: 3840(H)  2160(V) 5MP@20fps: 2592(H)â€â€1944(V); 5MP@12.5fps: 2592(H)â€â€1944(V) 4MP: 2560(H)â€â€1440(V) |
|||||||
| Frame Rate | CVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC |
|||||||
| Shutter Time | PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s |
|||||||
| Image | ||||||||
| Exposure Mode | Four modes: Global (default), BLC, HLC, WDR | |||||||
| Day/Night | Three modes: Auto (default), Day, Night | |||||||
| Digital Noise Reduction | 2D/3D | |||||||
| White Balance | Two modes: Auto (default), Manual | |||||||
| WDR | 120 dB WDR | |||||||
| Smart IR | Support | |||||||
| Flip | Supports 180°horizontal flip, 180°vertical flip | |||||||
| Digital Defog | N/A | |||||||
| Audio | ||||||||
| Built-in Mic | Support | |||||||
| Camera Audio | CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps | |||||||
| Interface | ||||||||
| Power Interface | 5.5 mm Power Interface | |||||||
| Video Output | BNC, supports TVI/AHD/CVI/CVBS | |||||||
| Operating Environment | ||||||||
| Temperature | -30 „ƒ to 60 „ƒ (-22 „‰ to 140 „‰) | |||||||
| Humidity | ‰¤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4kV for power&4kV for video output interfaces | |||||||
| General | ||||||||
| Power | DC 12 V ± 25% | |||||||
| Power Consumption | MAX 4.8W | |||||||
| Mount | Corner Mount&Pole Mount | |||||||
| Dimensions | 157mm*67mm*66mm (L*W*H) | |||||||
| Material | Metal | |||||||
| Weight | 300g(0.67lb) | |||||||
| OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) | |||||||
| Safety | CE-LVD (EN 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) | |||||||
