UNV Technology USA LLC | SKU:
IPP-2699
20% off
TIC3612SA-F7-4F6AC-I1
$1,47900 USD
$1,83900
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability

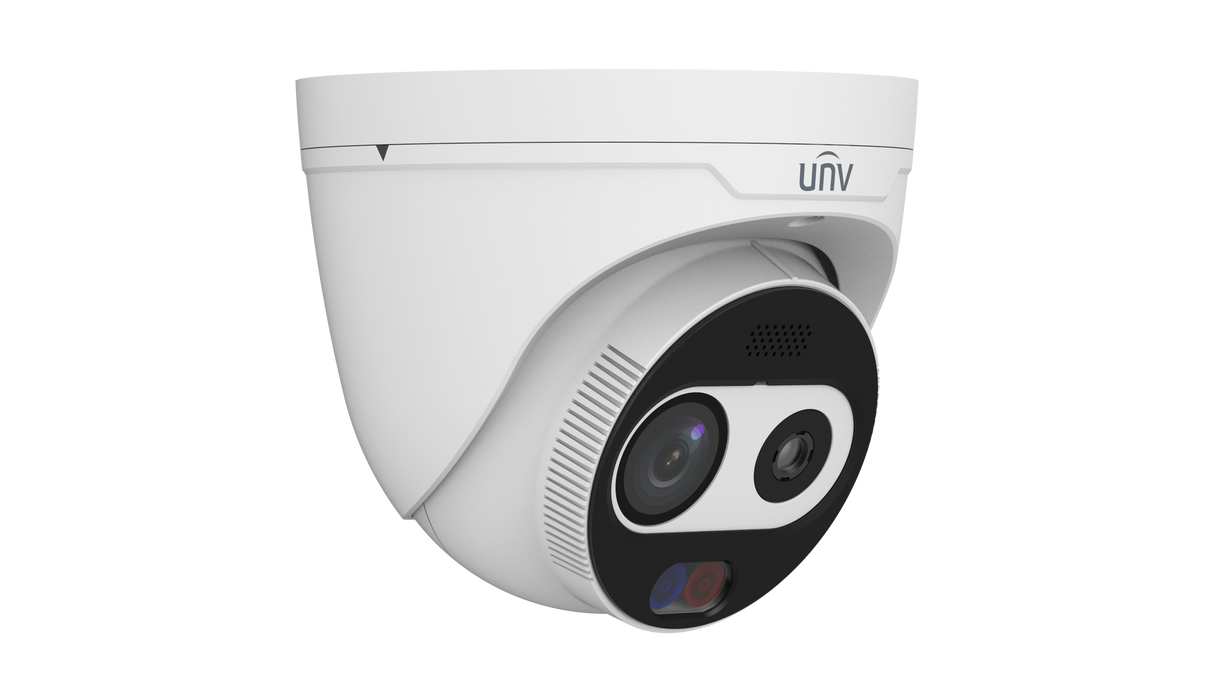

TIC3612SA-F7-4F6AC-I1
$1,47900 USD
$1,83900
Unit price
/
Unavailable
TIC3612SA-F7-4F6AC-I1
Thermal & Optical dual spectrum image, dual video with single IP address, adaptable to more various scenes
1/2.8" target surface, high sensitivity sensor, satisfy the need of starlight monitoring
Thermal module support reliable fire detection, smoking detection and fire shield area
Thermal module supports temperature detection and cold&hot spot tracking which highlights the abnormal temperature, and link to alarm
Thermal & Optical dual spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion
Optical module supports smog recognition, which can help with fire alarm reconfirm
Support picture in picture mode, real time contrast live, more convenient and clear
Support audio and light alarm, with red and blue warning lights built in
Ultra 265, H.265, H.264, MJPEG
Max 2688*1520@30fps in the optical module and Max 960P@30fps in the thermal module
DC12VΒ±25% or PoE power supply
Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 512 G
Spec Sheet User Manual Quick Guide
Dimensions| Β | TIC3612SA-F7-4F6AC-I1 | |||||||
| Channel | ||||||||
| Camera | ||||||||
| Sensor | 1/2.8" CMOS | Vanadium oxide uncooled focal plane arrays | ||||||
| Min. Illumination | Colour: 0.003 lux (F1.6, AGC ON) B/W: 0.002lux(F1.6,AGC ON) 0 lux with IR |
N/A | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | N/A | ||||||
| NETD | < 50 mk@F1.0@25 βΖ | < 50 mk@F1.0@25 βΖ | ||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | Auto/Manual, 1 to 1/100000 s | ||||||
| WDR | 120 dB | 120 dB | ||||||
| S/N | >56 dB | >56 dB | ||||||
| Lens | ||||||||
| Focal Length | 6.0 mm | 7.0 mm | ||||||
| Iris | F1.6 | F1.0 | ||||||
| Field of View (H) | 49.1Β° | 25.2Β° | ||||||
| Field of View (V) | 26.9Β° | 19.3Β° | ||||||
| Field of View (D) | 60.4Β° | 31Β° | ||||||
| DORI | ||||||||
| DORI Distance (Detect) | 135.0m(442.9ft) | N/A | ||||||
| DORI Distance (Observe) | 54.0m(177.2ft) | N/A | ||||||
| DORI Distance (Recognize) | 27.0m(88.6ft) | N/A | ||||||
| DORI Distance (Identify) | 13.5m(44.3ft) | N/A | ||||||
| Illuminator | ||||||||
| Wavelength | 750 nm | N/A | ||||||
| Illumination Distance (IR) | 30m | N/A | ||||||
| Light On/Off Control | Auto/Manual | N/A | ||||||
| Video | ||||||||
| Frame Rate | 4MP(2688*1520), Max 30fps | 960P(1280*960), Max 30fps | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | Ultra 265, H.265, H.264, MJPEG | ||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | 128 Kbps to 16 Mbps | ||||||
| U-code | Support | Support | ||||||
| ROI | Support | Support | ||||||
| Video Stream | Triple Streams | Triple Streams | ||||||
| OSD | Up to 8 OSDs | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas (8 blacks/ 8 mosaics) | N/A | ||||||
| Image | ||||||||
| Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR | ||||||
| Defog | Digital Defog | N/A | ||||||
| Intelligent | ||||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | ||||||
| Smoke and Fire Detection | Support | N/A | ||||||
| Temperature Measurement Accuracy | Β±8 βΖ (Β±14.4 ββ°) or Β±8% (whichever is greater) | |||||||
| Temperature Range | Selectable between -20 βΖ to 150 βΖ (-4 ββ° to 302 ββ°) and 100 βΖ to 550 βΖ (212 ββ° to 1022 ββ°) | |||||||
| Events | ||||||||
| Fire Detection | N/A | Support | ||||||
| Basic Detection | Motion Detection, Tampering Alarm, Audio Detection | N/A | ||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | ||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | G.711U, G.711A | ||||||
| Audio Bitrate | 128 Kbps | 128 Kbps | ||||||
| Two-way Audio | Support | Support | ||||||
| Suppression | Support | Support | ||||||
| Sampling Rate | 16KHZ | 16KHZ | ||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | Micro SD, up to 512 GB | ||||||
| Network Storage | ANR | ANR | ||||||
| Network | ||||||||
| Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | Up to 32 users. 3 user levels: administrator, common user and operator | ||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | EZStation, UNV-Link, UNV-Link Pro | ||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | ||||||
| Interface | ||||||||
| Built-in Mic | Support | Support | ||||||
| Built-in Speaker | Support | Support | ||||||
| Audio I/O | 1 Input: impedance 1 kΞ©, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ξ©, amplitude 2 V [p-p] | 1 Input: impedance 1 kΞ©, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ξ©, amplitude 2 V [p-p] | ||||||
| Alarm I/O | 2/2 | 2/2 | ||||||
| Serial Port | 1 channel RS485 interface | 1 channel RS485 interface | ||||||
| Network | 1 Γ RJ45 10 M/100 M Base-TX Ethernet | 1 Γ RJ45 10 M/100 M Base-TX Ethernet | ||||||
| Video Output | N/A | 1 BNC (For debugging) | ||||||
| General | ||||||||
| Power | DC12V(Β±25%), PoE(IEEE802.3af) | DC12V(Β±25%), PoE(IEEE802.3af) | ||||||
| Power Consumption | Max 12W | Max 12W | ||||||
| Power Interface | Γ5.5 mm coaxial power plug | Γ5.5 mm coaxial power plug | ||||||
| Dimensions | Ξ¦129 x 114 mm(Ξ¦5.08" x 4.49")(Ξ¦ x H) | Ξ¦129 x 114 mm(Ξ¦5.08" x 4.49")(Ξ¦ x H) | ||||||
| Weight | 0.72kg(1.6lb) | 0.72kg(1.6lb) | ||||||
| Working Environment | -40 βΖ to 70 βΖ (-40 ββ° to 158 ββ°), Humidity: β°Β€ 95% RH (non-condensing) | -40 βΖ to 70 βΖ (-40 ββ° to 158 ββ°), Humidity: β°Β€ 95% RH (non-condensing) | ||||||
| Storage Environment | -40 βΖ to 70 βΖ (-40 ββ° to 158 ββ°), Humidity: β°Β€ 95% RH (non-condensing) | -40 βΖ to 70 βΖ (-40 ββ° to 158 ββ°), Humidity: β°Β€ 95% RH (non-condensing) | ||||||
| Surge Protection | 6 KV | 6 KV | ||||||
| Reset Button | Support | Support | ||||||
| RTC | Support | Support | ||||||
| Certification | ||||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||
| Live View | ||||||||
| Maximum Bitstream | 35 | 35 | ||||||
| Maximum Bandwidth | 50 Mbps | 50 Mbps | ||||||
| OSD Font | Vector | Vector | ||||||
| OSD Color | Support | Support | ||||||
| OSD Character Number | 40 | 40 | ||||||
| Other | ||||||||
| Corridor Mode | Support | Support | ||||||
