UNV Technology USA LLC | SKU:
IPP-1600
20% off
OEU-301S-HMKA
$80900 USD
$1,00900
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability
OEU-301S-HMKA
$80900 USD
$1,00900
Unit price
/
Unavailable
OEU-301S-HMKA
Delivered with a recess box for recess mount.
Built-in heating module supports operation at a very low temperature.
Metal casing.
Supports batch configuration.
Supports call and intercom with the connected indoor stations and apps.
Supports video monitoring, security alarm, and tamper alarm.
Built-in IC card reader.
Spec Sheet User Manual Quick Guide

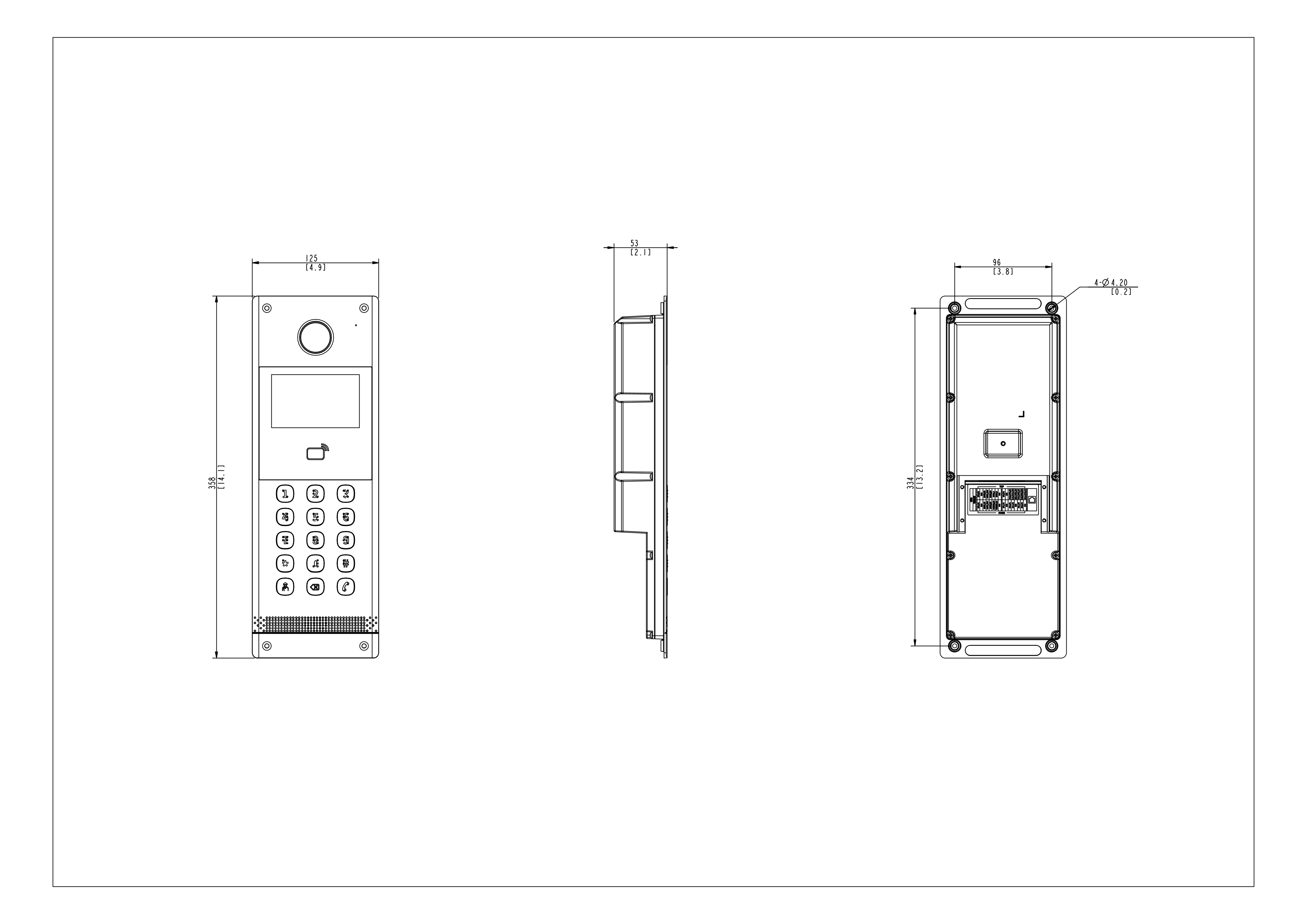

Dimensions| OEU-301S-HMKA | ||||||||
| Specification Index | ||||||||
| Card Capacity | 10000 | |||||||
| Maximum Connected Indoor Station | 500 | |||||||
| Basic Business | ||||||||
| WDR | Support DWDR | |||||||
| Protocol | Private protocol | |||||||
| Button | 15 buttons with braille Buttons layout: Row 1: 1/2/3 Row 2: 4/5/6 Row 3: 7/8/9 Row 4: */0/# Row 5: Management center/Call/Cancel |
|||||||
| Hardware Specification | ||||||||
| FOV | Horizontal: 106.9° Vertical: 56.9° Diagonal: 127.9° |
|||||||
| Power Consumption | PoE: 10.73W DC12V: 8.62W |
|||||||
| Volume Adjustment | Support | |||||||
| Audio Compression Bitrate | 128Kbps | |||||||
| Audio Output | 1 x Built-in speaker | |||||||
| Audio Input | 1 x Built-in omnidirectional microphone | |||||||
| Audio Quality | Noise suppression, echo cancellation, AGC | |||||||
| Protection Level | IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details) IK08 |
|||||||
| Weight | 2.10kg | |||||||
| Mount Method | Wall mount | |||||||
| Interface | Power*1, network port*1, RS485*1, IO input*4, IO output*2, door lock*2 (electric lock/door magnet), door opening button*2, door magnet*2, tamper button*1 | |||||||
| Network | 100Mbps network port, supports IEEE802.3af PoE power supply | |||||||
| Dimensions (L x W x H) | 125mm*358mm*53mm | |||||||
| Power Supply | DC12V ±25%, IEEE802.3af PoE power supply | |||||||
| Operating Environment | -40°C to 60°C, 10% to 90%, noncondensing, outdoor | |||||||
| Operating System | Linux | |||||||
| Illuminator | IR light (adaptive) | |||||||
| Screen Size | 3.97 inch | |||||||
