OEU-202S-HMK2

Name: OEU-202S-HMK2
Brand: UNV Technology USA LLC
SKU: IPP-1598
Price: 499.00 USD
Availability: InStock

$499⁰⁰ USD ~~$619⁰⁰~~

Tax included

OEU-202S-HMK2

Optional recess box for recess mount. Supports power output, which can be enabled or disabled on the Web interface. Built-in heating module supports operation at a very low temperature. Metal casing. Supports batch configuration. Supports call and intercom with the connected indoor stations and apps. Supports video monitoring, security alarm, and tamper alarm. Built-in IC card reader.

Spec Sheet
Download

User Manual
Download

Quick Guide
Download

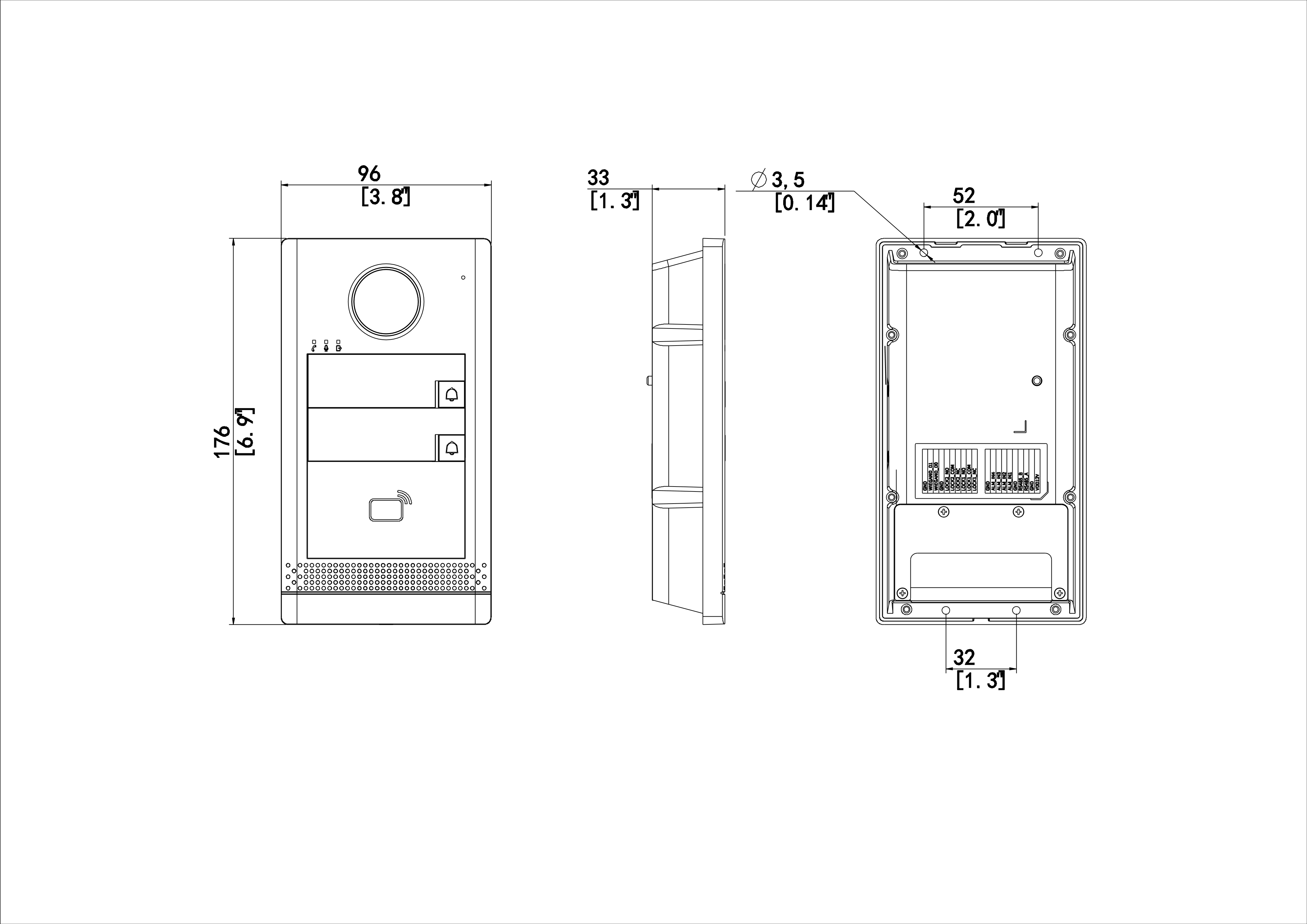

Dimensions

	OEU-202S-HMK2
Specification Index
Card Capacity	10000
Maximum Connected Indoor Station	20
Basic Business
WDR	Support DWDR
Protocol	Private protocol
Button	2 x Call button
Hardware Specification
FOV	Horizontal: 106.9° Vertical: 56.9° Diagonal: 127.9°
Power Consumption	PoE: 6.48W DC12V: 5.35W
Volume Adjustment	Support
Audio Compression Bitrate	128Kbps
Audio Output	1 x Built-in speaker
Audio Input	1 x Built-in omnidirectional microphone
Audio Quality	Noise suppression, echo cancellation, AGC
Protection Level	IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details) IK08
Weight	675g
Mount Method	Wall mount
Interface	Power1, network port1, RS4851, Wiegand1, IO input4, door lock2 (support electric lock/door magnet), tamper button*1
Network	100Mbps network port, supports IEEE802.3af PoE power supply
Dimensions (L x W x H)	96mm176mm33mm
Power Supply	DC12V ±25%, IEEE802.3af PoE power supply
Operating Environment	-40°C to 60°C, 10% to 90%, noncondensing, outdoor
Operating System	Linux
Illuminator	IR light (adaptive)
