UNV Technology USA LLC | SKU: IPP-803

OEU-201B-HMK-W

Name: OEU-201B-HMK-W
Brand: UNV Technology USA LLC
SKU: IPP-803
Price: 548.78 USD
Availability: InStock

$548⁷⁸ USD ~~$561⁰⁰~~

Tax included

OEU-201B-HMK-W

Front panel: Plastic cement Supports batch configuration Supports intercom calls to associated indoor units or APPs Support monitoring function, security alarm, tamper alarm Support Wi-Fi Built-in IC card reader

Spec Sheet
Download

User Manual
Download

Quick Guide
Download

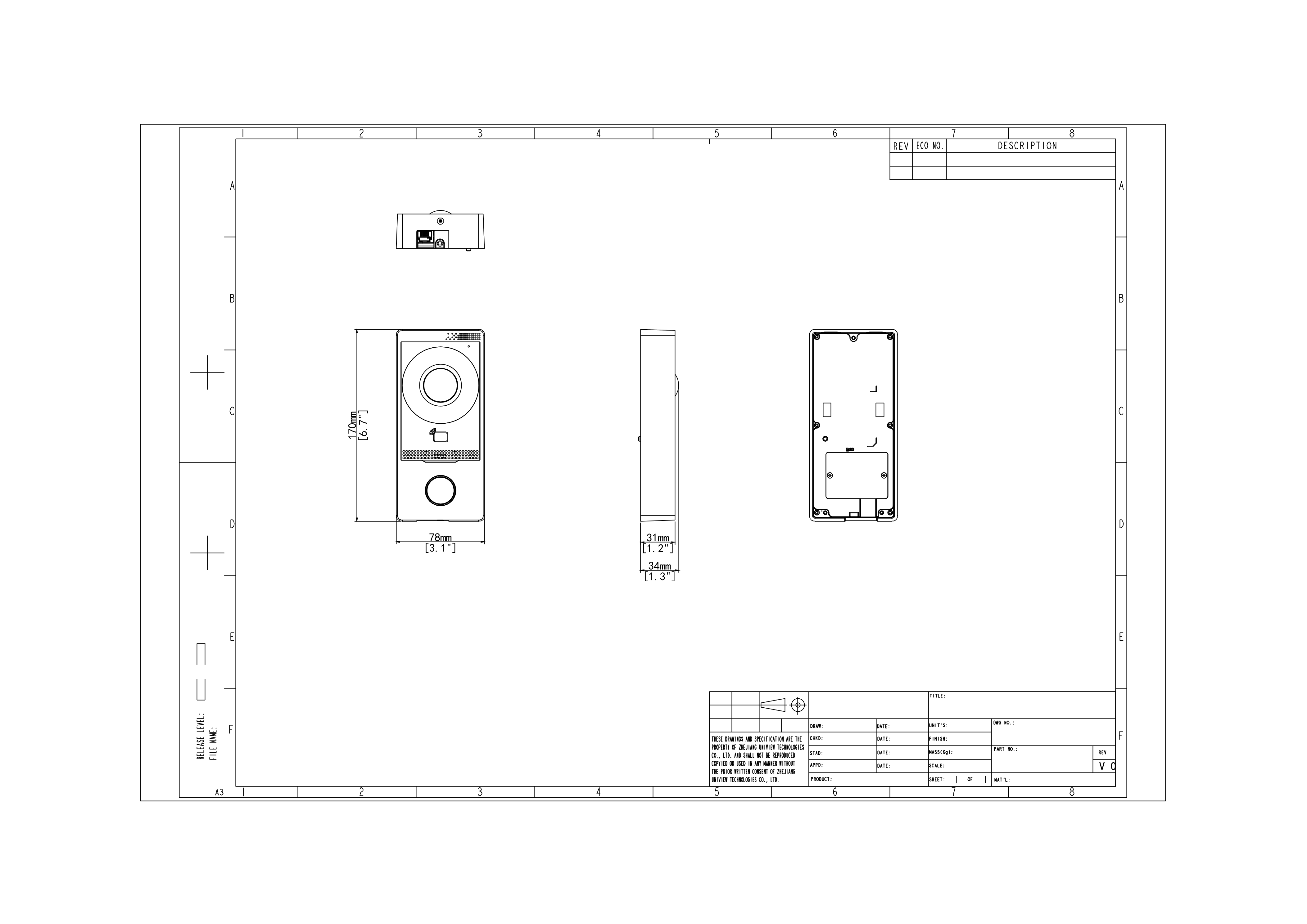

Dimensions

Ã‚Â	OEU-201B-HMK-W
Hardware Specification
Power Supply	DC 12VÃ‚Â±25% input;IEEE802.3af, Standard PoE
Operation System	Linux
Supplement Light	IR light(Adaptive infrared compensation)
FOV	Horizontal:124.3Ã‚Â° Vertical:67.5Ã‚Â° Diagonal:147.2Ã‚Â°
Power Consumption	Ã¯Â¼Å“10W
Volume Adjustment	Adjustable
Audio Quality	Noise suppression, echo cancellation and AGC
Audio Input	1 built-in omnidirectional microphone
Audio Output	1 built-in speaker
Audio Compression Standard	PCM, G711, MP3
Audio Compression Bitrate	128Kbps
Protection Level	IP65 (Apply waterproof glue to the gap between the device and the wall. For more information, see the quick guide.)
Weight	0.261Kg
Dimensions (L x W x H)	78mmÃ¢â‚¬â€170mmÃ¢â‚¬â€34mm
Mount Method	Wall mounted
Interface	Power 1, network port 1, WIFI, RS485, door lock interface 2, IO input 4
Network	100Mbps network port, supports IEEE802.3af PoE power supply
Operating Environment	Ã¯Â¹Â£30Ã¢â‚¬Å¾Ã†â€™~Ã¯Â¹Â¢60Ã¢â‚¬Å¾Ã†â€™,10%Ã¯Â½Å¾90%, non-condensing, outdoor
Basic Business
WDR	Support DWDR
Protocol	UNV private protocol
Button	1 physical button
Specification Index
Card Capacity	2000
Linked Indoor Station Capacity	20
