UNV Technology USA LLC | SKU:
IPP-800
19% off
OEI-372S-H-W
$33900 USD
$41900
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability
OEI-372S-H-W
$33900 USD
$41900
Unit price
/
Unavailable

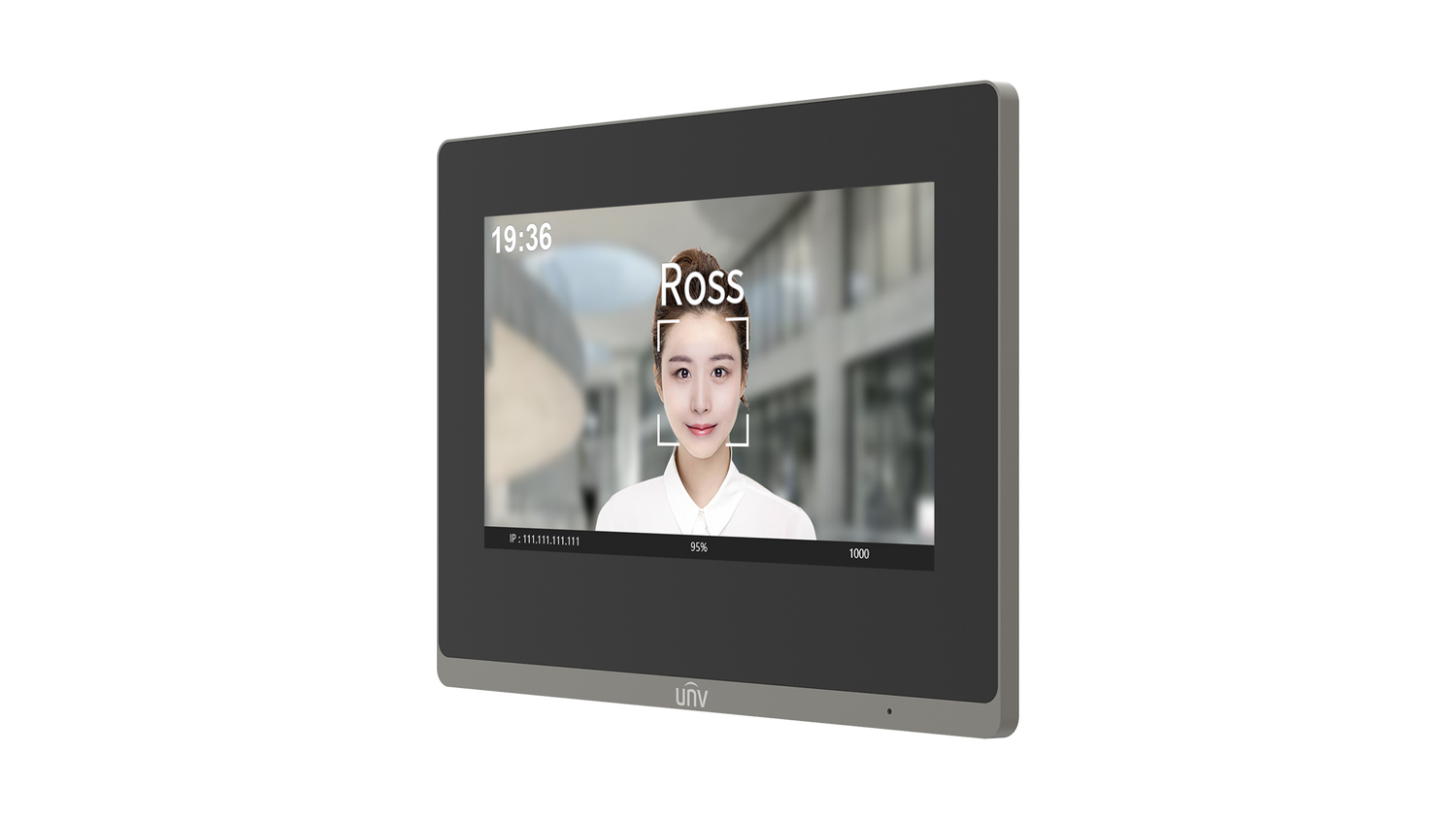

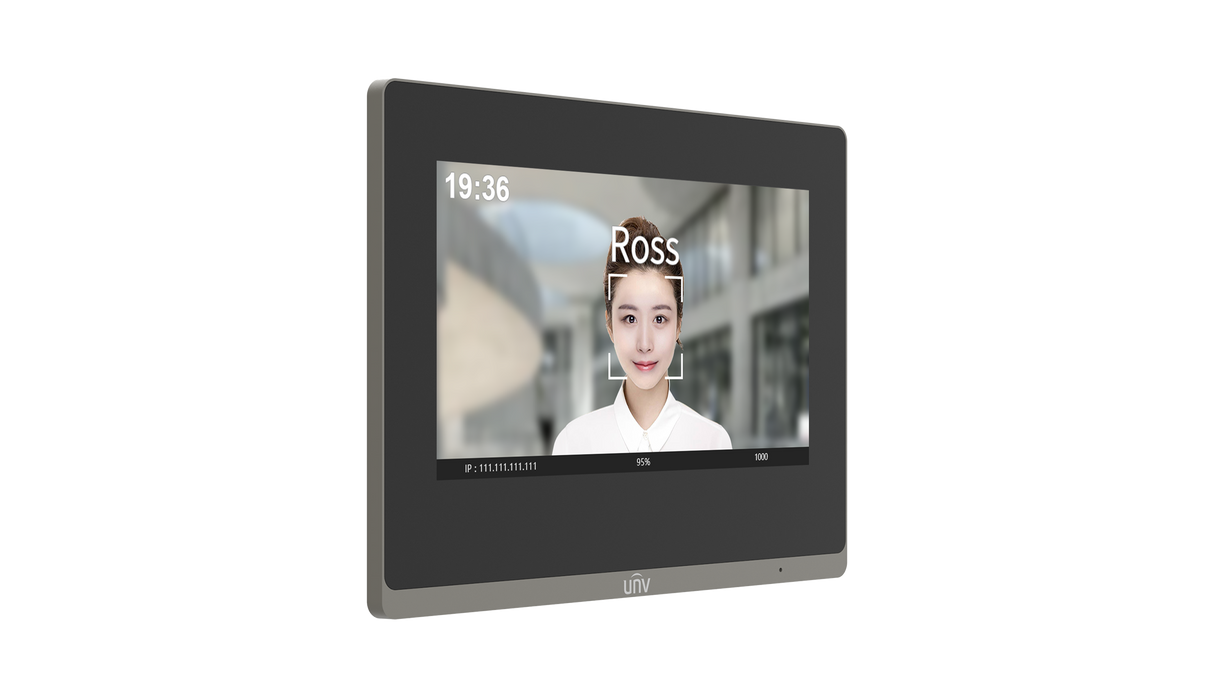

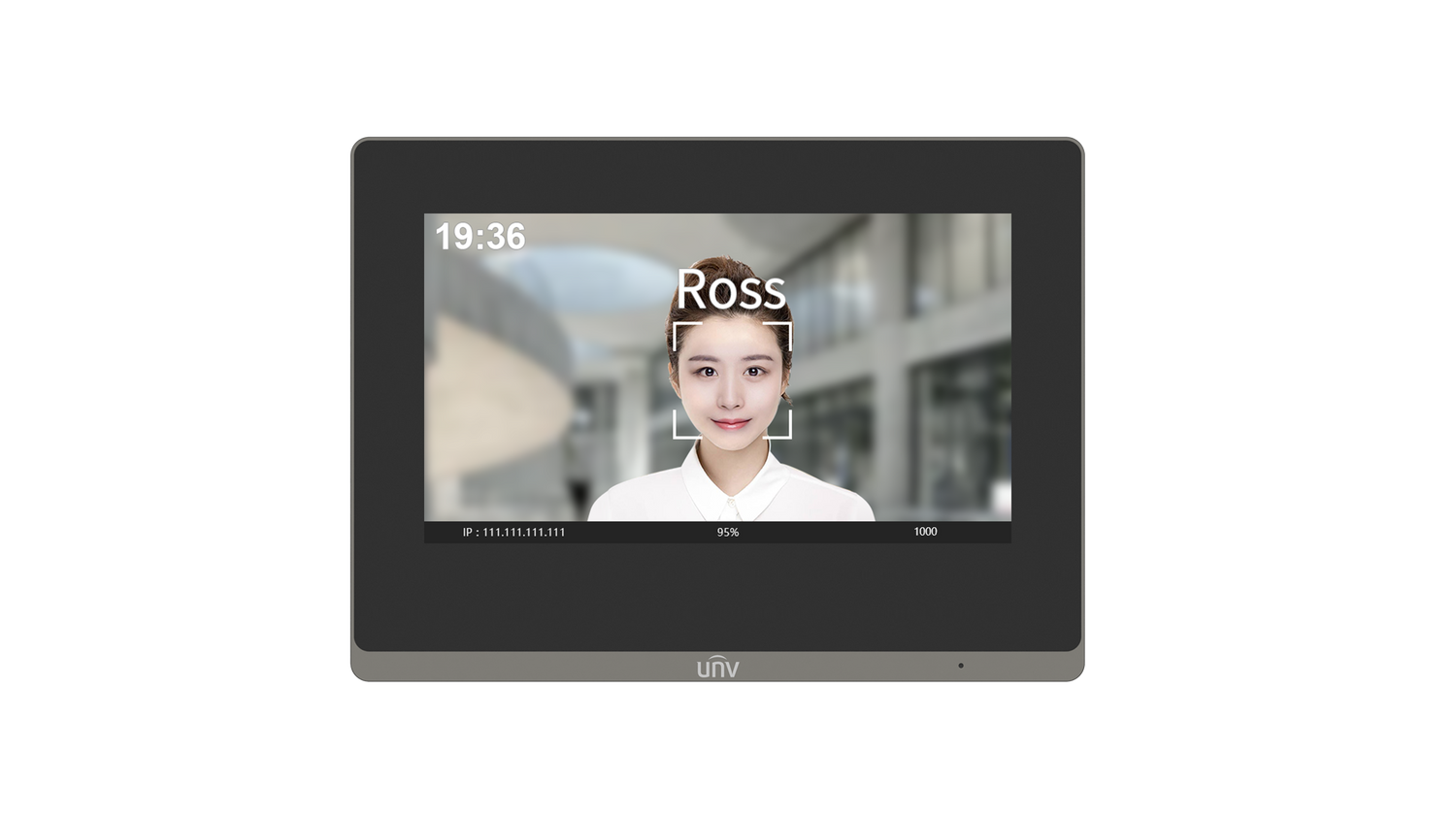

OEI-372S-H-W
Rugged ABS casing and glass panel.
1024*600 HD touch screen.
Batch configuration transfer.
Remote opening of linked door stations, one-key opening.
Network camera monitoring, security alarm.
Spec Sheet User Manual Quick Guide

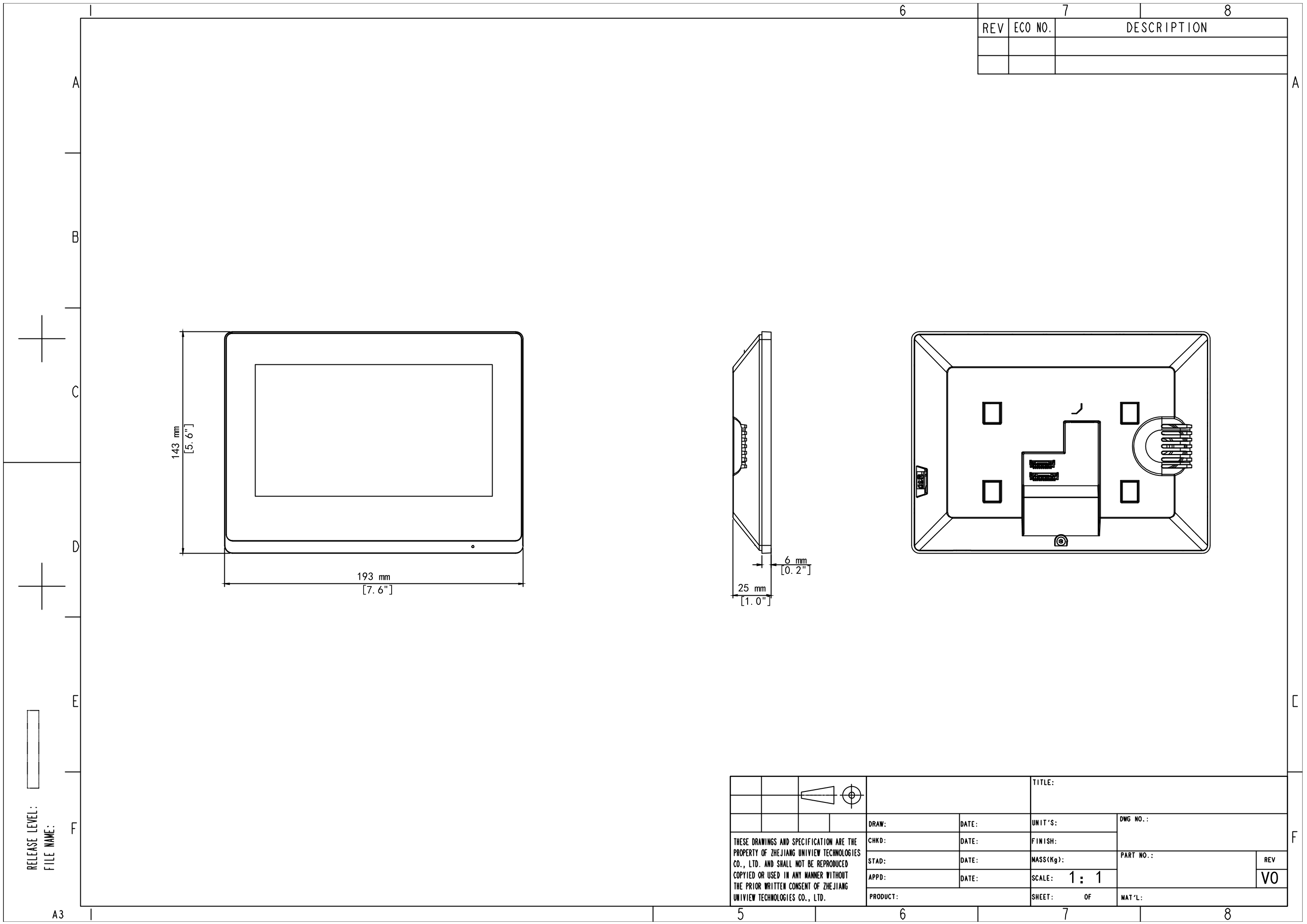

Dimensions| OEI-372S-H-W | ||||||||
| Hardware Specification | ||||||||
| Power Supply | DC12V±25%,IEEE802.3af, Standard PoE | |||||||
| Power Consumption | ＜10W | |||||||
| Screen | 7-inch ultra-thin TFT LCD screen | |||||||
| Screen Resolution | Screen resolution 1024—600 | |||||||
| Operation System | Linux | |||||||
| Audio Quality | Noise suppression, echo cancellation and AGC | |||||||
| Audio Input | 1 built-in omnidirectional microphone | |||||||
| Audio Output | 1 built-in speaker | |||||||
| Audio Compression Standard | MP3 G711 | |||||||
| Audio Compression Bitrate | 128Kbps | |||||||
| Interface | Power*1, network*1, Wi-Fi*1, RS485*1, IO output*2, IO input*8, TF card slot*1 | |||||||
| Network | 100Mbps network port, supports IEEE802.3af PoE power supply | |||||||
| Weight | 360g | |||||||
| Dimensions (L x W x H) | 193mm—143mm—25mm | |||||||
| Operating Environment | -10°C to +55°C, 10% to 90%, non-condensing, indoor | |||||||
| Basic Business | ||||||||
| Protocol | UNV private protocol | |||||||
