UNV Technology USA LLC | SKU: IPP-81

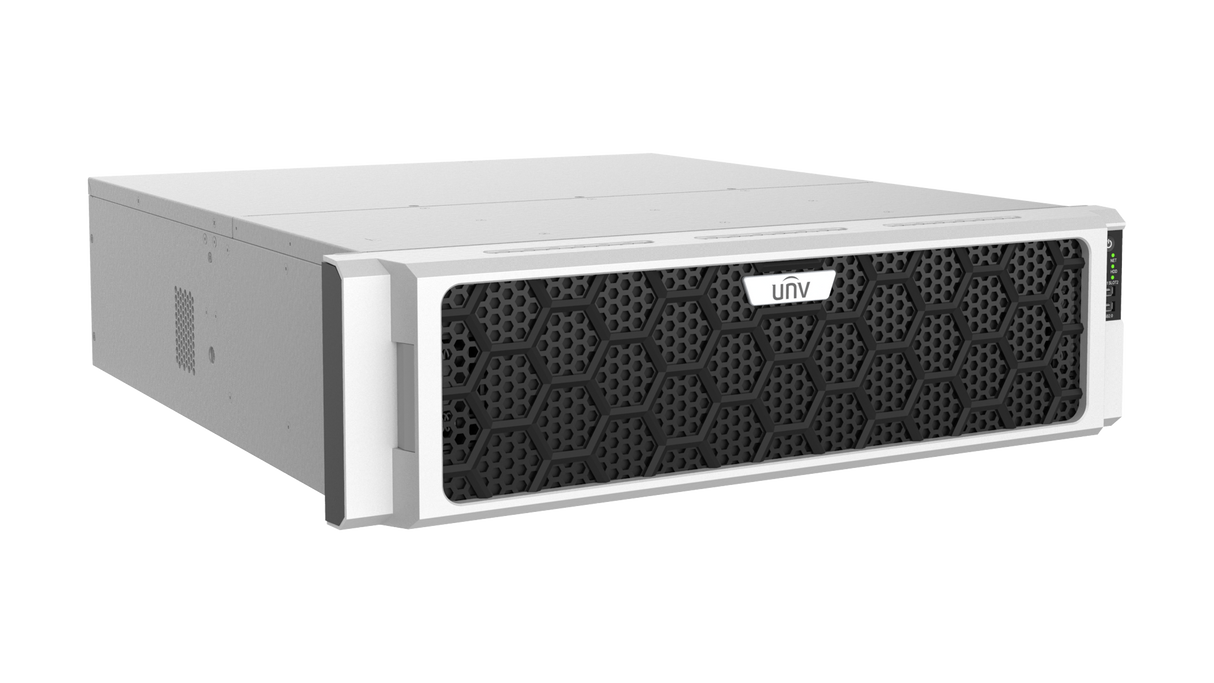

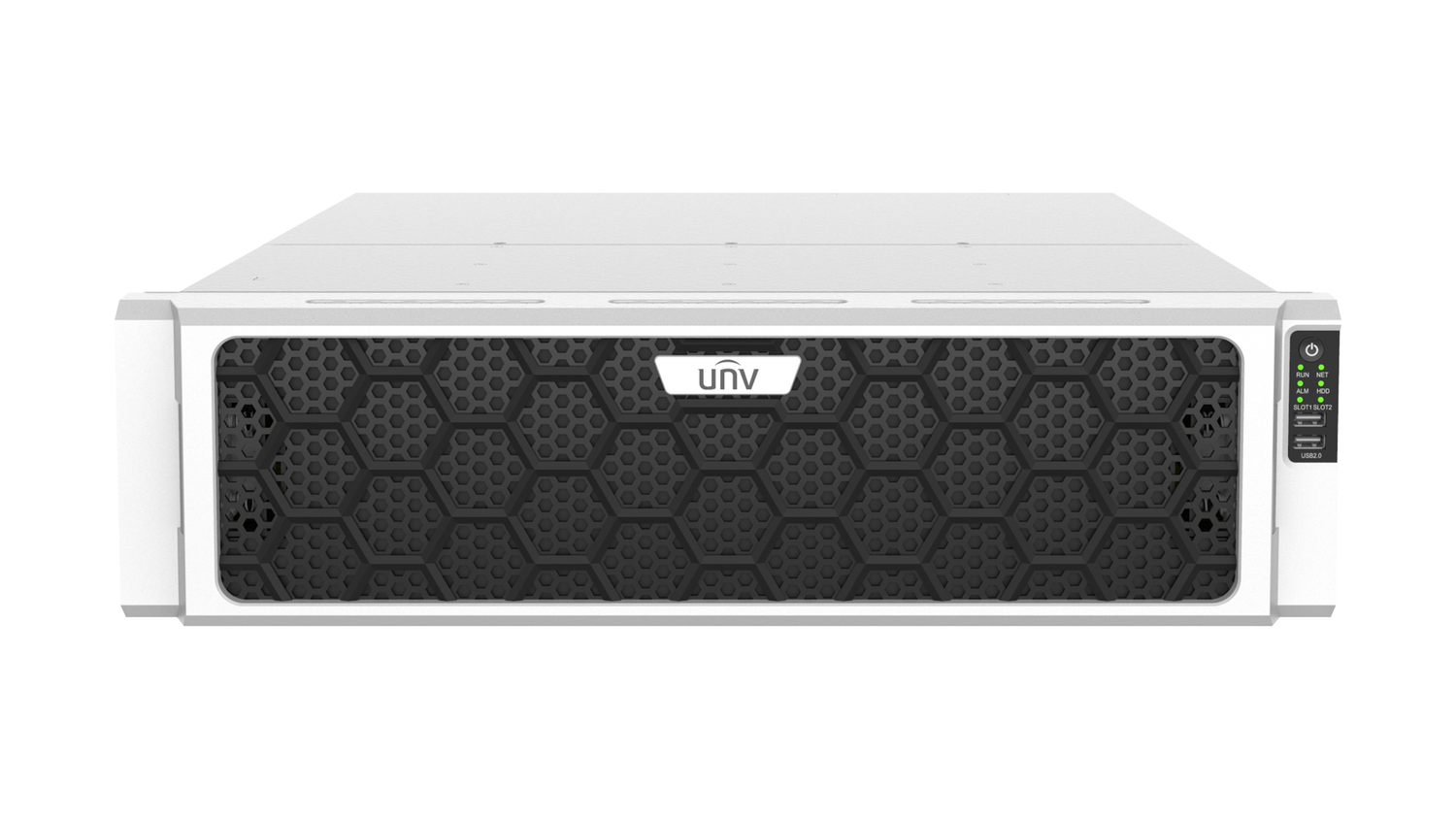

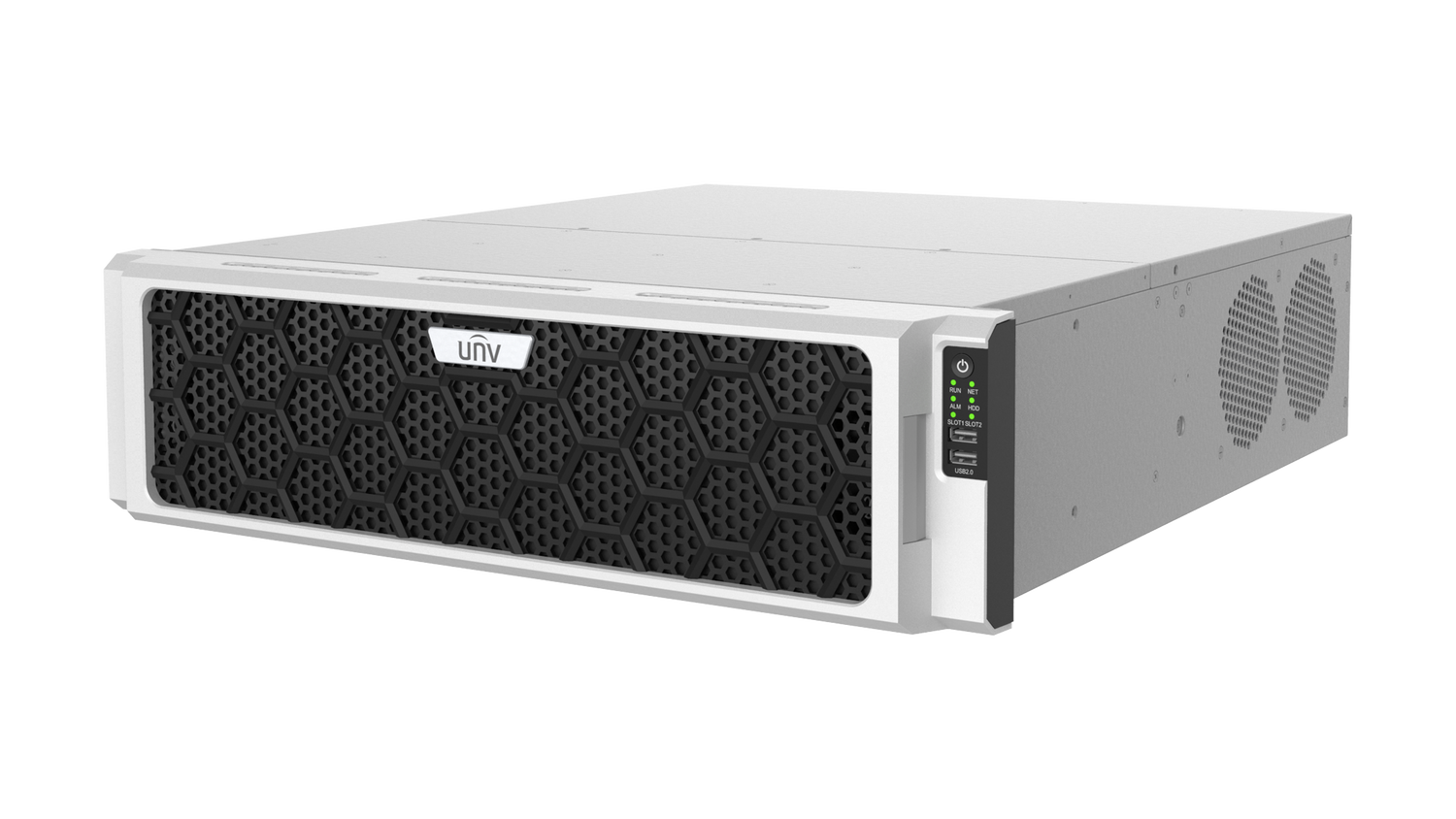

NVR816-64

Name: NVR816-64
Brand: UNV Technology USA LLC
SKU: IPP-81
Price: 7799.00 USD
Availability: InStock

$7,799⁰⁰ USD

Tax included

NVR816-64

Support Ultra 265/H.265/H.264 video formats 64/128-channel input Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution HDMI1, HDMI2 and VGA independent outputs provided Up to 12 Megapixels resolution recording Redundant power supply optional Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable Support 2 miniSAS Interfaces Support 12V power output ANR technology to enhance the storage reliability when the network is disconnected Support cloud upgrade Support N+1 Hot spare

Spec Sheet
Download

User Manual
Download

Quick Guide
Download

Dimensions

	NVR816-64	NVR816-128
Decoding
Decoding Format	Ultra 265, H.265, H.264
Decoding Capability	3 x 12MP@25, 4 x 4K@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
Decoding Capability Description	The resolution of each channel cannot exceed 4096 pixels in length or width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.
Audio Compression	G.711A, G.711U
Network
Incoming Bandwidth	512 Mbps
Outgoing Bandwidth	512 Mbps
Remote Users	128
Protocols	TCP/IP, P2P,UPnP,NTP,DHCP,PPPoE,HTTP,HTTPS,DNS,DDNS,SNMP, SMTP, NFS, RTSP, 802.1x,IPv6, IPv4
Browser(Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input	64-ch	128-ch
RCA Audio Input	1-ch
Video/Audio Output
HDMI Output	4K (3840 — 2160)/30 Hz, 1920 — 1080/60 Hz, 1920 — 1080/50 Hz, 1600 — 1200/60 Hz, 1280 — 1024/60 Hz, 1280 — 720/60 Hz, 1024 — 768/60 Hz
VGA Output	1920 — 1080/60 Hz, 1920 — 1080/50 Hz, 1600 — 1200/60 Hz, 1280 — 1024/60 Hz, 1280 — 720/60 Hz, 1024 — 768/60 Hz
RCA Audio Output	1-ch
Liveview Display	VGA:1/4/6/8/9/16/25/36, HDMI1/HDMI2:1/4/6/8/9/16/25/36/64
Corridor Mode Screen	3/4/5/7/9/10/12/16/32
Two-way Audio
Two-way Audio	1-ch, RCA (Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot	Full-ch snapshot (max. 4000 — 3000 video resolution, with snapshot resolution same as the video resolution)
Recording
Recording Resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local	16-ch
Smart
VCA Detection by IPC	Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
Smart by NVR	In the Smart Card
VCA Search	Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
Smart by IPC	All channels (up to 64 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Vehicle Picture Library	Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR	In the Smart Card
Capacity of Snapshot Records	3 millions records for face snapshot,3 millions records for vehicle snapshot, 2 millions records for SIP
Alarm
General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, High CPU Temperature, High Motherboard Temperature, Array Damaged, Array Degraded
GUI Language
GUI Language	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA	16 SATA Interfaces
Capacity	Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Disk Array Type	RAID 0, 1, 5, 6, 10, 50, 60
Hot Swap	Support
External Interface
Network Interface	4 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 2 — USB2.0, Rear panel: 2 — USB3.0
RS485	1
RS232	1
Alarm In	24-ch
Alarm Out	8-ch
eSATA	1
miniSAS	2
Extension Board	2
Power Output	12 V
Power Supply	AC 100 to 240 V
Power Switch	Support
Redundant Power Supply	Support
Working Environment
Working Temperature	-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 65W
Dimensions
Weight (without HDD)	≤ 12.5Kg (27.56lb)
Dimensions	482mm — 533mm — 131.0mm (19.0"—21.0"—5.1")
Certification
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B
