UNV Technology USA LLC | SKU:
IPP-2675
NVR524-256E
$14,50900 USD
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability

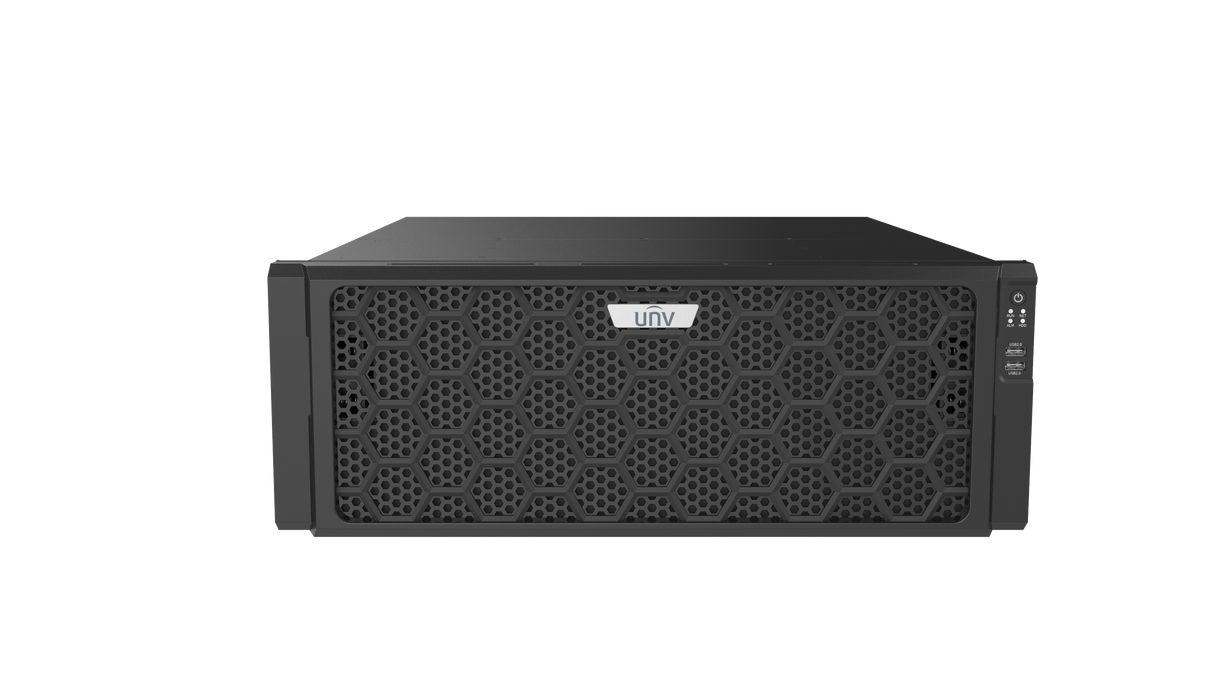

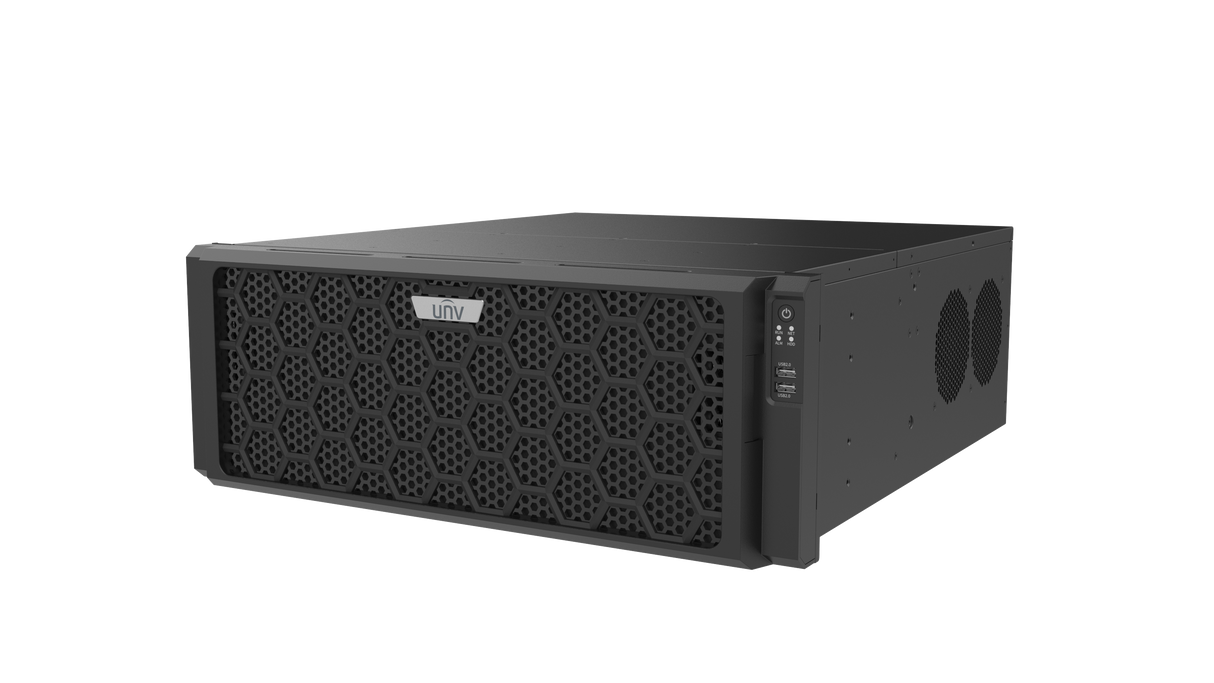

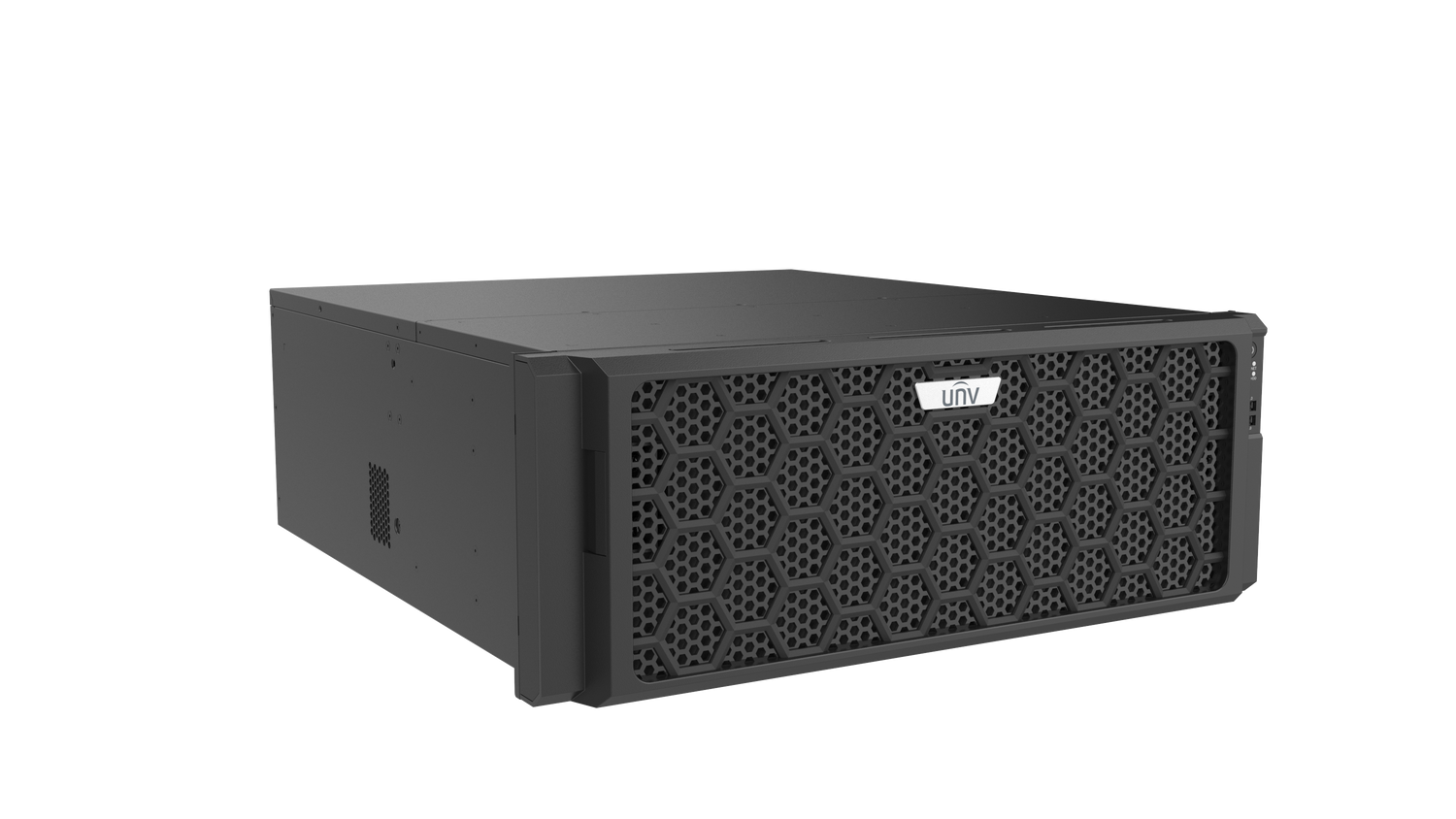

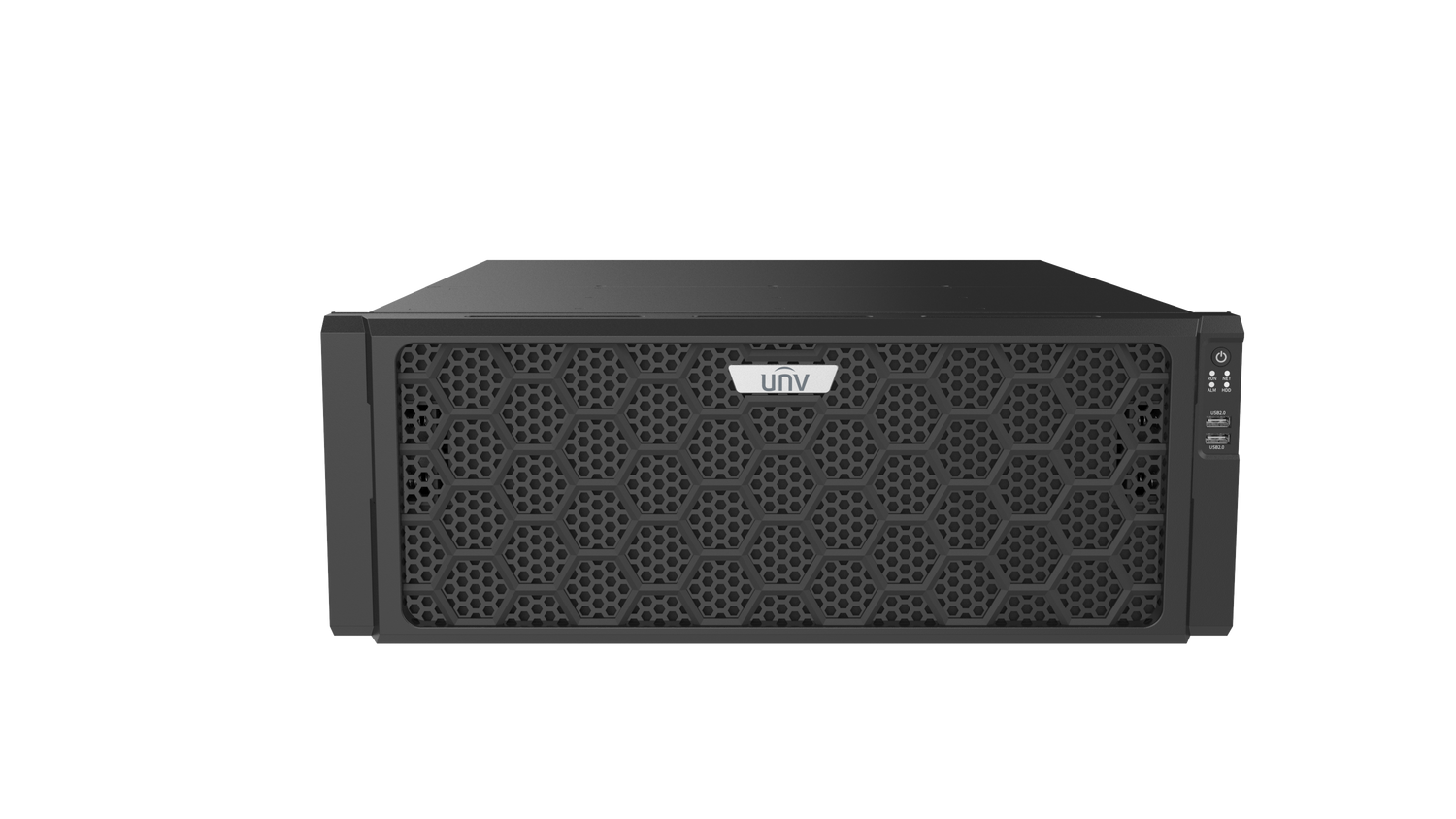

NVR524-256E
$14,50900 USD
Unit price
/
Unavailable
NVR524-256E
Support Ultra 265/H.265/H.264 video formats
128/256-channel input
Third-party IP cameras supported with ONVIF conformance:Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
Support 2-ch HDMI, 2-ch VGA, HDMI1 at up to 8K(7680x4320) resolution
HDMI1/ VGA1 and HDMI2/VGA2 independent outputs provided
Up to 32 Megapixels resolution recording
Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
Support 12V power output
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Support N+1 Hot spare
Spec Sheet User Manual Quick Guide
Dimensions| Β | NVR524-128E | NVR524-256E | ||||||
| Decoding | ||||||||
| Decoding Format | Ultra 265, H.265, H.264 | |||||||
| Decoding Capability | 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 20 x 3MP@30, 32 x 1080P@30,64 x 720P@30, 128 x D1 | |||||||
| Decoding Capability Description | The resolution of each channel cannot exceed 8640 pixels in length or width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page. | |||||||
| Audio Compression | G.711A, G.711U | |||||||
| Network | ||||||||
| Incoming Bandwidth | 640Mbps | |||||||
| Outgoing Bandwidth | 640Mbps | |||||||
| Protocols | TCP/IP, P2P,UPnP,NTP,DHCP,PPPoE,HTTP,HTTPS,DNS,DDNS,SNMP, SMTP, NFS, RTSP, 802.1x,IPv6, IPv4 | |||||||
| Browser(Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ | |||||||
| Video/Audio Input | ||||||||
| IP Video Input | 128-ch | 256-ch | ||||||
| RCA Audio Input | 1-ch | |||||||
| Video/Audio Output | ||||||||
| Video Output | Support 2-ch HDMI, 2-ch VGA, HDMI1 and VGA1 simultaneous output, HDMI2 and VGA2 simultaneous output, HDMI1/VGA1 and HDMI2/VGA2 independent output | |||||||
| HDMI Output | HDMI1: 8K (7680 β 4320)/30 Hz, 4K (38402160)/60 Hz, 1920 β 1080/60 Hz, 1600 β 1200/60 Hz, 1280 β 1024/60 Hz, 1280 β 720/60 Hz, 1024 β 768/60 Hz; HDMI2: 4K (3840 β 2160)/60 Hz, 1920 β 1080/60 Hz, 1600 β 1200/60 Hz, 1280 β 1024/60 Hz, 1280 β 720/60 Hz, 1024 β 768/60 Hz | |||||||
| VGA Output | 1920 β 1080/60 Hz, 1600 β 1200/60 Hz, 1280 β 1024/60 Hz, 1280 β 720/60 Hz, 1024 β 768/60 Hz | |||||||
| RCA Audio Output | 2-ch | |||||||
| Liveview Display | 1/4/6/8/9/16/25/36/64 | |||||||
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 | |||||||
| Two-way Audio | ||||||||
| Two-way Audio | 1-ch, RCA (Using the audio input and output) | |||||||
| Snapshot | ||||||||
| FTP/Schedule/Event Snapshot | 16-ch snapshot (max. 8 MP (3840 β 2160) video resolution, with 1080P snapshot resolution) | |||||||
| Recording | ||||||||
| Recording Resolution | 32MP/16MP/12MP/8MP/6MP/5MP/3MP/1080P/960P/720P/D1/2CIF/CIF | |||||||
| Synchronous Playback in Local | 16-ch | |||||||
| Smart | ||||||||
| VCA Detection by IPC | Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring | |||||||
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map | |||||||
| Smart by IPC | All channels (up to 32 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring | |||||||
| Alarm | ||||||||
| General Alarm | Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection, People Present Alarm | |||||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded | |||||||
| GUI Language | ||||||||
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian | |||||||
| Hard Disk | ||||||||
| SATA | 24 SATA Interfaces | |||||||
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) | |||||||
| Disk Array Type | RAID 0, 1, 5, 6, 10, 50, 60 | |||||||
| Hot Swap | Support | |||||||
| External Interface | ||||||||
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface | |||||||
| USB | Front panel: 2 β USB2.0, Rear panel: 2 β USB3.0 | |||||||
| RS485 | 1 | |||||||
| RS232 | 1 | |||||||
| Alarm In | 16-ch | |||||||
| Alarm Out | 10-ch | |||||||
| eSATA | 1 | |||||||
| Power Output | 12 V | |||||||
| Power Supply | AC 100 to 240 V | |||||||
| Power Switch | Support | |||||||
| Working Environment | ||||||||
| Working Temperature | -10 βΖ to 55 βΖ (14 ββ° to 131 ββ°) | |||||||
| Working Humidity | β°Β€ 90% RH (non-condensing) | |||||||
| Power Consumption (without HDD) | β°Β€ 50W | |||||||
| Dimensions | ||||||||
| Weight (without HDD) | β°Β€ 10Kg (22.05lb) | |||||||

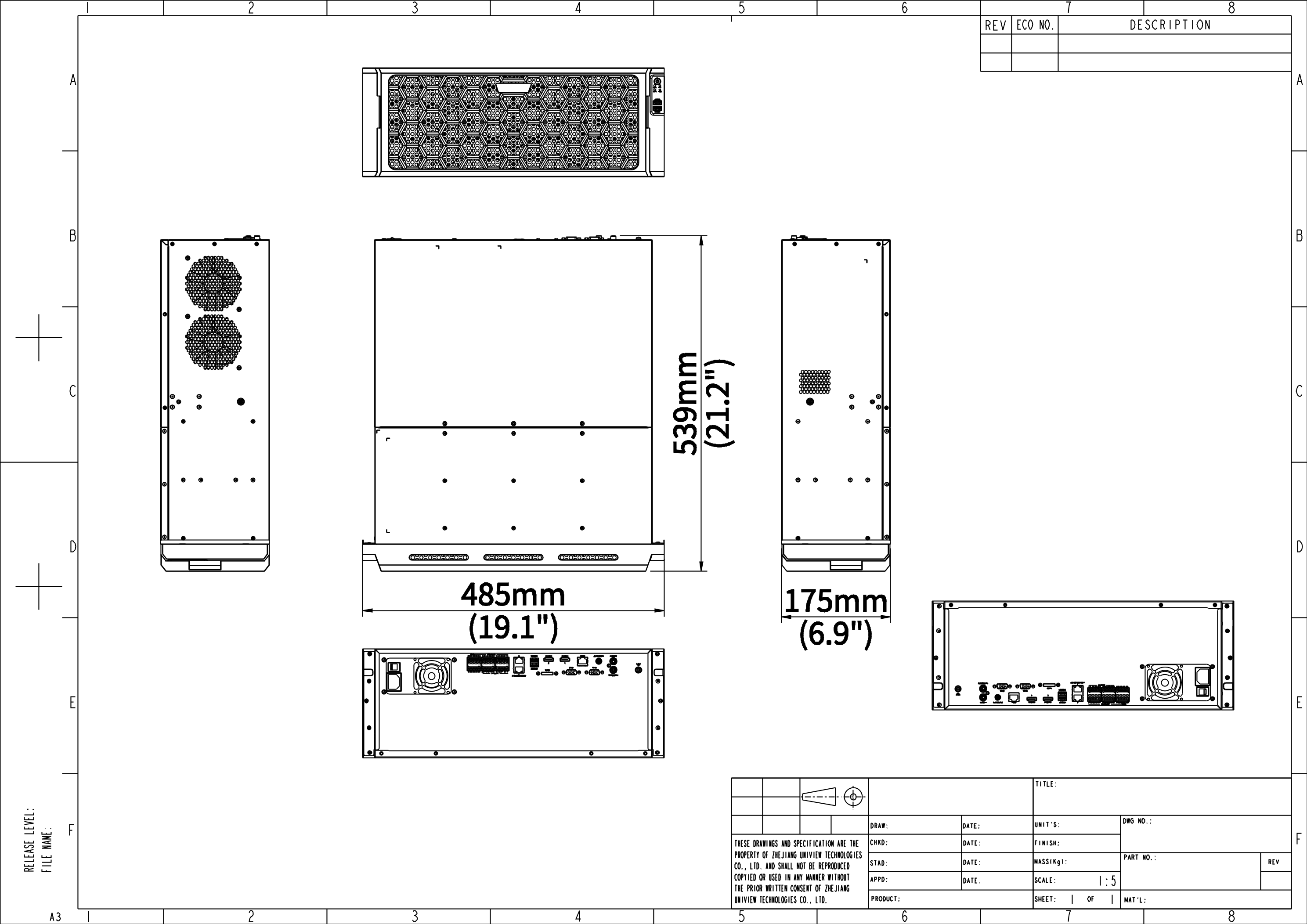

| Dimensions | 485mm β 539mm β 175mm (19.1"β21.2"β6.9") | |||||||
| Certification | ||||||||
| Certification | CE; FCC; RoHS; WEEE | |||||||
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |||||||
| FCC | Part15 Subpart B | |||||||
