UNV Technology USA LLC  |  SKU: IPP-2744

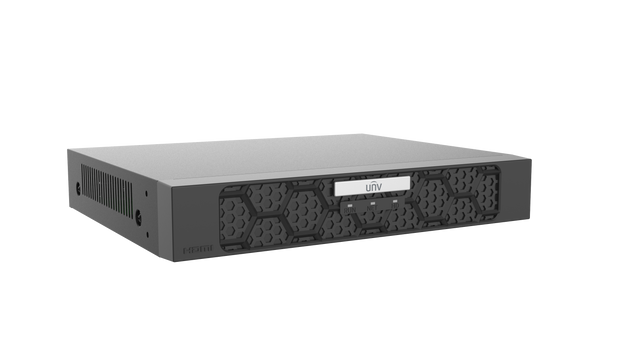

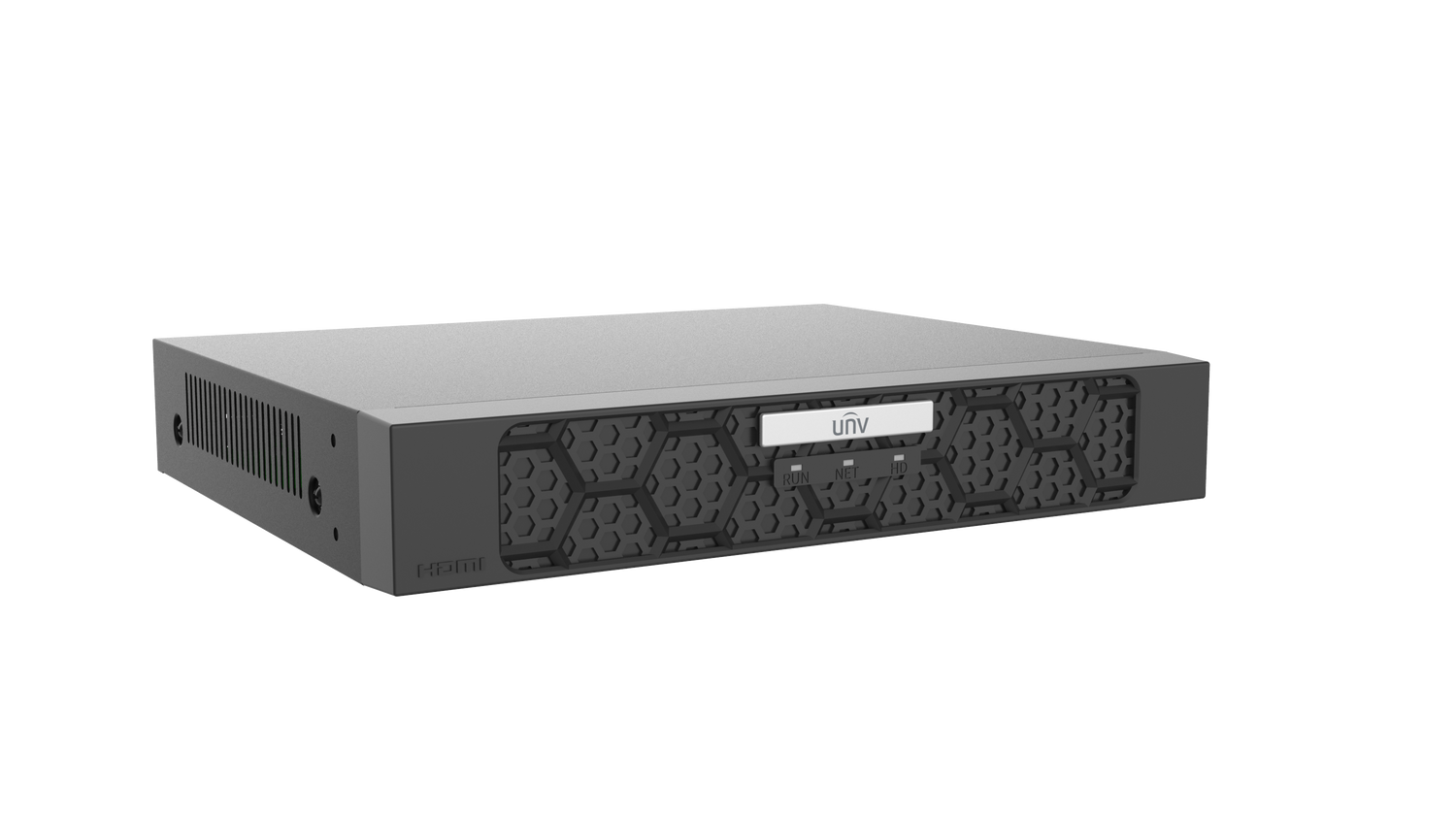

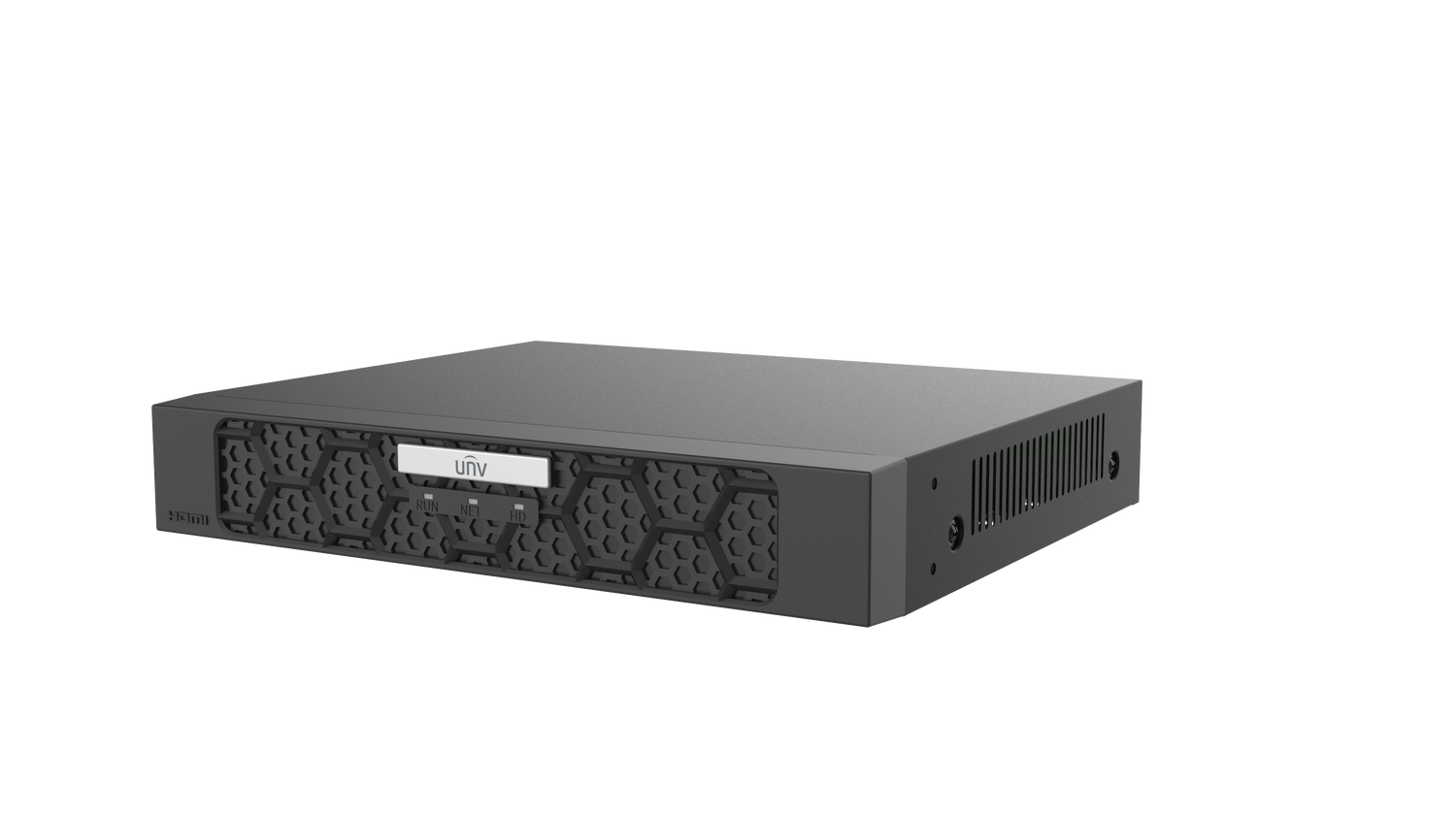

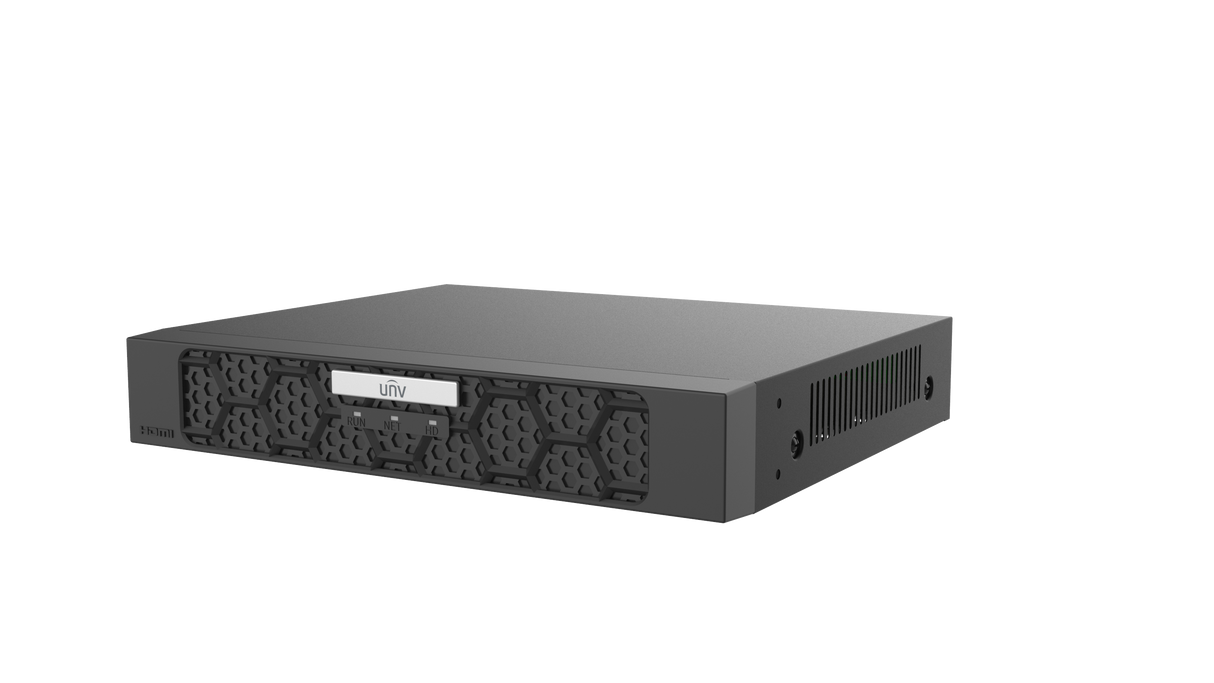

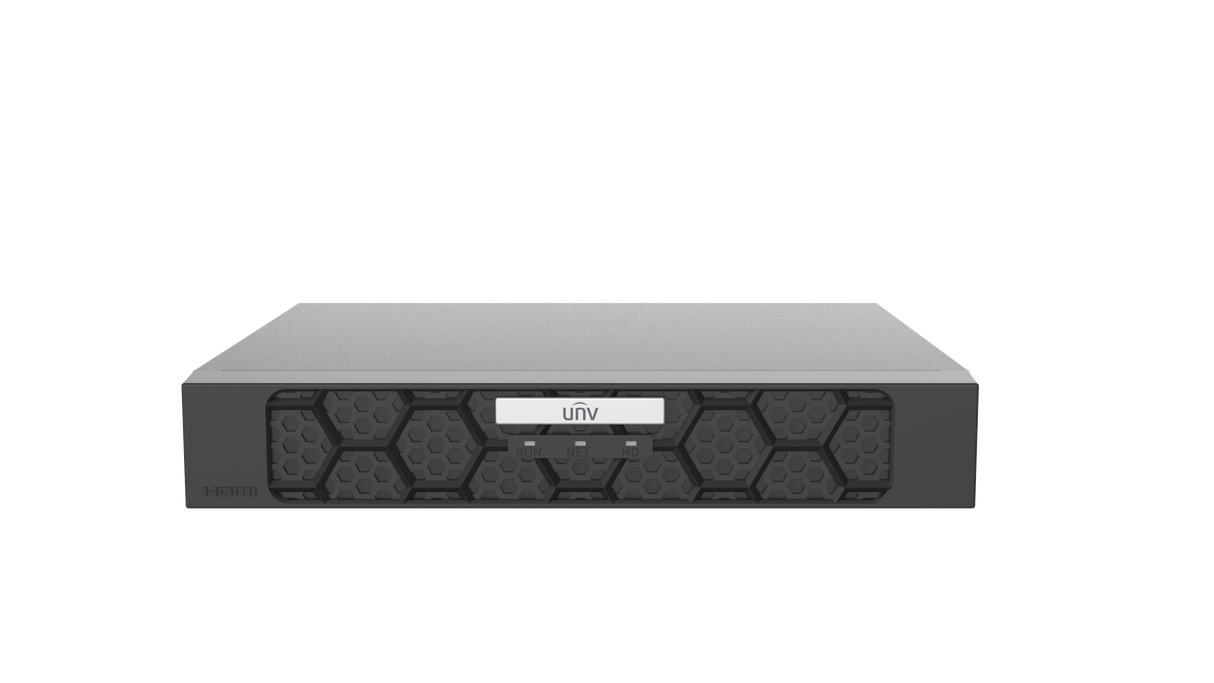

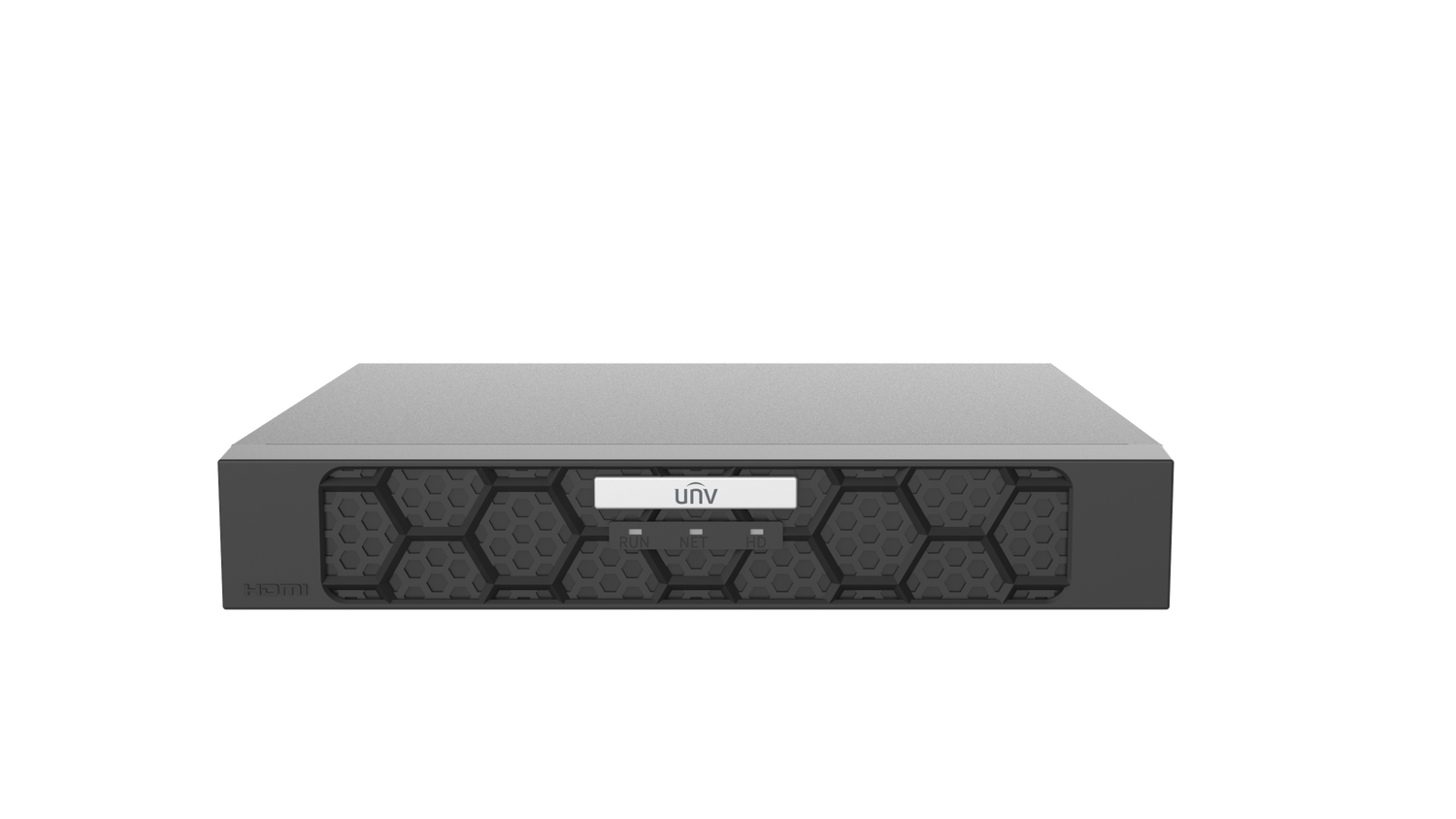

NVR501-04B-P4-IQ

$45900 USD $56900
Tax included

Sign up for special pricing!

NVR501-04B-P4-IQ

Uniview Logo

Support Ultra 265/H.265/H.264 video formats 4/16-channel input Plug & Play with 4/8 independent PoE network interfaces Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T ) and RTSP protocols Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution VGA and HDMI simultaneous output Up to 16 Megapixels resolution recording ANR technology to enhance the storage reliability when the network is disconnected Support cloud upgrade

Download Spec Sheet
Download User Manual
Download Quick Guide
Download Dimensions
  NVR501-04B-P4-IQ NVR501-08B-P8-IQ
Decoding
Decoding Format Ultra 265, H.265, H.264
Decoding Capability Smart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30
Smart On: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30		 Smart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30
Smart On: 2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30
Decoding Capability Description The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Audio Compression G.711A, G.711U
Network
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 80 Mbps
Remote Users 128
Protocols TCP/IP, P2P,NTP,DHCP,PPPoE,HTTP,HTTPS,DNS,DDNS,SNMP, SMTP, RTSP,IPv6, IPv4
Browser(Plugin) IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input 4-ch 8-ch
RCA Audio Input 1-ch
Video/Audio Output
Video Output Support 1-ch HDMI, 1-ch VGA, HDMI and VGA simultaneous output
HDMI Output 4K (3840 — 2160)/30 Hz, 1920 — 1080/60 Hz, 1920 — 1080/50 Hz, 1600 — 1200/60 Hz, 1280 — 1024/60 Hz, 1280 — 720/60 Hz, 1024 — 768/60 Hz
VGA Output 1920 — 1080/60 Hz, 1920 — 1080/50 Hz, 1600 — 1200/60 Hz, 1280 — 1024/60 Hz, 1280 — 720/60 Hz, 1024 — 768/60 Hz
RCA Audio Output 1-ch
Liveview Display 1/4 1/4/6/8/9
Corridor Mode Screen 3/4 3/4/5/7/9
Two-way Audio
Two-way Audio 1-ch, RCA (Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot 4-ch snapshot (max. 8 MP (3840 — 2160) video resolution, with 1080P snapshot resolution)
Recording
Recording Resolution 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Num of Concurrent Playback 16-ch
Smart
VCA Detection by IPC Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
Smart by NVR Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch
Smart by IPC All channels (up to 8 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Vehicle Picture Library Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR 4-ch
UMD by NVR 4-ch 8-ch
Capacity of Snapshot Records 500 thousand records for face snapshot, One and a half millions records for SIP and vehicle
Alarm
General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded
GUI Language
GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA 1 SATA Interface
Capacity Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size)
External Interface
Network Interface 1 RJ45 10 M/100 M self-adaptive Ethernet Interface
Network Working Mode Single port, not involved
USB Front panel: 1 — USB2.0, Rear panel: 1 — USB3.0
RS485 N/A
RS232 N/A
Alarm In N/A
Alarm Out N/A
Power Supply DC 48 V/1.35 A DC 52 V/1.8 A
PoE
PoE Interface 4 RJ45 10 M/100 M self-adaptive Ethernet Interface 8 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power Max 30 W for single port, Max 50 W in total Max 30 W for single port, Max 75 W in total
Supported Standard IEEE 802.3at, IEEE 802.3af
Working Environment
Working Temperature -10 ℃ to 50 ℃ (14 ℉ to 122 ℉)
Working Humidity ≤ 90% RH (non-condensing)
Power Consumption (without HDD) ≤ 8W
Dimensions
Weight (without HDD) ≤ 1Kg (2.2lb)
Height 1U
Dimensions 260mm —215mm — 46.6mm (10.2" —8.5" —1.8" )
Certification
Certification CE; FCC; UL; RoHS; WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
