UNV Technology USA LLC | SKU:
IPP-2714
20% off
NVR302-16B-P16-IQ
$73900 USD
$91900
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability

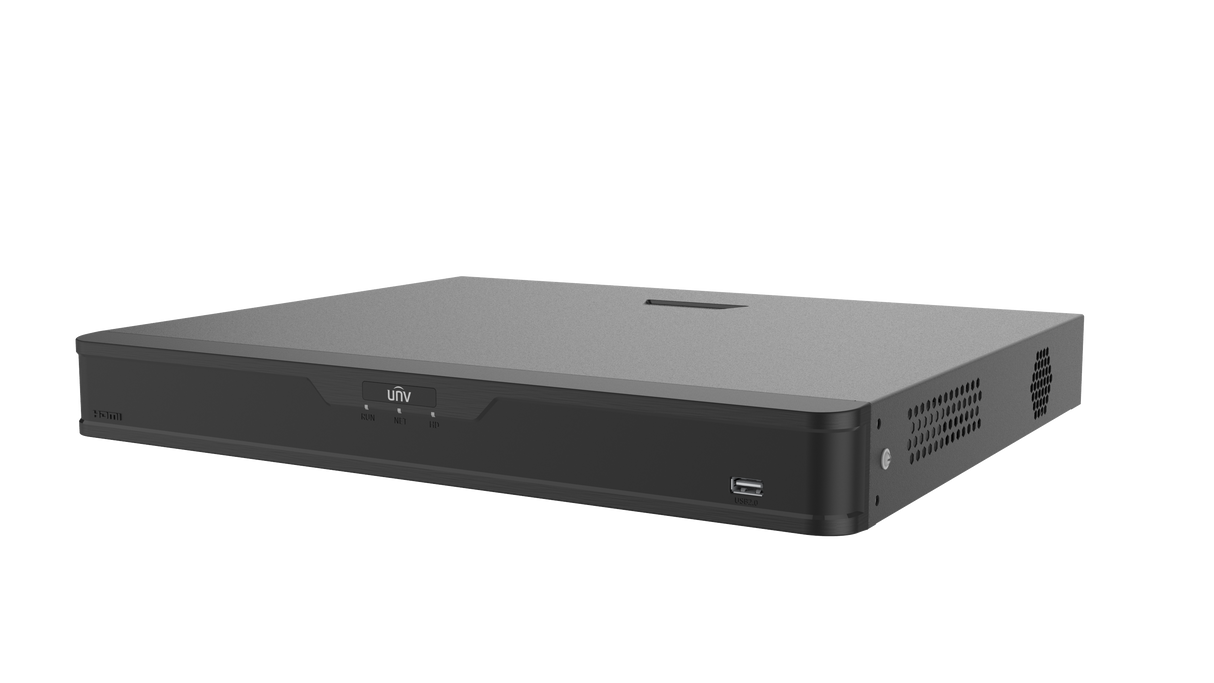

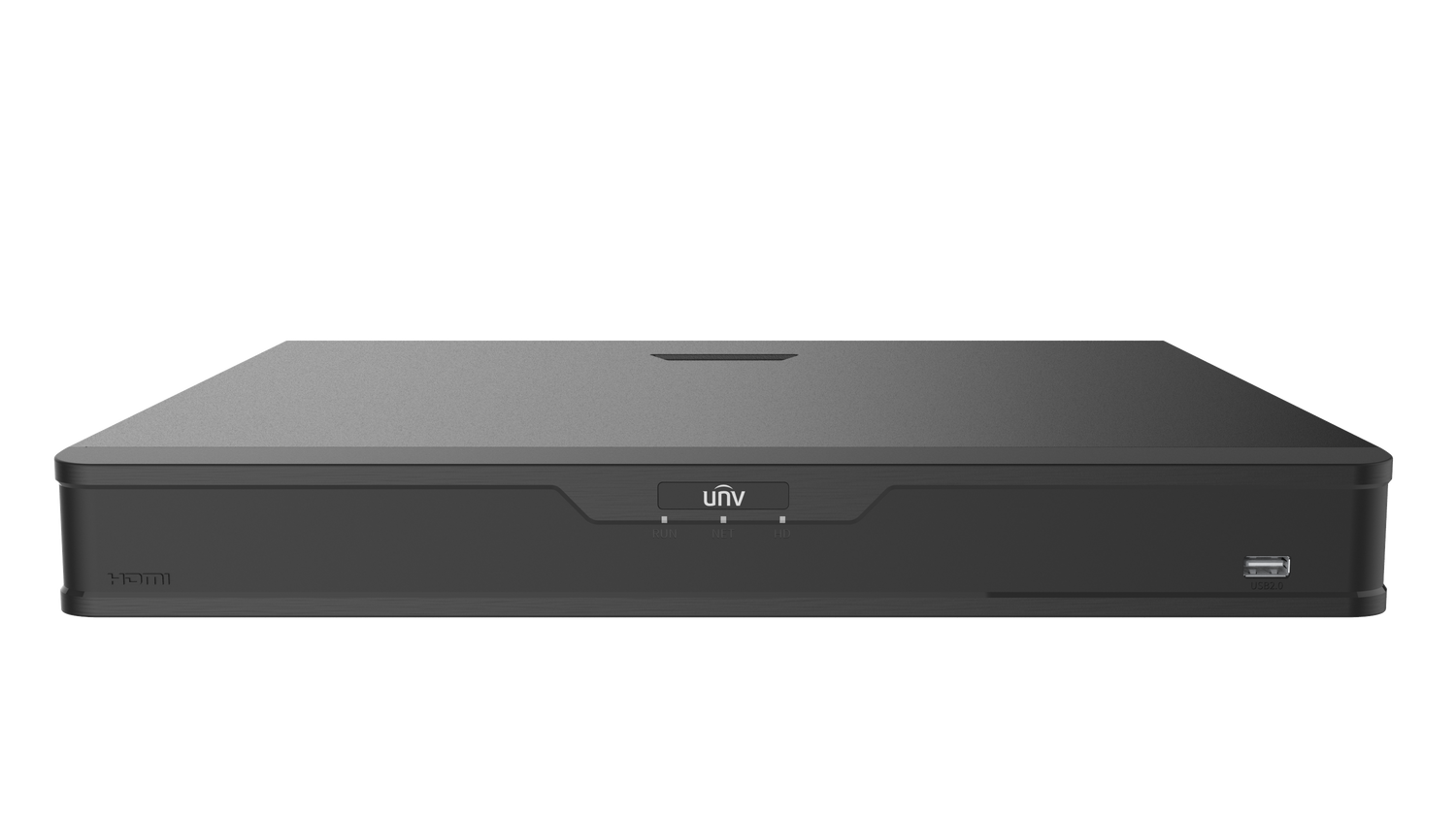

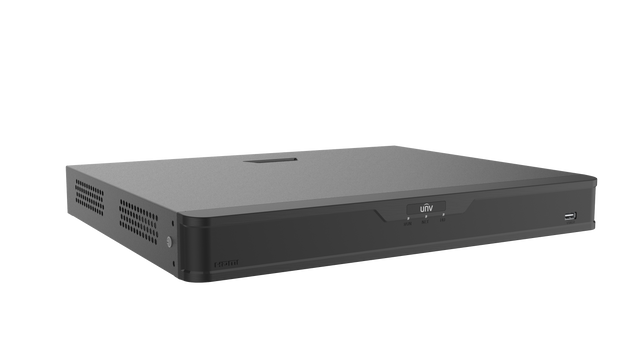

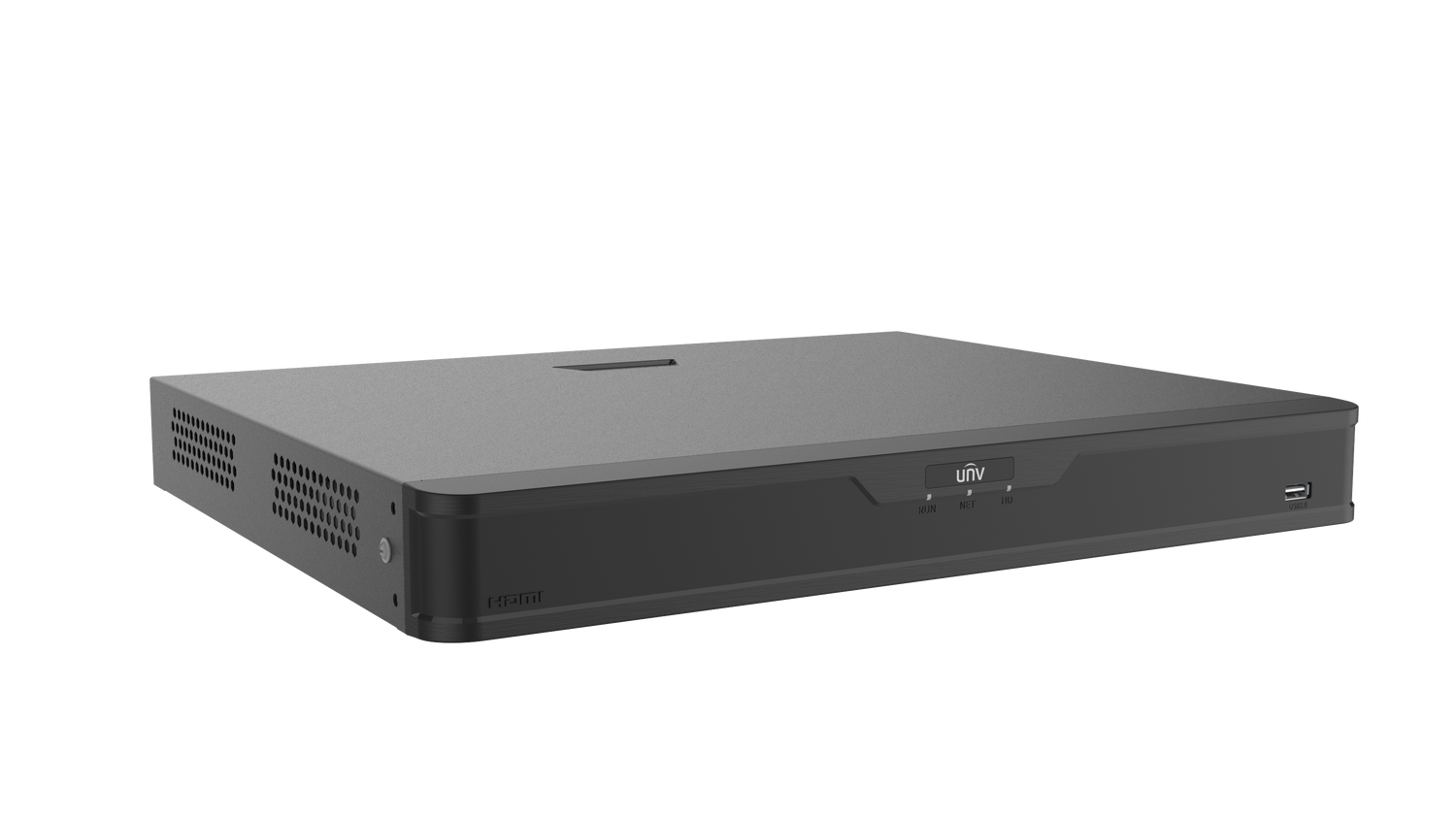

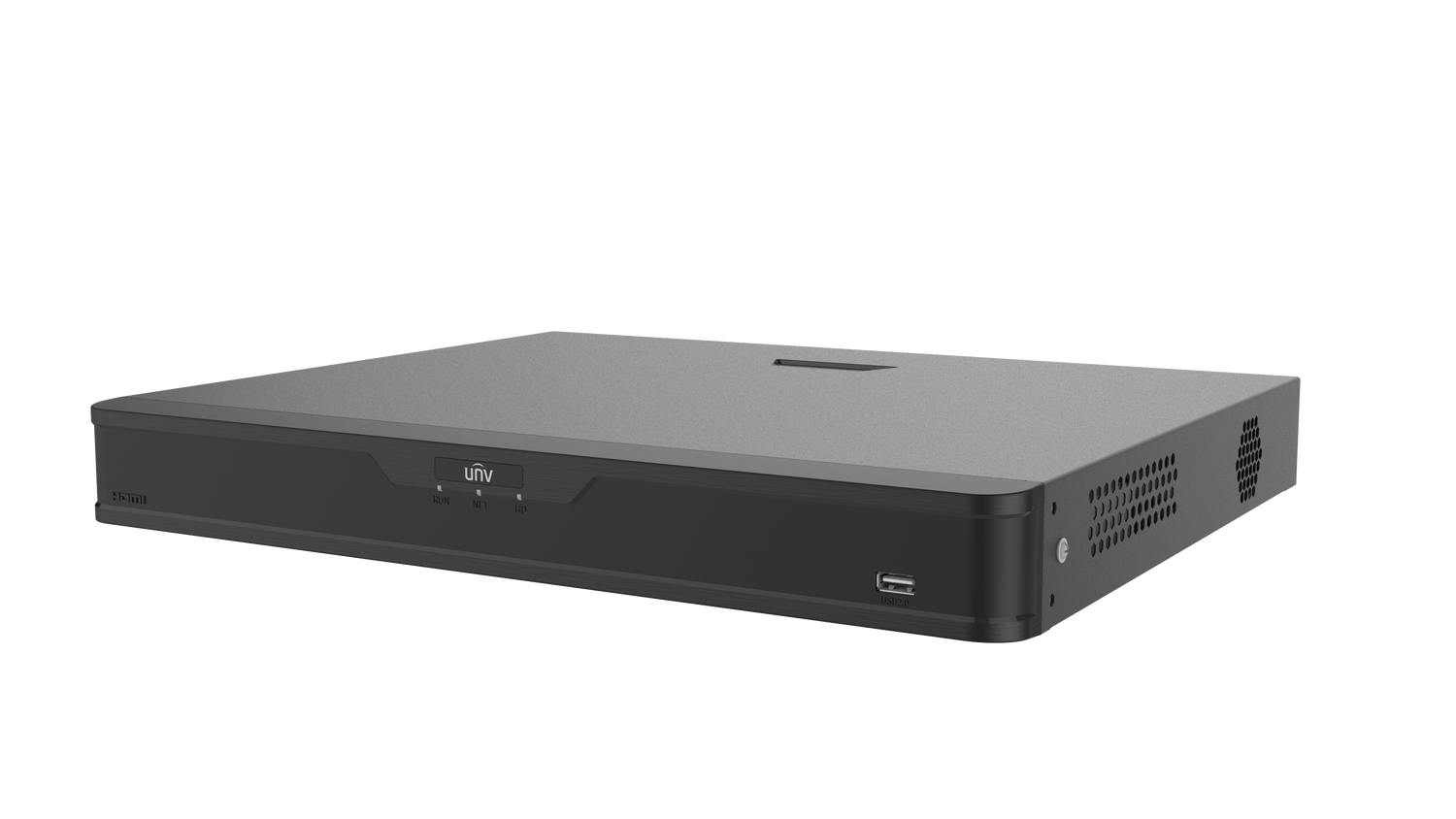

NVR302-16B-P16-IQ
$73900 USD
$91900
Unit price
/
Unavailable
NVR302-16B-P16-IQ
Support Ultra 265/H.265/H.264 video formats
16 channel input
Plug & Play with 16 independent PoE network interfaces
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840x2160) resolution
VGA and HDMI simultaneous output
Up to 12 Megapixels resolution recording
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Spec Sheet User Manual Quick Guide

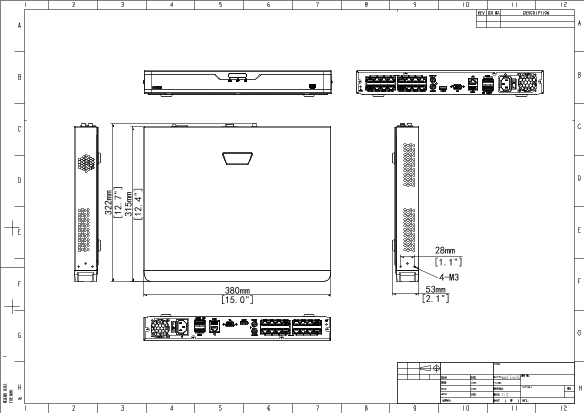

Dimensions| NVR302-16B-P16-IQ | ||||||||
| Decoding | ||||||||
| Decoding Format | Ultra 265,H.265,H.264 | |||||||
| Decoding Capability | Smart Offï¼2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16 x 720P@30 Smart Onï¼2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30 |
|||||||
| Decoding Capability Description | *. The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width. | |||||||
| Audio Compression | G.711A, G.711U | |||||||
| Network | ||||||||
| Incoming Bandwidth | 160Mbps | |||||||
| Outgoing Bandwidth | 128Mbps | |||||||
| Remote Users | 128 | |||||||
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP,IPv6, IPv4 | |||||||
| Browser(Plugin) | Windows: IE (IE10/ 11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above) | |||||||
| Video/Audio Input | ||||||||
| IP Video Input | 16-ch | |||||||
| RCA Audio Input | 1-ch | |||||||
| Video/Audio Output | ||||||||
| HDMI Output | 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |||||||
| VGA Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |||||||
| RCA Audio Output | 1-ch | |||||||
| Liveview Display | 1/4/6/8/9/16 | |||||||
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 | |||||||
| Two-way Audio | ||||||||
| Two-way Audio | 1-ch,RCA(Using the audio input and output) | |||||||
| Snapshot | ||||||||
| FTP/Schedule/Event Snapshot | 4-ch snapshot,up to D1 resolution | |||||||
| Recording | ||||||||
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF | |||||||
| Synchronous Playback in Local | 16-ch | |||||||
| Smart | ||||||||
| VCA Detection by IPC | Face Detection, face detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), People Counting (People Flow Counting, Crowd Density Monitoring), Traffic Monitoring | |||||||
| Smart by NVR | Face Detection, face detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) | |||||||
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map | |||||||
| Smart by IPC | All channels (up to 8 images/s in total)Face Detection, face detection, Vehicle Detection, SIP, UMD, Traffic Monitoring | |||||||
| Vehicle Picture Library | Up to 5 vehicle picture libraries,with up to 25,000 vehicle pictures in total | |||||||
| SIP by NVR | 2-ch | |||||||
| UMD by NVR | 4-ch | |||||||
| Alarm | ||||||||
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | |||||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||||||
| GUI Language | ||||||||
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian | |||||||
| Hard Disk | ||||||||
| SATA | 2 SATA Interfaces | |||||||
| Capacity | Up to 10TB for each HDD (The maximum HDD capacity varies with environment temperature) | |||||||
| External Interface | ||||||||
| Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface | |||||||
| USB | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 | |||||||
| RS485 | 1 | |||||||
| RS232 | N/A | |||||||
| Alarm In | 8-ch | |||||||
| Alarm Out | 2-ch | |||||||
| Power Supply | AC 100~240V | |||||||
| PoE | ||||||||
| PoE Interface | 16 RJ45 10M/100M self-adaptive Ethernet Interface | |||||||
| Max Power | Max 30W for single port, Max 240W in total | |||||||
| Supported Standard | IEEE 802.3at, IEEE 802.3af | |||||||
| Working Environment | ||||||||
| Working Temperature | -10°C ~ + 55°C (+14°F ~ +131°F) | |||||||
| Working Humidity | ¤ 90% RH (non-condensing) | |||||||
| Power Consumption (without HDD) | ¤ 12W | |||||||
| Dimensions | ||||||||
| Weight (without HDD) | ¤ 2.7Kg (6.0lb) | |||||||
| Dimensions | 380mm 322mm 53mm (15.0"12.7"2.1") | |||||||
| Certification | ||||||||
| Certification | CE; FCC; UL; RoHS; WEEE | |||||||
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |||||||
| FCC | Part15 Subpart B | |||||||
