UNV Technology USA LLC  |  SKU: IPP-16

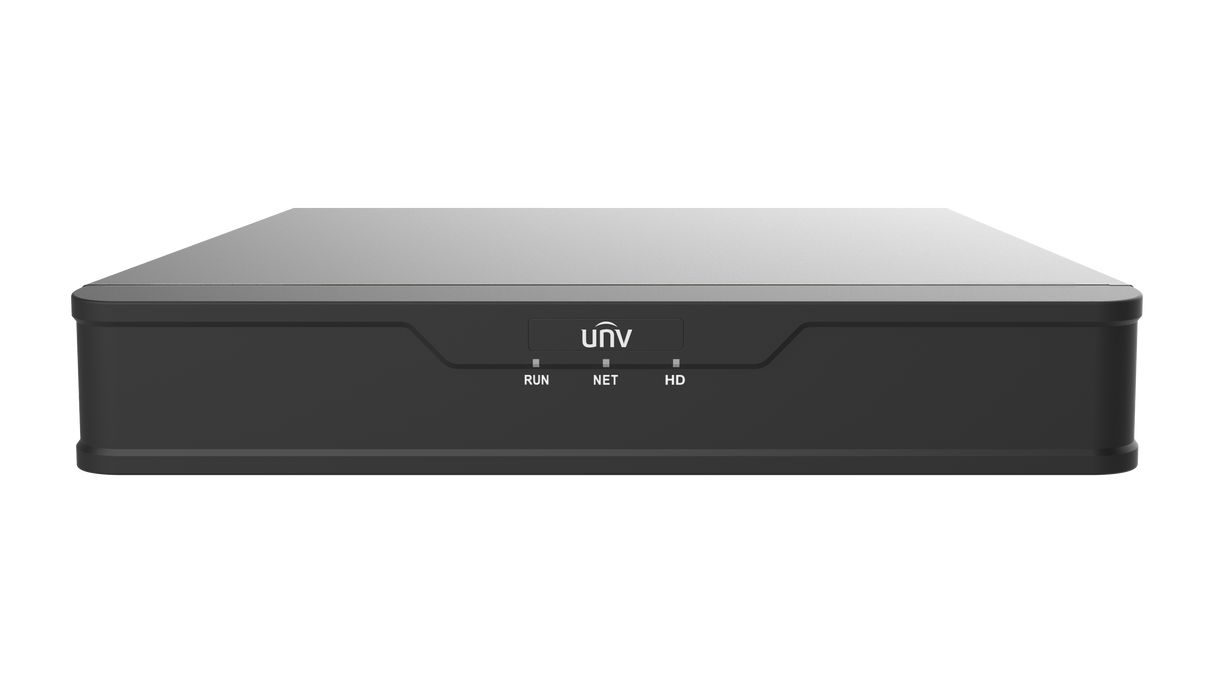

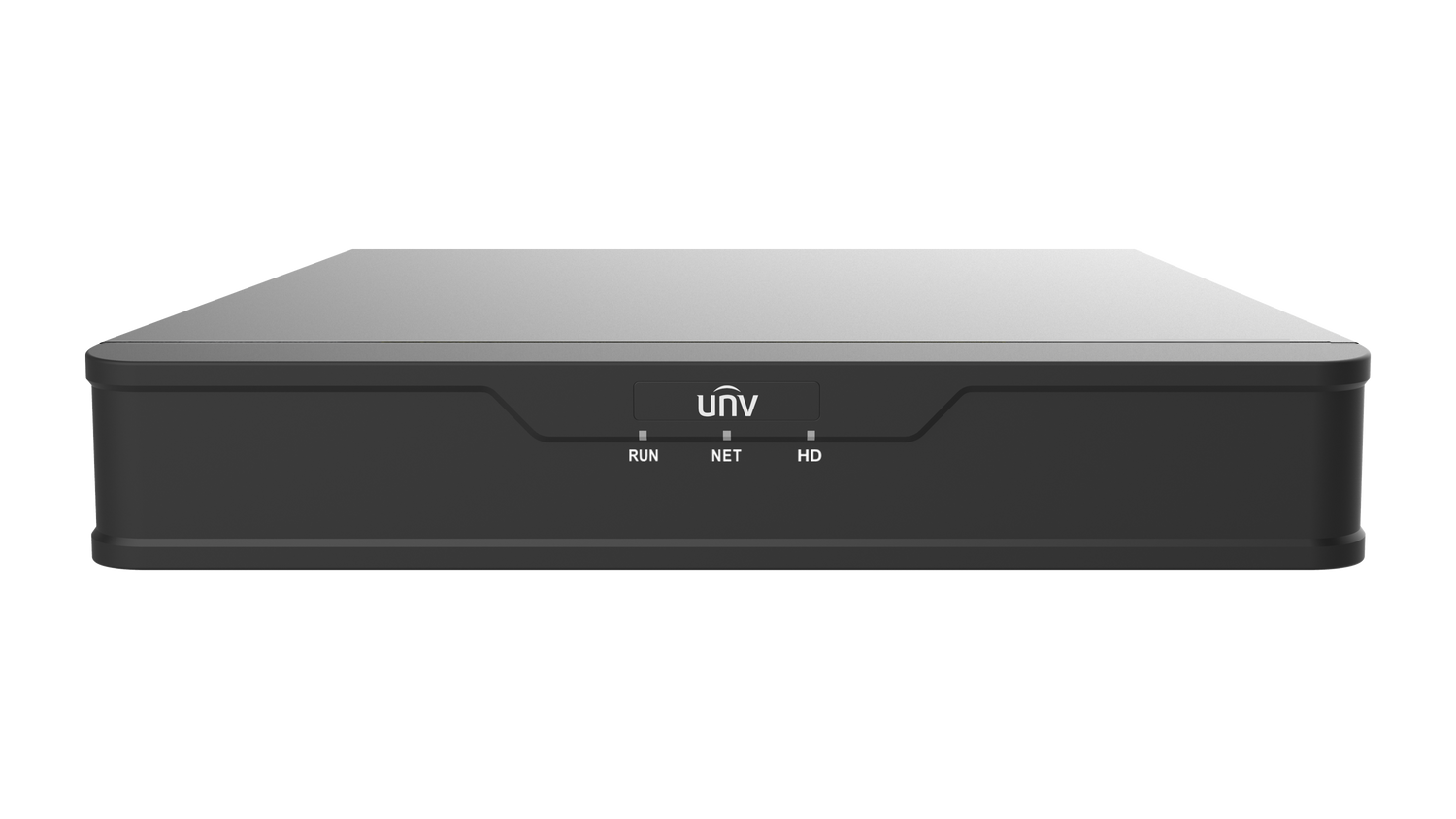

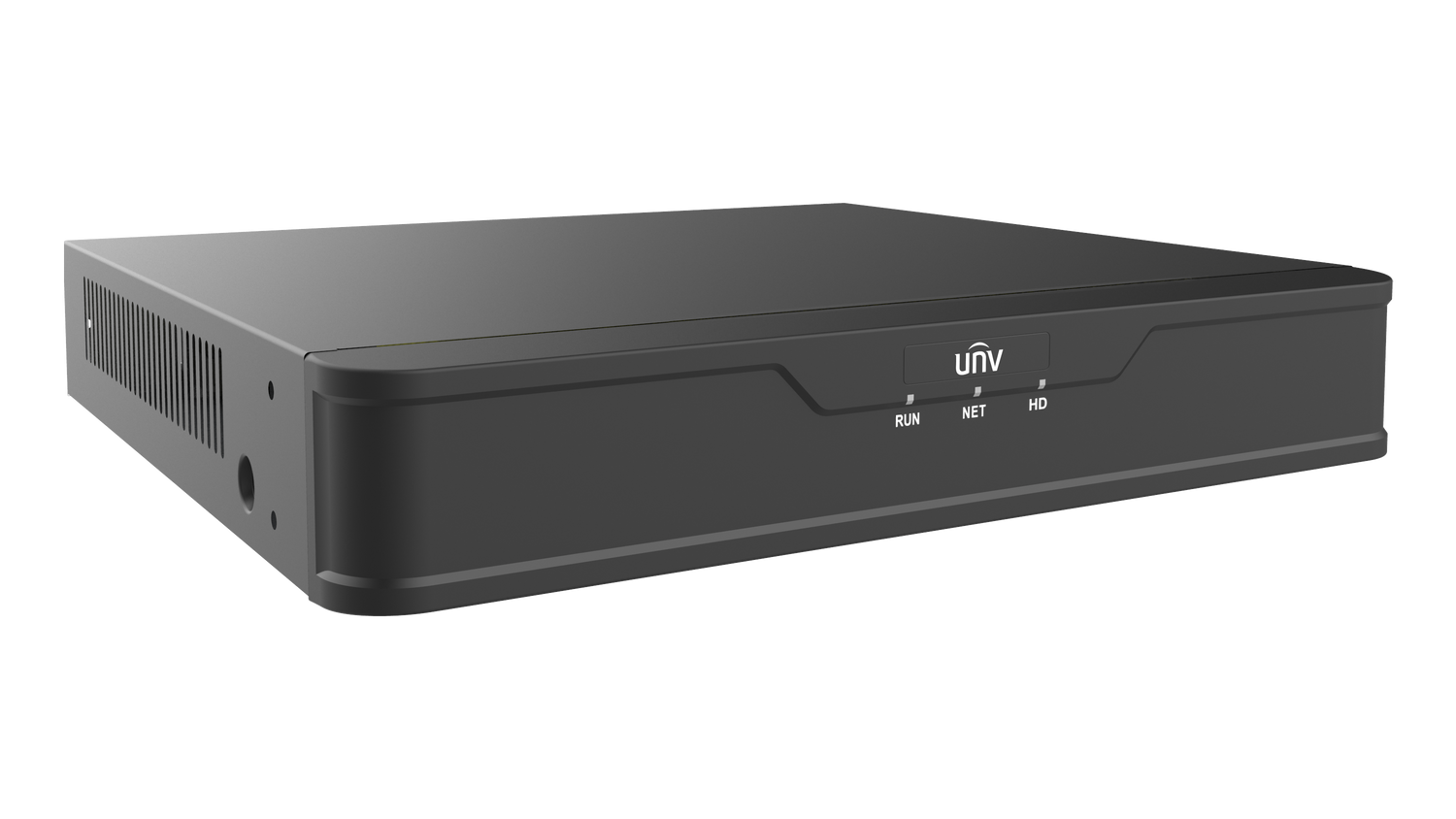

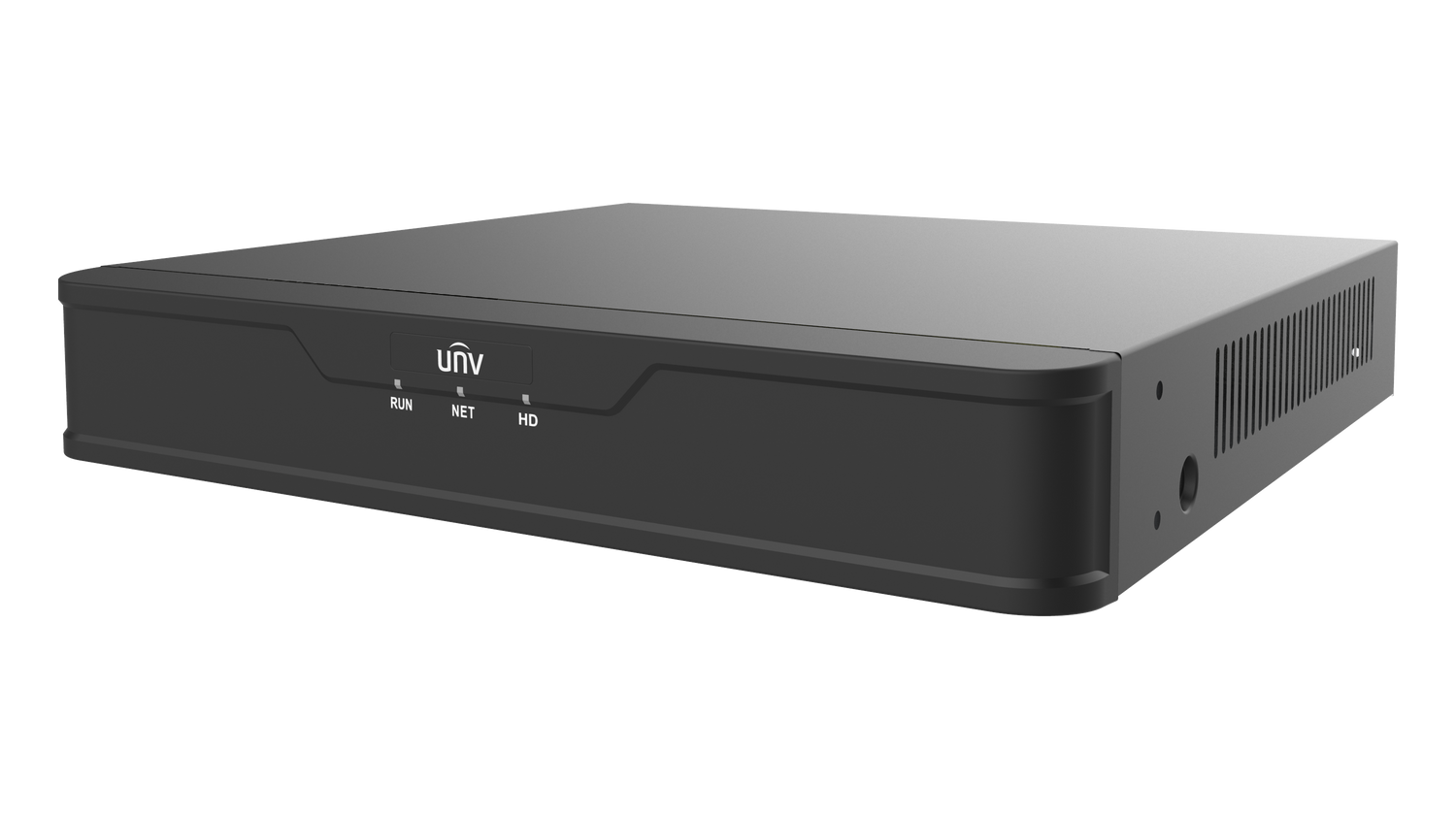

NVR301-08S3-P8

$44504 USD $48965
Tax included

Sign up for special pricing!

NVR301-08S3-P8

Uniview Logo

Support Ultra 265/H.265/H.264 video formats 4/8/16-channel input Plug & Play with 4/8 independent PoE network interfaces Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T ) and RTSP protocols Support 1-ch HDMI, 1-ch VGA, HDMI up to 4K (3840x2160) resolution HDMI and VGA simultaneous output Up to 4K resolution recording Support cloud upgrade

Download Spec Sheet
Download User Manual
Download Quick Guide
Download Dimensions
  NVR301-04S3-P4 NVR301-08S3-P8 NVR301-16S3-P8
Decoding
Decoding Format Ultra 265, H.265, H.264
Decoding Capability 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080P@30, 8 x 720P@30, 16 x D1@25
Decoding Capability Description The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width
Audio Compression G.711A, G.711U
Network
Incoming Bandwidth 64 Mbps
Outgoing Bandwidth 48 Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4 TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4 TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
Browser(Plugin) IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/Audio Input
IP Video Input 4-ch 8-ch 16-ch
Video/Audio Output
HDMI Output 4K (3840 — 2160)/30 Hz, 1920 — 1080/60 Hz, 1920 — 1080/50 Hz, 1600 — 1200/60 Hz, 1280 — 1024/60 Hz, 1280 — 720/60 Hz, 1024 — 768/60 Hz 4K (3840 — 2160)/30 Hz, 1920 — 1080/60 Hz, 1920 — 1080/50 Hz, 1600 — 1200/60 Hz, 1280 — 1024/60 Hz, 1280 — 720/60 Hz, 1024 — 768/60 Hz HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output 1920 — 1080/60 Hz, 1920 — 1080/50 Hz, 1600 — 1200/60 Hz, 1280 — 1024/60 Hz, 1280 — 720/60 Hz, 1024 — 768/60 Hz 1920 — 1080/60 Hz, 1920 — 1080/50 Hz, 1600 — 1200/60 Hz, 1280 — 1024/60 Hz, 1280 — 720/60 Hz, 1024 — 768/60 Hz VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCA Audio Output 1-ch
Liveview Display 1/4 1/4/6/8/9 1/4/6/8/9/16
Corridor Mode Screen 3/4 3/4/5/7/9 3/4/5/7/9/10/12/16
Snapshot
FTP/Schedule/Event Snapshot 1-ch snapshot (max. D1 (720 — 576) video resolution, with D1 snapshot resolution) 1-ch snapshot (max. D1 (720 — 576) video resolution, with D1 snapshot resolution) 1-ch snapshot, up to D1 resolution
Recording
Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local 4-ch 8-ch 16-ch
Smart
VCA Detection by IPC Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD)
VCA Search Behavior Search
Smart by IPC Total 4-ch(Face Detection, SIP, UMD)
Alarm
General Alarm Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language 21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian 21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian
Hard Disk
SATA 1 SATA Interface
Capacity Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature)
External Interface
Network Interface 1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USB Rear panel: 2 — USB2.0
RS485 N/A
RS232 N/A
Alarm In N/A
Alarm Out N/A
Power Supply DC 48 V/1.35 A DC 52 V/1.8 A DC 52 V/1.8 A
PoE
PoE Interface 4 RJ45 10 M/100 M self-adaptive Ethernet Interface 8 RJ45 10 M/100 M self-adaptive Ethernet Interface 8 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power Max 30 W for single port, Max 54 W in total Max 30 W for single port, Max 75 W in total Max 30 W for single port, Max 75 W in total
Supported Standard IEEE 802.3at, IEEE 802.3af
Working Environment
Working Temperature -10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity ≤ 90% RH (non-condensing)
Power Consumption (without HDD) ≤ 9W
Dimensions
Weight (without HDD) ≤ 1.1Kg (2.43lb)
Dimensions 260mm — 240mm — 46mm (10.2"—9.4"—1.8")
Certification
Certification CE; FCC; UL; RoHS; WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
