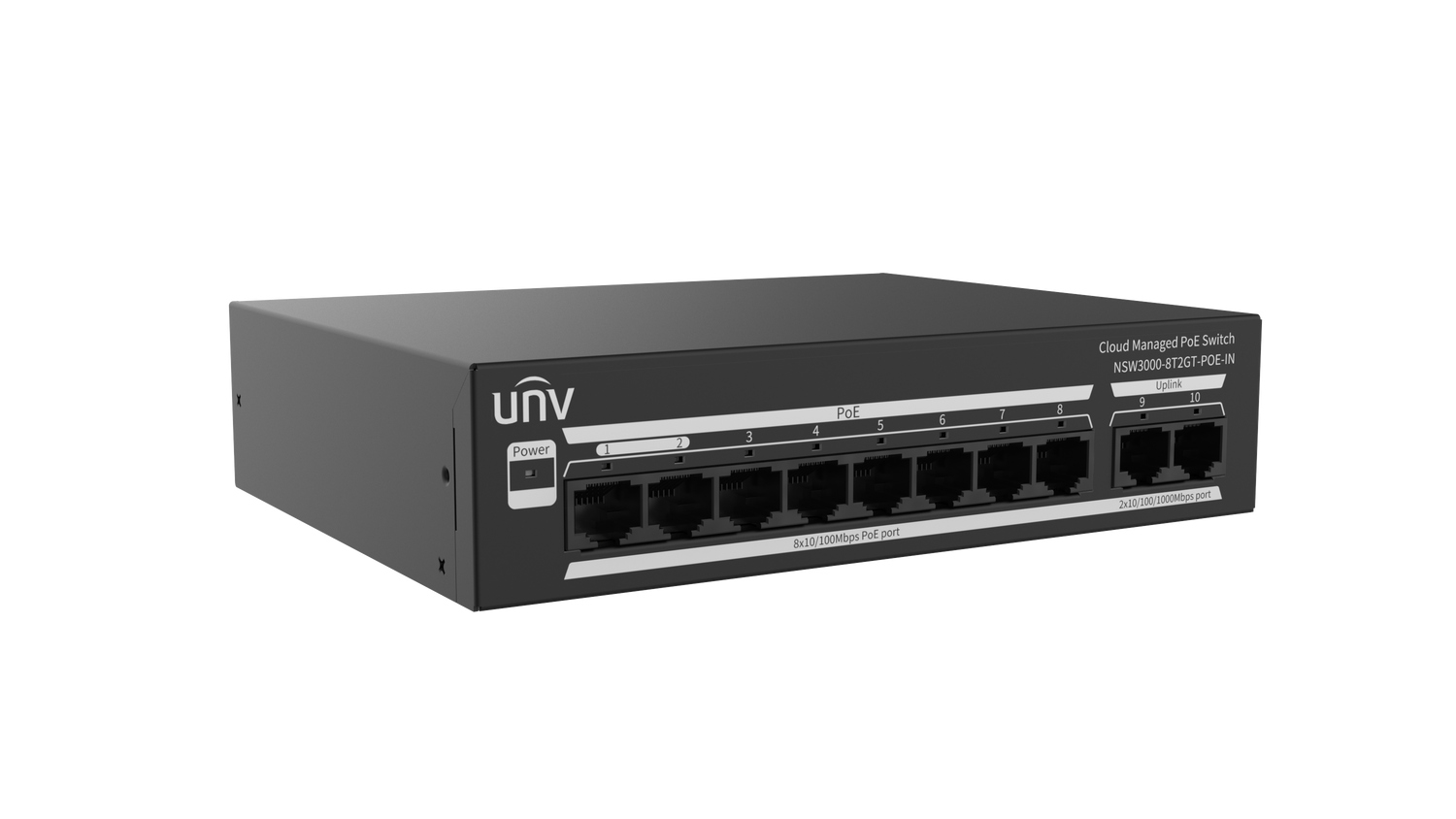

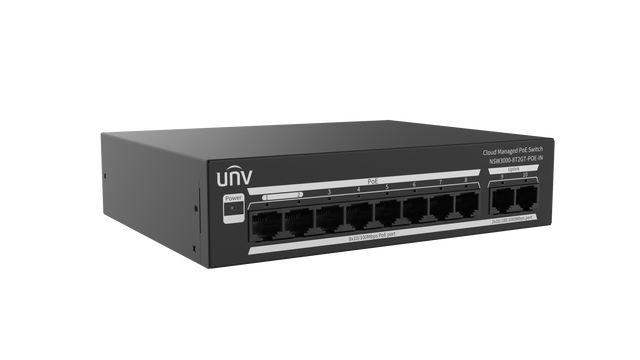

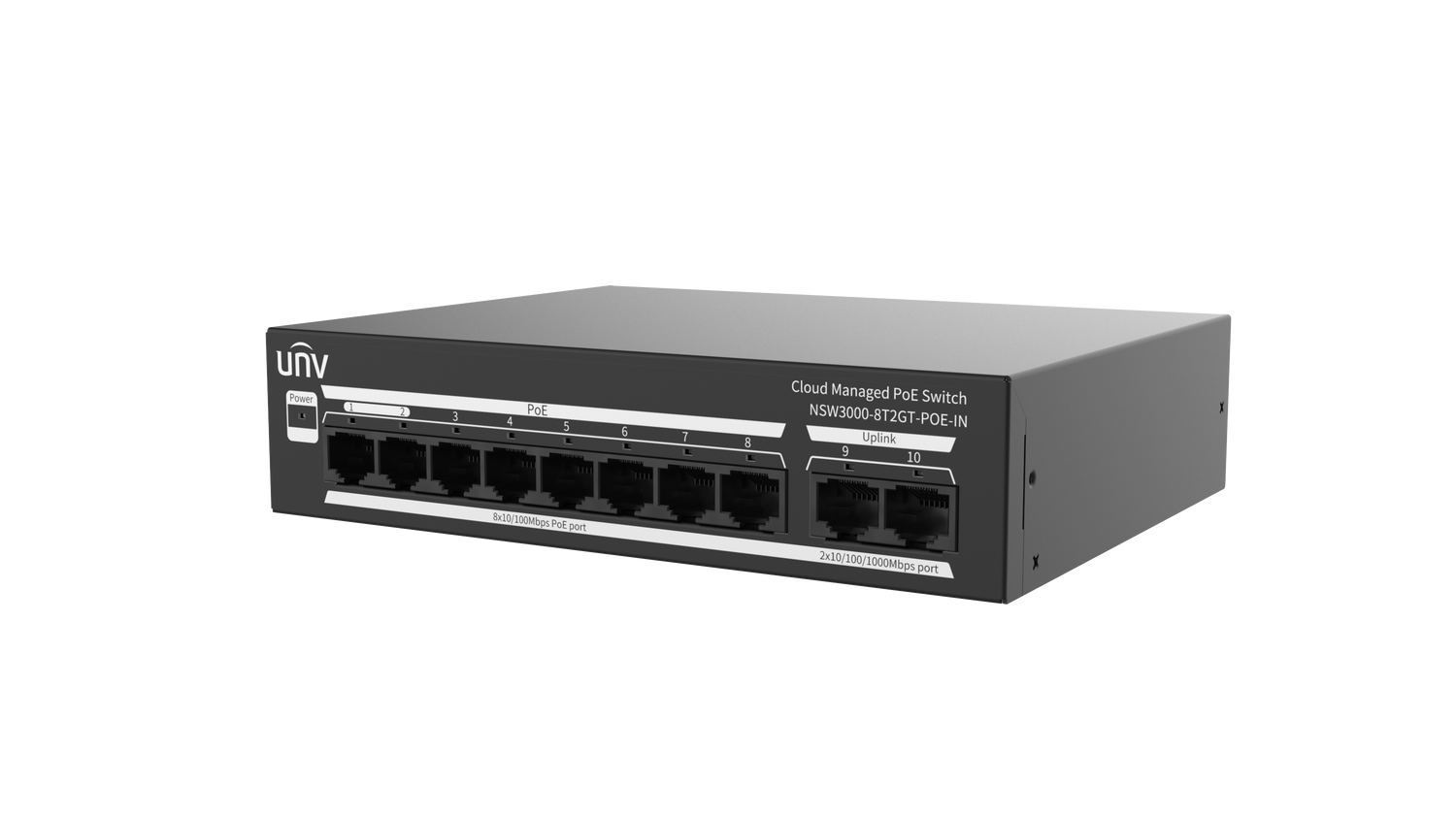

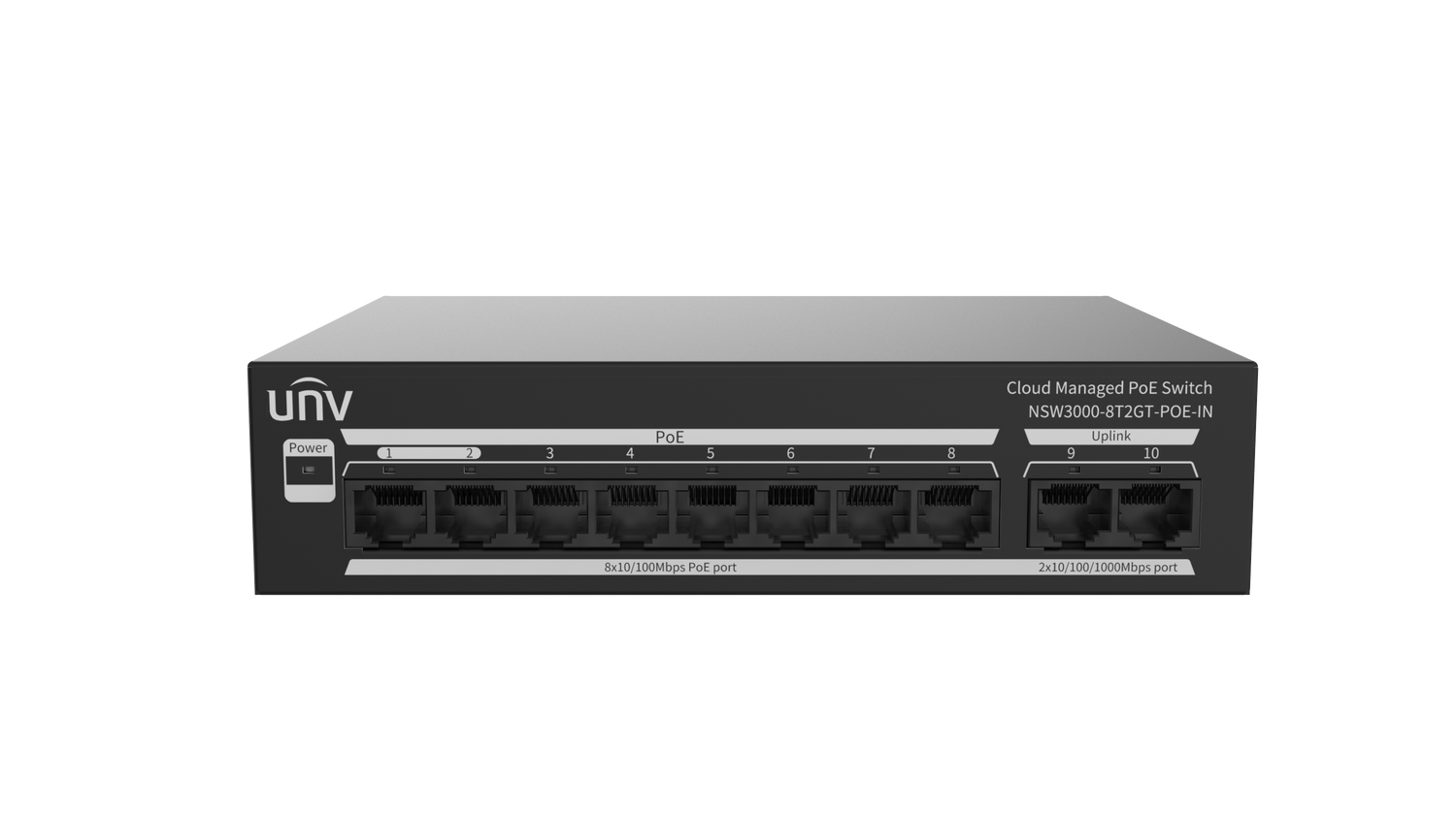

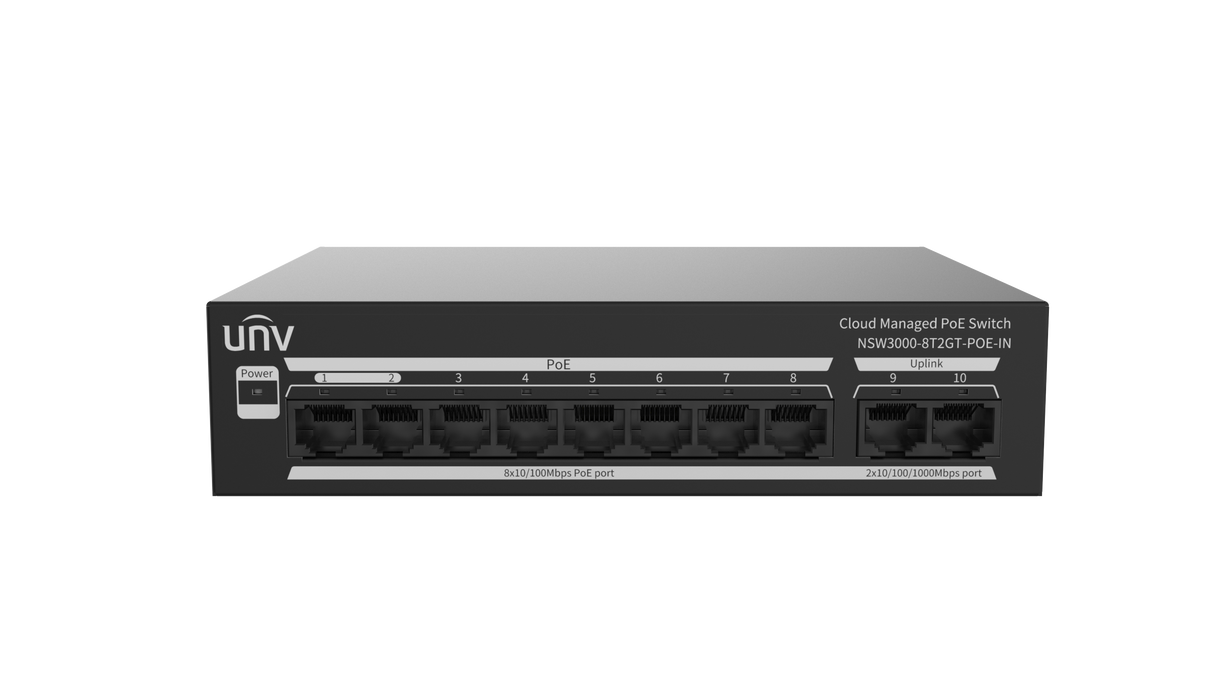

NSW3000-8T2GT-POE-IN
Couldn't load pickup availability
NSW3000-8T2GT-POE-IN
NSW3000-8T2GT-POE-IN
Supports unified configuration, management, and search on the software, convenient for rapid operation and maintenance of multiple devices; supports automatically discovering the connected video devices and generating a network topology on the software.
Supports Web login, and device configuration and management on the Web interface; supports visiting the cloud by scanning the QR code. Allows to view the device status and network topology in real time on the app, and remotely restart the PoE power supply.
Supports PoE power supply and allows to view the power; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
Supports the extend mode for up to 250m communication range and 10Mbps auto-negotiation rate.
Allows to report port abnormal alarms to the software for realtime monitoring.
Supports port priority. The packets received by the priority port will be forwarded first when the switch is fully loaded and the priority port will be powered first when the PoE power supply is full.
All metal casing, secure and reliable.
Spec Sheet Quick Guide| Β | NSW3000-8T2GT-POE-IN | |||||||
| HardwareSpecification | ||||||||
| Ports Type | 8 x 10/100Mbps POE port (RJ45) , 2 x Gigabit port (RJ45) |
|||||||
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at | |||||||
| Switching capacity | 5.6 Gbps | |||||||
| Forwarding performance | 4.17Mpps | |||||||
| Packet Buffer | 2 M bit | |||||||
| MAC | 4K | |||||||
| Weight | 0.67KG | |||||||
| Dimensions (WβDβH) | 169mm*132mm*40mm | |||||||
| Power Supply | AC 100V to 240V, 50/60Hz | |||||||
| Max.Power | 130W | |||||||
| Max.PoE Power | Maximum total power: 120W Maximum PoE power for single port: 30W Mode A, 1/2+, 3/6- Mode B, 4/5+, 7/8- |
|||||||
| Prior Ports | 1 to 2 | |||||||
| Cooling Fans | 0 | |||||||
| Operating temperature | 0 βΖ to 40 βΖ (32 ββ° to 104 ββ°) | |||||||
| Operating humidity | 10%ο½90% (non-condensing) | |||||||
| Storage Temperature | -40 βΖ to 70 βΖ | |||||||
| Storage Humidity | 5% to 90% RH, noncondensing | |||||||
| Indicator | POWER Off: No AC input, Power On (Green): Normal power input, Power On (Yellow): The total PoE power is higher than 85% of the total power of the device, No PoE Indicator, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data |
|||||||
| Software Specification | ||||||||
| Ethernet | Supports full duplex, half duplex, and auto-negotiation working modes Supports enabling/disabling ports Supports port auto-negotiation rate Supports port priority flow control. Supports port flow statistics Supports a link aggregation group (consist of two uplink ports) |
|||||||
| VLAN | Supports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4094 | |||||||
| MAC | Support (up to 4K). Supports clearing the dynamic MAC address |
|||||||
| POE | Allows to view PoE status and power. Allows to enable/disable PoE power supply. |
|||||||
| Loop Detection | Loop Detection | |||||||
| QoS | Supports port rate limitation. Supports broadcast storm control. |
|||||||
| Security | Supports port isolation (only for the downlink ports). Supports locking login IP address, up to 64 addresses can be locked |
|||||||
| Maintenance | Supports N:1 port mirroring. Supports unified software configuration, management, and search. Supports discovering the connected video devices and generating a network topology on the software. Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software. |
|||||||
| System | Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc. Allows to edit and manage the IP address and device name. Supports single-user management, user authentication, and password modification. Supports manual time configuration and NTP . Allows to view other switches information on the same network, up to 32 switches. Allows to view the connected video devices information, up to 64 devices . |
|||||||
