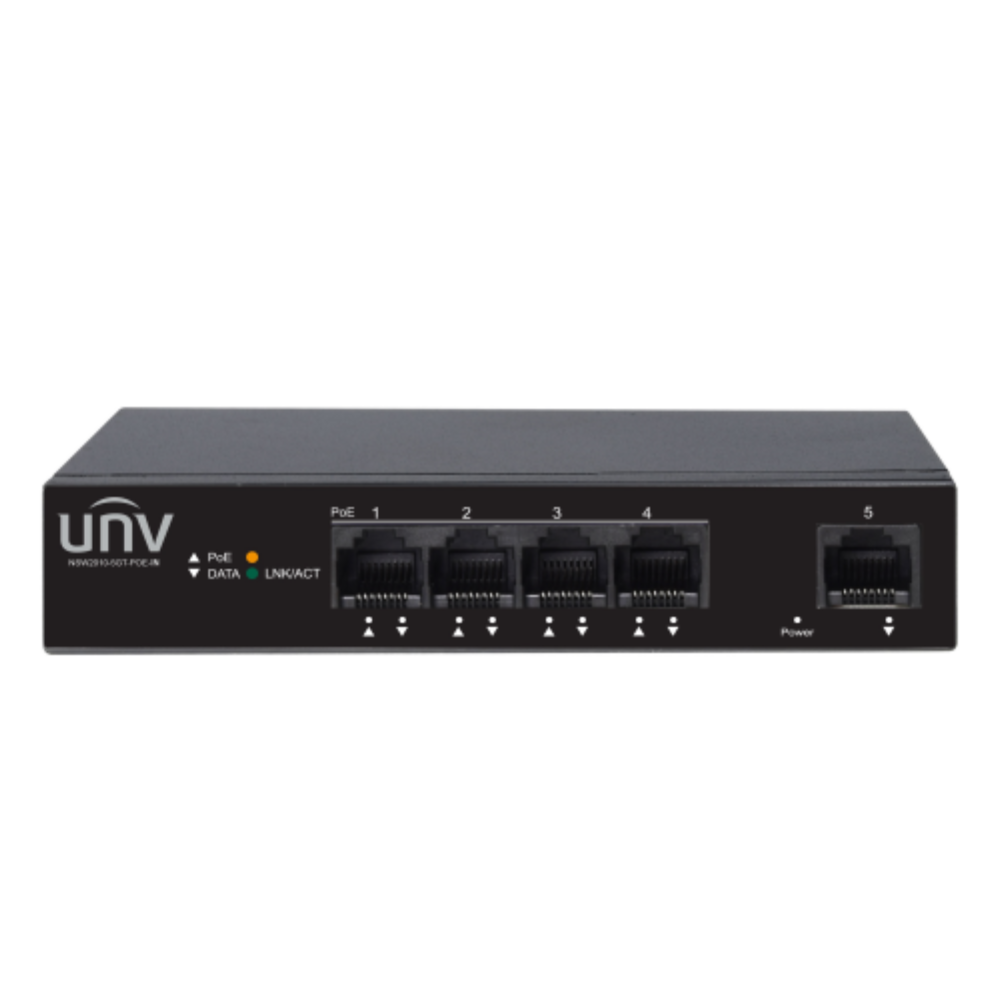

NSW2010-5GT-POE-IN
Couldn't load pickup availability
NSW2010-5GT-POE-IN
NSW2010-5GT-POE-IN
Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
Supports PoE Power up to 30W for each PoE port;
Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
Line-speed forwarding, intelligent identification
Supports storage β¬β and- forward for Data exchange;
Spec Sheet| Β | NSW2010-5GT-POE-IN | |||||||
| HardwareSpecification | ||||||||
| Ports Type | 4β1000Mbps PoE ports (RJ45)+1β1000Mbps ports(RJ45) | |||||||
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at | |||||||
| Switching capacity | 10 Gbps | |||||||
| Forwarding performance | 7.44Mpps | |||||||
| Packet Buffer | 1 M bit | |||||||
| MAC | 2K | |||||||
| Weight | <1 kg | |||||||
| Dimensions (WβDβH) | 140mm x 76.7mm x 27.7mm (5.5"β3"β1.1") |
|||||||
| Power supply | AC: 100-240 V, 50/60 Hz | |||||||
| PoE | support POE | |||||||
| Max. PoE Power | Max capacity: 60 W, Max capacity for single port: 30 W | |||||||
| Cooling Fans | 0 | |||||||
| Storage Temperature | -40 βΖ to 70 βΖ | |||||||
| Operating temperature | 0 βΖ to 40 βΖ (32 ββ° to 104 ββ°) | |||||||
| Operating humidity | 10%ο½90% (non-condensing) | |||||||
| Storage humidity | 5%ο½90% (non-condensing) | |||||||
| Indicator | PWR (Green),LNK/ACT (Green),PoE (Orange) | |||||||
