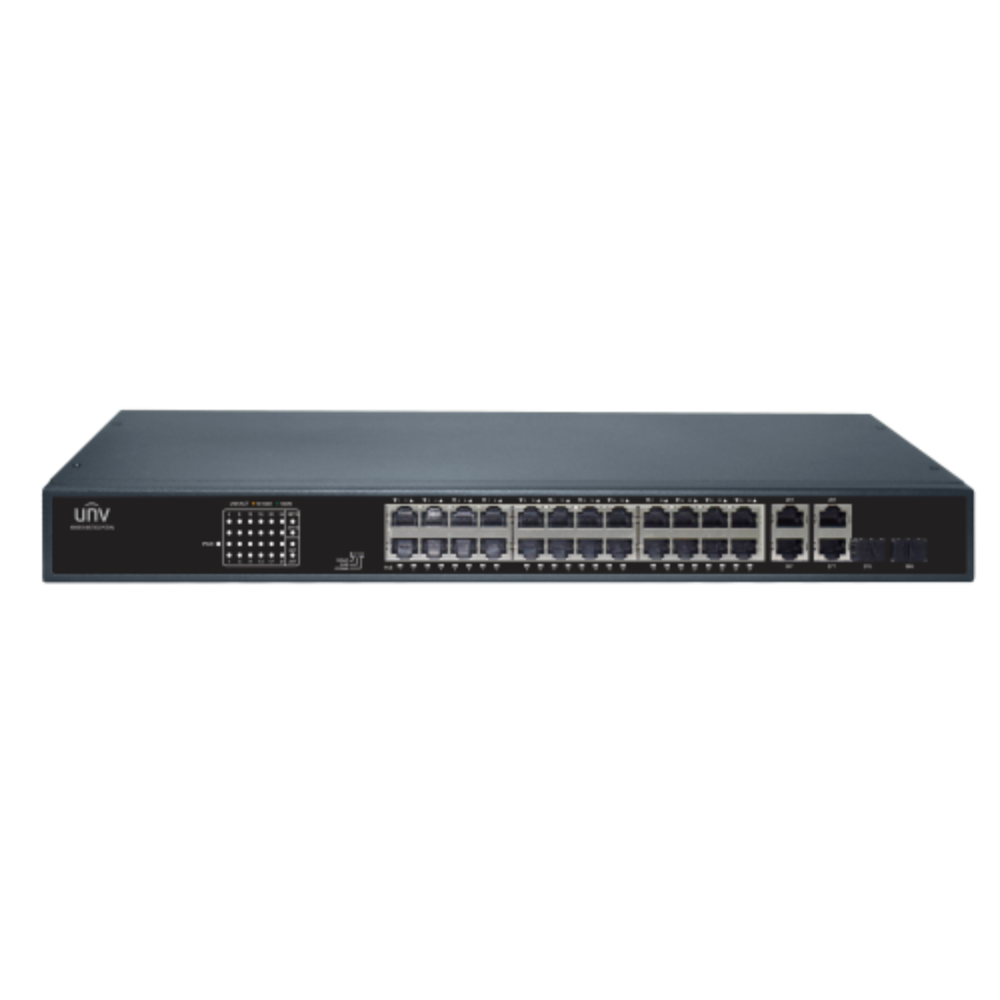

NSW2010-26GT2GC-POE-IN
Couldn't load pickup availability
NSW2010-26GT2GC-POE-IN
NSW2010-26GT2GC-POE-IN
Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
Supports PoE Power up to 30W for each PoE port;
Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
Line-speed forwarding, intelligent identification
Supports storage €“ and- forward for Data exchange;
Spec Sheet|  | NSW2010-26GT2GC-POE-IN | |||||||
| HardwareSpecification | ||||||||
| Ports Type | 24â€â€1000Mbps PoE ports (RJ45)+2â€â€1000Mbps ports(RJ45)+2â€â€1000Mbps ports（Combo） | |||||||
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az | |||||||
| Switching capacity | 56 Gbps | |||||||
| Forwarding performance | 41.7Mpps | |||||||
| Packet Buffer | 4 M bit | |||||||
| MAC | 8K | |||||||
| Power supply | AC: 100-240 V, 50/60 Hz | |||||||
| PoE | support POE | |||||||
| Max. PoE Power | Max capacity: 370 W, Max capacity for single port: 30 W | |||||||
| Cooling Fans | 2 | |||||||
| Weight | <5kg | |||||||
| Indicator | PWR (Green),LNK/ACT (Green),PoE (Orange) | |||||||
| Dimensions (Wâ€â€Dâ€â€H) | 440mm x 207mm x 44mm (17.3"â€â€8.1"â€â€1.7") |
|||||||
| Storage Temperature | -40 „ƒ to 70 „ƒ | |||||||
| Operating temperature | 0 „ƒ to 40 „ƒ (32 „‰ to 104 „‰) | |||||||
| Storage humidity | 5%～90% (non-condensing) | |||||||
| Operating humidity | 10%～90% (non-condensing) | |||||||
| Working Mode | Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports., Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports | |||||||
