UNV Technology USA LLC | SKU:
IPP-335
IPC8544EA-KM-I1
$2,75900 USD
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability
IPC8544EA-KM-I1
$2,75900 USD
Unit price
/
Unavailable

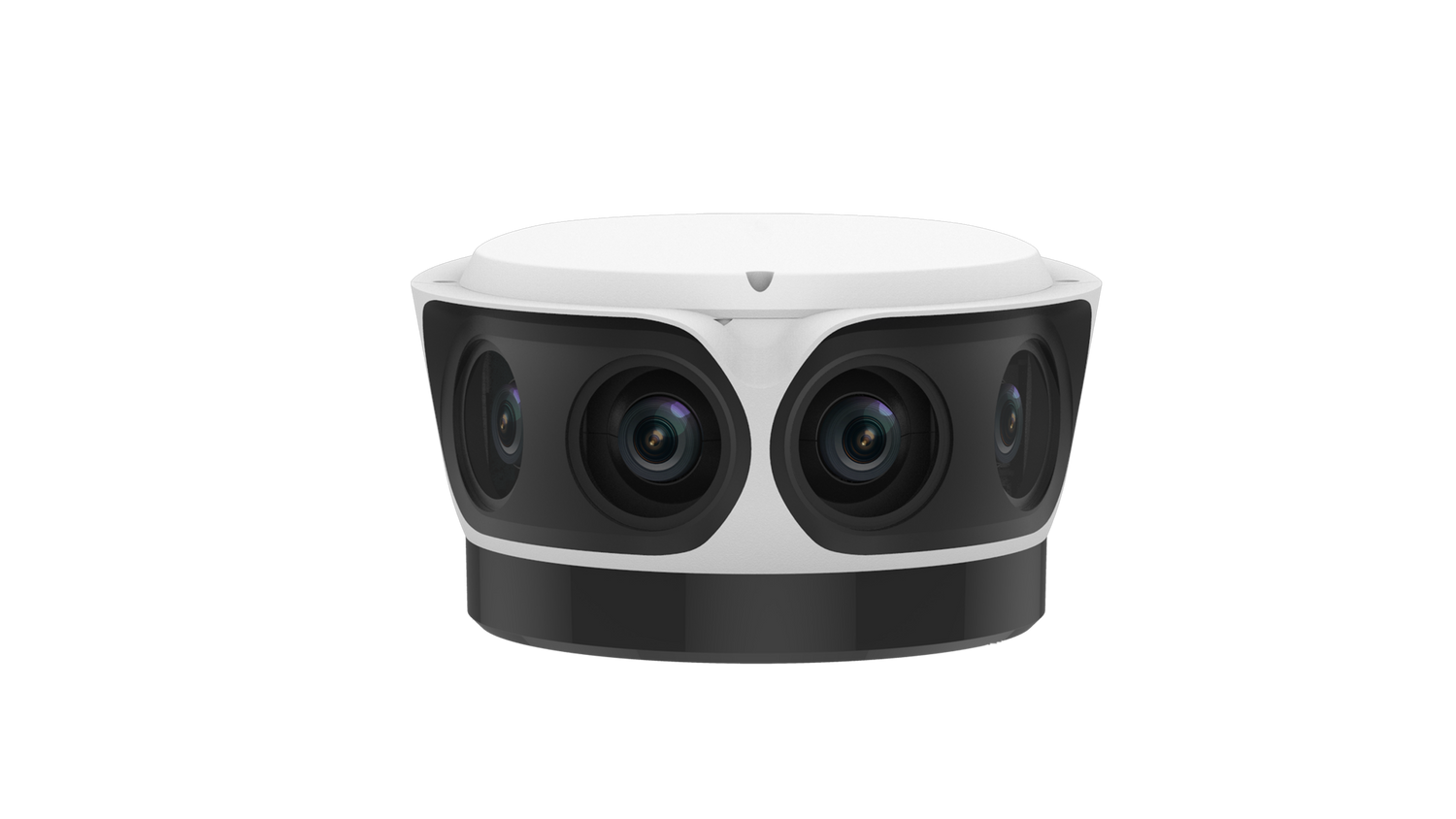

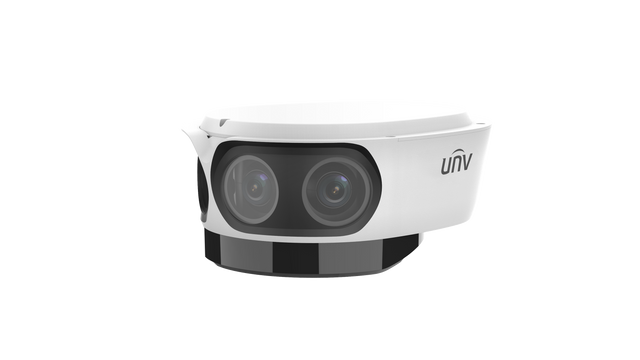

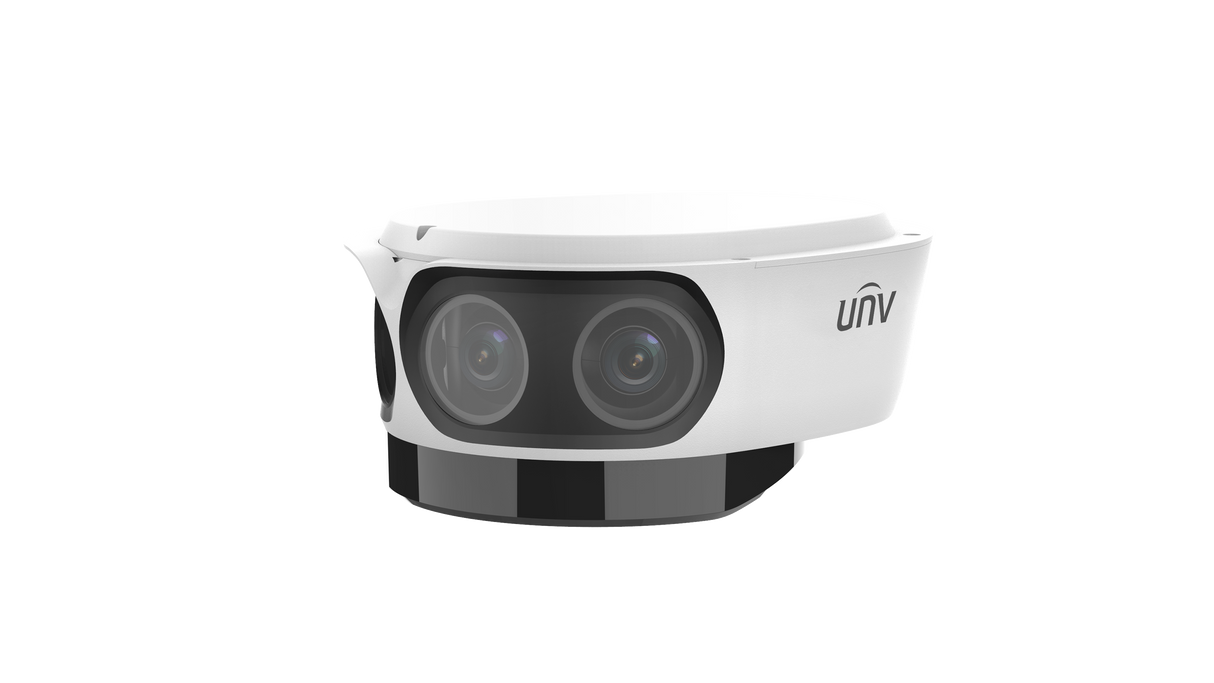

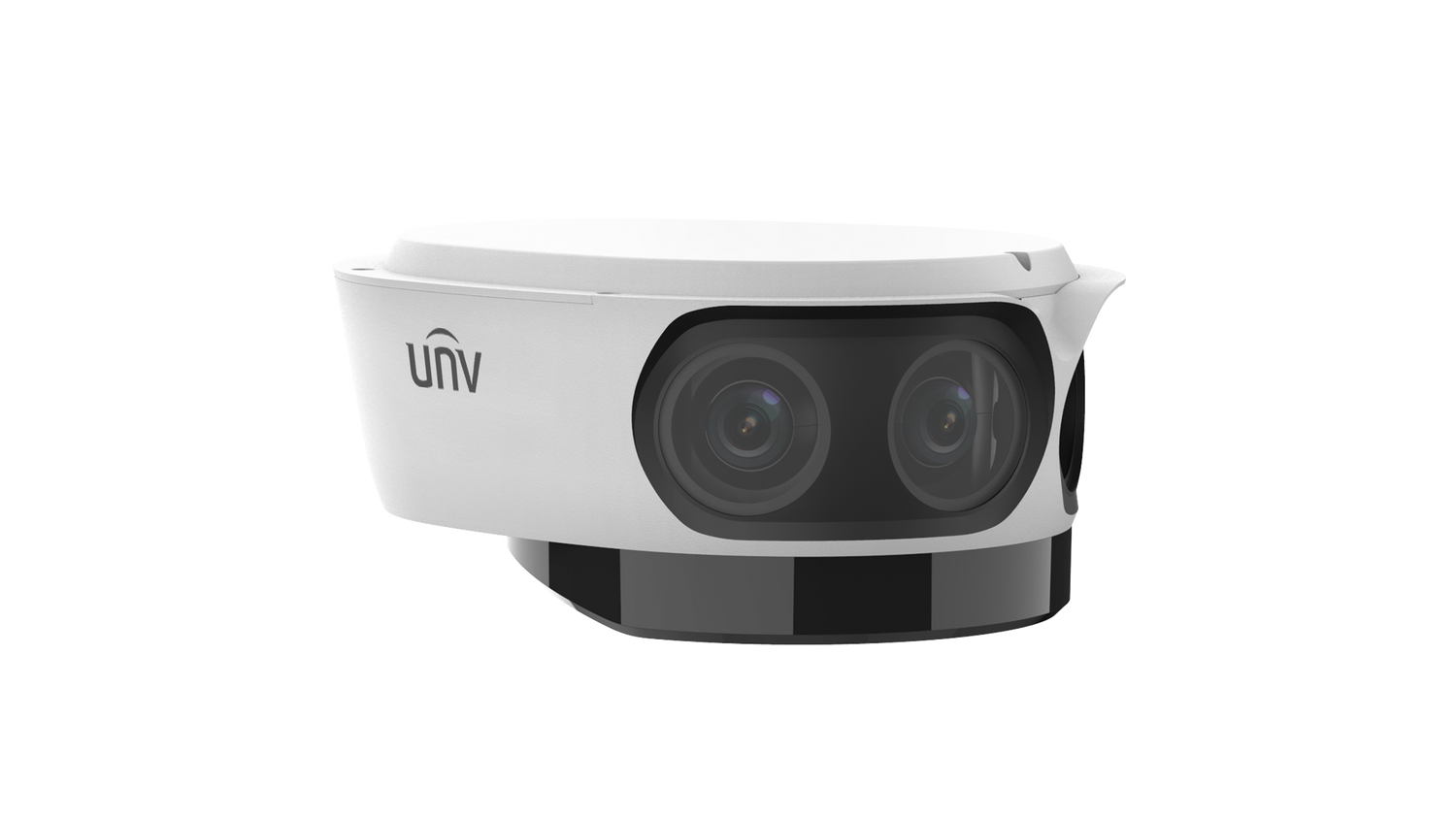

IPC8544EA-KM-I1
High quality image with 16MP, 1/1.8'' CMOS sensor4800*2688@30fps in the main stream offers 180° panoramic view, and 16:9 ratio can better fit the screen
Smart IR, up to 50m (164 ft) IR distance
Built-in fan, allows dissipating heat and eliminating the mist of window
Ultra 265,H.265, H.264, MJPEG
2D/3D DNR (Digital Noise Reduction)
AC24V, DC24V or PoE(IEEE 802.3at) power supply
Micro SD, up to 512 GB
Alarm 2 in and 1 out, Audio 1 in and 1 out
IP67 ingress protection
Spec Sheet User Manual Quick Guide
Dimensions| IPC8544EA-KM-I1 | ||||||||
| Camera | ||||||||
| Sensor | 1/1.8" CMOS | |||||||
| Min. Illumination | Colour: 0.001lux (F1.6, AGC ON) 0lux with IR |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | DWDR | |||||||
| S/N | >56 dB | |||||||
| Lens | ||||||||
| Focal Length | 2.8 mm | |||||||
| Iris | F1.6 | |||||||
| Field of View (H) | 180° | |||||||
| Field of View (V) | 90° | |||||||
| Field of View (D) | 221.4° | |||||||
| Iris Type | Fixed | |||||||
| DORI | ||||||||
| DORI Distance (Lens) | 2.8mm | |||||||
| DORI Distance (Detect) | 63.0m(206.7ft) | |||||||
| DORI Distance (Observe) | 25.2m(82.7ft) | |||||||
| DORI Distance (Recognize) | 12.6m(41.3ft) | |||||||
| DORI Distance (Identify) | 6.3m(20.7ft) | |||||||
| Illuminator | ||||||||
| Illumination Distance (IR) | 50 m (164.0 ft) | |||||||
| Wavelength | 850 nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal, Flip Vertical, Flip Horizontal, 180° | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital Defog | |||||||
| Heatwave Reduction | N/A | |||||||
| Events | ||||||||
| Basic Detection | Motion Detection, Tampering Alarm, Audio Detection | |||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | |||||||
| Network | ||||||||
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
|||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | TLS1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate-Main Stream | 4800—2688, Max. 30 fps | |||||||
| Frame Rate-Sub Stream | 2688—1520, Max. 30 fps | |||||||
| Frame Rate-Third Stream | 1280—720, Max. 30 fps | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| ROI | Support | |||||||
| Video Stream | Triple Streams | |||||||
| OSD | Up to 10 OSDs | |||||||
| Privacy Mask | Up to 8 areas (8 blacks/ 8 mosaics) | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 128 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16KHZ | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | |||||||
| Alarm I/O | 2/1 | |||||||
| Serial Port | 1 channel RS485 interface | |||||||
| Network | 1 — RJ45 10 M/100 M/1000 M Base-TX Ethernet | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
| General | ||||||||
| Power | AC24V±25%/DC24V±25%, PoE(IEEE 802.3at) | |||||||
| Power Consumption | Max 23W | |||||||
| Power Interface | Wires with cold-pressed terminal | |||||||
| Dimensions | 259 x 211 x 115 mm (10.2" x 8.3" x 4.5") (L x W x H) | |||||||
| Weight | 2.271kg(5.01lb) | |||||||
| Working Environment | -40 „ƒ to 70 „ƒ (-40 „‰ to 158 „‰), Humidity: ‰¤ 95% RH (non-condensing) | |||||||
| Storage Environment | -40 „ƒ to 70 „ƒ (-40 „‰ to 158 „‰), Humidity: ‰¤ 95% RH (non-condensing) | |||||||
| Surge Protection | 6 KV | |||||||
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
| Reset Button | Support | |||||||
