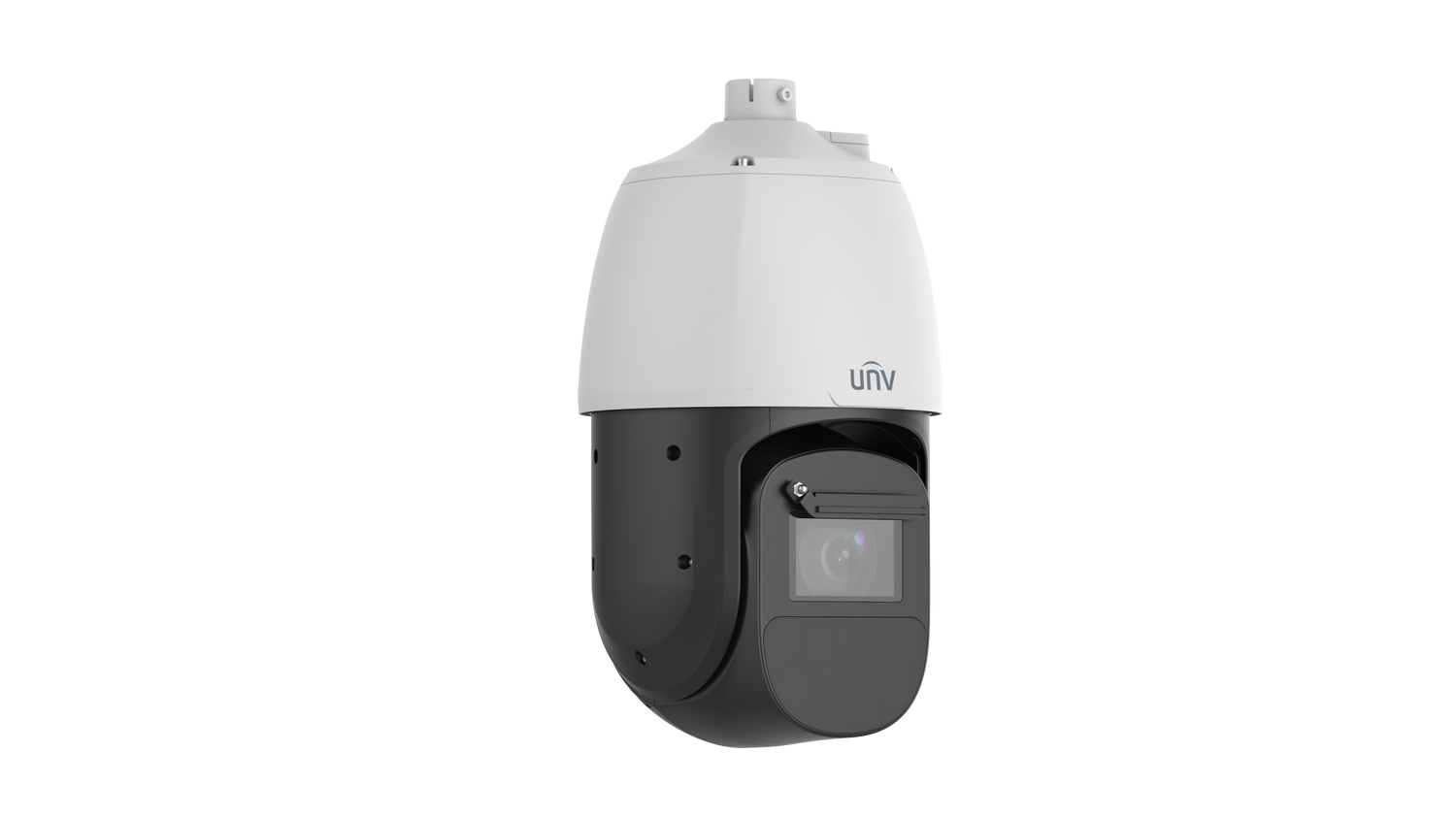

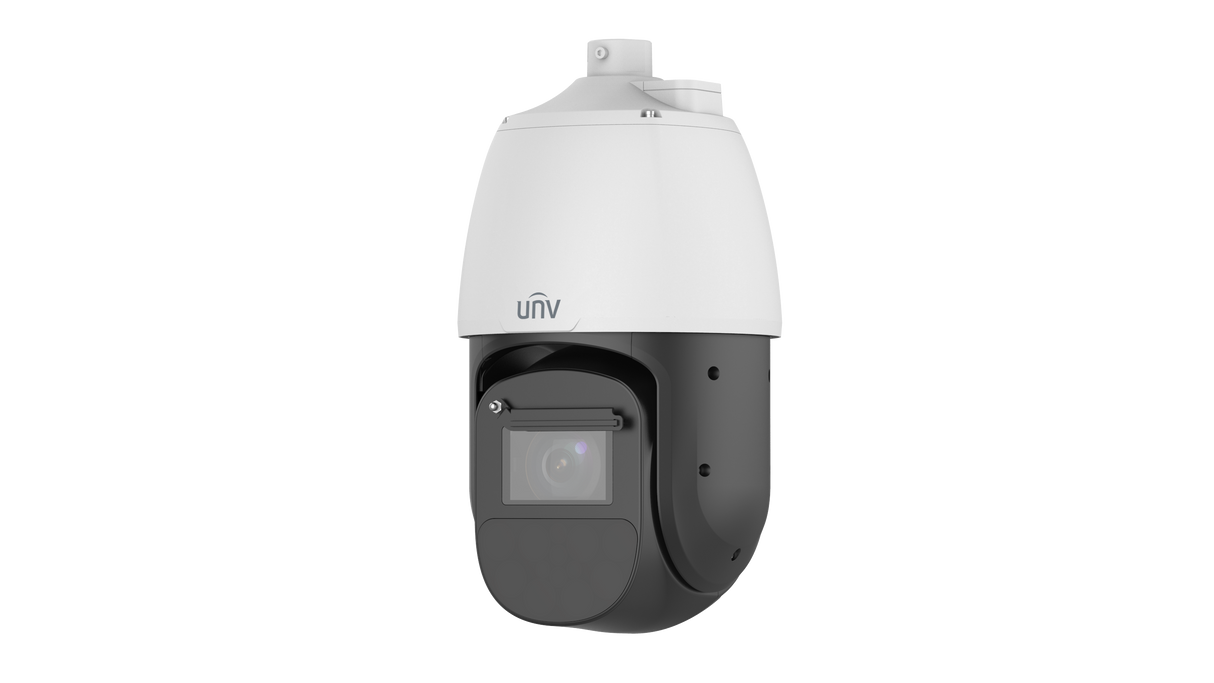

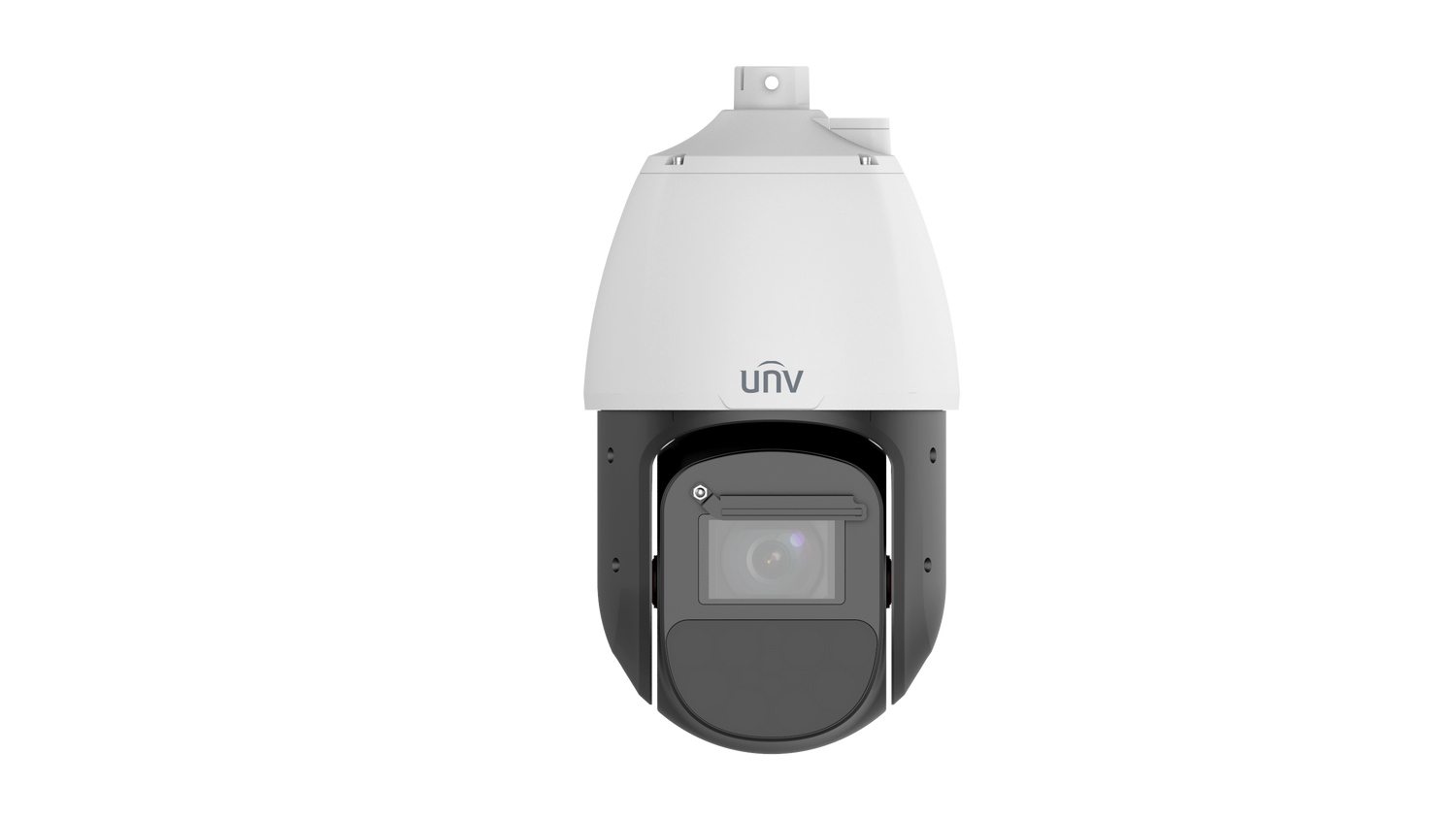

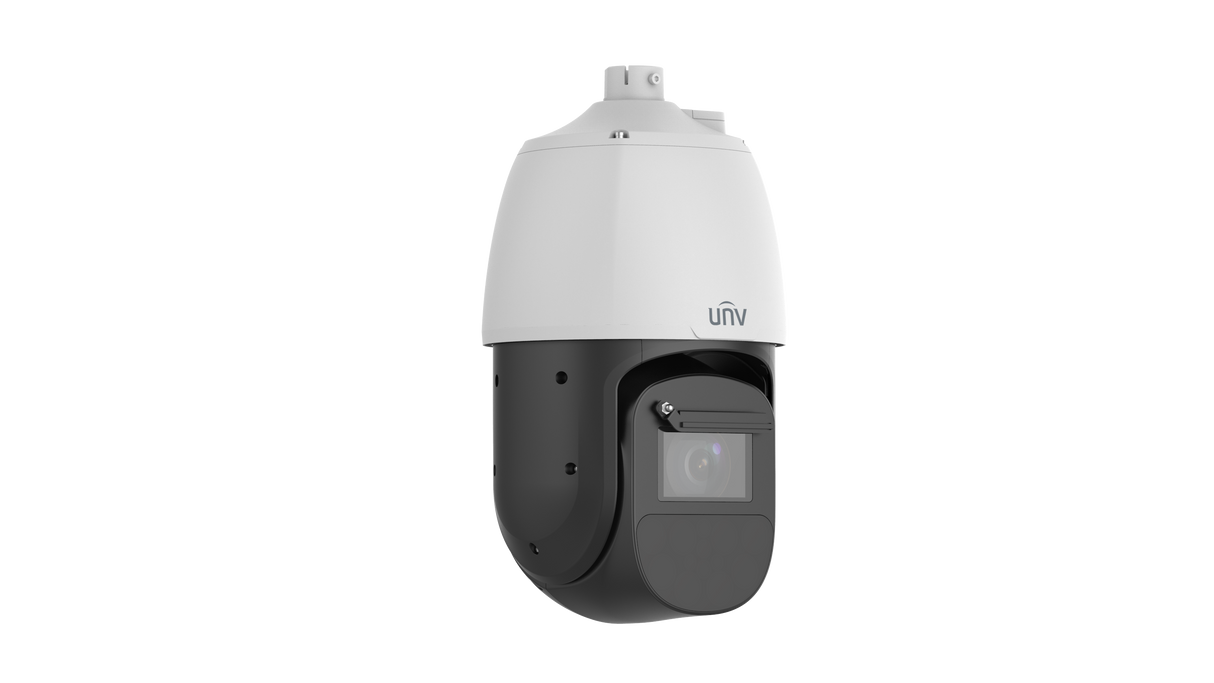

IPC6824EL-X42-W-VH1
Couldn't load pickup availability
IPC6824EL-X42-W-VH1
IPC6824EL-X42-W-VH1
2688 x 1520 @ 60 fps in the main stream
42X optical zoom
Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
support front-end , support blocklist and allowlist comparison
People counting, support people flow counting and crowd density monitoring
Multi-target detection, support human body, motor vehicle and non-motor vehicle image capture and attribute collection, realize data visualization management, allow users to get target information for further data analysis
Support optical defog, Self-adaptive defog
Lighthunter technology ensures ultra-high image quality in low illumination environment
IR illumination: 500 m (1640 ft) distance, proportional to optical zoom of camera module
Gyroscope stabilization for stable picture
Support wiper
Power supply: AC24V ± 25%, DC24V ± 25%, PoE
Alarm 7 in and 2 out, Audio 1 in and 1 out
IP67 ingress protection
Spec Sheet User Manual Quick Guide

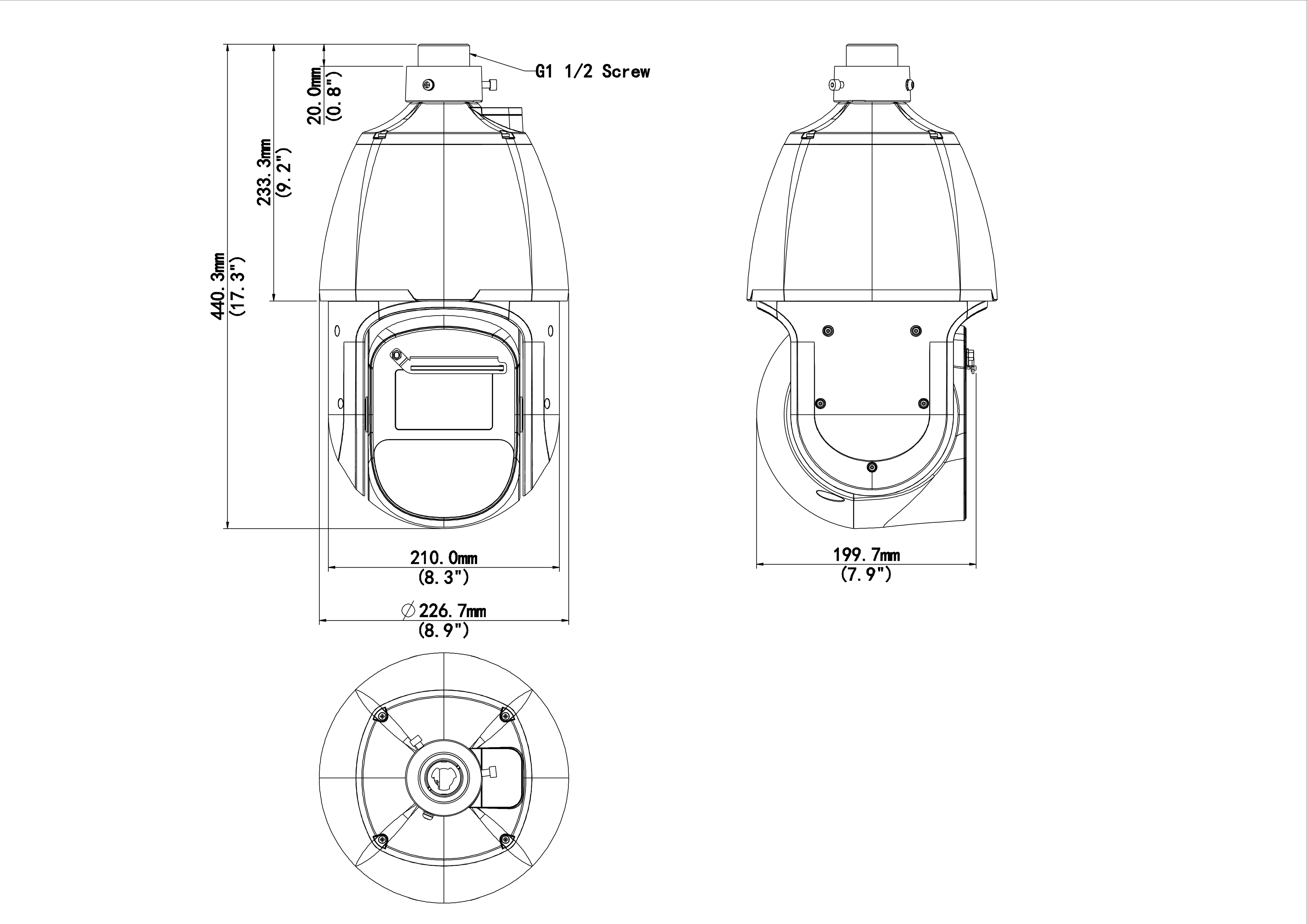

Dimensions| Â | IPC6824EL-X42-W-VH1 | |||||||
| Camera | ||||||||
| Sensor | 1/1.8" CMOS | |||||||
| Min. Illumination | Colour: 0.0003 Lux (F1.2, AGC ON) 0 Lux with IR |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 120 dB | |||||||
| S/N | >56 dB | |||||||
| Lens | ||||||||
| Focal Length | 6.0~252mm | |||||||
| Optical Zoom | 42X | |||||||
| Digital Zoom | 16X | |||||||
| Iris | F1.2 to F4.6 | |||||||
| Field of View (H) | 59.47° ~ 2.20° | |||||||
| Field of View (V) | 35.62° ~ 1.24° | |||||||
| Field of View (D) | 73.15° ~ 2.60° | |||||||
| DORI | ||||||||
| DORI Distance (Detect) | 107.2 m ~ 3330.6 m (351.8 ft ~ 10927.2 ft) | |||||||
| DORI Distance (Observe) | 42.9 m ~ 1332.2 m (140.7 ft ~ 4370.9 ft) | |||||||
| DORI Distance (Recognize) | 21.4 m ~ 666.1 m (70.4 ft ~ 2185.4 ft) | |||||||
| DORI Distance (Identify) | 10.7 m ~ 333.1 m (35.2 ft ~ 1092.7 ft) | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 60fps Sub Stream: 2MP (1920*1080), Max 60fps Third Stream: D1 (720*576), Max 60fps |
|||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| ROI | Support | |||||||
| Video Stream | Triple Streams | |||||||
| Privacy Mask | 24 areas, up to 8 areas per scene | |||||||
| OSD | Up to 10 OSDs | |||||||
| Events | ||||||||
| Basic Detection | Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind | |||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, Alarm Input, Alarm Output | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 128 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16 kHz | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, TLS1.3, WSSE and Digest Authentication for ONVIF | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
| Intelligent | ||||||||
| Auto Tracking | Support, target filtering: human, non-motor vehicle and vehicle | |||||||
| Multi-target Detection | Support | |||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| People Counting | Support People Flow Counting and Crowd Density Monitoring | |||||||
| PTZ | ||||||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||||
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||||
| Number of Presets | 1024 | |||||||
| Preset Image Freeze | Support | |||||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
| Patrol Stay Time | 15 s to 1800 s | |||||||
| Home Position | Support | |||||||
| Pan Range | 360° (endless) | |||||||
| Pan Speed | 0.1°/s ~ 180°/s | |||||||
| Tilt Range | €“15° ~ 90° (auto flip) | |||||||
| Tilt Speed | 0.1°/s ~ 180°/s | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Normal, Flip Vertical, Flip Horizontal, 180° | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital Defog, Optical Defog | |||||||
| EIS | Support | |||||||
| Image Stabilization | EIS (Gyroscope) | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| Alarm I/O | 7/2 | |||||||
| Serial Port | 1 * RS485 | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Video Output | 1 BNC (For debugging) | |||||||
| Illuminator | ||||||||
| Illumination Distance (IR) | 500m | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Wavelength | 850 nm | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032: 2015+ A11: 2020; EN IEC 61000-3-2: 2019; EN 61000-3-3: 2013+ A: 2019; EN 55035: 2017+ A11: 2020) | |||||||
| Safety | CE LVD (EN IEC 62368-1: 2020+ A11: 2020) | |||||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
| General | ||||||||
| Power | AC24V ± 25%, DC24V ± 25%, PoE (IEEE802.3bt) | |||||||
| Power Consumption | Max 67 W | |||||||
| Power Interface | Wires with cold-pressed terminal | |||||||
| Dimensions | Ø 226.7 x 440.3 mm (Ø 8.93" x 17.33") (Ø x H) | |||||||
| Weight | 6.9 kg (15.21 lb) | |||||||
| Working Environment | -40 „ƒ to 70 „ƒ (-40 „‰ to 158 „‰), Humidity: ‰¤ 95% RH (non-condensing) | |||||||
| Storage Environment | -40 „ƒ to 70 „ƒ (-40 „‰ to 158 „‰), Humidity: ‰¤ 95% RH (non-condensing) | |||||||
| Surge Protection | 6 KV | |||||||
| Reset Button | Support | |||||||
| Heater | Support | |||||||
