UNV Technology USA LLC  |  SKU: IPP-364

IPC68188EFW-X25-F40G-VH

$7,79900 USD
Tax included

Sign up for special pricing!

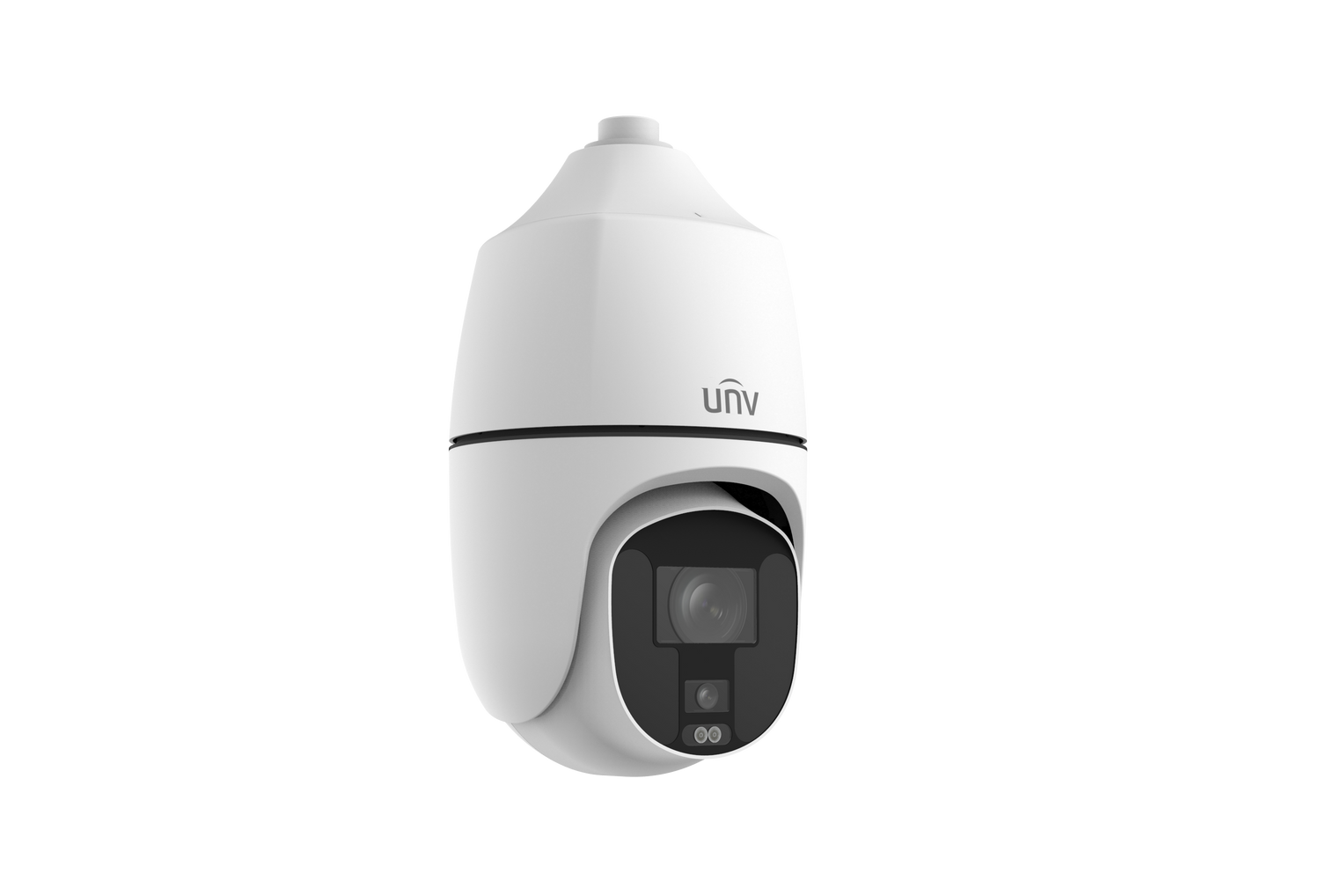

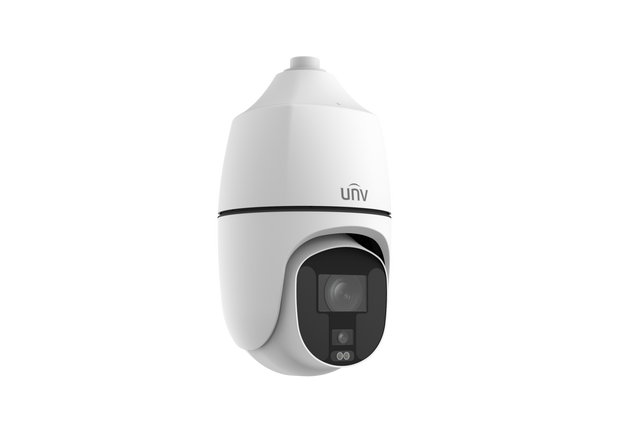

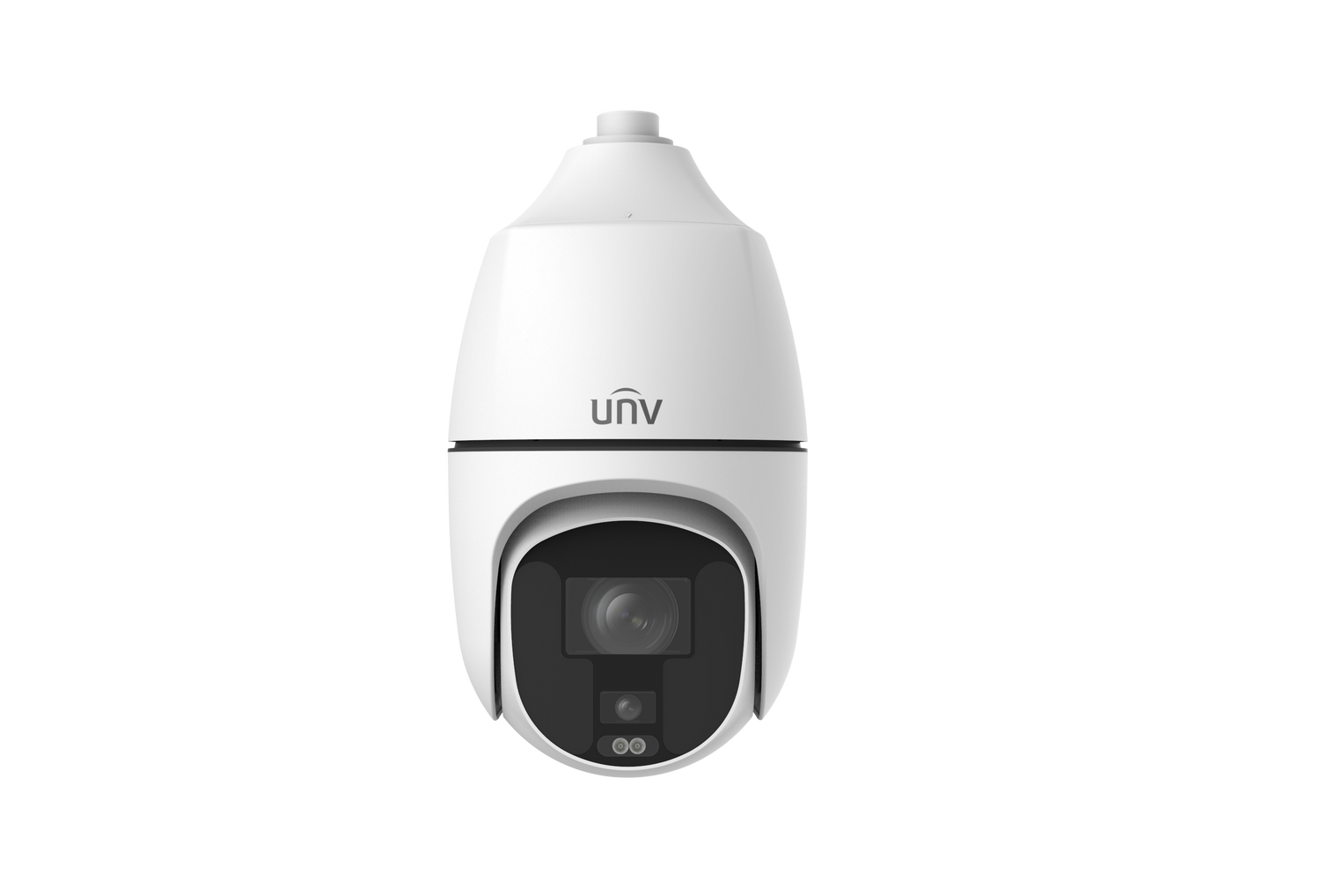

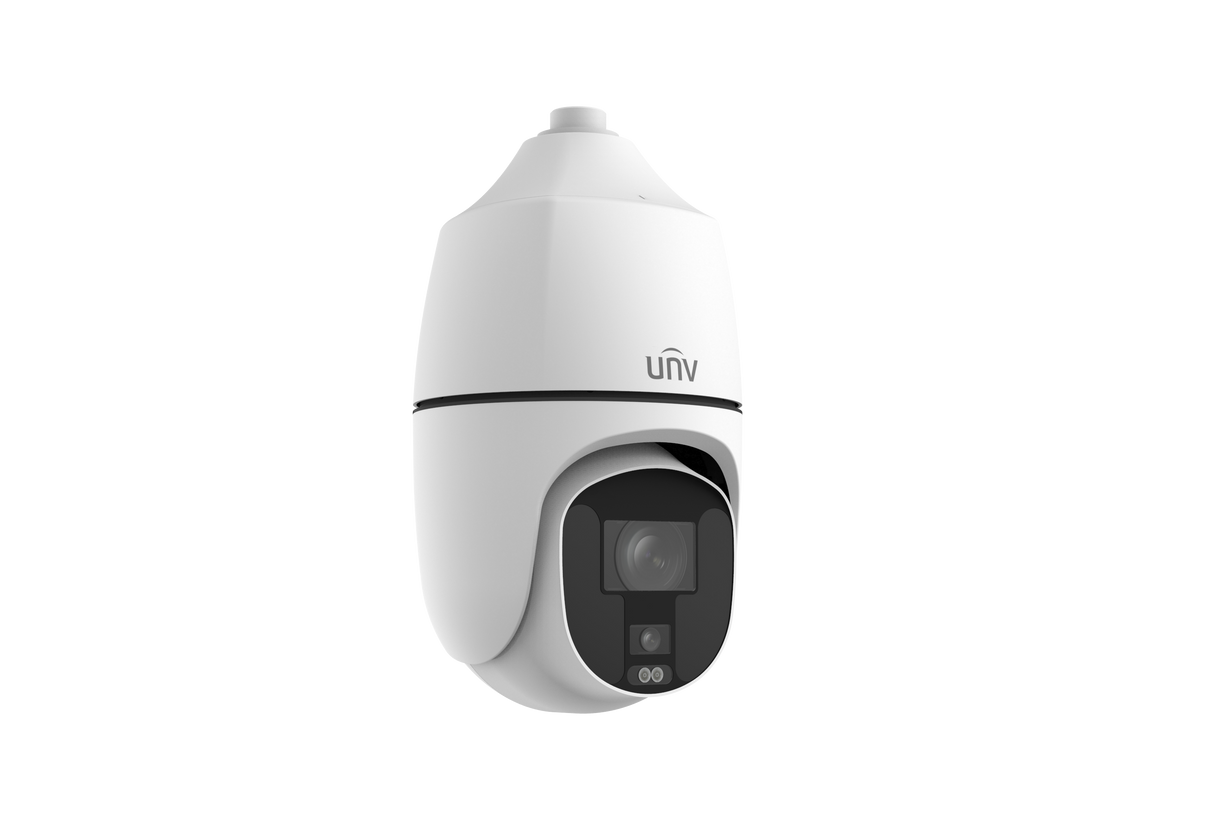

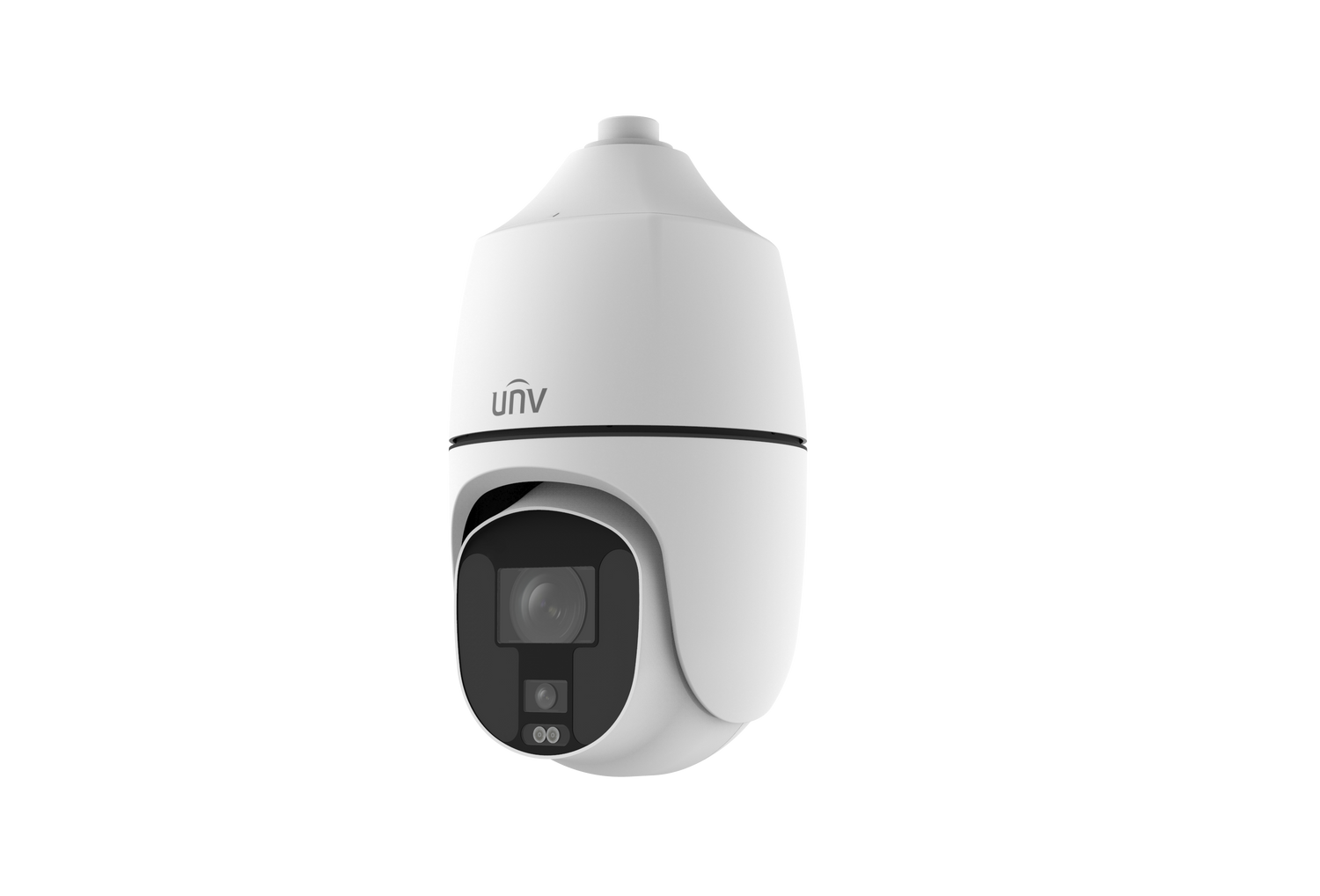

IPC68188EFW-X25-F40G-VH

Uniview Logo

Dual channels with one IP, look at overall situation and consider details at the same time Support dual-lens€™ video spliced in one channel, which can obtain a wider monitoring range Ultra 265, H.265, H.264, MJPEG Gyroscope stabilization for stable picture 25X optical zoom of PTZ channel allows for closer viewing of subjects Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios LightHunter technology ensures ultra-high image quality in low illumination environment IR & warm light illumination to deal with different scenes and achieve full-color illumination AC 24V ± 25% or DC 24V ± 25% power supply

Download Spec Sheet
Download User Manual
Download Quick Guide
Download Dimensions
  IPC68188EFW-X25-F40G-VH
Channel
Camera
Sensor 1/1.8" CMOS 1/1.2" CMOS
Max Resolution 8 MP 8 MP
Min. Illumination Color: 0.0005 lux (F1.6, AGC ON)
0 lux with IR/Warm light		 Color: 0.0005 lux (F1.6, AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR) IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 to 1/100000 s Auto/Manual, 1 to 1/100000 s
WDR 120 dB 120 dB
S/N >56 dB >56 dB
Lens
Digital Zoom N/A 16X
Optical Zoom N/A 25X
Iris Type Fixed P-iris
Video
Frame Rate-Third Stream D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
Frame Rate-Main Stream 8MP (3840*2160), Max 30fps; 6MP (3072*2048), Max 30fps; 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; 8MP (3840*2160), Max 30fps; 6MP (3072*2048), Max 30fps; 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
Frame Rate-Sub Stream 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
Frame Rate Recommendation 3840*2160@30fps+1080P@30fps+D1@30fps
3072*2048@30fps+1080P@30fps+D1@30fps		 3840*2160@30fps+1080P@30fps+D1@30fps
3072*2048@30fps+1080P@30fps+D1@30fps
Privacy Mask 24 areas, up to 8 areas per scene 24 areas, up to 8 areas per scene
Video Compression Ultra 265, H.265, H.264, MJPEG Ultra 265, H.265, H.264, MJPEG
Video Bit Rate 128 Kbps to 16 Mbps 128 Kbps to 16 Mbps
U-code Support Support
ROI Support Support
Video Stream Triple Streams Triple Streams
OSD Up to 10 OSDs Up to 10 OSDs
DORI
DORI Distance (Lens) 4 mm 10 ~ 250mm
Intelligent
Metadata Analyse Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection
People Counting N/A Support People Flow Counting and Crowd Density Monitoring
Smart Intrusion Prevention Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Defog Digital Defog Optical Defog
White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR 2D/3D DNR
Smart IR N/A Support
Flip Normal, Flip Vertical, Flip Horizontal, 180° Normal, Flip Vertical, Flip Horizontal, 180°
HLC Support Support
BLC Support Support
Heatwave Reduction N/A Support
Illuminator
Light On/Off Control Auto/Manual Auto/Manual
Illumination Distance (IR) N/A 250 m (820.2 ft)
Illumination Distance (Warm Light) 30 m (98.4 ft) N/A
Events
Basic Detection Motion Detection, Audio Detection, Tampering Alarm Motion Detection, Audio Detection, Tampering Alarm
General Function Watermark, IP Address Filtering, Alarm Input, Alarm Output, Access Policy, ARP Protection, RTSP Authentication, User Authentication Watermark, IP Address Filtering, Access Policy, Alarm Output, Alarm Input, User Authentication, RTSP Authentication, ARP Protection
PTZ
Pan Range 360° 360°
Pan Speed 0.1°/s ~ 180°/s 0.1°/s ~ 180°/s
Tilt Range -15° ~ 90° -15° ~ 90°
Tilt Speed 0.1°/s ~ 180°/s 0.1°/s ~ 180°/s
Number of Presets N/A 1024
Preset Patrol N/A 16 patrols, up to 64 presets for each patrol
Patrol Stay Time 15 s to 1800 s 15 s to 1800 s
Preset Image Freeze N/A Support
Home Position N/A Support
Audio
Audio Compression G.711U, G.711A G.711U, G.711A
Audio Bitrate 128 Kbps 128 Kbps
Two-way Audio Support Support
Suppression Support Support
Sampling Rate 8 kHz, 16 kHz 8 kHz, 16 kHz
Storage
Edge Storage Micro SD, up to 512 GB Micro SD, up to 512 GB
Network Storage ANR, NAS (NFS) ANR, NAS (NFS)
Network
Protocols SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator Up to 32 users. 3 user levels: administrator, common user and operator
Security TLS1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF TLS1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client EZStation, UNV-Link, UNV-Link Pro EZStation, UNV-Link, UNV-Link Pro
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Interface
Audio I/O 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O 7/2 7/2
Serial Port 1 channel RS485 interface 1 channel RS485 interface
Built-in Mic N/A N/A
Built-in Speaker N/A N/A
WIFI N/A N/A
Network 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP
Certification
EMC CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11: 2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)		 CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11: 2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)		 CE LVD (EN 62368-1:2014+A11:2017)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU; (EU) 2015/863) CE-RoHS (2011/65/EU; (EU) 2015/863)
Protection IP66 (IEC 60529: 1989+AMD1: 1999+AMD2: 2013) IP66 (IEC 60529: 1989+AMD1: 1999+AMD2: 2013)
General
Power DC24V (±25%), AC24V (±25%) DC24V (±25%), AC24V (±25%)
Power Consumption MAX 63W MAX 63W
Power Interface Wires with cold-pressed terminal Wires with cold-pressed terminal
Dimensions Ø 270 x 497mm (Ø 10.6" x 19.6") (Ø x H) Ø 270 x 497mm (Ø 10.6" x 19.6") (Ø x H)
Weight 10.08kg (22.2lb) 10.08kg (22.2lb)
Working Environment -40 „ƒ to 70 „ƒ (-40 „‰ to 158 „‰), Humidity: ‰¤ 95% RH (non-condensing) -40 „ƒ to 70 „ƒ (-40 „‰ to 158 „‰), Humidity: ‰¤ 95% RH (non-condensing)
Storage Environment -40 „ƒ to 70 „ƒ (-40 „‰ to 158 „‰), Humidity: ‰¤ 95% RH (non-condensing) -40 „ƒ to 70 „ƒ (-40 „‰ to 158 „‰), Humidity: ‰¤ 95% RH (non-condensing)
Surge Protection 6 KV 6 KV
Reset Button Support Support
Web Client Language 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
