UNV Technology USA LLC  |  SKU: IPP-2719

IPC6325LFW-AX5C-VG

$60900 USD $75900
Tax included

Sign up for special pricing!

IPC6325LFW-AX5C-VG

Uniview Logo

High quality image with 5MP, 1/2.8" CMOS sensor Ultra 265, H.265, H.264, MJPEG Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection LightHunter technology ensures ultra-high image quality in low illumination environment Up to 120 dB WDR (Wide Dynamic Range) Built-in Mic & Speaker Smart IR, Up to 50 m (164 ft) IR distance and 15m (49 ft) warm light distance Micro SD, up to 512GB IP66 protection DC12V or PoE (IEEE 802.3at) power supply

Download Spec Sheet
Download User Manual
Download Quick Guide
Download Dimensions
  IPC6325LFW-AX5C-VG
Camera
Max Resolution 5 MP
Sensor 1/2.7" CMOS
Min. Illumination Colour: 0.005 Lux (F1.2, AGC ON)
0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 to 1/100000 s
WDR 120 dB
S/N >56 dB
Lens
Focal Length 2.7 to 13.5 mm
Optical Zoom 5X
Iris F1.2
Field of View (H) 106.9°~30.6°
Field of View (V) 56°~17.7°
Field of View (D) 131.5°-36.1°
DORI
DORI Distance (Detect) 70.9 m ~ 247.5 m (232.5 ft ~ 812 ft)
DORI Distance (Observe) 28.4 m ~ 99 m (93 ft ~ 324.8 ft)
DORI Distance (Recognize) 14.2 m ~ 49.5 m (46.5 ft ~ 162.4 ft)
DORI Distance (Identify) 7.1 m ~ 24.8 m (23.3 ft ~ 81.2 ft)
Illuminator
Illumination Distance (Warm Light) 15 m (49.3 ft)
Light On/Off Control Auto/Manual
Illumination Distance (IR) 50 m (164.0 ft)
Wavelength 850 nm
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 5MP (2880*1620), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate 128 Kbps to 16 Mbps
U-code Support
ROI Support
Video Stream Triple Streams
Privacy Mask Up to 4 areas
OSD Up to 8 OSDs
Events
Basic Detection Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind, Scene Change, Defocus Detection
General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 128 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 16KHZ
Storage
Edge Storage Micro SD, up to 512 GB
Network Storage ANR, NAS (NFS)
Intelligent
Exception Detection Object Removed, Object Left Behind, Scene Change, Defocus Detection
Auto Tracking Support, target filtering: human only
Smart Intrusion Prevention Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting Support People Flow Counting and Crowd Density Monitoring
Network
Protocols TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T, Profile M),
API, SDK
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client EZStation, UNV-Link, UNV-Link Pro
Web Browser Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above
White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR
Flip Normal, Flip Vertical, Flip Horizontal, 180°
HLC Support
BLC Support
Smart IR Support
Defog Digital Defog
PTZ
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets for each patrol
Patrol Stay Time 120 s to 1800 s
Home Position Support
Pan Range 0° ~ 345°
Pan Speed 1°/s～50°/s
Tilt Range -10° ~ 100°
Tilt Speed 1°/s～40°/s
Interface
Audio I/O 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O 1/1
Built-in Mic Support
Built-in Speaker Support
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Certification
EMC CE-EMC (EN 55032: 2015+A11: 2020+A1: 2020, EN 50130-4: 2011+A1: 2014, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021)
Safety CE LVD (EN 62368-1: 2020+A11: 2020)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-ROHS (2011/65/EU;(EU)2015/863)
Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power DC12V(±25%), PoE(IEEE 802.3at)
Power Consumption 18 W
Power Interface Ø5.5 mm coaxial power plug

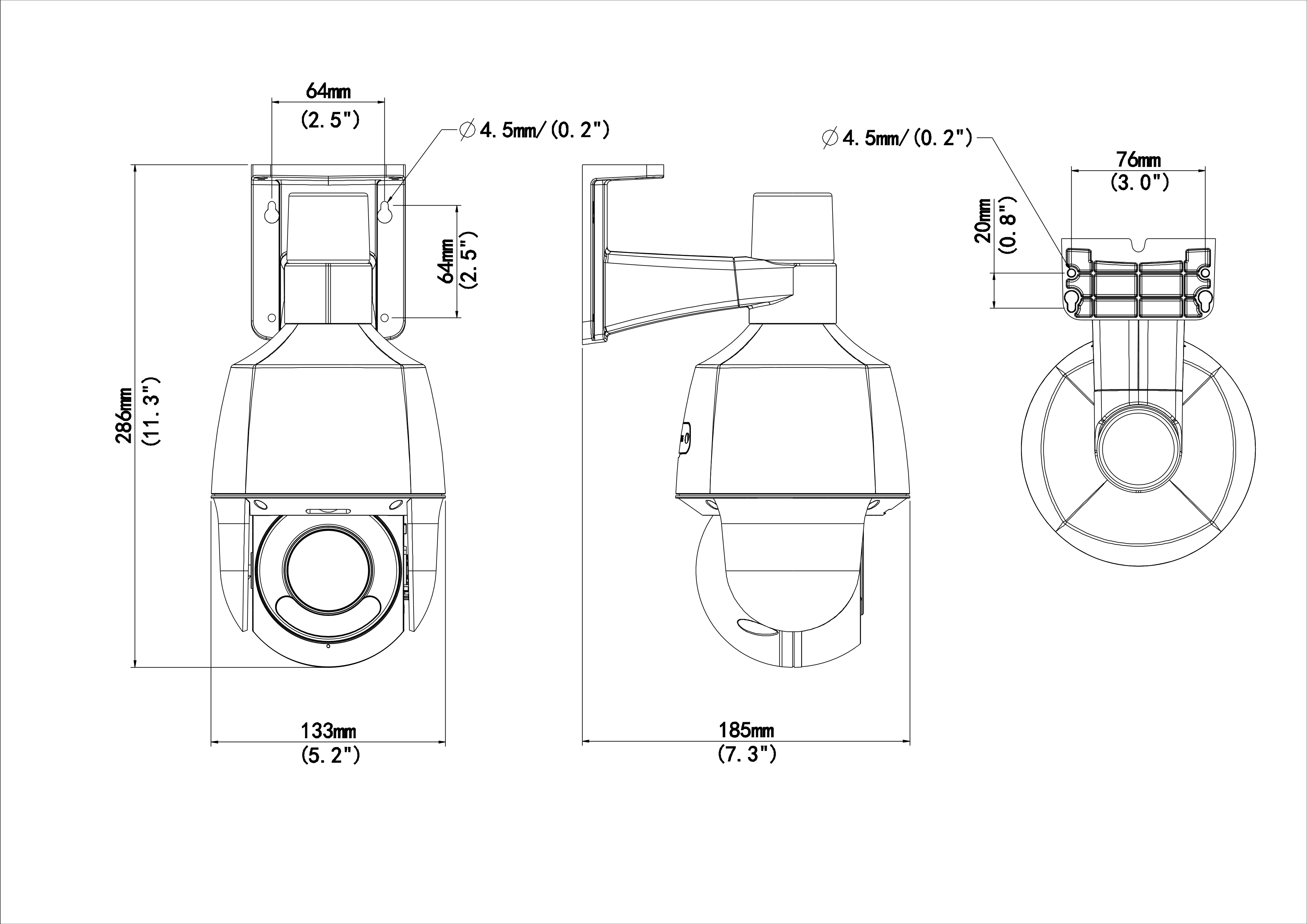

Dimensions 185 x 133 x 286mm (7.3" x 5.2" x 11.3") (L x W x H)
Weight 1.32 kg
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ‰¤95% RH (non-condensing)
Storage Environment -40„ƒ ~ 70„ƒ (-40°F ~ 158°F), Humidity: ‰¤95% RH (non-condensing)
Surge Protection 2 KV
Reset Button Support
Web Client Language 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Heater Support
