UNV Technology USA LLC | SKU:
IPP-2736
12% off
IPC6315LFW-AX5C-VG1
$63838 USD
$72659
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability
IPC6315LFW-AX5C-VG1
$63838 USD
$72659
Unit price
/
Unavailable

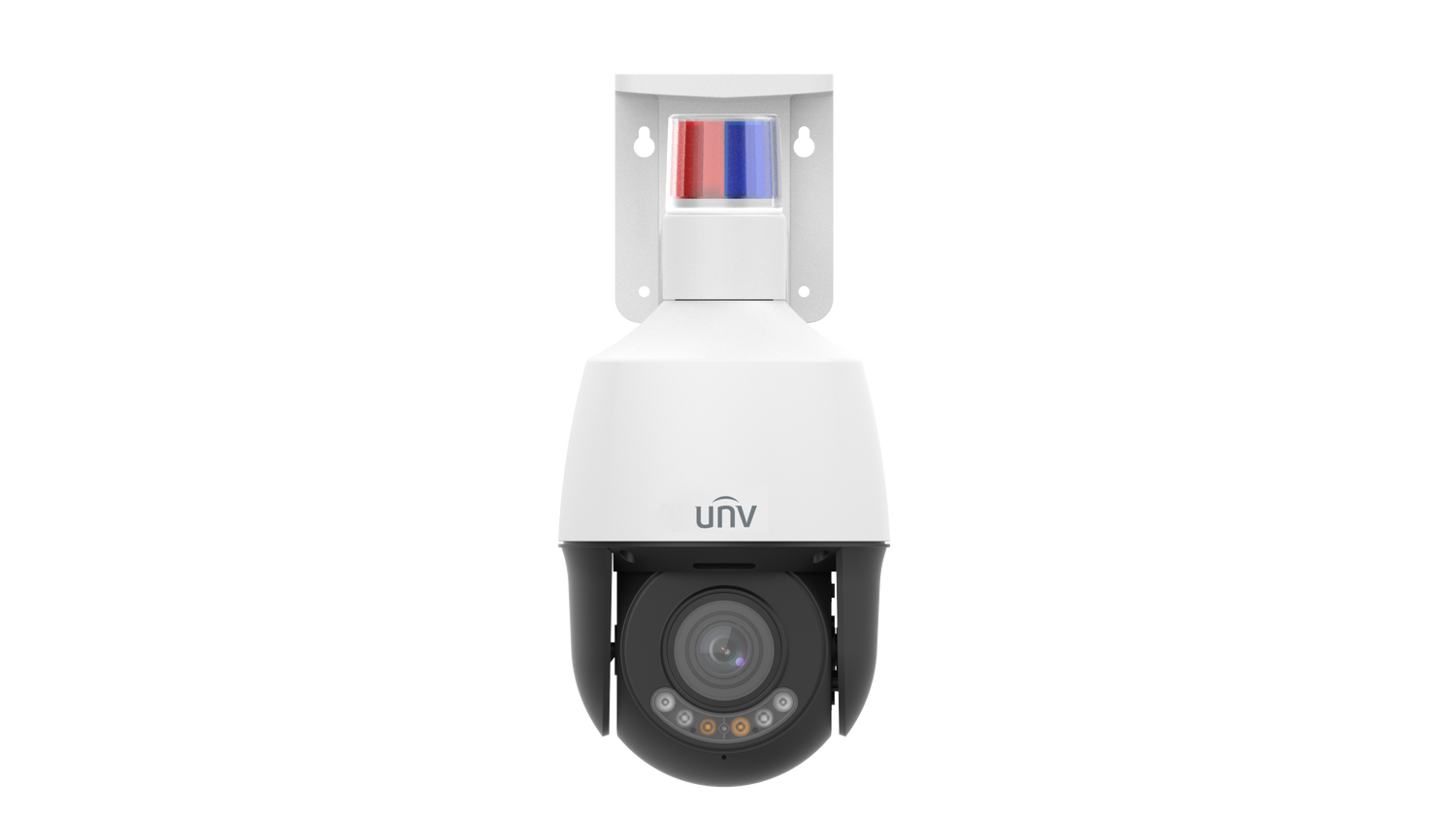

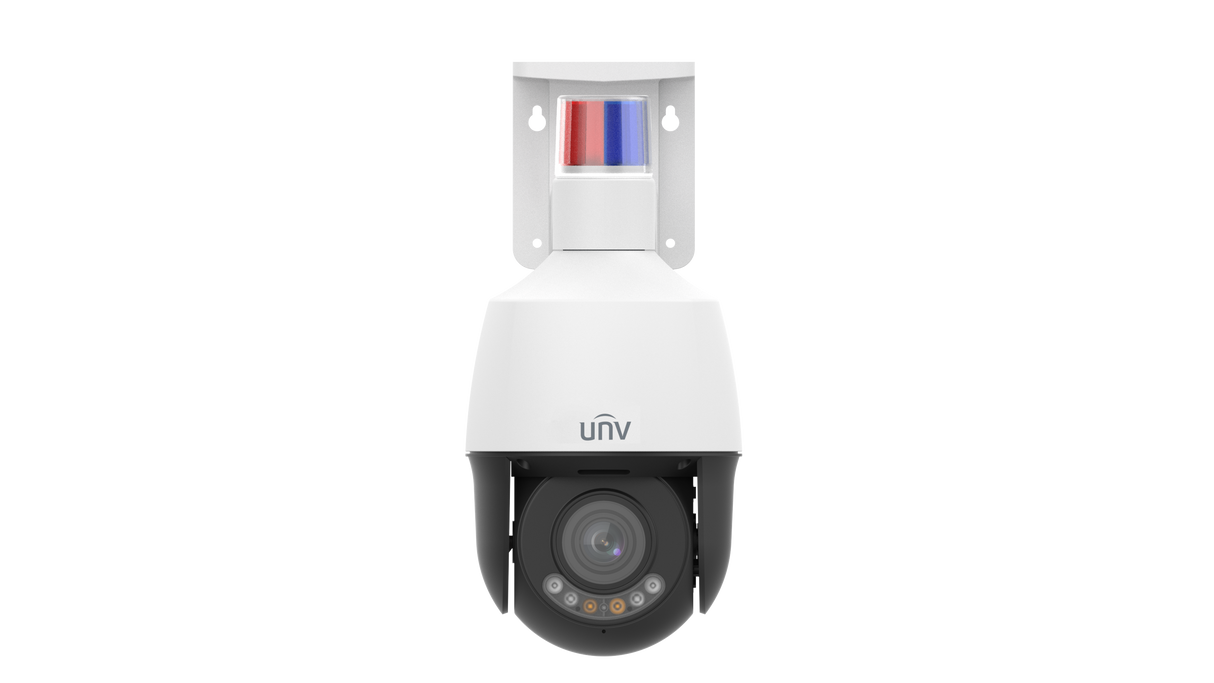

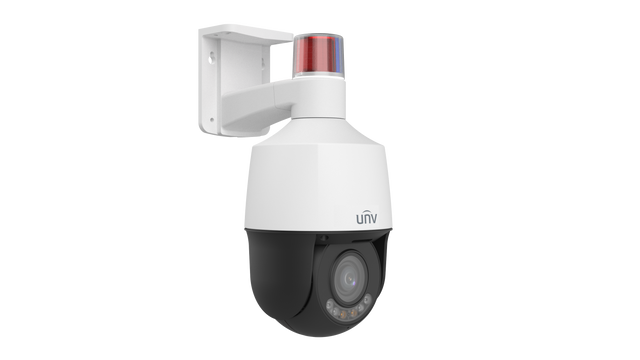

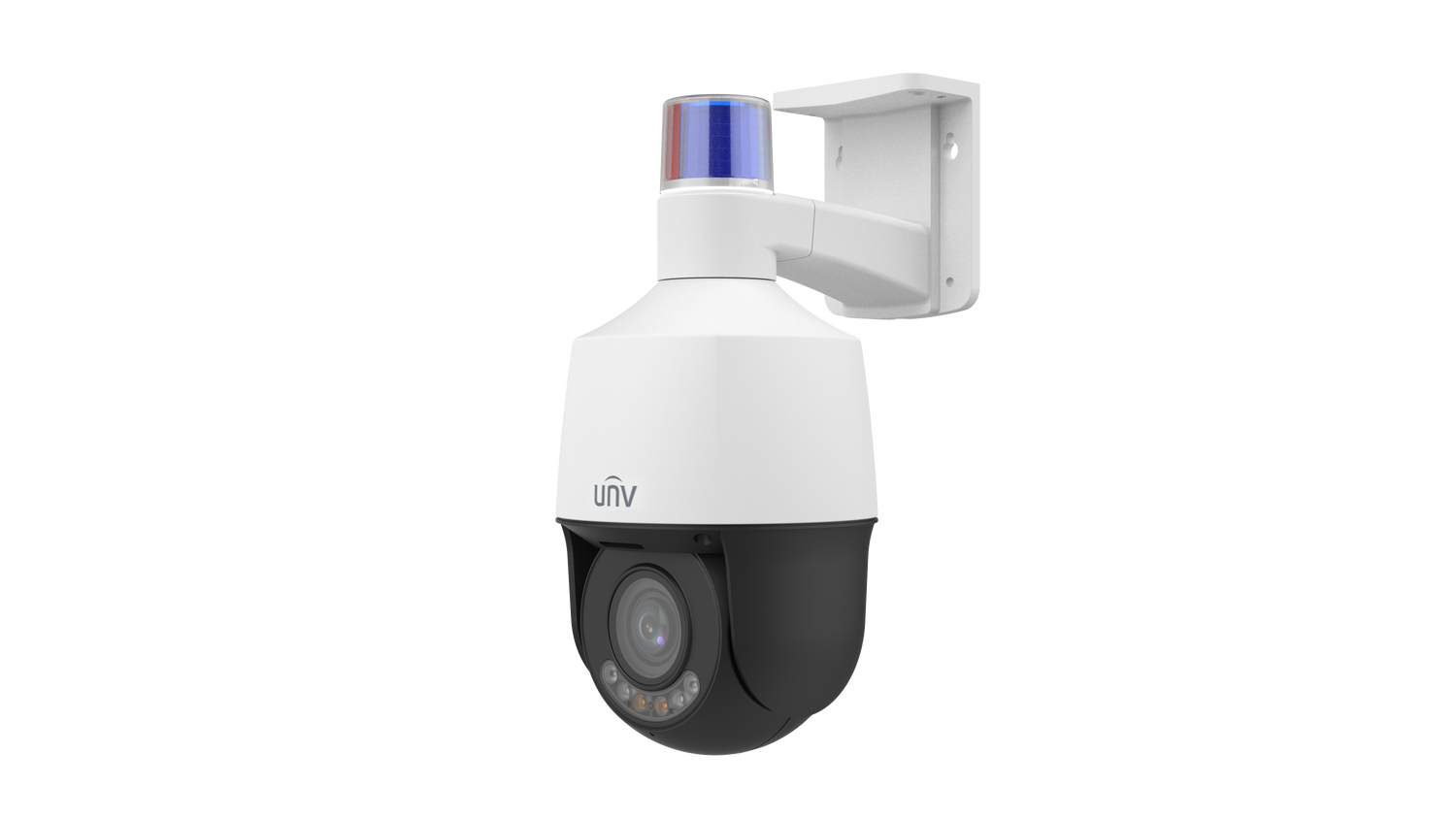

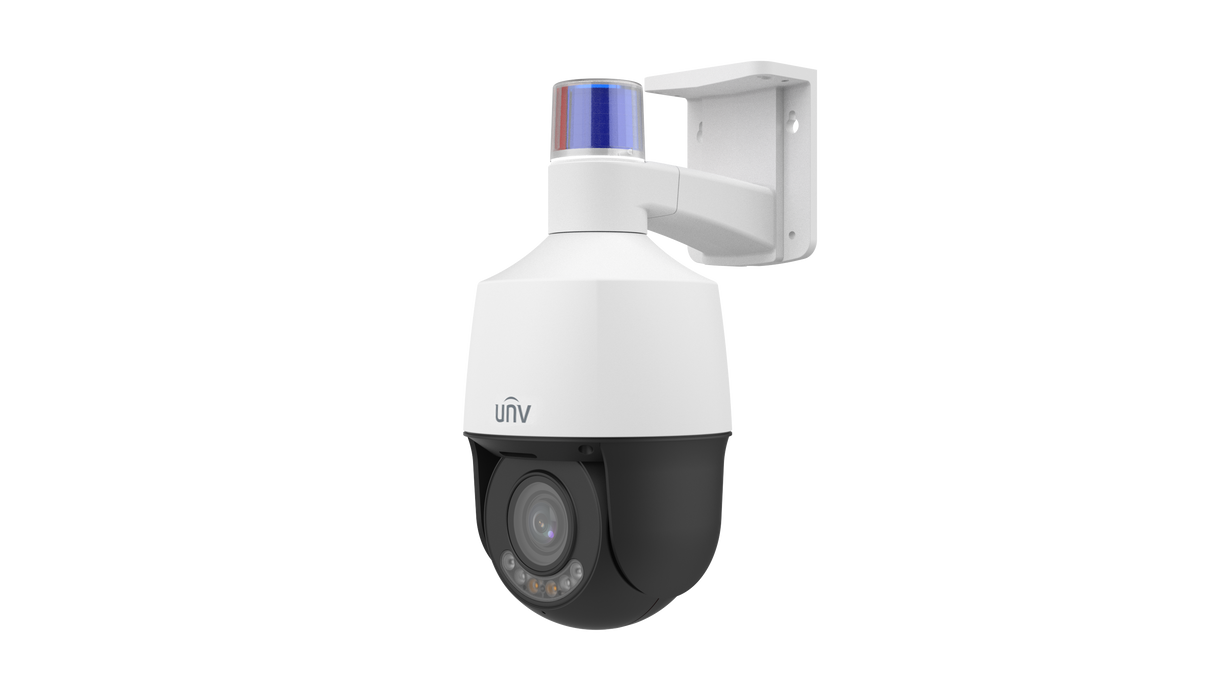

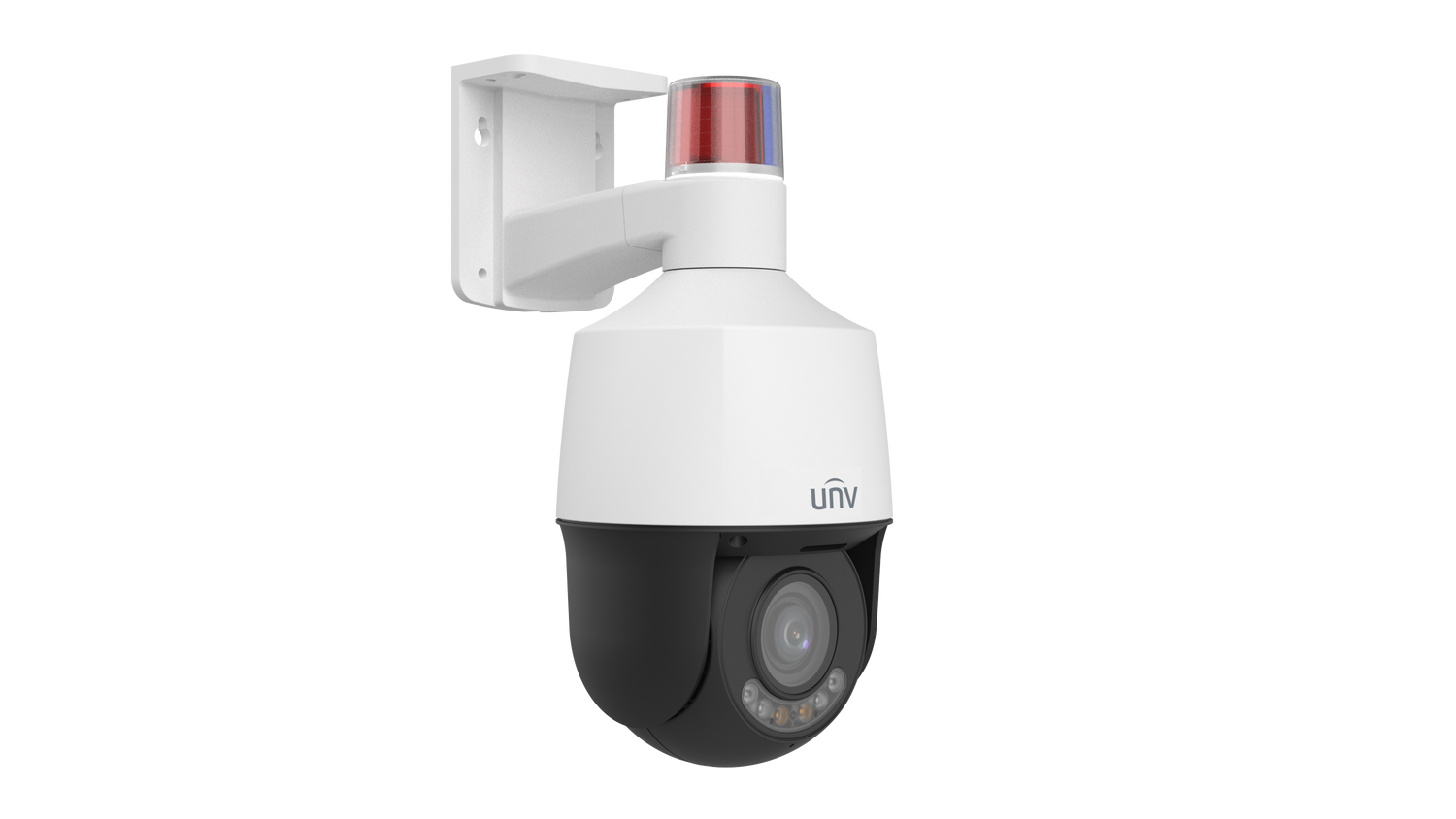

IPC6315LFW-AX5C-VG1
High quality image with 5MP, 1/2.8" CMOS sensor
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
LightHunter technology ensures ultra-high image quality in low illumination environment
Up to 120 dB WDR (Wide Dynamic Range)
Built-in Mic & Speaker
Smart IR, Up to 50 m (164 ft) IR distance and 15m (49 ft) warm light distance
Micro SD, up to 512GB
IP66 protection
DC12V or PoE (IEEE 802.3at) power supply
Spec Sheet User Manual Quick Guide

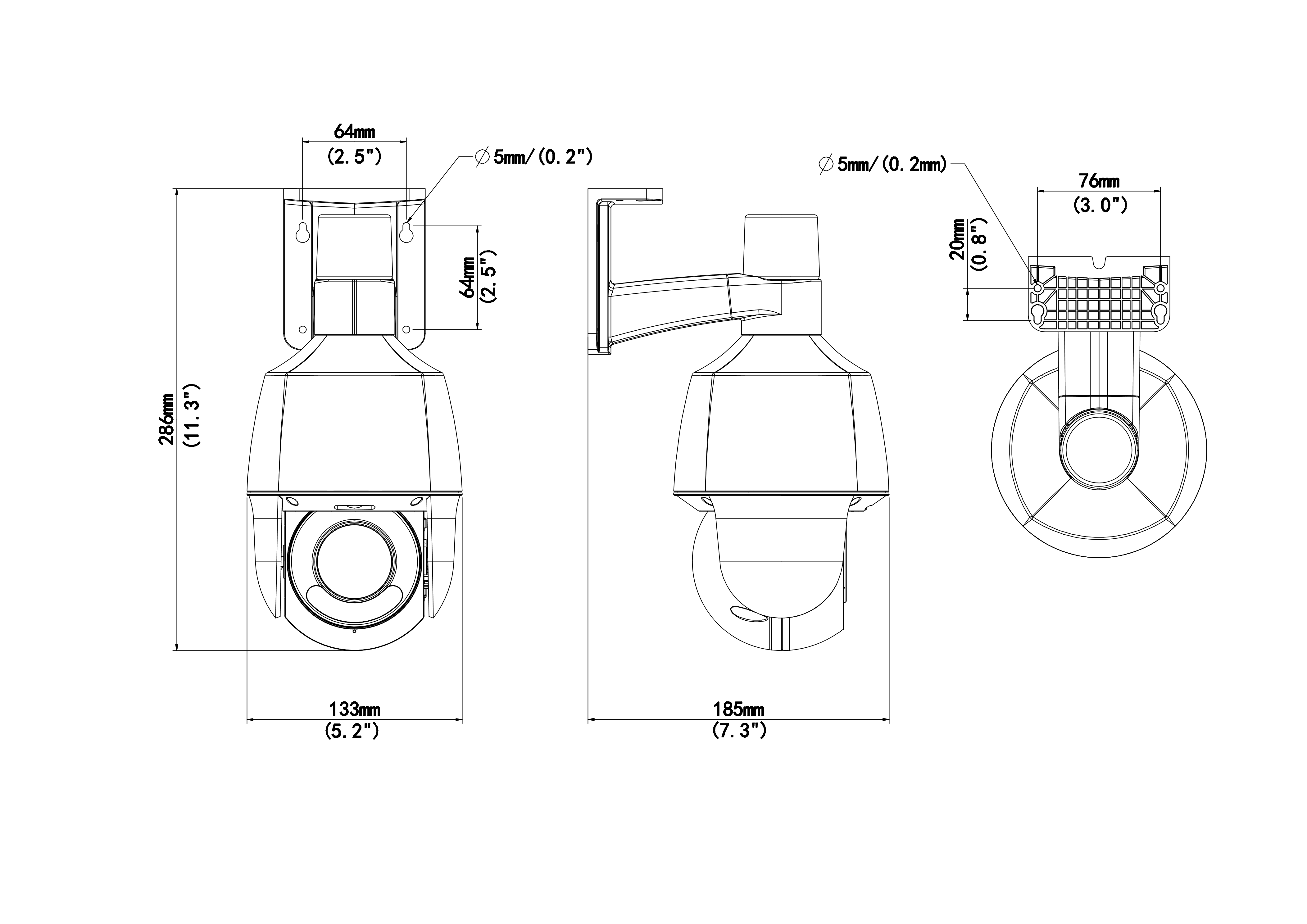

Dimensions|  | IPC6315LFW-AX5C-VG1 | |||||||
| Camera | ||||||||
| Max Resolution | 5 MP | |||||||
| Sensor | 1/2.7" CMOS | |||||||
| Min. Illumination | Colour:0.005lux (F1.6,AGC ON) 0 lux with IR |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 120 dB | |||||||
| S/N | >56 dB | |||||||
| Lens | ||||||||
| Focal Length | 2.7 to 13.5 mm | |||||||
| Optical Zoom | 5X | |||||||
| Iris | F1.6 | |||||||
| Field of View (H) | 106.91°~33.55° | |||||||
| Field of View (V) | 56.45°~18.99° | |||||||
| Field of View (D) | 123.1°~42.1° | |||||||
| DORI | ||||||||
| DORI Distance (Detect) | 72 m ~ 229.5 m (236.2 ft ~ 753 ft) | |||||||
| DORI Distance (Observe) | 28.8 m ~ 91.8 m (94.5 ft ~ 301.2 ft) | |||||||
| DORI Distance (Recognize) | 14.4 m ~ 45.9 m (47.2 ft ~ 150.6 ft) | |||||||
| DORI Distance (Identify) | 7.2 m ~ 23 m (23.6 ft ~ 75.3 ft) | |||||||
| Illuminator | ||||||||
| Illumination Distance (Warm Light) | 15 m (49.3 ft) | |||||||
| Light On/Off Control | Auto/Manual | |||||||
| Illumination Distance (IR) | 50 m (164.0 ft) | |||||||
| Wavelength | 850 nm | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate | Main Stream: 5MP (2880*1620), Max 30fps Sub Stream: 720P (1280*720), Max 30fps |
|||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| ROI | Support | |||||||
| Video Stream | Dual Streams | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| OSD | Up to 4 OSDs | |||||||
| Events | ||||||||
| Basic Detection | Motion Detection, Tampering Alarm, Audio Detection | |||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 128 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Intelligent | ||||||||
| Auto Tracking | Support, target filtering: human only | |||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection (support false alarm filtering and the classification of human and vehicle) | |||||||
| Network | ||||||||
| Protocols | TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API |
|||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Normal, Flip Vertical, Flip Horizontal, 180° | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Smart IR | Support | |||||||
| Defog | Digital Defog | |||||||
| PTZ | ||||||||
| Number of Presets | 1024 | |||||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
| Patrol Stay Time | 120 s to 1800 s | |||||||
| Home Position | Support | |||||||
| Pan Range | 0° ~ 345° | |||||||
| Pan Speed | 1°/s～40°/s | |||||||
| Tilt Range | -10° ~ 100° | |||||||
| Tilt Speed | 1°/s～30°/s | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| Alarm I/O | 1/1 | |||||||
| Built-in Mic | Support | |||||||
| Built-in Speaker | Support | |||||||
| Network | 1  RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032: 2015+A11: 2020+A1:2020, EN 50130-4:2011+A1: 2014, EN 61000-3-3: 2013+A1:2019+A2: 2021, EN IEC 61000-3-2: 2019+A1:2021) | |||||||
| Safety | CE LVD (EN 62368-1:2020+A11: 2020) UL (UL 62368-1, 2nd Ed.,Issue Date: 2014-12-01) |
|||||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
| General | ||||||||
| Power | DC12V(±25%), PoE(IEEE 802.3at) | |||||||
| Power Consumption | 18W | |||||||
| Power Interface | ˜5.5 mm coaxial power plug | |||||||
| Dimensions | 133 x 185 x 286 mm (˜ 5.2" x 7.3" x11.3" ) (L x W x H) | |||||||
| Weight | 788g | |||||||
| Working Environment | -30 „ƒ to 60 „ƒ (-22 „‰ to 140 „‰), Humidity: ‰¤ 95% RH (non-condensing) | |||||||
| Storage Environment | -40 „ƒ to 70 „ƒ (-40 „‰ to 158 „‰), Humidity: ‰¤ 95% RH (non-condensing) | |||||||
| Surge Protection | 2 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese,Arabic, Slovak | |||||||
| Heater | Support | |||||||
