UNV Technology USA LLC | SKU:
IPP-343
19% off
IPC6312LFW-AX4C-VG
$41900 USD
$51900
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability
IPC6312LFW-AX4C-VG
$41900 USD
$51900
Unit price
/
Unavailable
IPC6312LFW-AX4C-VG
High quality image with 2MP, 1/2.7"CMOS sensor
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
automatic selection of best snapshots
People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
LightHunter technology ensures ultra-high image quality in low illumination environment
Up to 120 dB Optical WDR (Wide Dynamic Range)
Built-in Mic & Speaker
Smart IR, Up to 50 m (164 ft) IR distance and 10m (33 ft) warm light distance
Micro SD, up to 256GB
IP66 protection
DC12V or PoE (IEEE 802.3af) power supply
Spec Sheet User Manual Quick Guide
Dimensions| IPC6312LFW-AX4C-VG | ||||||||
| Camera | ||||||||
| Sensor | 1/2.7" CMOS | |||||||
| Min. Illumination | Colour: 0.002Lux (F1.6, AGC ON) 0Lux with IR on |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 120 dB | |||||||
| S/N | >52 dB | |||||||
| Lens | ||||||||
| Focal Length | 2.8 to 12 mm | |||||||
| Optical Zoom | 4X | |||||||
| Iris | F1.6 | |||||||
| Field of View (H) | 105.2° ~ 29.32° | |||||||
| Field of View (V) | 52.6° ~ 16.38° | |||||||
| Field of View (D) | 108.7° ~ 33.3° | |||||||
| Illuminator | ||||||||
| Illumination Distance (Warm Light) | 10 m (32.8 ft) | |||||||
| Illumination Distance (IR) | 50 m (164.0 ft) | |||||||
| Wavelength | 850 nm | |||||||
| DORI | ||||||||
| DORI Distance (Lens) | 2.8~12(mm) | |||||||
| DORI Distance (Detect) | 43.4m~186.2m(142.4ft~610.9ft) | |||||||
| DORI Distance (Observe) | 17.4m~74.5m(57.1ft~244.4ft) | |||||||
| DORI Distance (Recognize) | 8.7m~37.2m(28.5ft~122.1ft) | |||||||
| DORI Distance (Identify) | 4.3m~18.6m(14.1ft~61.0ft) | |||||||
| Video | ||||||||
| Privacy Mask | Up to 4 areas | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps Sub Stream: 720P (1280*720), Max 30fps Third Stream: D1 (720*576), Max 30fps |
|||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| ROI | Support | |||||||
| Video Stream | Triple Streams | |||||||
| OSD | Up to 8 OSDs | |||||||
| PTZ | ||||||||
| Pan Range | 0° ~ 345° | |||||||
| Pan Speed | 0.1°/s ~ 50°/s | |||||||
| Tilt Range | -10° ~ 110° | |||||||
| Tilt Speed | 0.1°/s ~ 40°/s | |||||||
| Number of Presets | 256 | |||||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
| Patrol Stay Time | 120 s to 1800 s | |||||||
| Home Position | Support | |||||||
| Intelligent | ||||||||
| Exception Detection | Object Removed, Object Left Behind, Scene Change, Defocus Detection | |||||||
| Auto Tracking | Support, target filtering: human only | |||||||
| People Counting | Support People Flow Counting and Crowd Density Monitoring | |||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| Image | ||||||||
| Defog | Digital Defog | |||||||
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal, Flip Vertical, Flip Horizontal, 180° | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Heatwave Reduction | N/A | |||||||
| Events | ||||||||
| Basic Detection | Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind, Scene Change, Defocus Detection | |||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
|||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |||||||
| Interface | ||||||||
| Built-in Mic | Support | |||||||
| Built-in Speaker | Support | |||||||
| Network | 1 — RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN55032:2015, EN55024:2010+A1:2015, EN55035:2017, EN61000-3-2:2014, EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
| General | ||||||||
| Power | DC12V(±25%), PoE (IEEE 802.3af) | |||||||
| Power Consumption | MAX 15W | |||||||
| Power Interface | ˜5.5 mm coaxial power plug | |||||||

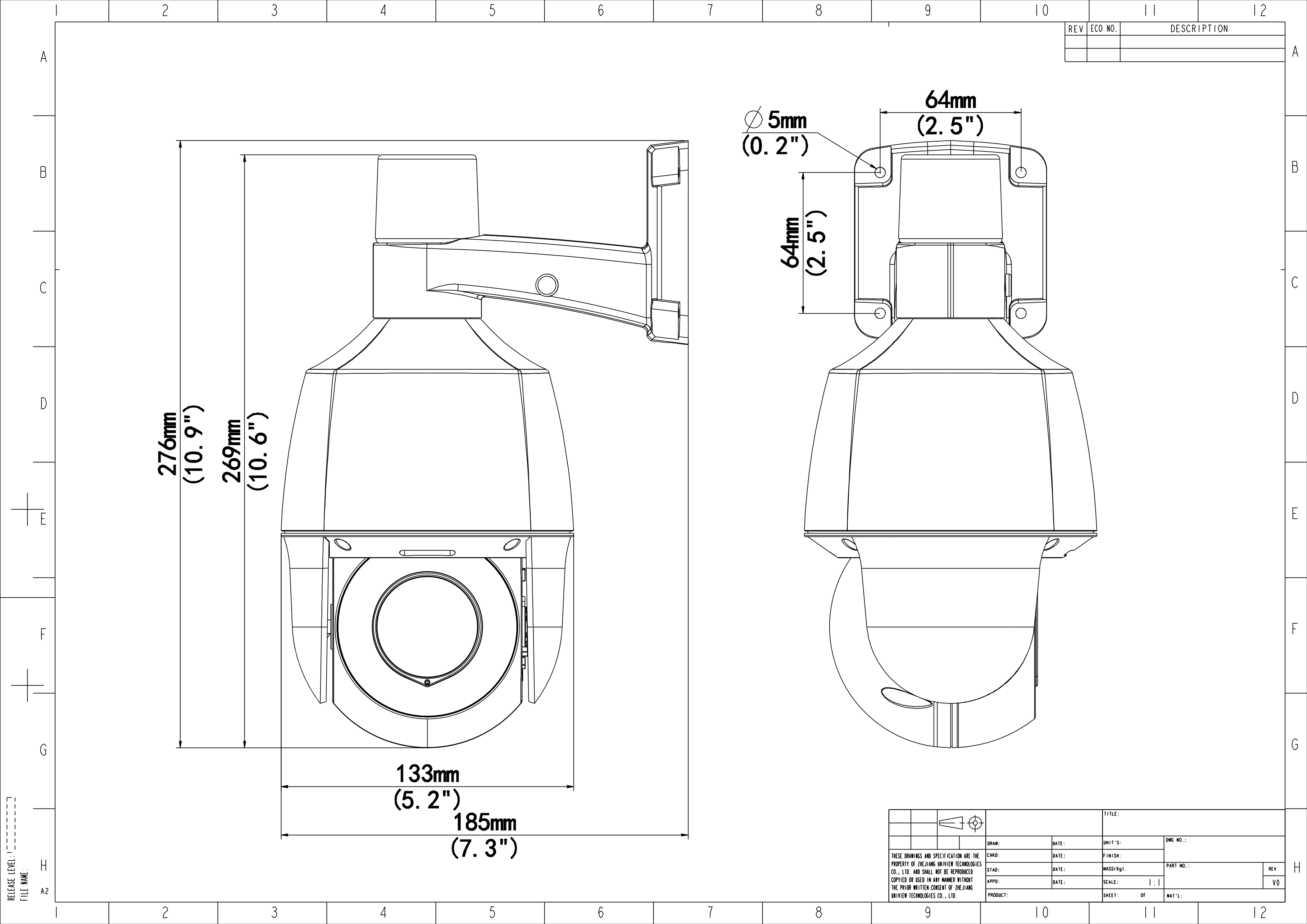

| Dimensions | 133 x 185 x 276 mm (5.2" x 7.3" x 10.9") (L x W x H) | |||||||
| Weight | 0.87 kg (1.92lb) | |||||||
| Working Environment | -20 „ƒ to 60 „ƒ (-4 „‰ to 140 „‰), Humidity: ‰¤ 95% RH (non-condensing) | |||||||
| Storage Environment | -40 „ƒ to 70 „ƒ (-40 „‰ to 158 „‰), Humidity: ‰¤ 95% RH (non-condensing) | |||||||
| Surge Protection | 2 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
