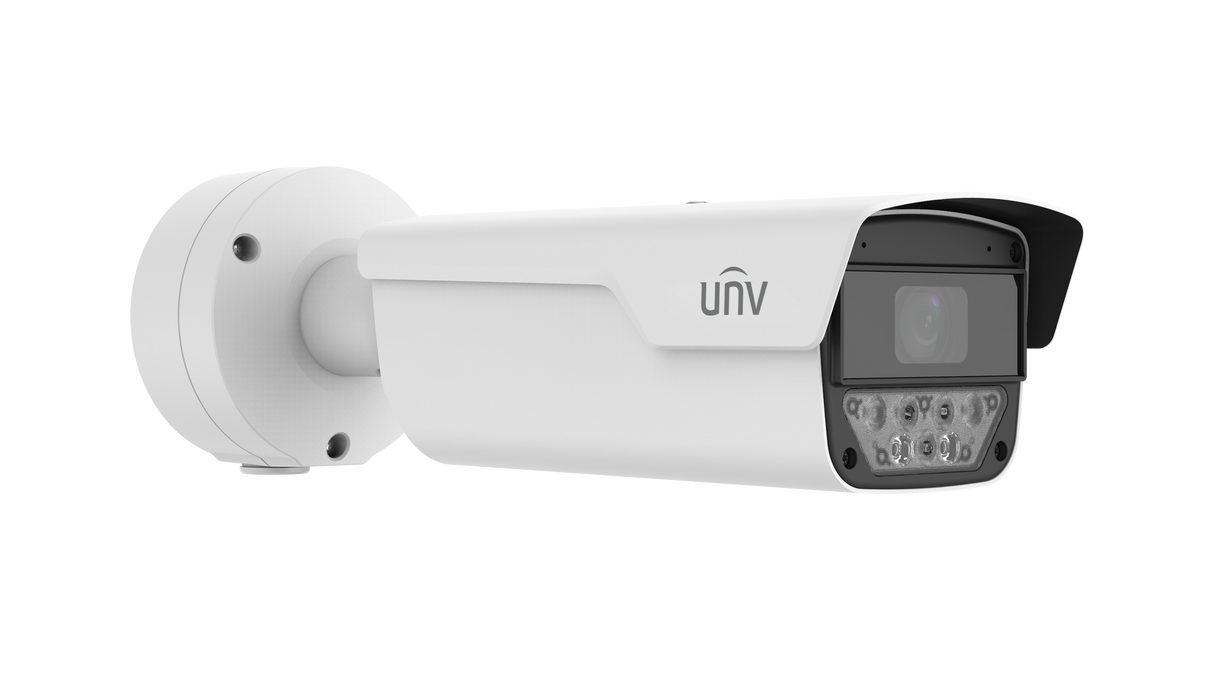

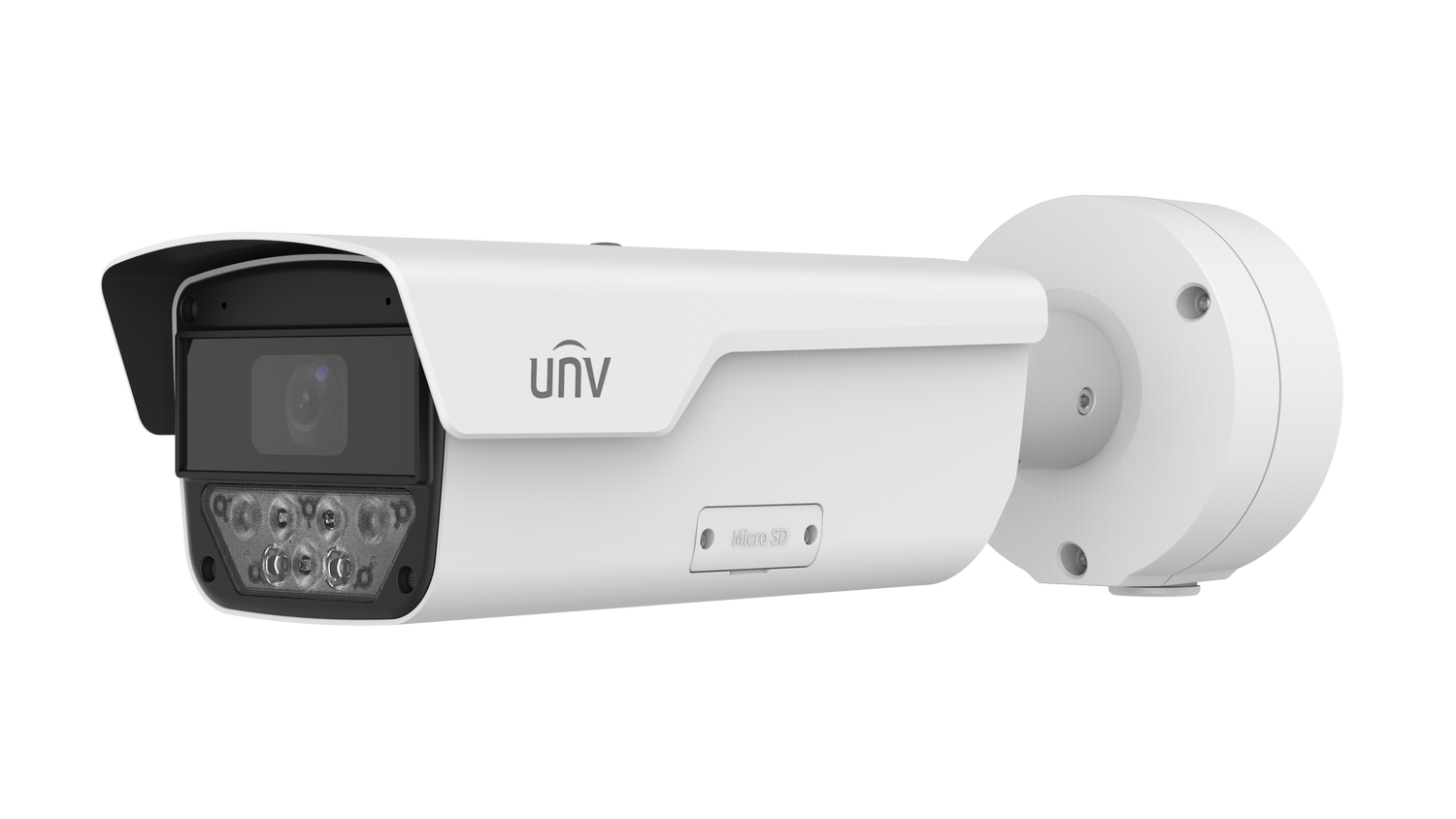

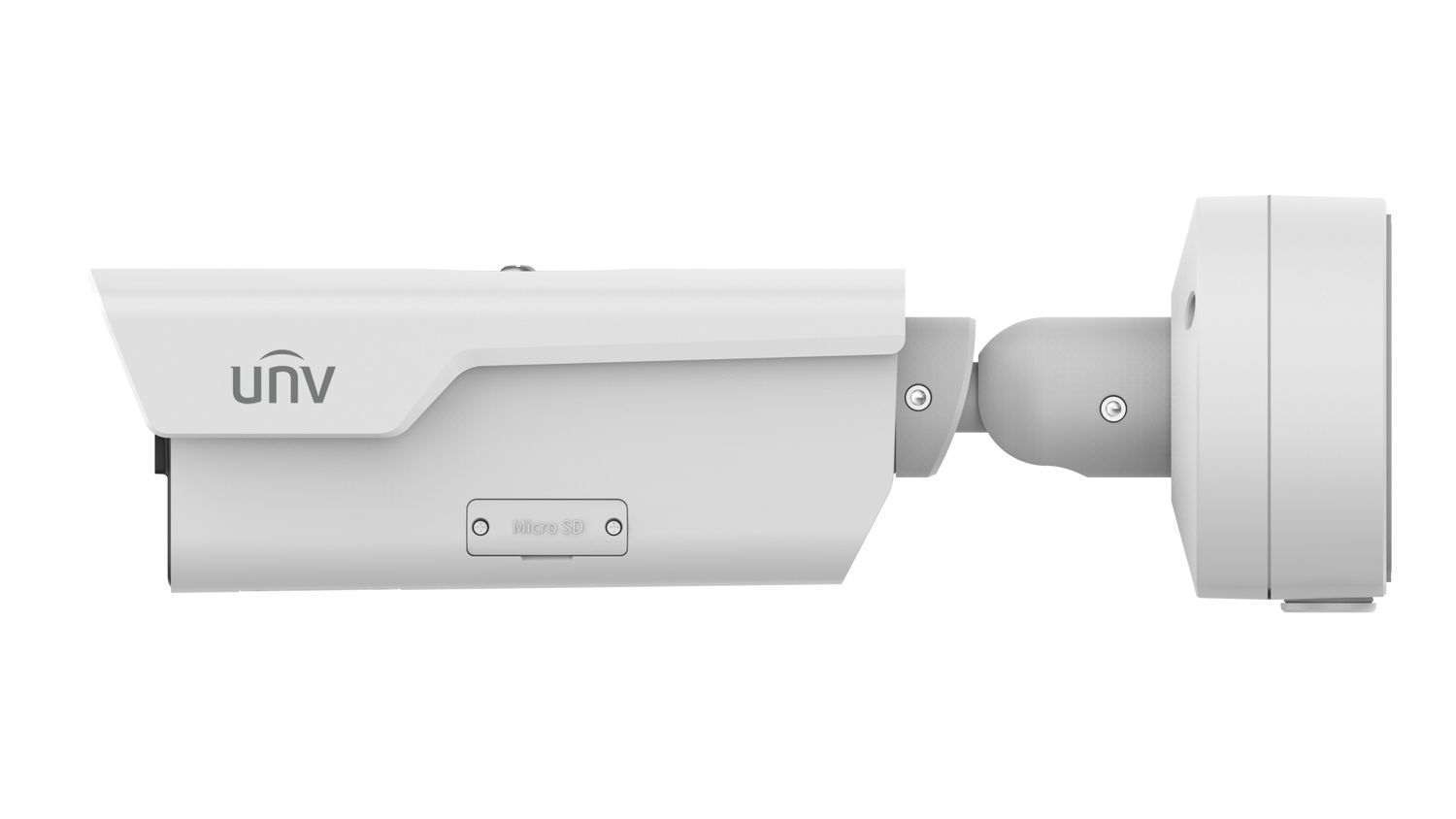

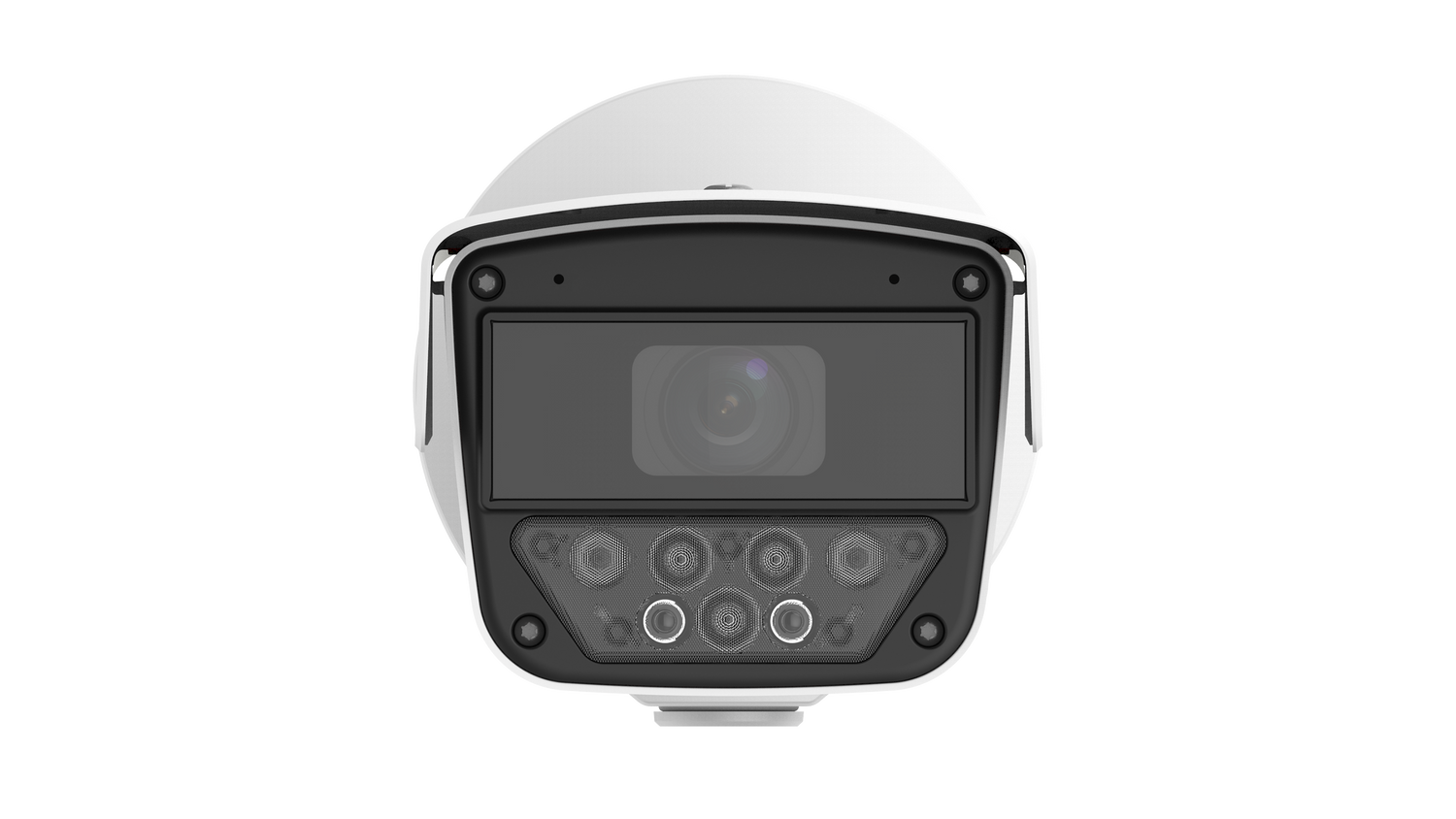

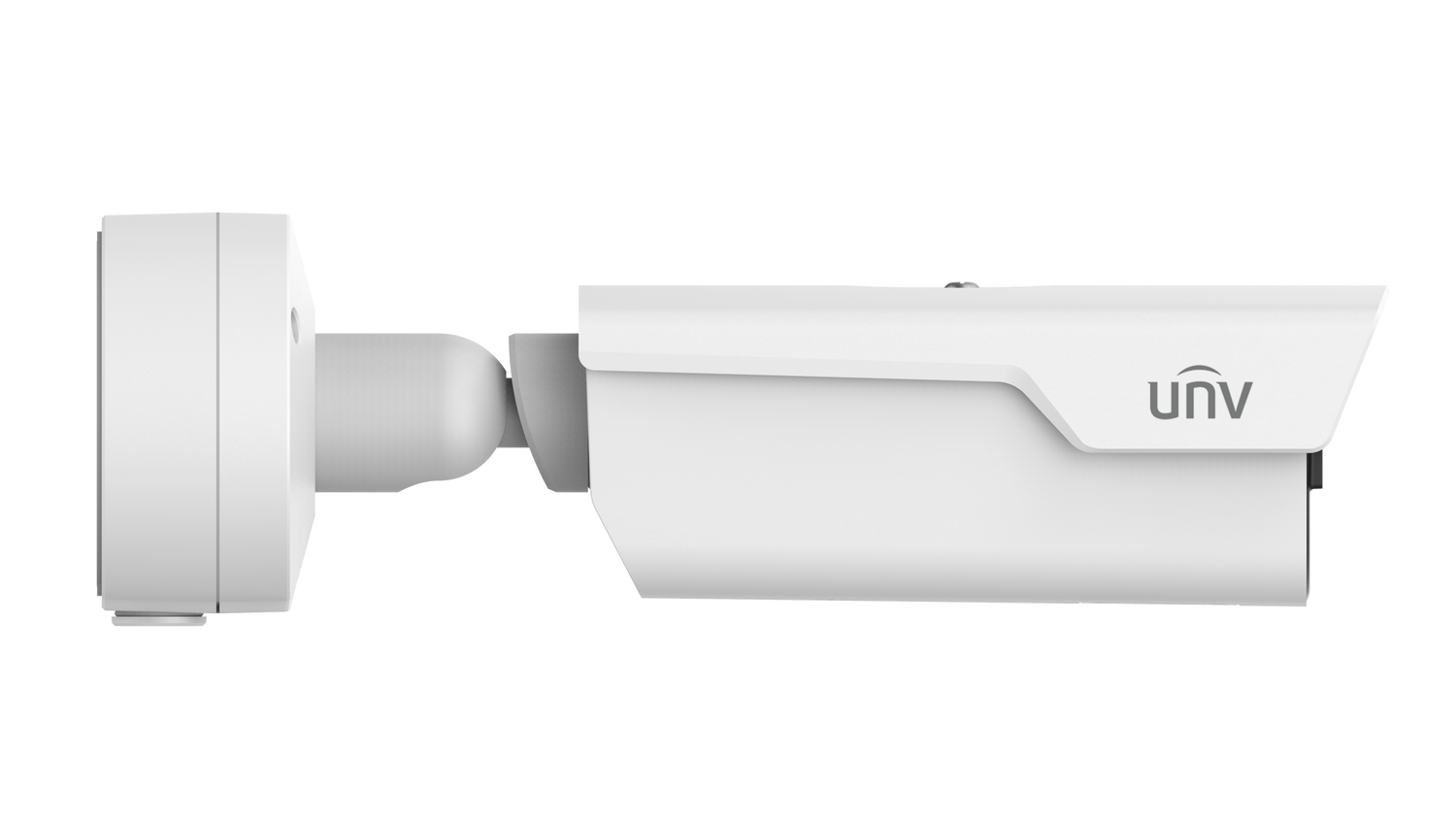

IPC268EA-AHDX4K-I1
Couldn't load pickup availability
IPC268EA-AHDX4K-I1
IPC268EA-AHDX4K-I1
High quality image with ８MP,1/1.8€� CMOS sensor
3840*2160@60fps in the main stream, offering smoother live video and more details
Ultra 265, H.265, H.264, MJPEG
€€-ISP technology, comprehensive improvement in image quality
Metadata analyse, support human body, motor vehicle and non-motor vehicle image capture and attribute collection, realize data visualization management, allow users to get target information for further data analysis
, support front-endcomparison, support blocklist and allowlist comparison, increases the concurrent detection number up to 120
Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
LightHunter technology ensures ultra-high image quality in low illumination environment
Up to 140 dB Optical WDR (Wide Dynamic Range)
DC12V or PoE (IEEE 802.3at) power supply
Wide voltage range of ±25% in DC
Spec Sheet User Manual Quick Guide
Dimensions| IPC268EA-AHDZK-I1 | IPC268EA-AHDX4K-I1 | |||||||
| Camera | ||||||||
| Sensor | 1/1.8" CMOS | |||||||
| Min. Illumination | Colour:0.001 lux (F1.2, AGC ON) B/W:0.0005 lux (F1.2, AGC ON) 0 lux with IR |
Colour:0.003 lux (F1.6, AGC ON) B/W:0.002 lux (F1.6, AGC ON) 0 lux with IR |
||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 140 dB | |||||||
| S/N | >56 dB | |||||||
| Lens | ||||||||
| Focal Length | 2.8 to 12 mm | 8 to 32 mm | ||||||
| Optical Zoom | 4X | |||||||
| Iris | F1.2 | F1.6 | ||||||
| Iris Type | P-iris | |||||||
| DORI | ||||||||
| DORI Distance (Detect) | 108.0m(354.3ft)~180.0m(590.6ft) | 240.3m(788.4ft)~644.4m(2114.2ft) | ||||||
| DORI Distance (Observe) | 43.2m(141.7ft)~72.0m(236.2ft) | 96.1m(315.4ft)~257.8m(845.7ft) | ||||||
| DORI Distance (Recognize) | 21.6m(70.9ft)~36.0m(118.1ft) | 48.1m(157.7ft)~128.9m(422.8ft) | ||||||
| DORI Distance (Identify) | 10.8m(35.4ft)~18.0m(59.1ft) | 24.0m(78.8ft)~64.4m(211.4ft) | ||||||
| Illuminator | ||||||||
| Illumination Distance (IR) | 60 m (196.9 ft) | 120 m (393.7 ft) | ||||||
| IR On/Off Control | Auto/Manual | |||||||
| Wavelength | 850 nm | |||||||
| Video | ||||||||
| Frame Rate-Main Stream | 8MP(3840*2160), Max 60fps | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate-Sub Stream | 2MP(1920*1080), Max 60fps | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| Frame Rate-Third Stream | D1 (720*576), Max 60fps | |||||||
| Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) | |||||||
| ROI | Support | |||||||
| Video Stream | Triple Streams | |||||||
| OSD | Up to 10 OSDs | |||||||
| Image | ||||||||
| White Balance | Auto&Outdoor&Fine Tune&Sodium Lamp&Locked&Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal&Flip Vertical&Flip Horizontal&180°&90°Clockwise&90°Anti-clockwise | |||||||
| HLC | Support | |||||||
| Defog | Digital Defog | |||||||
| Intelligent | ||||||||
| Metadata Analyse | Support human body, motor vehicle and non-motor vehicle image capture and attribute collection | |||||||
| Recognition | : Max support 16 face libraries | |||||||
| People Counting | Support People Flow Counting and Crowd Density Monitoring | |||||||
| Exception Detection | Object Removed,Object Left Behind, Scene Change, Defocus Detection | Object Removed,Object Left Behind | ||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| Events | ||||||||
| Basic Detection | Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind, Scene Change, Defocus Detection | Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind | ||||||
| General Function | Watermark&IP Address Filtering&Access Policy&ARP Protection&RTSP Authentication&User Authentication&HTTP authentication&Alarm input&Alarm output | |||||||
| Audio | ||||||||
| Audio Compression | G.711U&G.711A | |||||||
| Audio Bitrate | 128 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, TLS1.3 | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
|||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS1.3 | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above&Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
| Interface | ||||||||
| Audio I/O | 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| Alarm I/O | 3/2 | |||||||
| Serial Port | 1 channel RS485 interface | |||||||
| Built-in Mic | Support, built-in mic*2 | |||||||
| Built-in Speaker | Support | |||||||
| Network | 1 — RJ45 10 M/100 M/1000 M Base-TX Ethernet | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 3rd Ed., 2021-10-22 ) |
|||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
|||||||
| General | ||||||||
| Power | DC12V(±25%) , PoE+ (IEEE 802.3at) | |||||||
| Power Consumption | Max 16W | Max 19W | ||||||
| Power Interface | ˜5.5 mm coaxial power plug | |||||||
| Dimensions | 406 x 126 x 130 mm (16.0€� x 5.0€� x 5.1€�) (L x W x H) | |||||||
| Weight | 1.92kg(4.23lb) | |||||||
| Working Environment | -40 „ƒ to 60 „ƒ (-40 „‰ to 140 „‰), Humidity: ‰¤ 95% RH (non-condensing) | |||||||
| Surge Protection | 6 KV | |||||||
| Heater | Support | |||||||
