UNV Technology USA LLC | SKU:
IPP-329
20% off
IPC265EB-DX12K-I0
$1,73900 USD
$2,16900
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability
IPC265EB-DX12K-I0
$1,73900 USD
$2,16900
Unit price
/
Unavailable
IPC265EB-DX12K-I0
High quality image with 5MP,1/2.7۪۪ CMOS sensor
2880*1620@30fps in the main stream
Ultra 265, H.265, H.264, MJPEG
Triple streams offer more choices for different clients in an integrated solution
12X optical zoom allows for closer viewing of subjects
Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
LightHunter technology ensures ultra-high image quality in low illumination environment
Up to 120 dB Optical WDR (Wide Dynamic Range)
Built-in heater, support normal start-up at low temperature
DC12V or PoE+(IEEE 802.3at) power supply
Spec Sheet User Manual Quick Guide

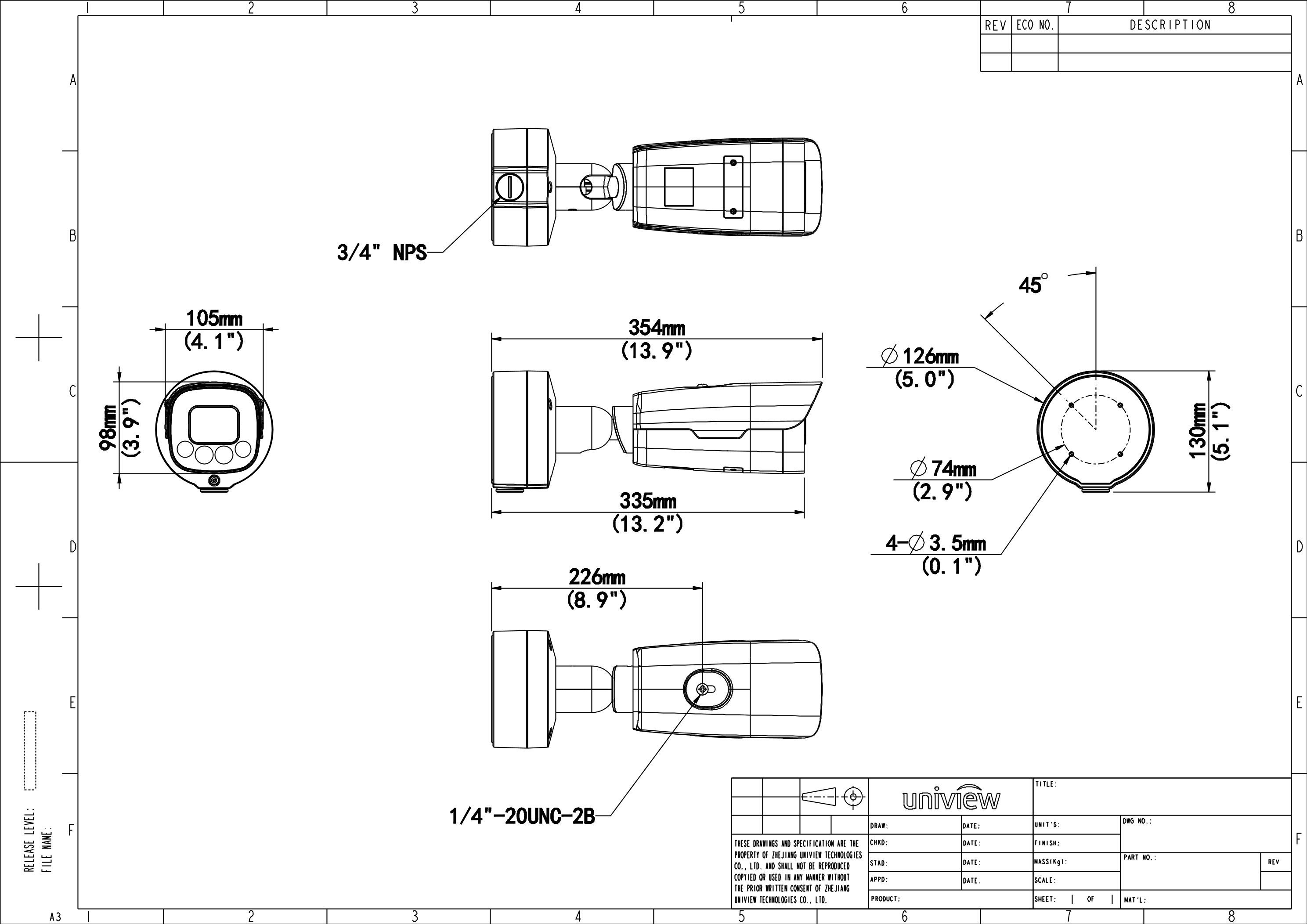

Dimensions| IPC265EB-DX12K-I0 | ||||||||
| Camera | ||||||||
| Sensor | 1/2.7" CMOS | |||||||
| Min. Illumination | Colour:0.001 lux (F1.6, AGC ON) 0 lux with IR |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 120 dB | |||||||
| Adjustment Angle | Pan: 0° to 360° Tilt: 0° to 90° Rotate: 0° to 360° |
|||||||
| S/N | >56 dB | |||||||
| Lens | ||||||||
| Focal Length | 5 to 60 mm | |||||||
| Digital Zoom | 16X | |||||||
| Optical Zoom | 12X | |||||||
| Iris | F1.6 | |||||||
| Field of View (H) | 59.99°~5.73° | |||||||
| Field of View (V) | 35.03°~3.39° | |||||||
| Field of View (D) | 67.01°~6.61° | |||||||
| Iris Type | DC-iris | |||||||
| DORI | ||||||||
| DORI Distance (Lens) | 5~60mm | |||||||
| DORI Distance (Detect) | 119.3m(391.2ft)~1417.5m(4650.6ft) | |||||||
| DORI Distance (Observe) | 47.7m(156.5ft)~567.0m(1860.2ft) | |||||||
| DORI Distance (Recognize) | 23.9m(78.2ft)~283.5m(930.1ft) | |||||||
| DORI Distance (Identify) | 11.9m(39.1ft)~141.8m(465.1ft) | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate-Main Stream | 5MP (2880*1620), Max 30fps | |||||||
| Frame Rate-Sub Stream | 1080P (1920*1080), Max 30fps | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| ROI | Support | |||||||
| Video Stream | Triple Streams | |||||||
| OSD | Up to 10 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| Frame Rate-Third Stream | D1 (720*576), Max 30fps | |||||||
| Events | ||||||||
| Basic Detection | Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind | |||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input | |||||||
| Intelligent | ||||||||
| Exception Detection | Object Removed, Object Left Behind | |||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| People Counting | Support People Flow Counting and Crowd Density Monitoring | |||||||
| Traffic Monitoring | Support capturing car license picture when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode avaliable: High/Low pole | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 128 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Smart IR | Support | |||||||
| Defog | Digital Defog | |||||||
| Heatwave Reduction | Support | |||||||
| Network | ||||||||
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | TLS1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| Alarm I/O | 2/1 | |||||||
| Serial Port | 1 channel RS485 interface | |||||||
| Network | 1 — RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Video Output | 1 BNC (For debugging) | |||||||
| Illuminator | ||||||||
| Illumination Distance (IR) | 100 m (328.1 ft) | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Wavelength | 850 nm | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15, Subpart B, ANSI C63.4-2014) |
|||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
|||||||
| General | ||||||||
| Power | DC12V(±25%) , PoE+ (IEEE 802.3at) | |||||||
| Power Consumption | Max 13W | |||||||
| Power Interface | ˜5.5 mm coaxial power plug | |||||||
| Dimensions | 354 x 105 x 98 mm (13.9" x 4.1" x 3.9") (L x W x H) | |||||||
| Weight | 1.93kg(4.25lb) | |||||||
| Working Environment | -40 „ƒ to 60 „ƒ (-40 „‰ to 140 „‰), Humidity: ‰¤ 95% RH (non-condensing) | |||||||
| Storage Environment | -40 „ƒ to 70 „ƒ (-40 „‰ to 158 „‰), Humidity: ‰¤ 95% RH (non-condensing) | |||||||
| Surge Protection | 6 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
| Heater | Support | |||||||
