UNV Technology USA LLC | SKU:
IPP-1597
19% off
GCB01-B7
$29900 USD
$36900
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability

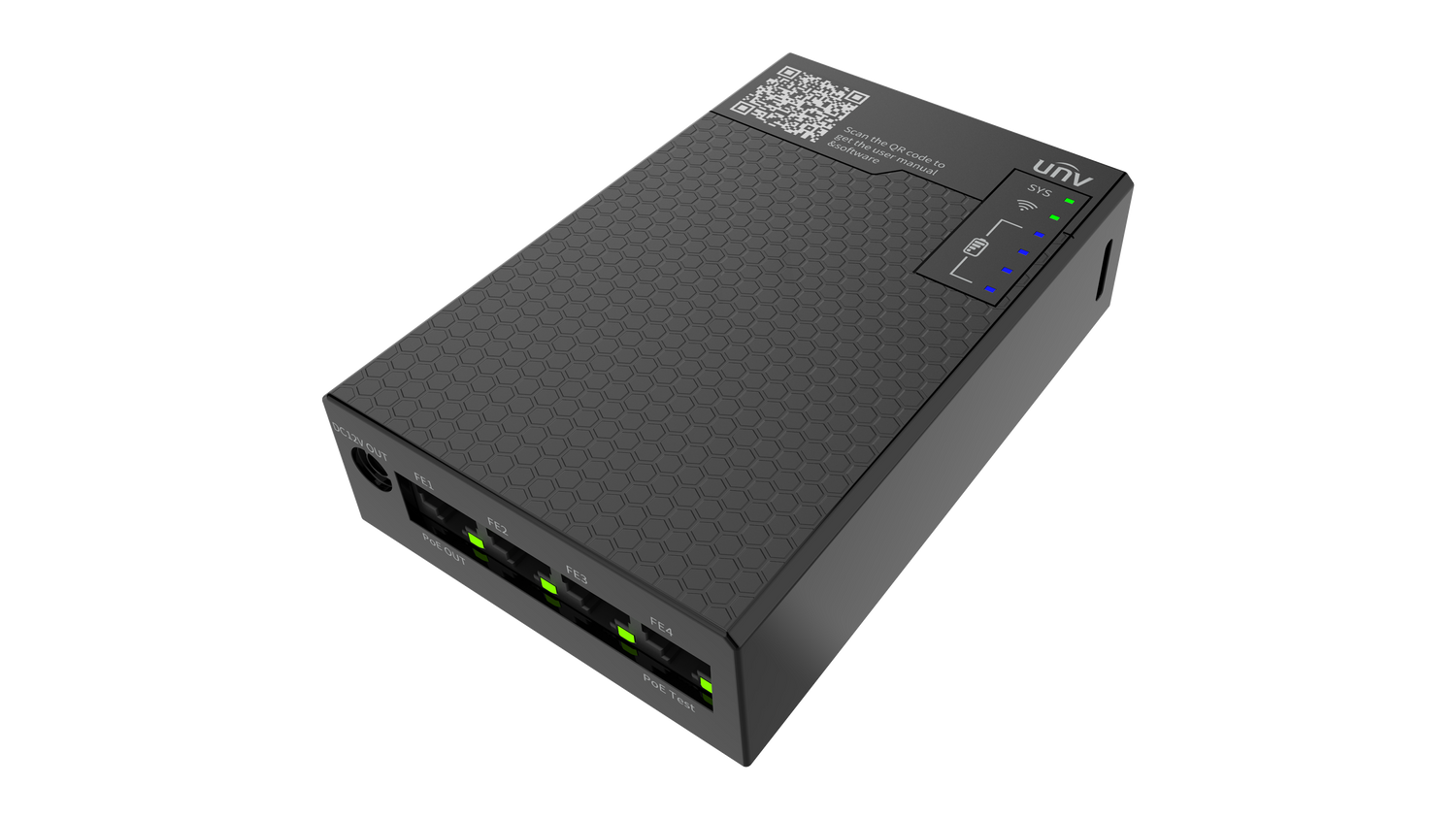

GCB01-B7
$29900 USD
$36900
Unit price
/
Unavailable
GCB01-B7
Spec Sheet Quick Guide
Dimensions| GCB01-B7 | ||||||||
| Interface | ||||||||

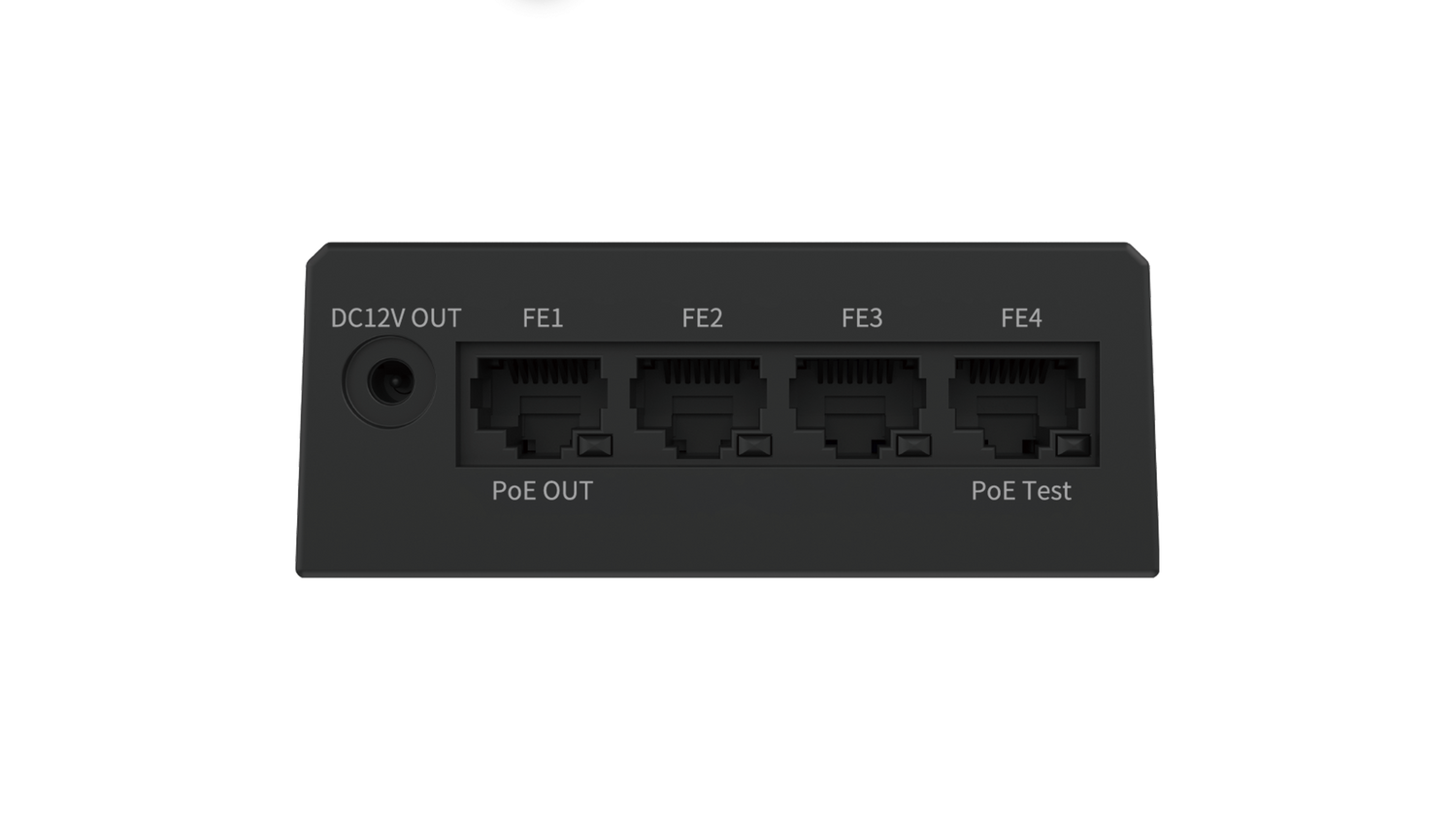

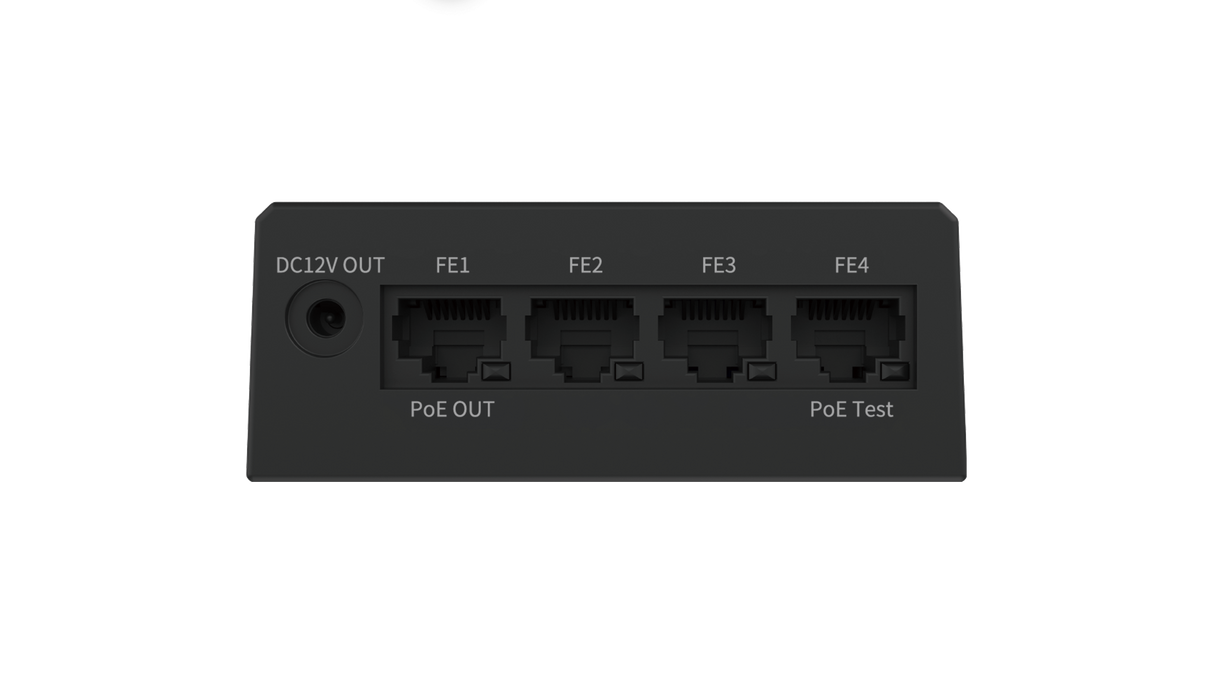

| Network | 4 — RJ45 10 M/100 M Base-TX EthernetNetwork Port 1 Support POE (IEEE802.3af) OutputNetwork Port 4 Support PSE Voltage Test | |||||||
| Voltage Test | 1 x PSE Voltage Test(PSE voltage detection Range： 1V~56V; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt) 1 x DC voltage Test(DC voltage detection Range： 1V~56V) |
|||||||
| Network | ||||||||
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n) | |||||||
| Structure / Environment | ||||||||
| Battery Capacity | 18650 lithium battery, 7500 mAH | |||||||

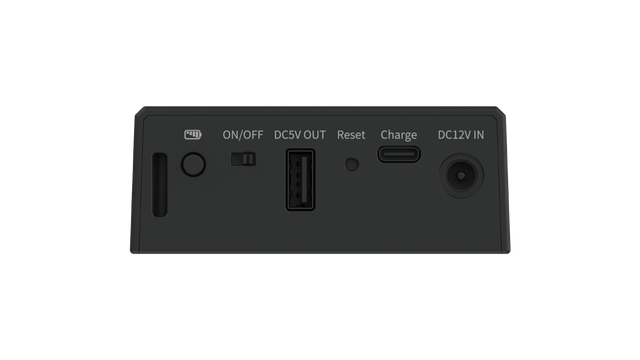

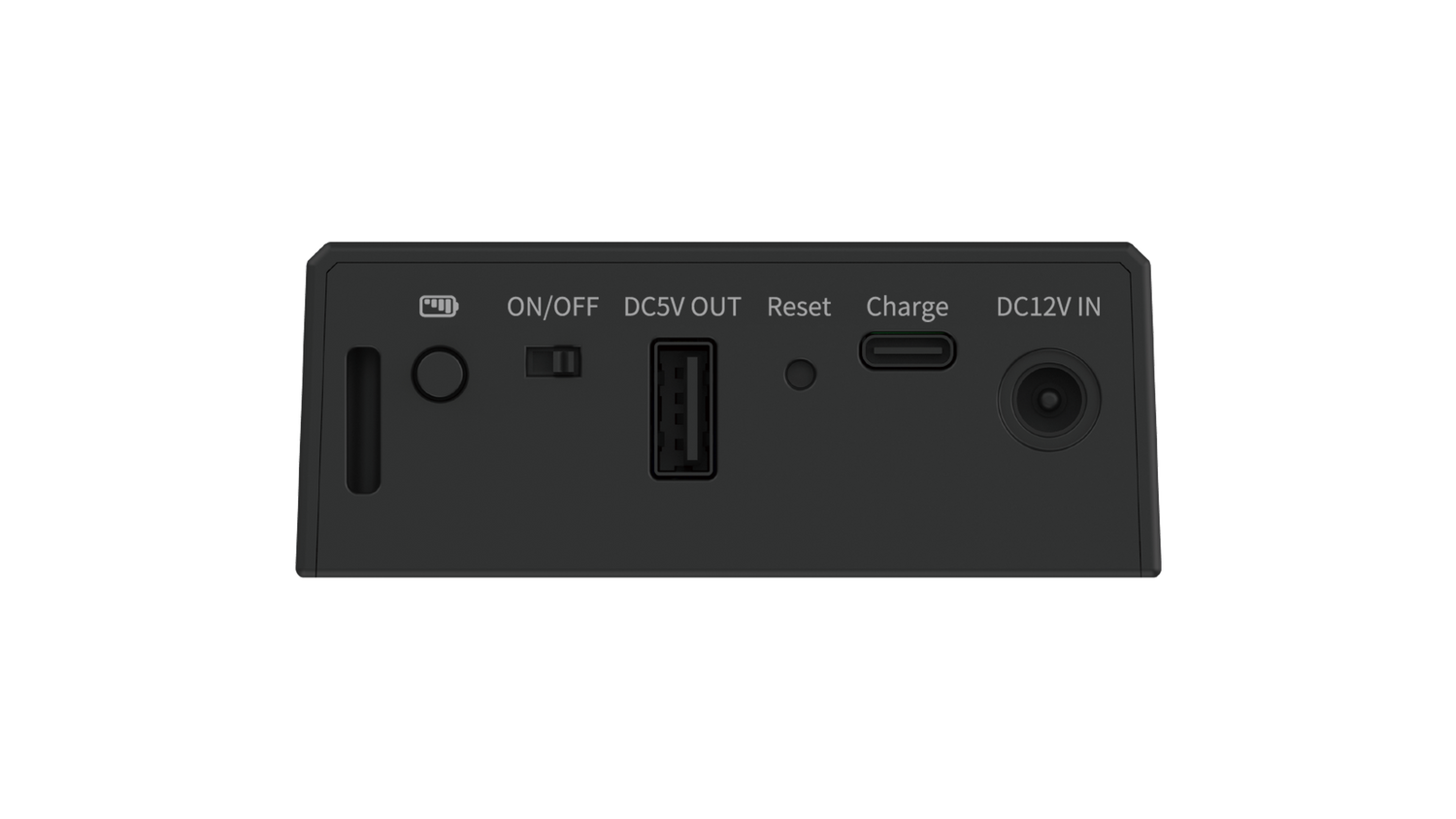

| Power Input | 1 — DC 5 V/2 A max, type-c | |||||||
| Power Output | 1 — DC 12 V/1 A output; 1 — DC 5 V/1 A output, type-A | |||||||
| General | ||||||||

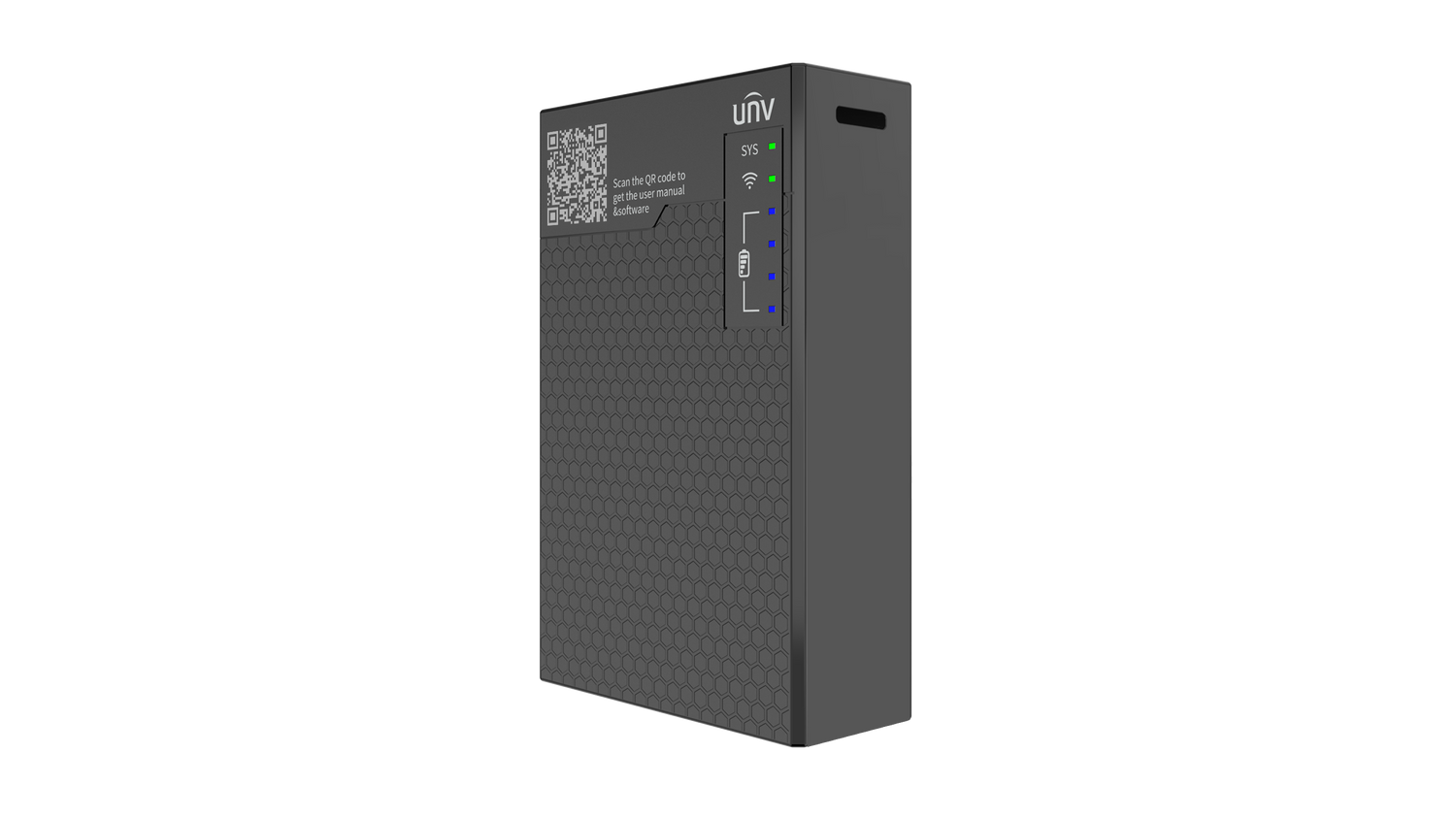

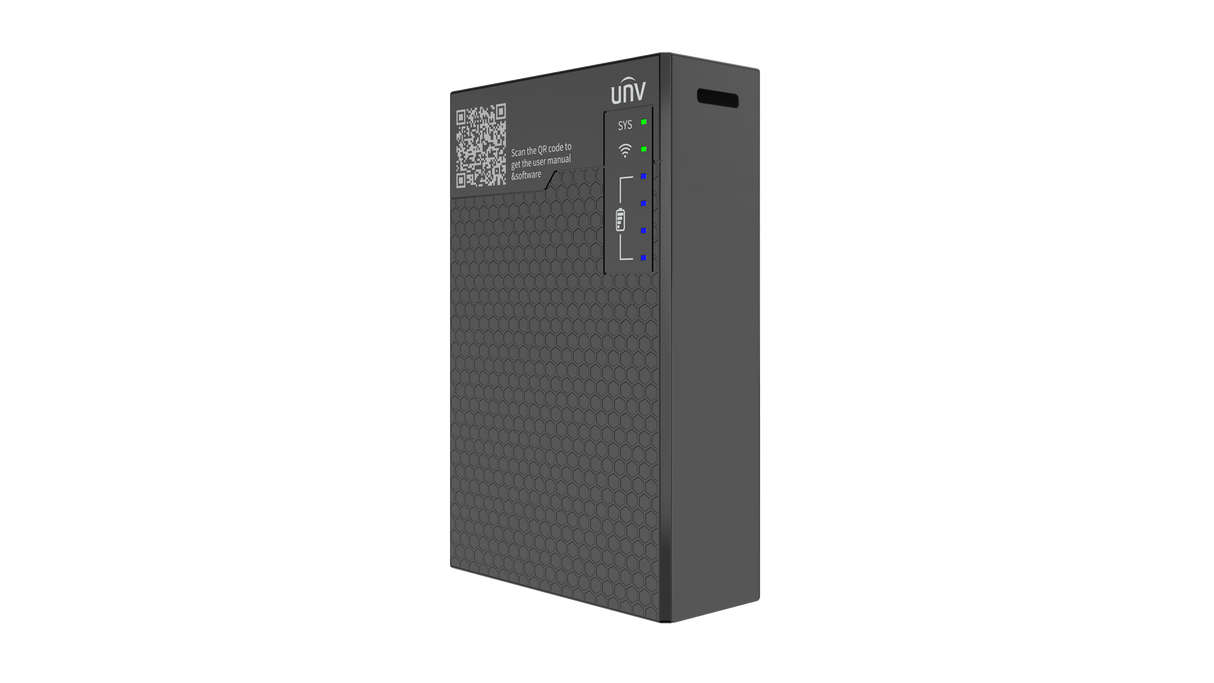

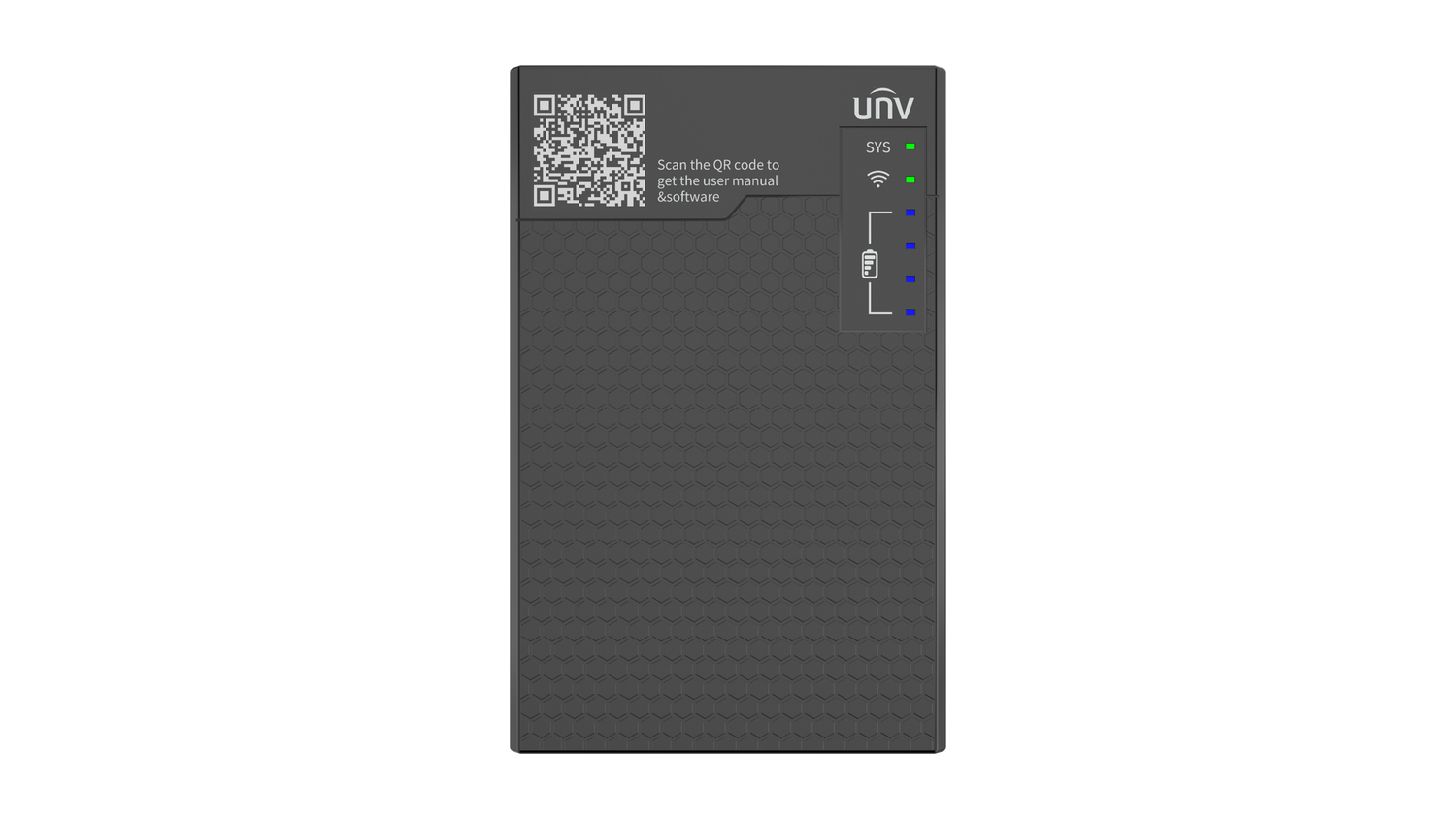

| LED Indicator | System indicator, WiFi indicator, Battery indicator | |||||||

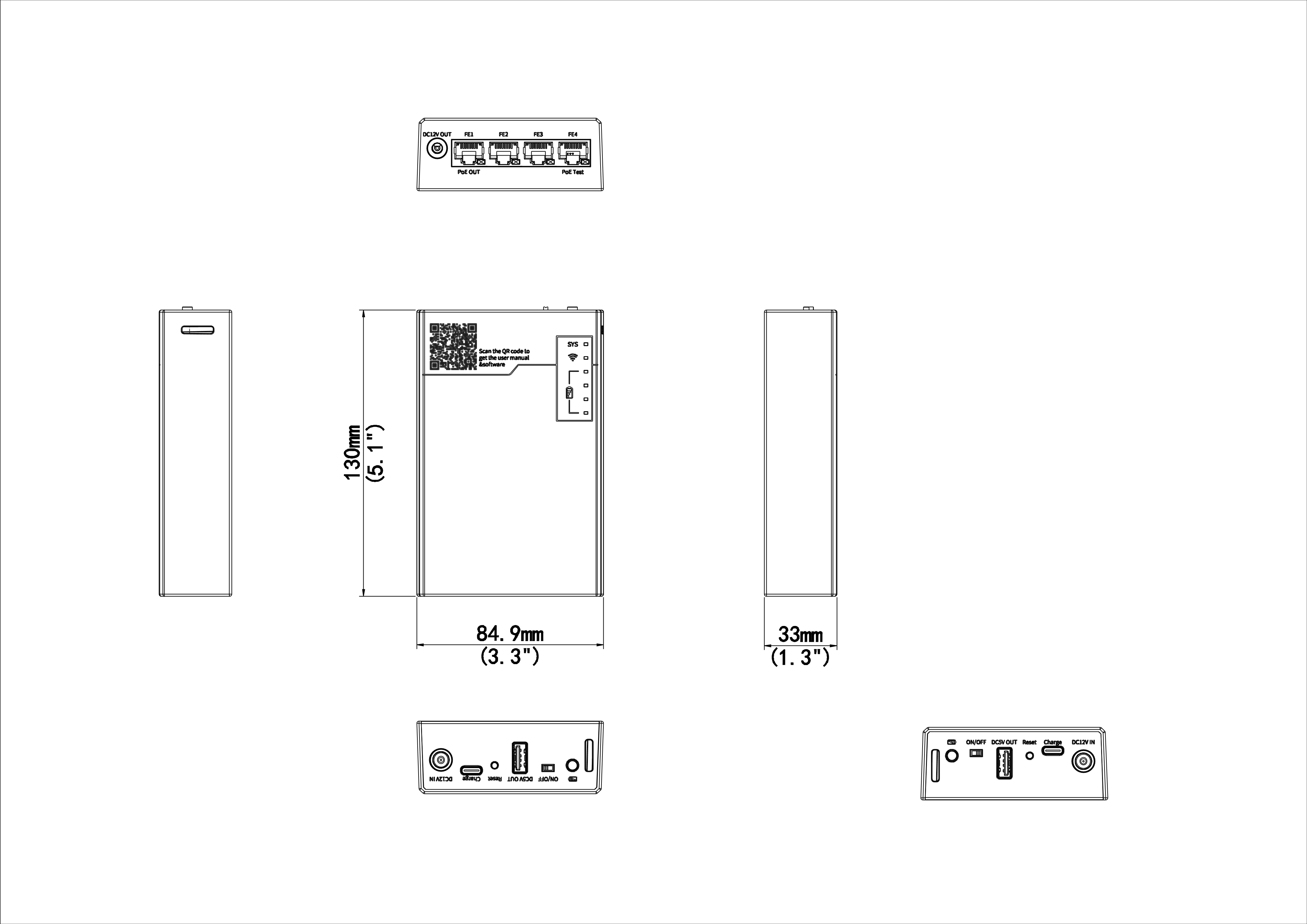

| Dimensions | 130 — 85 — 33mm (5.1€� — 3.3€� — 1.3€�) (L x W x H) | |||||||
| Working Environment | -20 „ƒ to 60 „ƒ (-4 „‰ to 140 „‰), Humidity: ‰¤ 95% RH (non-condensing) | |||||||
| Reset Button | Support | |||||||
