UNV Technology USA LLC | SKU:
IPP-2706
12% off

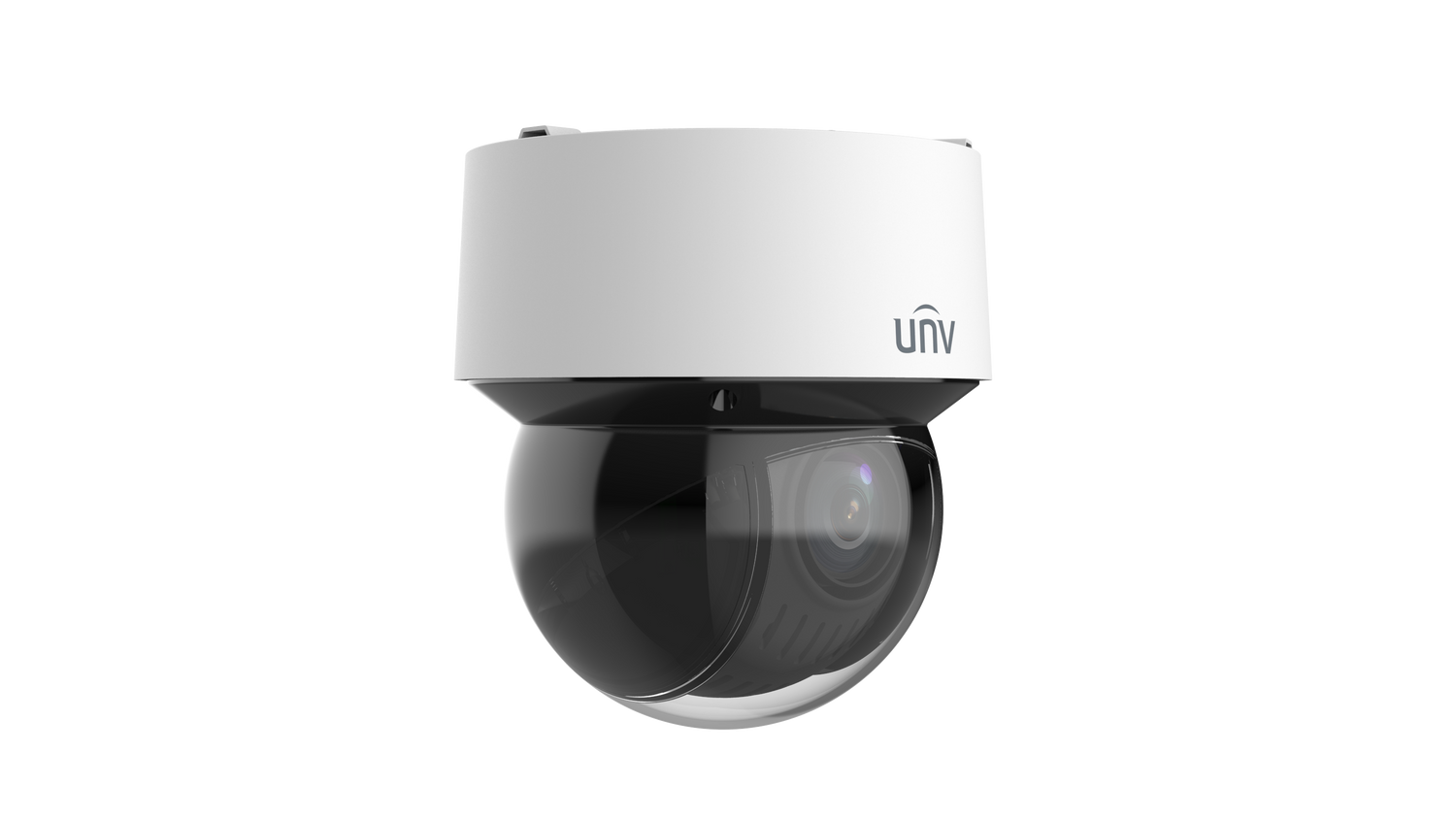

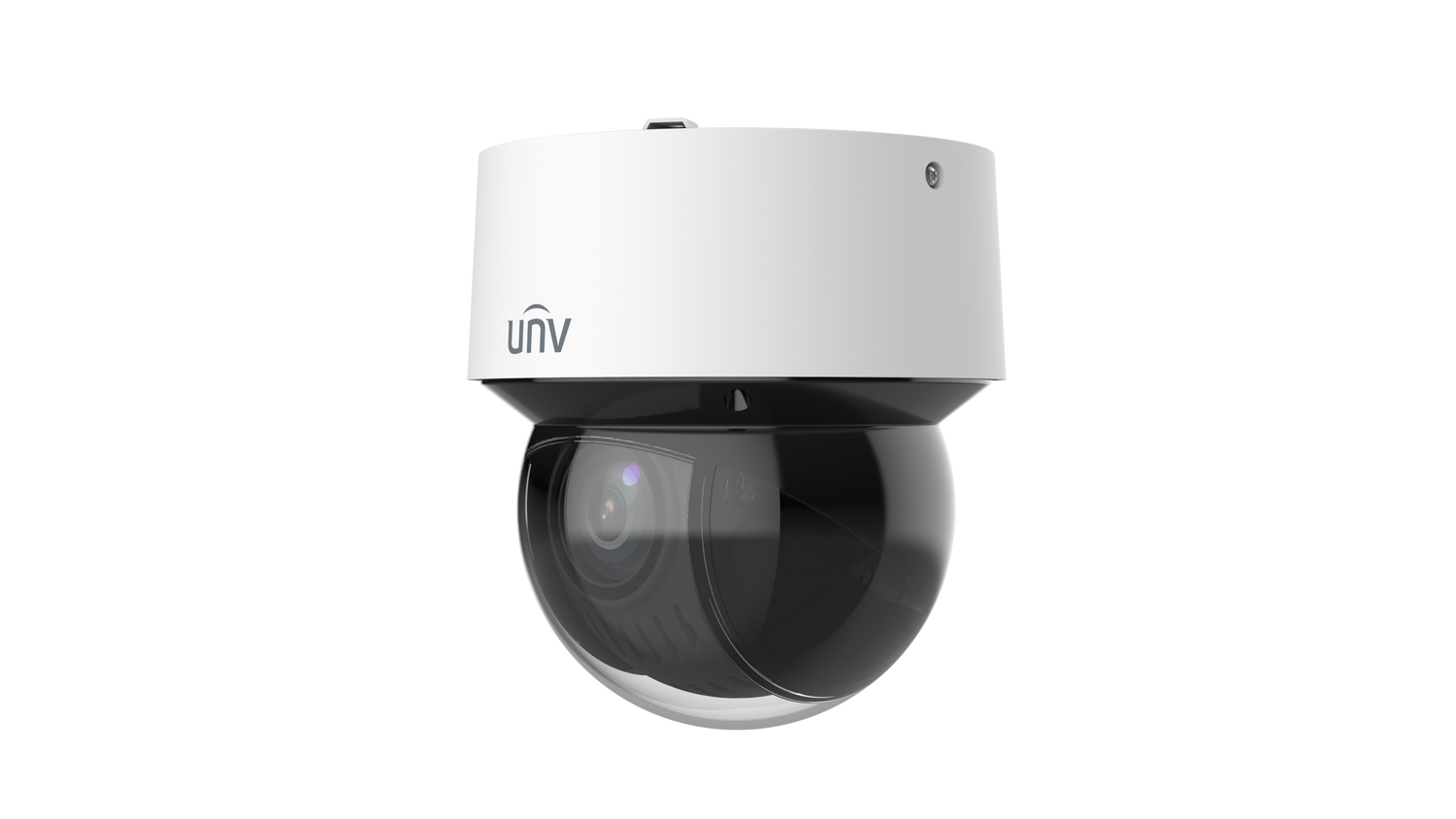

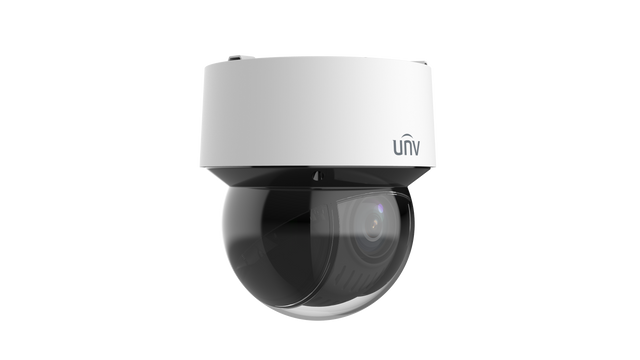

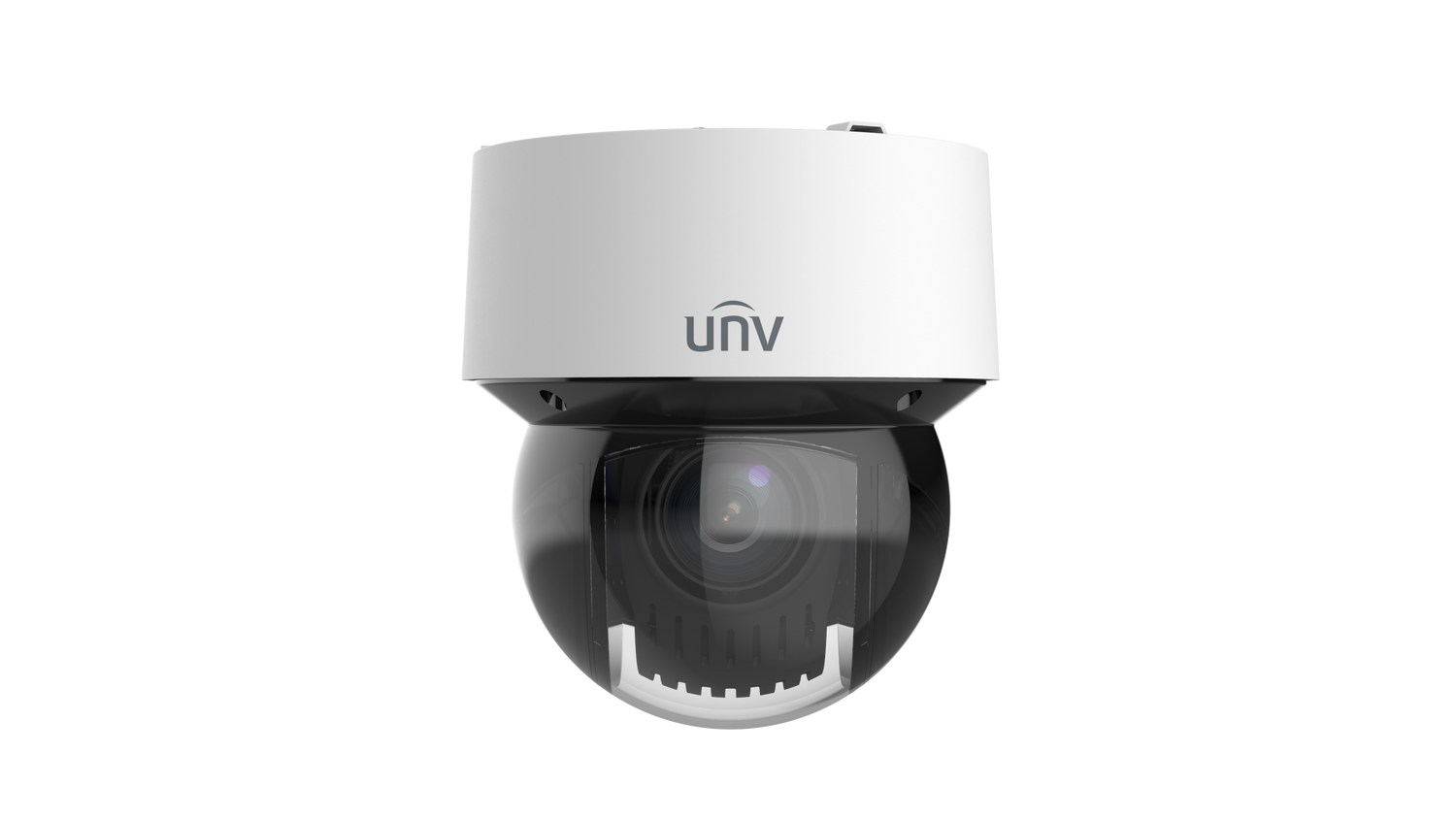

IPC6434LR-X16-VG1
$1,06900 USD
$1,20900
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability
IPC6434LR-X16-VG1
$1,06900 USD
$1,20900
Unit price
/
Unavailable
IPC6434LR-X16-VG1
High quality image with 4MP,1/2.9" CMOS sensor
2688*1520@30fps in the main stream
Ultra 265, H.265, H.264, MJPEG
Dual streams
16X optical zoom
LightHunter technology ensures ultra-high image quality in low illumination environment
Smart IR, up to 100m (328ft) IR distance
DC12V±10% or PoE+ (IEEE 802.3at)
Alarm 2 in and 1 out, audio 1 in and 1 out
IP66 ingress protection
IK10 vandal resistant
Spec Sheet User Manual Quick Guide
Dimensions| IPC6434LR-X16-VG1 | ||||||||
| Camera | ||||||||
| Max Resolution | 4 MP | |||||||
| Sensor | 1/2.9" CMOS | |||||||
| Min. Illumination | Colour: 0.005 Lux (F1.78, AGC ON) 0 Lux with IR |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| WDR | 120 dB | |||||||
| S/N | >56 dB | |||||||
| Lens | ||||||||
| Focal Length | 5.5 to 88 mm | |||||||
| Optical Zoom | 16X | |||||||
| Iris | F1.78-F3.73 | |||||||
| Field of View (H) | 50.85°~3.47° | |||||||
| Field of View (V) | 29.94°~1.95° | |||||||
| Field of View (D) | 62.55°~4.09° | |||||||
| DORI | ||||||||
| DORI Distance (Detect) | 127.6m~2048.4m(418.6ft~6720.5ft) | |||||||
| DORI Distance (Observe) | 51.0m~819.4m(167.4ft~2688.2ft) | |||||||
| DORI Distance (Recognize) | 25.5m~409.7m(83.7ft~1344.1ft) | |||||||
| DORI Distance (Identify) | 12.8m~204.8m(41.9ft~672.0ft) | |||||||
| Illuminator | ||||||||
| Illumination Distance (IR) | Up to 100m (328 ft) IR range | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Wavelength | 850 nm | |||||||
| Video | ||||||||
| Privacy Mask | 24 areas, up to 4 areas per scene | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps Sub Stream: 720P(1280*720), Max 30fps |
|||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| ROI | Support | |||||||
| Video Stream | Dual Streams | |||||||
| OSD | Up to 4 OSDs | |||||||
| Image | ||||||||
| Defog | Digital Defog | |||||||
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Normal, Flip Vertical, Flip Horizontal, 180° | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Smart IR | Support | |||||||
| Intelligent | ||||||||
| Auto Tracking | Support, target filtering: human and vehicle | |||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection (support false alarm filtering and the classification of human and vehicle) | |||||||
| Events | ||||||||
| Basic Detection | Motion Detection, Tampering Alarm, Audio Detection | |||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, Alarm Input | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 128 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Protocols | IPv4, IPv6, IGMP, RTP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API |
|||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |||||||
| PTZ | ||||||||
| Pan Range | 360°(endless) | |||||||
| Pan Speed | 0.1°/s~240°/s | |||||||
| Tilt Range | €“5°~90°(auto flip) | |||||||
| Tilt Speed | 0.1°/s~120°/s | |||||||
| Number of Presets | 1024 | |||||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||||
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
| Patrol Stay Time | 15 s to 1800 s | |||||||
| Home Position | Support | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| Alarm I/O | 2/1 | |||||||
| Serial Port | 1*RS485 | |||||||
| Network | 1 — RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032: 2015+A11:2020+A1：2020,EN IEC 61000-3-2: 2019+A1: 2021,EN 61000-3-3: 2013+A1: 2019+A2:2021,EN 50130-4: 2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863) | |||||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
|||||||
| General | ||||||||
| Power | DC12V(±10%,3A), PoE+(IEEE 802.3at) | |||||||
| Power Consumption | Max 23W | |||||||
| Power Interface | ˜5.5 mm coaxial power plug | |||||||
| Dimensions | ˜ 167 x 181mm (˜ 6.6€� x 7.1€�) (˜ x H) | |||||||
| Weight | 2.3Kg(5.07lb) | |||||||
| Working Environment | -40„ƒ~65„ƒ (-40°F~149°F), Humidity: ‰¤95% RH (non-condensing) | |||||||
| Storage Environment | -40„ƒ~70„ƒ (-40°F~158°F), Humidity: ‰¤95% RH (non-condensing) | |||||||
| Surge Protection | 6 KV | |||||||
| Reset Button | Support | |||||||
