UNV Technology USA LLC  |  SKU: IPP-291

IPC3614SB-ADF28KMC-I0

$33900 USD $41900
Tax included

Sign up for special pricing!

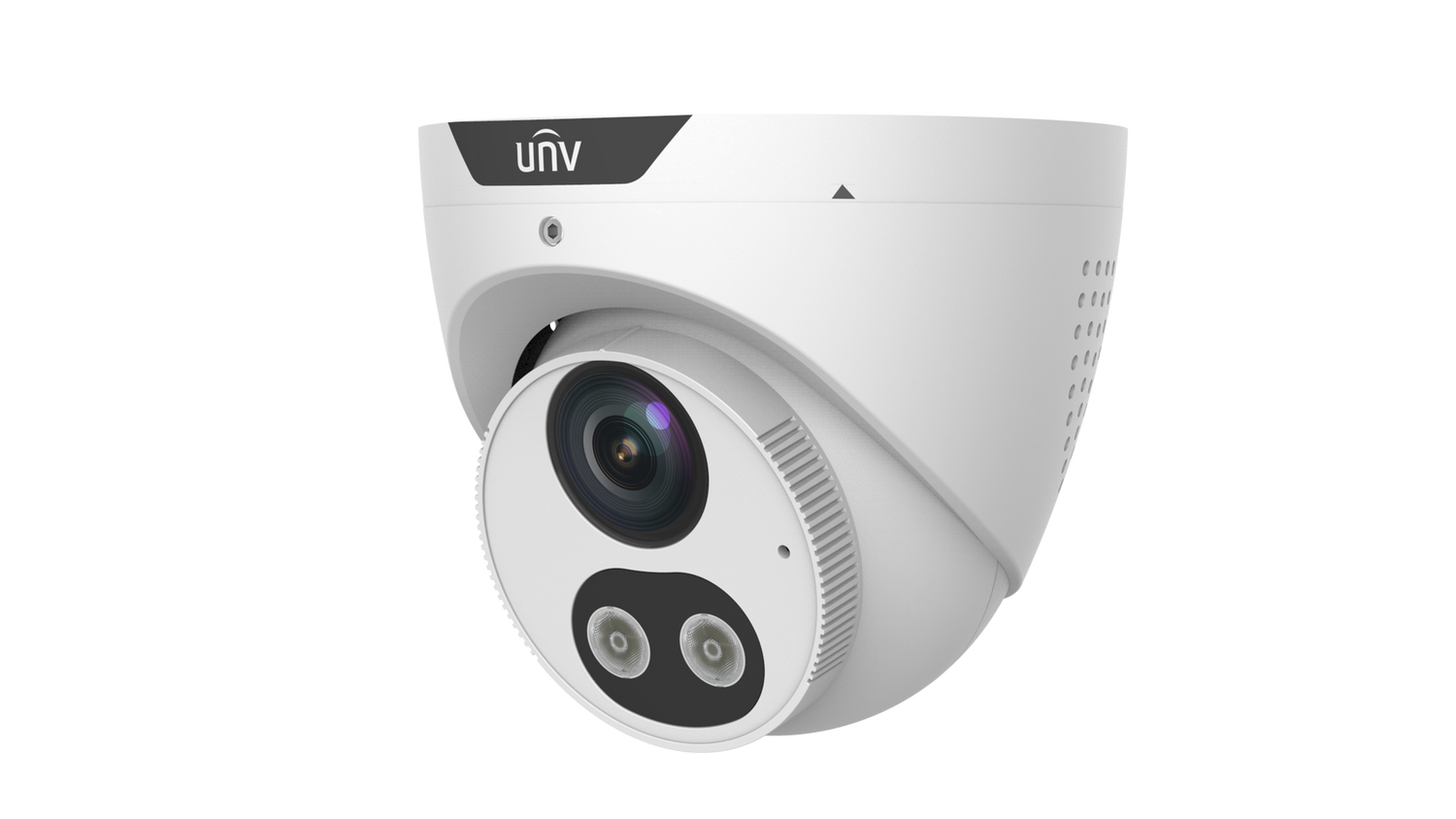

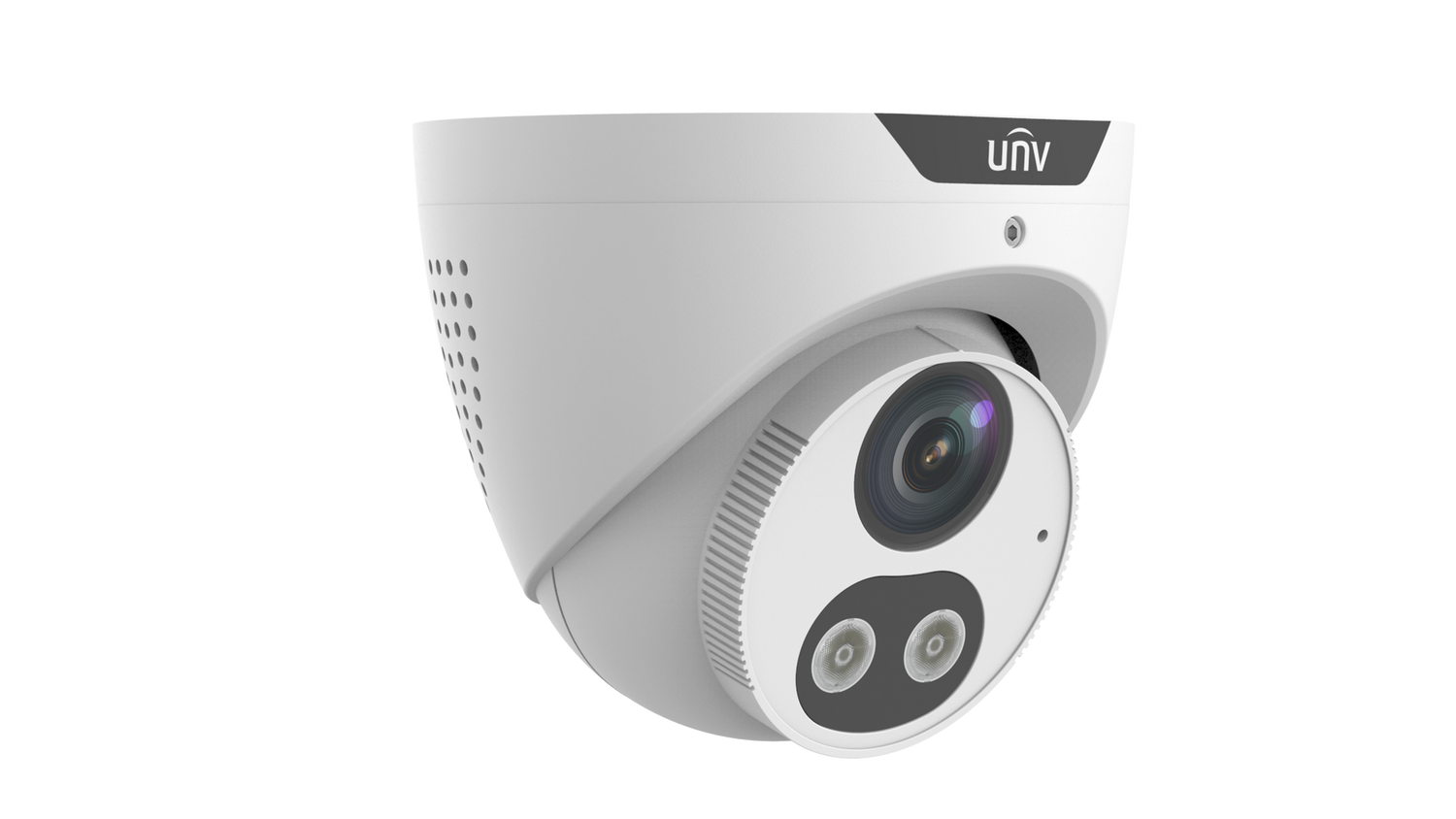

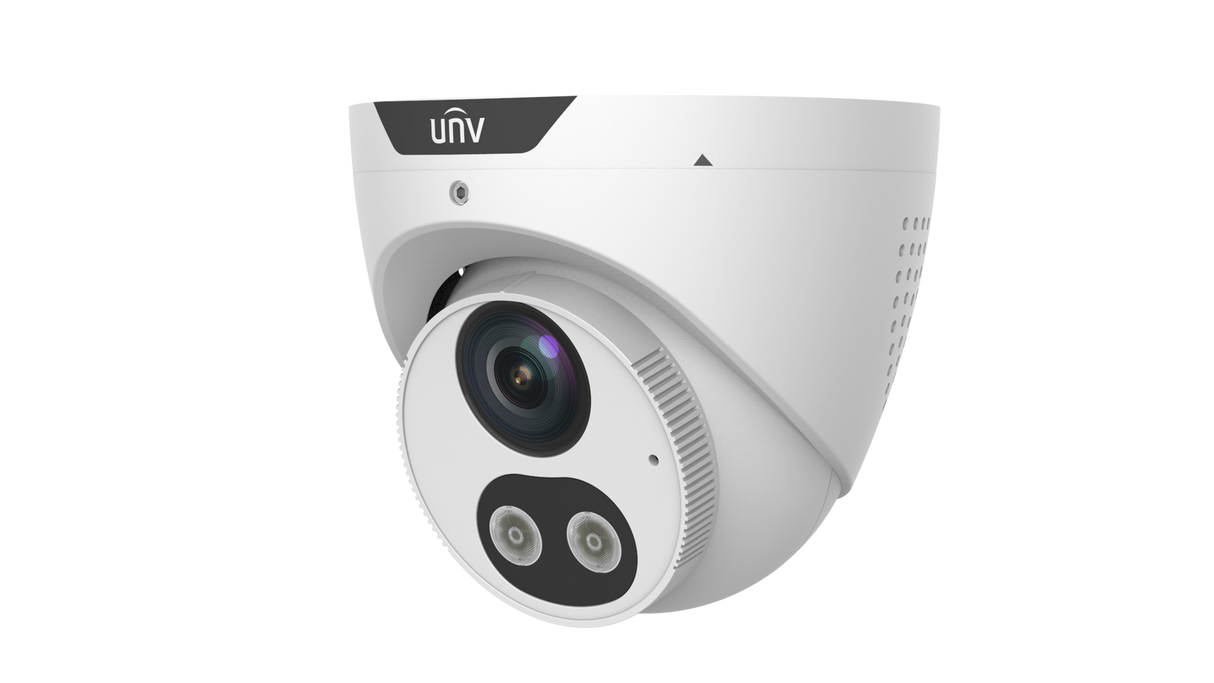

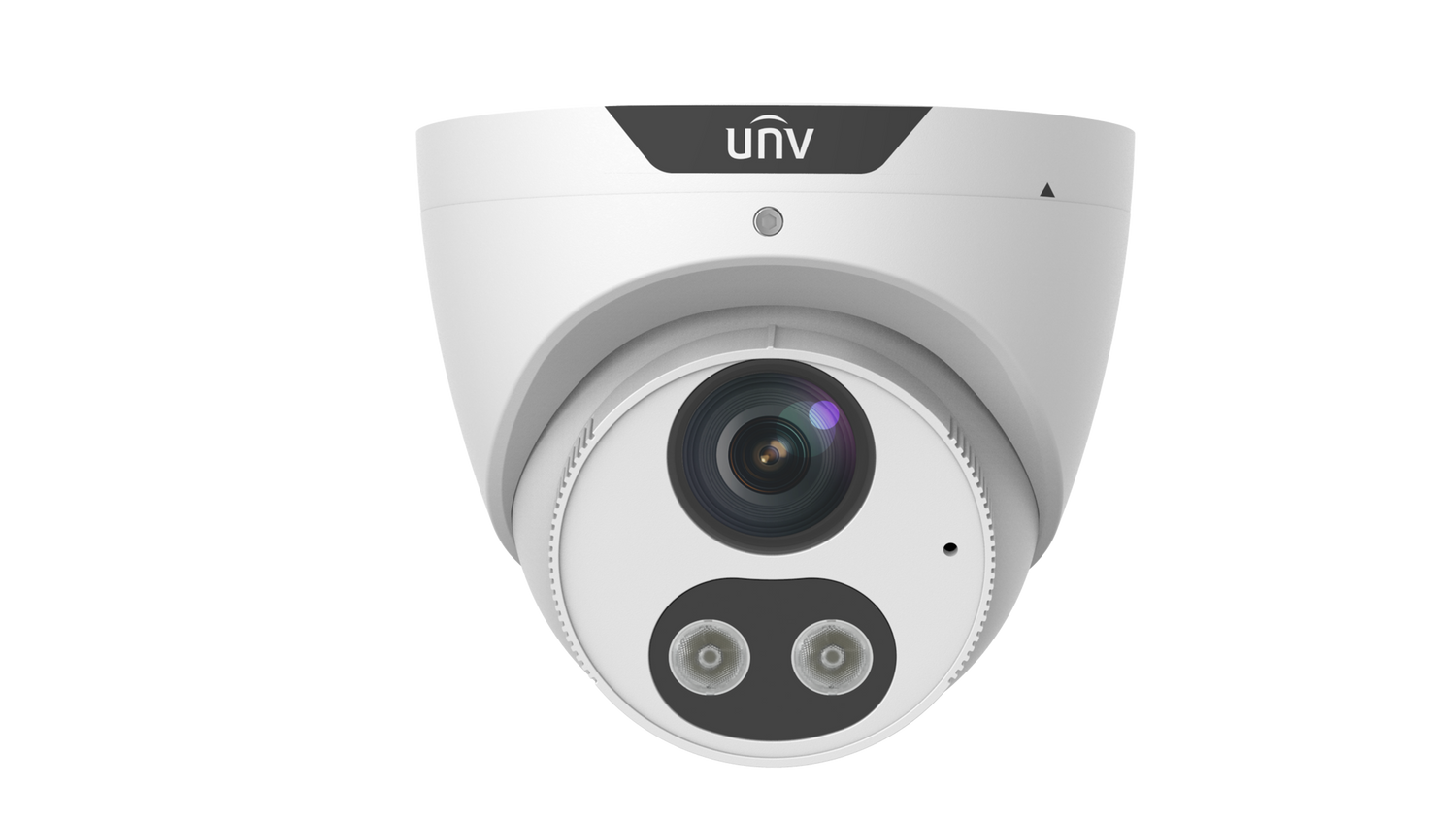

IPC3614SB-ADF28KMC-I0

Uniview Logo

High quality image with 4MP, 1/2.7"CMOS sensor 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps Ultra 265, H.265, H.264, MJPEG Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle Supports sound and light alarm linkage.When Smart intrusion prevention is triggered , the camera links sound alarm and light linkage. Intelligent People Flow Counting and Crowd Density Monitoring 120dB true WDR technology enables clear image in strong light scene Support 9:16 Corridor Mode Built-in Mic and Speaker Smart IR, up to 30m (98ft) IR distance Supports 256 G Micro SD card IP67 protection Support PoE power supply

Download Spec Sheet
Download User Manual
Download Quick Guide
Download Dimensions
  IPC3614SB-ADF28KMC-I0 IPC3614SB-ADF40KMC-I0
Camera
Max Resolution 4 MP
Sensor 1/2.7" CMOS
Min. Illumination Colour: 0.002 lux ( F1.6, AGC ON)
0 Lux with light
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
S/N >52 dB
WDR 120 dB
Lens
Focal Length 2.8 mm 4.0 mm
Iris Type Fixed
Iris F1.6
Field of View (H) 101.1° 83.7°
Field of View (V) 55.3° 44.9°
Field of View (D) 111.1° 89.2°
Lens Type Fixed
DORI
DORI Distance (Lens) 2.8mm 4.0mm
DORI Distance (Detect) 63.0m(206.7ft) 90.0m(295.2ft)
DORI Distance (Observe) 25.2m(82.7ft) 36.0m(118.1ft)
DORI Distance (Recognize) 12.6m(41.3ft) 18.0m(59.1ft)
DORI Distance (Identify) 6.3m(20.7ft) 9.0m(29.5ft)
Illuminator
Supplemental Light Dual light
Illumination Distance (IR) 30 m (98.4 ft)
Illumination Distance (Warm Light) 30 m (98.4 ft)
Light On/Off Control Auto/Manual
Wavelength 850 nm
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
Video Bit Rate 128 Kbps to 16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Support
Video Stream Triple Streams
White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Intelligent
Smart Intrusion Prevention Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Statistical Analysis N/A
People Counting Support People Flow Counting and Crowd Density Monitoring
Events
Basic Detection Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 512 GB
Network Storage ANR, NAS (NFS)
Network
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T, Profile M),
API, SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client UNV-Link, UNV-Link Pro, EZStation
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker Support
WIFI N/A
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption Max 7.5W
Power Interface Ø5.5 mm coaxial power plug
Dimensions Ø111 x 95mm (Ø4.4€� x 3.7€�) (Ø x H)
Weight 0.44kg (0.970lb)
Material Metal + Plastic
Working Environment -30 „ƒ to 60 „ƒ (-22 „‰ to 140 „‰), Humidity: ‰¤ 95% RH (non-condensing)
Storage Environment -30 „ƒ to 60 „ƒ (-22 „‰ to 140 „‰), Humidity: ‰¤ 95% RH (non-condensing)
Surge Protection 4 KV
Reset Button N/A
Web Client Language 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
