UNV Technology USA LLC | SKU:
IPP-440
19% off
UAC-T125-AF28M-W
$12900 USD
$15900
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability
UAC-T125-AF28M-W
$12900 USD
$15900
Unit price
/
Unavailable

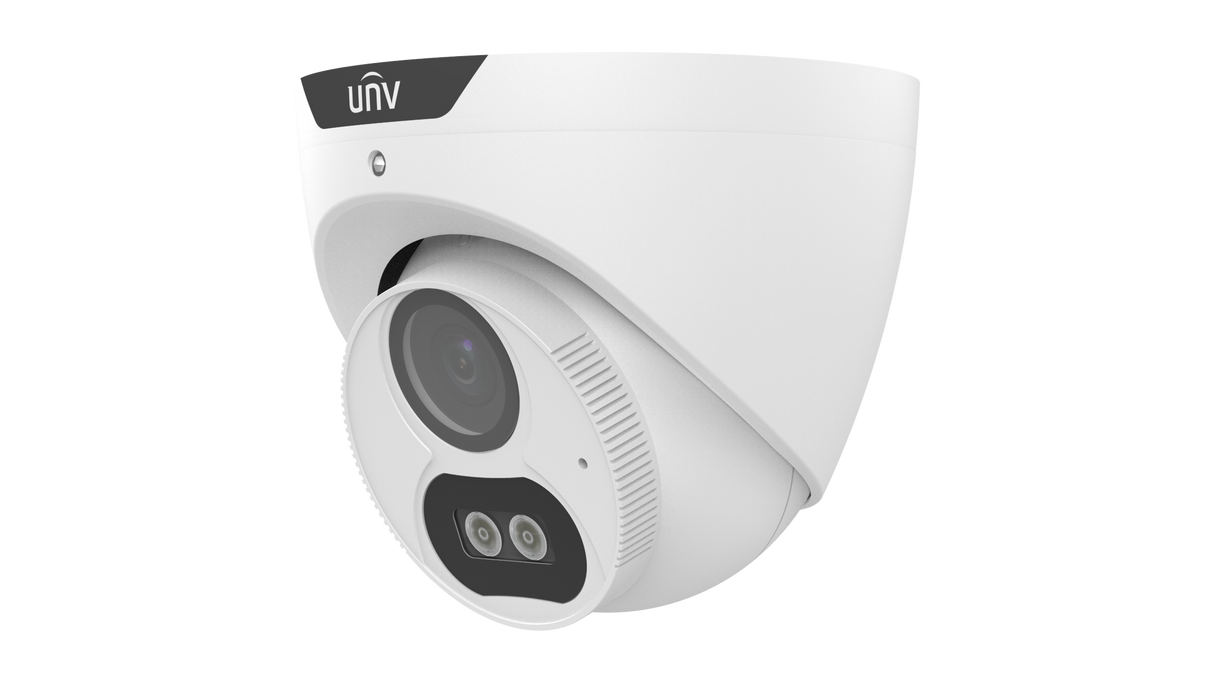

UAC-T125-AF28M-W
5MP high quality imaging
TVI/AHD/CVI/CVBS
Supports white light illumination, 24/7 color images
Supports 180° horizontal flip, 180° vertical flip
OSD configuration menu, easy to operate
IP67 waterproof and dustproof design, high reliability
OSD configuration menu in 11 languages
Built-in microphone for high quality audio transmission via coaxial cables
Metal front face and housing
3-Axis
Spec Sheet User Manual Quick Guide
Dimensions| UAC-T125-AF28M-W | UAC-T125-AF40M-W | |||||||
| Sensor | ||||||||
| Pixel | 5 MP | |||||||
| Sensor Size | 1/2.7" CMOS | |||||||
| Min. Illumination | 0.005 lux (F1.4, AGC ON) 0 lux (white light on) |
|||||||
| Lens | ||||||||
| Focus | 2.8 mm | 4.0 mm | ||||||
| Lens Mount | M12 | |||||||
| Angle of View (H) | 111.5° | 89.6° | ||||||
| Angle of View (V) | 58.9° | 48.3° | ||||||
| Angle of View (D) | 134.8° | 106.4° | ||||||
| Illuminator | ||||||||
| Illuminator Number | Two white-light illuminators | |||||||
| Illumination Distance | 40m | |||||||
| Lifetime | ‰¥ 60000 hours | |||||||
| Video | ||||||||
| Resolution | 5MP@25fps: 2880(H)—1620(V); 5MP@20fps: 2592(H)—1944(V); 5MP@12.5fps: 2592(H)—1944(V) 4MP: 2560(H)—1440(V) 1080P: 1920(H)—1080(V) |
|||||||
| Frame Rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC |
|||||||
| Shutter Time | PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s |
|||||||
| Image | ||||||||
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR | |||||||
| Day/Night | 24/7 color images | |||||||
| Digital Noise Reduction | 2D | |||||||
| White Balance | Two modes: Auto (default), Manual | |||||||
| WDR | DWDR | |||||||
| Flip | Supports 180°horizontal flip, 180°vertical flip | |||||||
| Digital Defog | N/A | |||||||
| Audio | ||||||||
| Built-in Mic | Support | |||||||
| Camera Audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps |
|||||||
| Interface | ||||||||
| Power Interface | 5.5 mm Power Interface | |||||||
| Video Output | BNC, supports TVI/AHD/CVI/CVBS | |||||||
| Operating Environment | ||||||||
| Temperature | -30 „ƒ to 60 „ƒ (-22 „‰ to 140 „‰) | |||||||
| Humidity | ‰¤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV for power, 4 KV for video output interfaces | |||||||
| Ingress Protection | IP67 | |||||||
| General | ||||||||
| Power | DC 12 V ± 25% | |||||||
| Power Consumption | MAX 3.28W | |||||||
| Mount | Wall Mount,Pole Mount,Corner Mount,Pendant Mount | |||||||
| Dimensions | Φ111mm*96mm (diameter*height) | |||||||
| Material | Metal + Plastic | |||||||
| Weight | 356g(0.79lb) | |||||||
