UNV Technology USA LLC | SKU:
IPP-429
19% off
NSW2020-24T1GT1GC-POE-IN
$55900 USD
$68900
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability

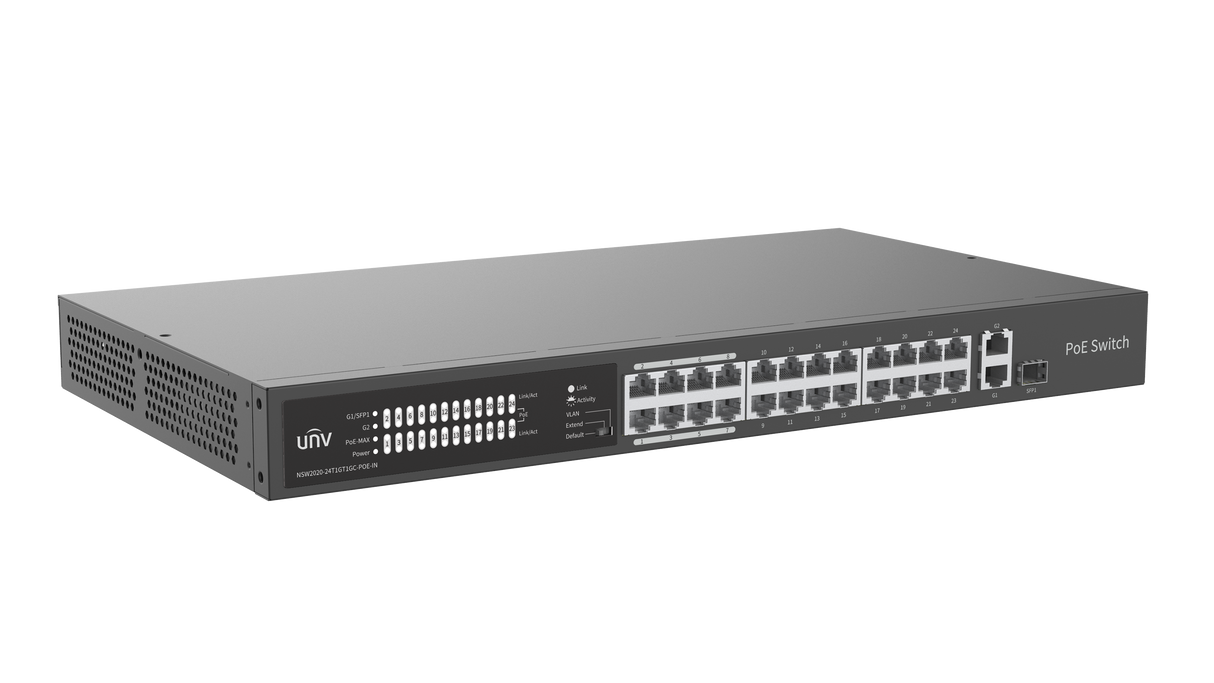

NSW2020-24T1GT1GC-POE-IN
$55900 USD
$68900
Unit price
/
Unavailable
NSW2020-24T1GT1GC-POE-IN
Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All metal housing, safe and reliable
Spec Sheet Quick Guide| Β | NSW2020-24T1GT1GC-POE-IN | |||||||
| HardwareSpecification | ||||||||
| Ports Type | 24β100Mbps PoE ports (RJ45) + 1β1000Mbps Gigaethernet ports +1β1000Mbps Combo ports | |||||||
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az | |||||||
| Switching capacity | 8.8 Gbps | |||||||
| Forwarding performance | 6.55Mpps | |||||||
| Packet Buffer | 4 M bit | |||||||
| MAC | 16K | |||||||
| Max. PoE Power | Max capacity: 370 W, Max capacity for single port: 30 W | |||||||
| PoE | support POE | |||||||
| Prior Ports | 1 to 8 | |||||||
| Indicator | POWER Steady on: AC input is normal, POWER Off: No AC input, PoE Off: No PoE power supply, PoE Steady on: PoE power supply is normal, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification, PoE-MAX Steady on :The POE power supply power of the whole machine is greater than 85% of the specification, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data | |||||||
| Power supply | AC: 100-240 V, 50/60 Hz | |||||||
| Max.Power | 390W | |||||||
| Storage Temperature | -40 βΖ to 70 βΖ | |||||||
| Operating temperature | 0 βΖ to 40 βΖ (32 ββ° to 104 ββ°) | |||||||
| Cooling Fans | 1 | |||||||
| Mean Time Between Failure (MTBF) | >50000 hours | |||||||
| Dimensions (WβDβH) | 440*250*44mm | |||||||
| Weight | 2.93KG | |||||||
| Storage humidity | 5%ο½90% (non-condensing) | |||||||
| Operating humidity | 10%ο½90% (non-condensing) | |||||||
| Working Mode | Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports | |||||||
