UNV Technology USA LLC | SKU:
IPP-427
18% off
NSW2020-10T-POE-IN
$13900 USD
$16900
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability
NSW2020-10T-POE-IN
$13900 USD
$16900
Unit price
/
Unavailable

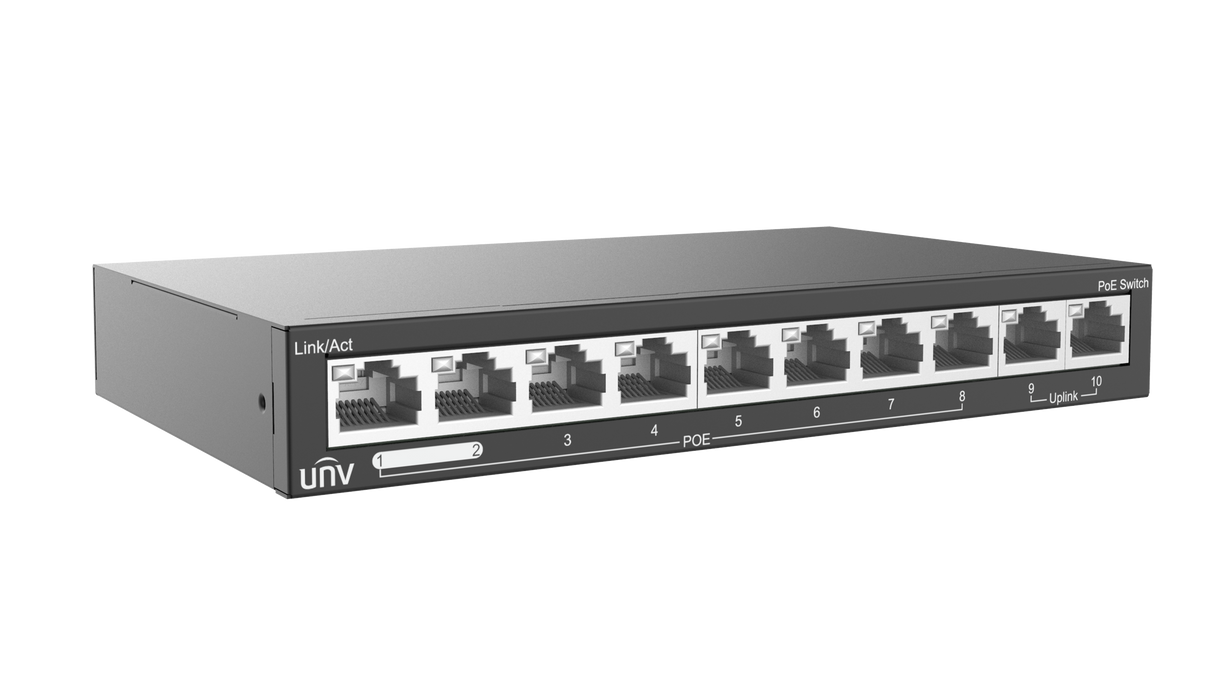

NSW2020-10T-POE-IN
Multiple working modes to address your business needs: Default(Normal mode), EXTEND(Surveillance mode)
Support port traffic control
Up to 250m transmission distance on Extend mode
Support buffer optimization
All metal housing, safe and reliable
Spec Sheet Quick Guide| Β | NSW2020-10T-POE-IN | |||||||
| HardwareSpecification | ||||||||
| Ports Type | 10β100Mbps network ports (RJ45), including 8 PoE ports | |||||||
| Prior Ports | 1 to 2 | |||||||
| Indicator | POWER Steady on: AC input is normal, POWER Off: No AC input, No PoE Indicator, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification, PoE-MAX Steady on :The POE power supply power of the whole machine is greater than 85% of the specification, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data |
|||||||
| PoE | support POE | |||||||
| Switching capacity | 2 Gbps | |||||||
| Packet Buffer | 448K bit | |||||||
| Max. PoE Power | Max capacity: 88 W, Max capacity for single port: 30 W | |||||||
| Storage Temperature | -40 βΖ to 70 βΖ | |||||||
| Working Mode | Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters | |||||||
| Power Supply | DC: 48/51V, powered by adapter (AC100-240V, 50/60Hz) | |||||||
| Max.Power | 94W | |||||||
| Operating humidity | 10%ο½90% (non-condensing) | |||||||
| MAC | 1K | |||||||
| Forwarding performance | 1.49Mpps | |||||||
| Cooling Fans | 0 | |||||||
| Weight | 0.29KG | |||||||
| Storage humidity | 5%ο½90% (non-condensing) | |||||||
| Dimensions (WβDβH) | 171*103*25mm | |||||||
| Operating temperature | 0 βΖ to 40 βΖ (32 ββ° to 104 ββ°) | |||||||
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at | |||||||
