UNV Technology USA LLC  |  SKU: IPP-331

IPC86CEB-AF18KC-I0

$1,31900 USD $1,63900
Tax included

Sign up for special pricing!

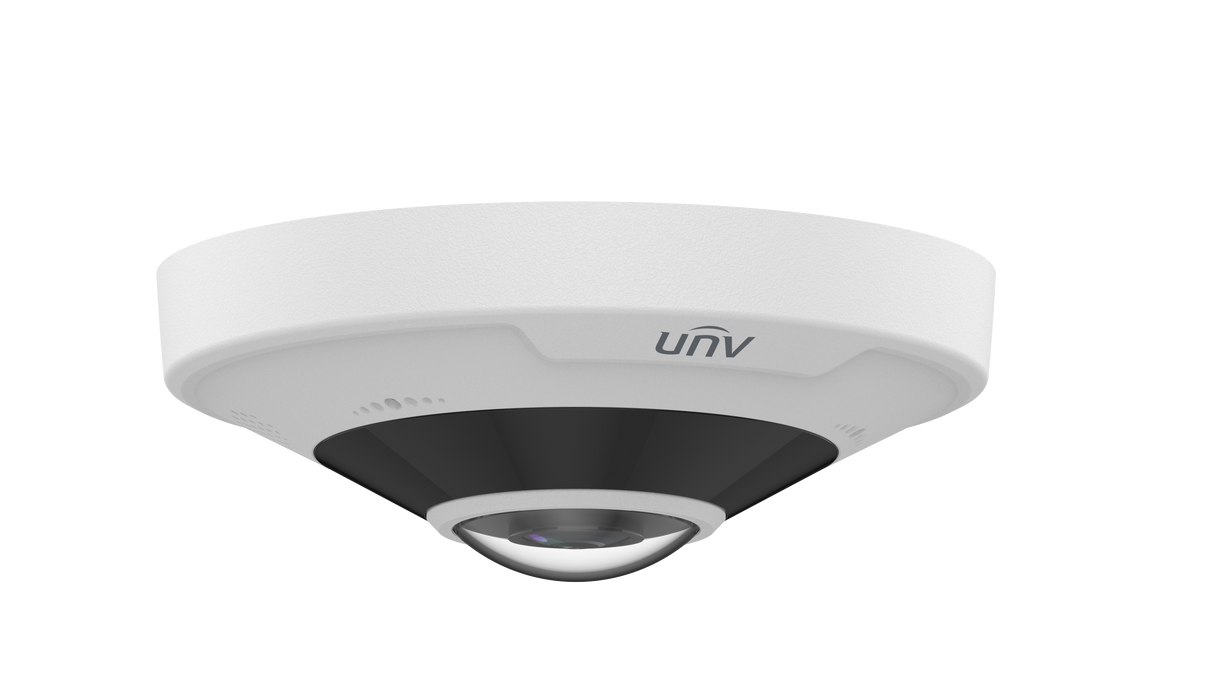

IPC86CEB-AF18KC-I0

Uniview Logo

High quality image with 12MP,1/1.7'' CMOS sensor Max 4000*3000 resolution Ultra265, H.265, H.264, MJPEG Ultra wide angle lens, 360° panoramic image Embedded infrared light, 360° fill-in light, up to 15m (49ft) IR distance Multiple decoding modes, supports software and hardware modes, provides interactive dynamic view Heatmap: Working with management platform, the data of moving objects is counted in real time on an intuitive color map Built-in microphone & speaker, two-way talk supported Supports 512 G Micro SD card IK10 vandal resistant IP67 protection

Download Spec Sheet
Download User Manual
Download Quick Guide
Download Dimensions
  IPC86CEB-AF18KC-I0
Camera
Max Resolution 12 MP
Sensor 1/1.7" CMOS
Min. Illumination Colour: 0.03Lux (F2.0, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
S/N >52 dB
WDR DWDR
Lens
Focal Length 1.8 mm
Iris Type Fixed
Field of View 360°
Iris F2.0
Lens Type Fixed
DORI
DORI Distance (Lens) 1.8mm
DORI Distance (Detect) 43.8(143.7ft)
DORI Distance (Observe) 17.5(57.4ft)
DORI Distance (Recognize) 8.8(28.87ft)
DORI Distance (Identify) 4.4(14.44ft)
Illuminator
Illumination Distance (IR) 15 m (49.3 ft)
Supplemental Light IR
IR On/Off Control Auto/Manual
Wavelength 850 nm
Video
Main Stream Fisheye View: 12MP(4000*3000)@20fps;3000*3000@20fps; 2560*2560@25fps;
Panorama View: 12MP(4000*3000)@20fps;3000*2000@20/25fps; 3000*1500@20/25fp;
PTZ View: 1920*1080@20/25fps
Sub Stream Fisheye View:2000*1500@20fps;2000*2000@25fps
Video Compression Ultra 265, H.265, H.264, MJPEG
Third Stream Fisheye View:D1(720*576)@20/25fps;CIF352*288)@20/25fps
H.264 Code Profile Baseline profile, Main profile, High profile
Video Bit Rate 128 Kbps to 16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Support
Video Stream Triple Streams
Live View Display
Hardware Decoding Ceiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view
Table mount: fisheye view, fisheye + 4PTZ,horizontal panorama view, vertical panorama view
Wall mount: fisheye view, fisheye + 4PTZ, panorama view
Software Decoding Ceiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ
Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ
Wall mount: fisheye view, 180° panorama view, 180° panorama view+3PTZ, 180° panorama view+4PTZ, 180° panorama view+8PTZ
White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal, Flip Vertical, Flip Horizontal, 180°
Dewarping N/A
HLC N/A
BLC Support
Defog Digital Defog
Intelligent
Smart Intrusion Prevention Cross Line Detection, Intrusion Detection
Statistical Analysis Heat map (Working with management platform)
Events
Basic Detection Motion Detection, Tampering Alarm, Audio Detection
General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 512 GB
Network Storage ANR, NAS (NFS)
Network
Protocols IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T, Profile M),
API, SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client EZView, EZLive, EZStation
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Interface
Audio I/O 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O 2/1
Serial Port 1 channel RS485 interface
Built-in Mic Built-in two mics
Built-in Speaker Support
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output 1 BNC, impedance 75 Ω, amplitude 1 V [p-p]
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption Max 12.0W
Power Interface Ø5.5 mm coaxial power plug
Dimensions Ø149 x 55mm (Ø5.9€� x 2.2€�) (Ø x H)
Weight 0.524kg (1.16lb)
Material Metal + Plastic
Working Environment -30 „ƒ to 60 „ƒ (-22 „‰ to 140 „‰), Humidity: ‰¤ 95% RH (non-condensing)
Storage Environment -30 „ƒ to 60 „ƒ (-22 „‰ to 140 „‰), Humidity: ‰¤ 95% RH (non-condensing)
Surge Protection 4 KV
Reset Button Support
Web Client Language 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
