UNV Technology USA LLC  |  SKU: IPP-330

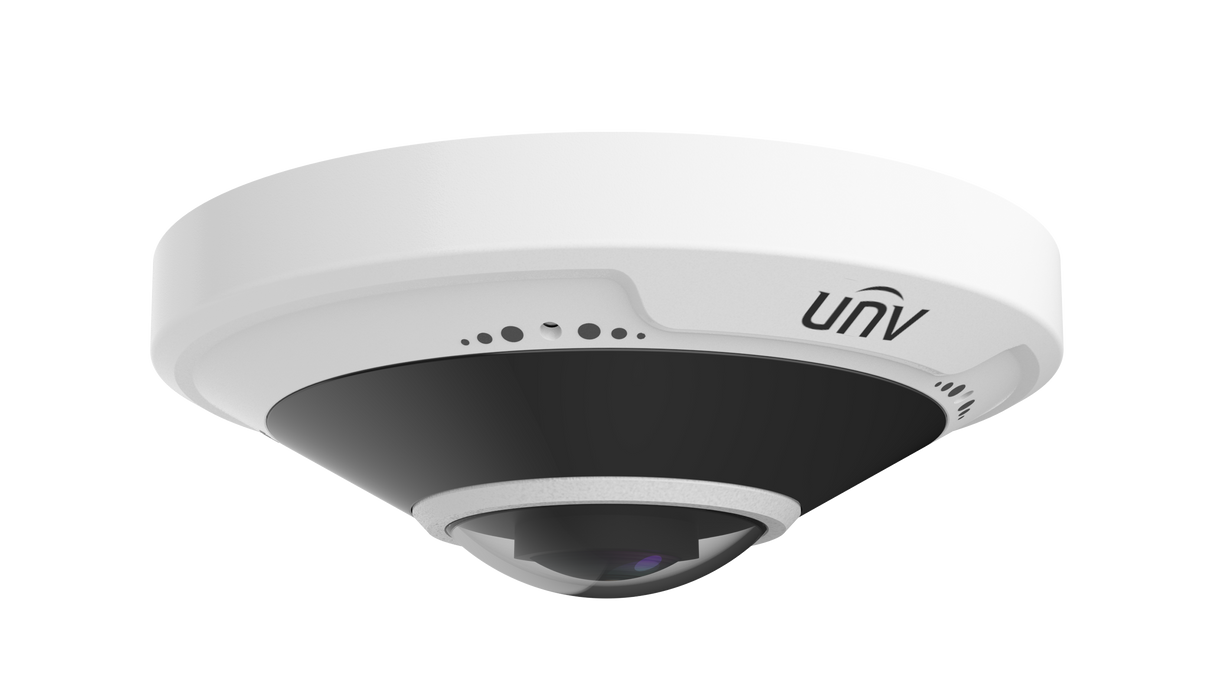

IPC815SB-ADF14K-I0

$53900 USD $66900
Tax included

Sign up for special pricing!

IPC815SB-ADF14K-I0

Uniview Logo

High quality image with 5MP, 1/2.8"CMOS sensor 5MP (2592*1944):@ 30/25fps Ultra 265, H.265, H.264, MJPEG 120dB true WDR technology enables clear image in strong light scene Built-in 2 Mic, Supports the detection of sounds over longer distances Alarm:1 in/1 out, Audio: 1 in/1 out Smart IR, up to 10m (33ft) IR distance Supports 512 G Micro SD card IK10 vandal resistant IP66 protection Support PoE power supply

Download Spec Sheet
Download User Manual
Download Quick Guide
Download Dimensions
  IPC815SB-ADF14K-I0
Camera
Max Resolution 5 MP
Sensor 1/2.8" CMOS
Min. Illumination Colour: 0.01 Lux (F2.0, AGC ON)
0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
S/N >52 dB
WDR 120 dB
Lens
Focal Length 1.4 mm
Field of View 360°
Iris Type Fixed
Iris F2.0
Lens Type Fixed
DORI
DORI Distance (Lens) 1.4mm
DORI Distance (Detect) 31.5(103.4ft)
DORI Distance (Observe) 12.6(41.3ft)
DORI Distance (Recognize) 6.3(20.7ft)
DORI Distance (Identify) 3.2(10.5ft)
Video
Main Stream 5MP (2592*1944): Max.30fps
Sub Stream Fisheye View:1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps
Third Stream Fisheye View:D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Video Bit Rate 128 Kbps to 16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Support
Video Stream Triple Streams
Illuminator
Supplemental Light IR
Illumination Distance (IR) 10 m (32.8 ft)
IR On/Off Control Auto/Manual
Wavelength 850 nm
Live View Display
Hardware Decoding N/A
Software Decoding Ceiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ
Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ
Wall mount: fisheye view, 180° panorama view, 180° panorama view+3PTZ, 180° panorama view+4PTZ, 180° panorama view+8PTZ
White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Smart IR Support
Digital Noise Reduction 2D/3D DNR
Flip Normal, Flip Vertical, Flip Horizontal, 180°
Dewarping N/A
HLC N/A
BLC Support
Defog Digital Defog
Image Stabilization N/A
Intelligent
Statistical Analysis Heat map (Working with management platform)
Events
Basic Detection Motion Detection, Tampering Alarm, Audio Detection
General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 512 GB
Network Storage ANR, NAS (NFS)
Network
Protocols IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T),
API, SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client EZView, EZLive, EZStation
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Interface
Audio I/O 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O 1/1
Serial Port 1 channel RS485 interface
Built-in Mic Built-in two mics
Built-in Speaker N/A
Network 1 — RJ45 10 M/100 M Base-TX Ethernet
Video Output 1 BNC, impedance 75 Ω, amplitude 1 V [p-p]
Certification
EMC FCC CFR 47 Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013
Safety IEC 62368-1
EN 62368-1
UL 62368-1
Environment CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Protection IP66 (IEC 60529-2013)
IK10 (IEC 62262:2002)
General
Power DC12V±25%, PoE (IEEE 802.3af)
Power Consumption Max. 8.5W
Power Interface ˜5.5 mm coaxial power plug
Dimensions ˜125 — 43.7 mm (˜4.9" — 1.7") (˜ x H)
Weight 0.36kg (0.79lb)
Material Metal + Plastic
Working Environment -30 „ƒ to 60 „ƒ (-22 „‰ to 140 „‰), Humidity: ‰¤ 95% RH (non-condensing)
Storage Environment -30 „ƒ to 60 „ƒ (-22 „‰ to 140 „‰), Humidity: ‰¤ 95% RH (non-condensing)
Surge Protection 4 KV
Reset Button Support
Web Client Language 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
