UNV Technology USA LLC | SKU:
IPP-607
20% off
IPC3638SS-ADF28KMC-I1
$52900 USD
$65900
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability

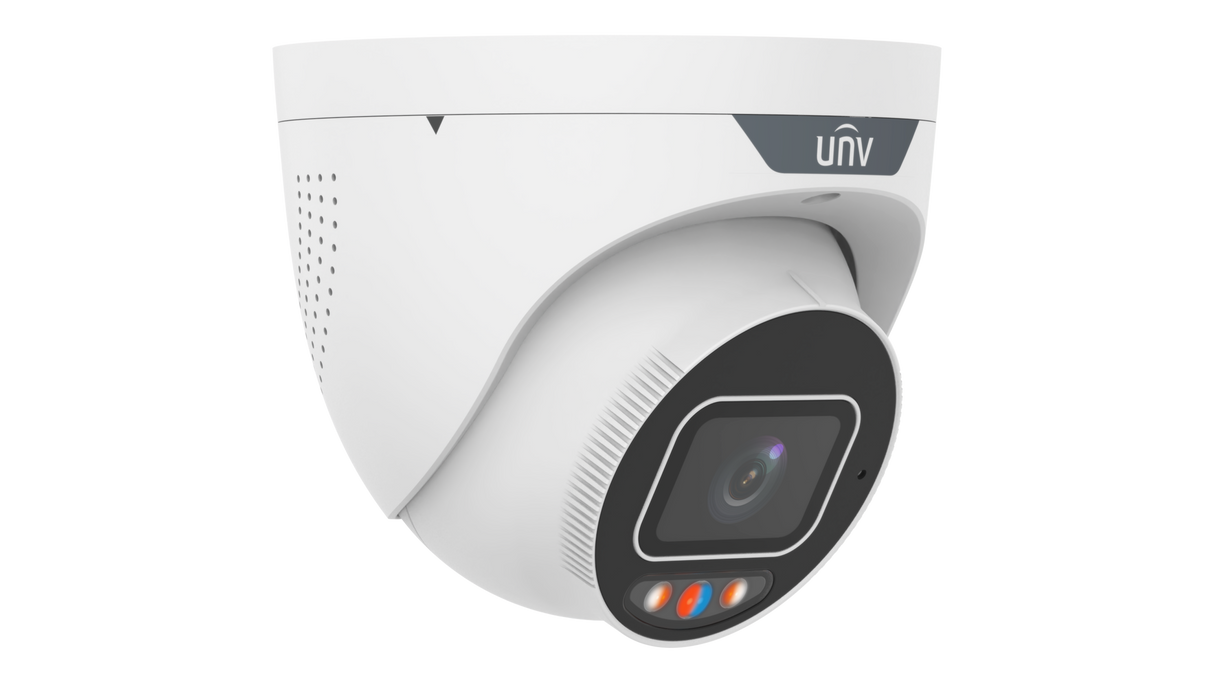

IPC3638SS-ADF28KMC-I1
$52900 USD
$65900
Unit price
/
Unavailable
IPC3638SS-ADF28KMC-I1
High quality image with 8MP, 1/2.8"CMOS sensor
8MP (3840*2160)@ 30/25(default)fps; 5MP (3072*1728)@ 30/25fps; 4MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps
Ultra 265, H.265, H.264, MJPEG
Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
Intelligent People Flow Counting and Crowd Density Monitoring
Smart intrusion prevention with Color retrieval
Auto Scene Match (ASM)（Only WDR）
130dB true WDR technology enables clear image in strong light scene
Support red & blue warning light
Support 9:16 Corridor Mode
Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker
Smart IR, up to 30m (98.4 ft) IR distance
Supports 512 G Micro SD card
IP67 protection
Spec Sheet User Manual Quick Guide
Dimensions| IPC3638SS-ADF28KMC-I1 | IPC3638SS-ADF40KMC-I1 | |||||||
| Camera | ||||||||
| Max Resolution | 8 MP | |||||||
| Sensor | 1/2.8" CMOS | |||||||
| Min. Illumination | Colour: 0.001 lux ( F1.0, AGC ON) 0 Lux with light |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° | |||||||
| S/N | >56 dB | |||||||
| WDR | 130 dB | |||||||
| Lens | ||||||||
| Focal Length | 2.8 mm | 4.0 mm | ||||||
| Iris Type | Fixed | |||||||
| Iris | F1.0 | |||||||
| Field of View (H) | 106.5° | 92° | ||||||
| Field of View (V) | 57.9° | 51° | ||||||
| Field of View (D) | 132° | 106° | ||||||
| DORI | ||||||||
| DORI Distance (Lens) | 2.8mm | 4.0mm | ||||||
| DORI Distance (Detect) | 86.9m(285.1ft) | 124.1m(407.2ft) | ||||||
| DORI Distance (Observe) | 34.8m(114.2ft) | 49.7m(163.1ft) | ||||||
| DORI Distance (Recognize) | 17.4m(57.1ft) | 24.8m(81.4ft) | ||||||
| DORI Distance (Identify) | 8.7m(28.5ft) | 12.4m(40.7ft) | ||||||
| Illuminator | ||||||||
| Supplemental Light | Dual light | |||||||
| Illumination Distance (IR) | IR 30 m, Warm Light 30 m | |||||||
| Illumination Distance (Warm Light) | IR 30 m, Warm Light 30 m | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Wavelength | 850 nm | |||||||
| Light On/Off Control | Auto/Manual | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream:8MP (3840*2160), Max 30fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
|||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Support | |||||||
| Video Stream | Triple Streams | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Auto Scene Match (ASM) | Support (Only WDR) | |||||||
| Flip | Normal, Vertical, Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
| Dewarping | N/A | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital Defog | |||||||
| Intelligent | ||||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| Statistical Analysis | N/A | |||||||
| People Counting | Support People Flow Counting and Crowd Density Monitoring | |||||||
| Attribute Collection | SIP with color retrieval | |||||||
| Events | ||||||||
| Basic Detection | Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind | |||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8 kHz | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
|||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | UNV-Link, UNV-Link Pro, EZStation | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | |||||||
| Alarm I/O | 1/1 | |||||||
| Serial Port | N/A | |||||||
| Built-in Mic | Support | |||||||
| Built-in Speaker | Support | |||||||
| WIFI | N/A | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Video Output | N/A | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
|||||||
| Safety | CE-LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power Consumption | Max 10.0W | |||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Dimensions | Ø129 x 118mm (Ø5.1€� x 4.7€�) (Ø x H) | |||||||
| Weight | 0.69kg (1.53lb) | |||||||
| Material | Metal | |||||||
| Working Environment | -30 „ƒ to 60 „ƒ (-22 „‰ to 140 „‰), Humidity: ‰¤ 95% RH (non-condensing) | |||||||
| Storage Environment | -30 „ƒ to 60 „ƒ (-22 „‰ to 140 „‰), Humidity: ‰¤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese | |||||||
