UNV Technology USA LLC | SKU:
IPP-253
20% off
IPC3224SS-ADF28K-I1
$72900 USD
$90900
Unit price
/
Unavailable
Tax included
Couldn't load pickup availability

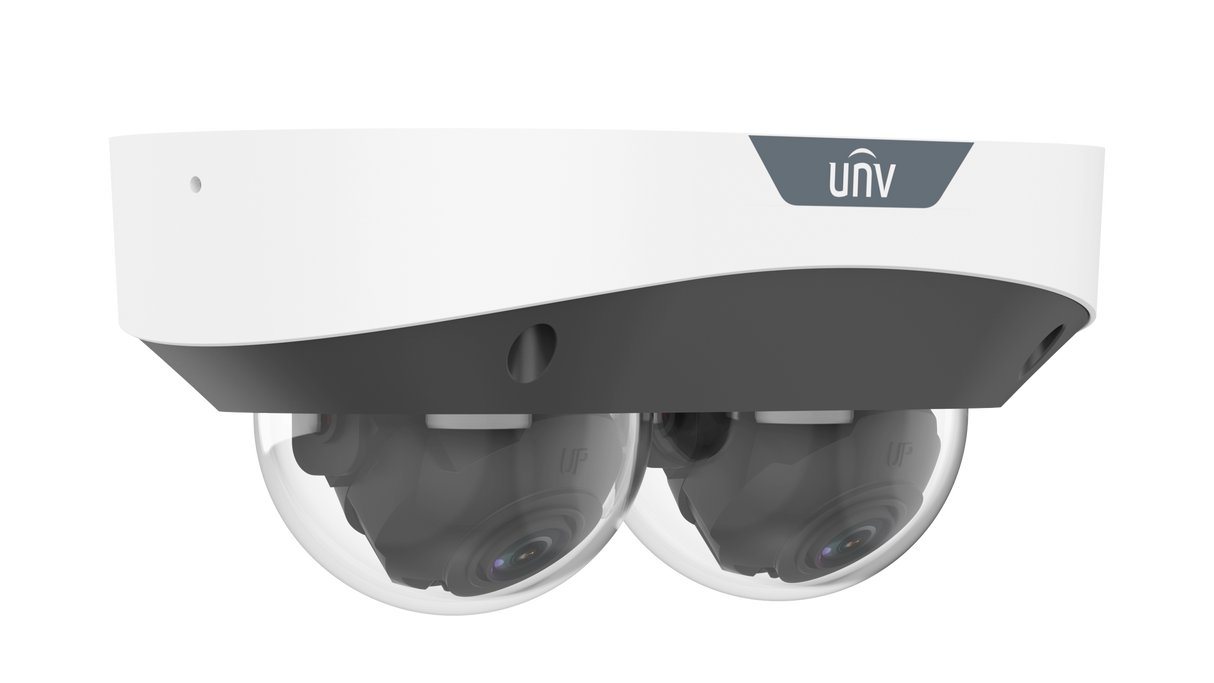

IPC3224SS-ADF28K-I1
$72900 USD
$90900
Unit price
/
Unavailable
IPC3224SS-ADF28K-I1
High quality image with 2*4MP resolution, 1/3.0"CMOS sensor
Single IP with dual channels
4MP (2688*1520)@25/20fps; 4MP(2560*1440)@25/20fps; 3MP(2304*1296) @30/25fps;2MP(1920*1080)@30/25fps
Ultra 265, H.264,H.265, MJPEG
Both channels support intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and motor vehicle and non-motor vehicle
(Only Channel 1)
Intelligent People Flow Counting and Crowd Density Monitoring (Only Channel 1)
130dB true WDR technology enables clear image in strong light scene
Built-in two Mics
Supports 512 GB Micro SD card
DC12V or PoE(IEEE 802.3af) power supply
IP67 protection and IK10 vandal resistant
3-Axis
Spec Sheet User Manual Quick Guide
Dimensions| IPC3224SS-ADF28K-I1 | ||||||||
| Channel | ||||||||
| Camera | ||||||||
| Max Resolution | 4 MP | 4 MP | ||||||
| Sensor | 1/3.0" CMOS | 1/3.0" CMOS | ||||||
| Min. Illumination | Colour: 0.002 lux (F1.6, AGC ON) 0 lux with IR on |
Colour: 0.002 lux (F1.6, AGC ON) 0 lux with IR on |
||||||
| Day/Night | IR-cut filter with auto switch (ICR) | IR-cut filter with auto switch (ICR) | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | Auto/Manual, 1 ~ 1/100000s | ||||||
| Adjustment Angle | Pan: 0° ~ 180°, Tilt: 0° ~ 66°, Rotate: 0° ~ 346° | Pan: 0° ~ 180°, Tilt: 0° ~ 66°, Rotate: 0° ~ 346° | ||||||
| S/N | >52 dB | >52 dB | ||||||
| WDR | 130 dB | 130 dB | ||||||
| Lens | ||||||||
| Focal Length | 2.8 mm | 2.8 mm | ||||||
| Iris Type | Fixed | Fixed | ||||||
| Iris | F1.6 | F1.6 | ||||||
| Field of View (H) | 97.68° | 97.68° | ||||||
| Field of View (V) | 52.67° | 52.67° | ||||||
| Field of View (D) | 102.52° | 102.52° | ||||||
| Lens Type | Fixed | Fixed | ||||||
| DORI | ||||||||
| DORI Distance (Lens) | 2.8mm | 2.8mm | ||||||
| DORI Distance (Detect) | 63.0m(206.7ft) | 63.0m(206.7ft) | ||||||
| DORI Distance (Observe) | 25.2m(82.7ft) | 25.2m(82.7ft) | ||||||
| DORI Distance (Recognize) | 12.6m(41.3ft) | 12.6m(41.3ft) | ||||||
| DORI Distance (Identify) | 6.3m(20.7ft) | 6.3m(20.7ft) | ||||||
| Illuminator | ||||||||
| Supplemental Light | IR | IR | ||||||
| Illumination Distance (IR) | 30 m (98.4 ft) | 30 m (98.4 ft) | ||||||
| IR On/Off Control | Auto/Manual | Auto/Manual | ||||||
| Wavelength | 850 nm | 850 nm | ||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | Baseline profile, Main profile, High profile | ||||||
| Frame Rate | Main Stream:4MP(2688*1520) ,Max 25fps; 4MP(2560*1440), Max 25fps; 3MP(2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720) Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
Main Stream:4MP(2688*1520) ,Max 25fps; 4MP(2560*1440), Max 25fps; 3MP(2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720) Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | 128 Kbps to 16 Mbps | ||||||
| U-code | Support | Support | ||||||
| OSD | Up to 8 OSDs | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 4 areas | Up to 4 areas | ||||||
| ROI | Support | Support | ||||||
| Video Stream | Triple Streams | Triple Streams | ||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | ||||||
| Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR | ||||||
| Smart IR | Support | Support | ||||||
| Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | ||||||
| Dewarping | N/A | N/A | ||||||
| HLC | Support | Support | ||||||
| BLC | Support | Support | ||||||
| Defog | Digital Defog | Digital Defog | ||||||
| Image Stabilization | N/A | N/A | ||||||
| Intelligent | ||||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | ||||||
| Statistical Analysis | N/A | N/A | ||||||
| Events | ||||||||
| Basic Detection | Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection | Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection | ||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | ||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | G.711U, G.711A | ||||||
| Audio Bitrate | 64 Kbps | 64 Kbps | ||||||
| Two-way Audio | Support | Support | ||||||
| Suppression | Support | Support | ||||||
| Sampling Rate | 8 kHz | 8 kHz | ||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | Micro SD, up to 512 GB | ||||||
| Network Storage | ANR, NAS (NFS) | ANR, NAS (NFS) | ||||||
| Network | ||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | Up to 32 users. 3 user levels: administrator, common user and operator | ||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | ||||||
| Client | UNV-Link, UNV-Link Pro, EZStation | UNV-Link, UNV-Link Pro, EZStation | ||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | ||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | ||||||
| Alarm I/O | 1/1 | 1/1 | ||||||
| Serial Port | N/A | N/A | ||||||
| Built-in Mic | Built-in two mics | Built-in two mics | ||||||
| Built-in Speaker | N/A | N/A | ||||||
| WIFI | N/A | N/A | ||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | 1 × RJ45 10 M/100 M Base-TX Ethernet | ||||||
| Video Output | N/A | N/A | ||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
||||||
| Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||||||
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) |
IP67 (IEC 60529) IK10 (IEC 62262) |
||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power Consumption | Max 9.1W | Max 9.1W | ||||||
| Power Interface | Ø5.5 mm coaxial power plug | Ø5.5 mm coaxial power plug | ||||||
| Dimensions | 176×104×72mm (6.9€� × 4.1€™€™ ×2.8€�) (L x W x H) | 176×104×72mm (6.9€� × 4.1€™€™ ×2.8€�) (L x W x H) | ||||||
| Weight | 0.62kg(1.37lb) | 0.62kg(1.37lb) | ||||||
| Material | Metal | Metal | ||||||
| Working Environment | -30 „ƒ to 60 „ƒ (-22 „‰ to 140 „‰), Humidity: ‰¤ 95% RH (non-condensing) | -30 „ƒ to 60 „ƒ (-22 „‰ to 140 „‰), Humidity: ‰¤ 95% RH (non-condensing) | ||||||
| Storage Environment | -30 „ƒ to 60 „ƒ (-22 „‰ to 140 „‰), Humidity: ‰¤ 95% RH (non-condensing) | -30 „ƒ to 60 „ƒ (-22 „‰ to 140 „‰), Humidity: ‰¤ 95% RH (non-condensing) | ||||||
| Surge Protection | 4 KV | 4 KV | ||||||
| Reset Button | Support | Support | ||||||
| Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese | ||||||
